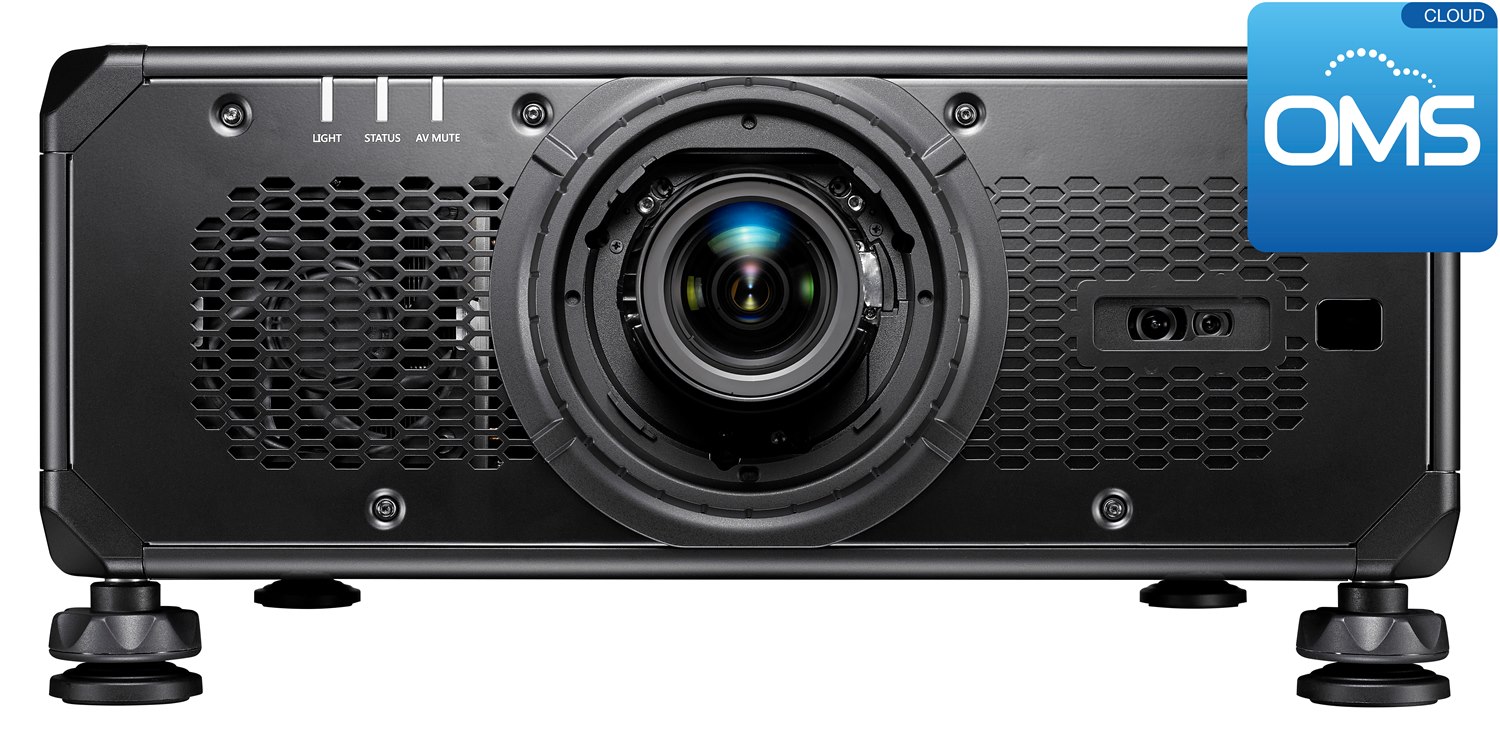

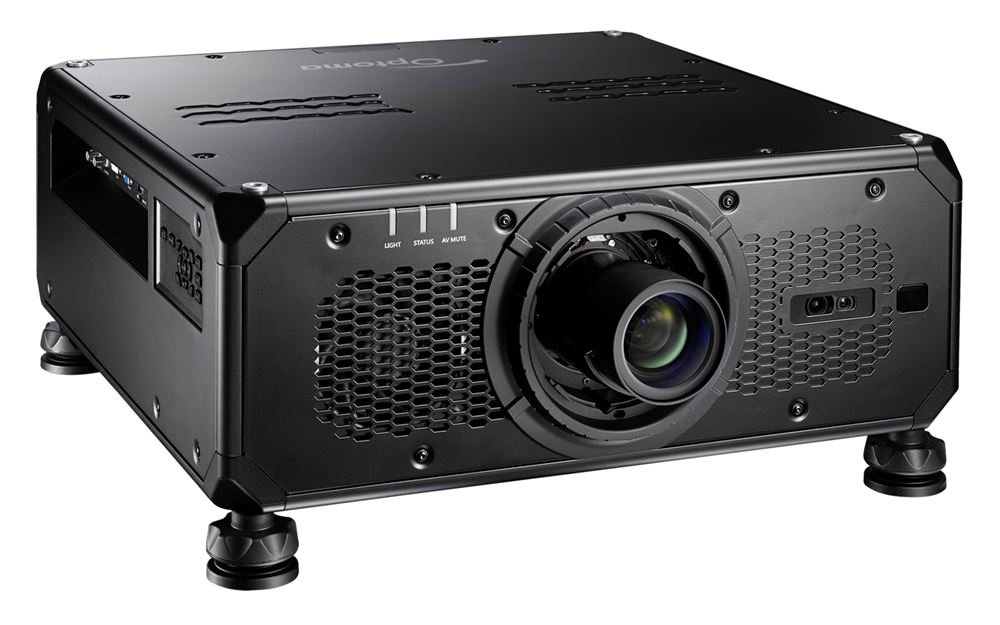

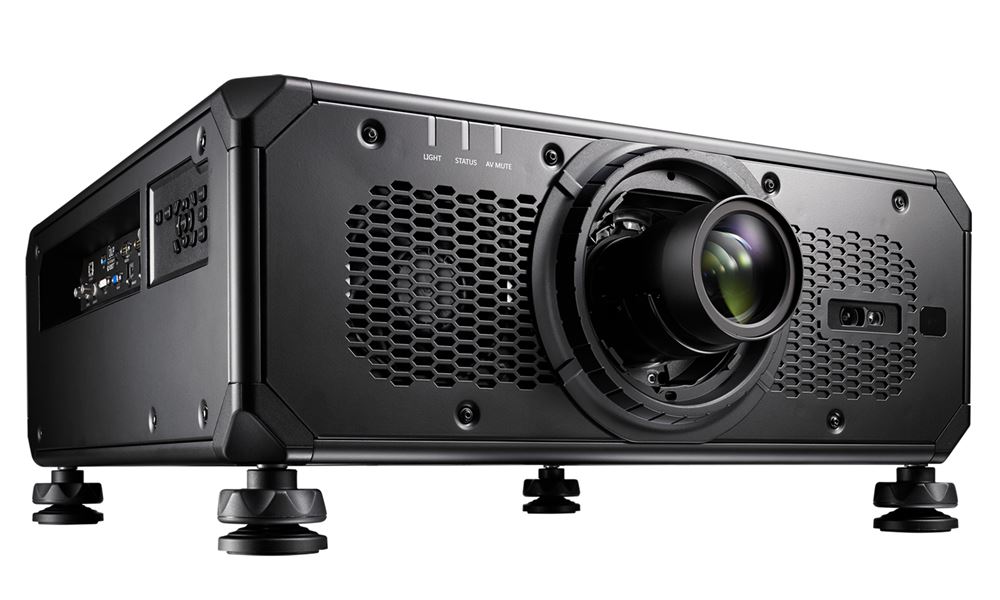

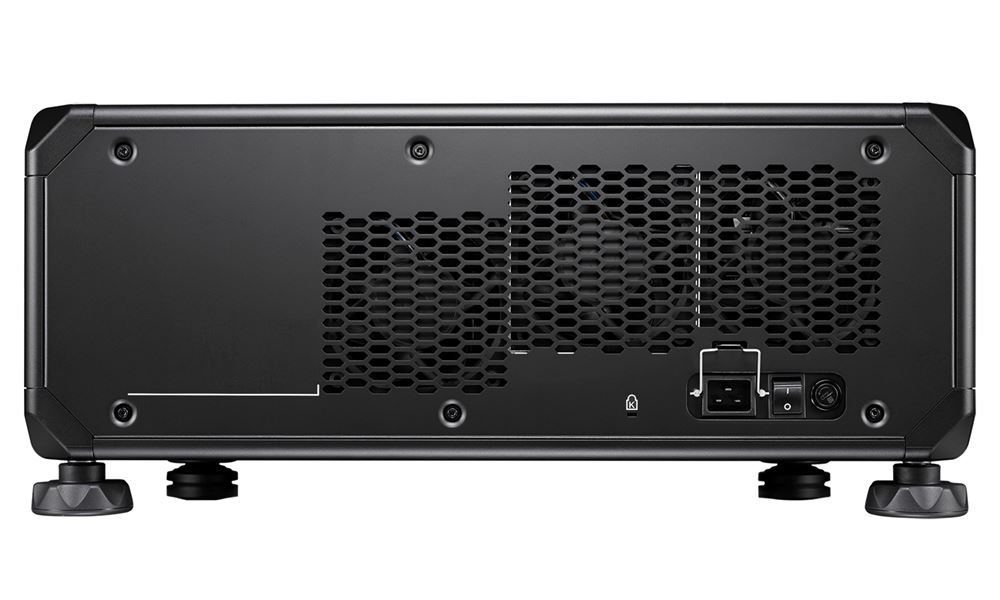

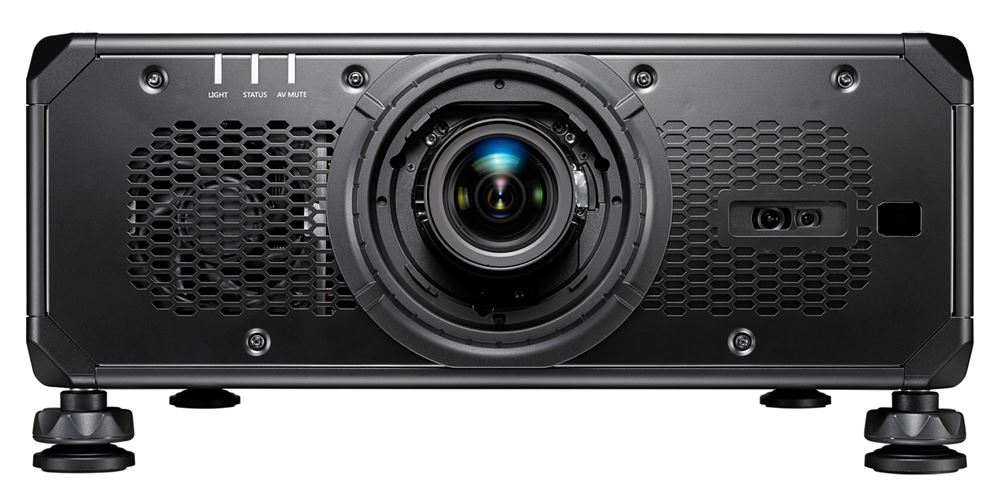

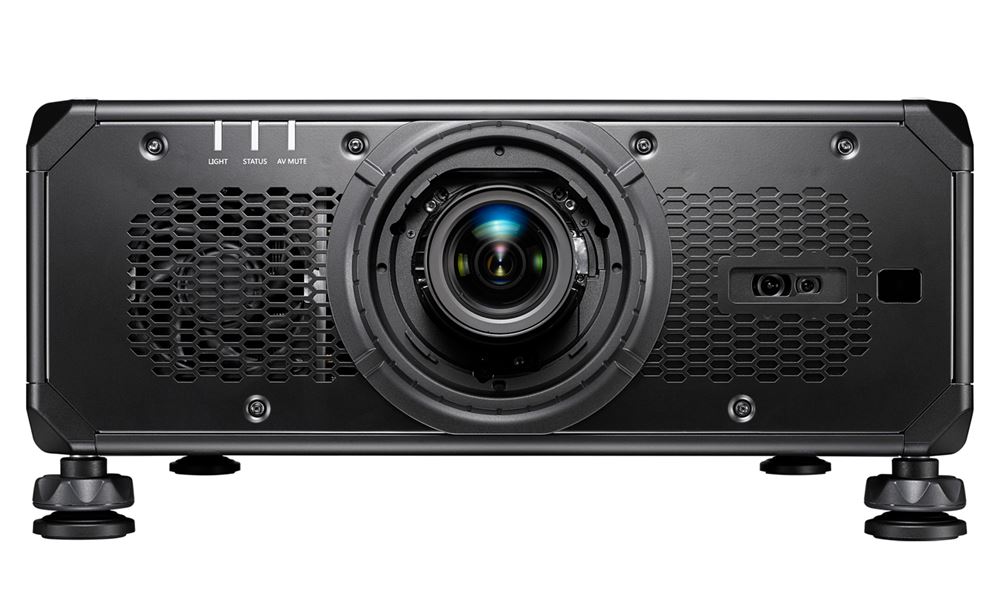

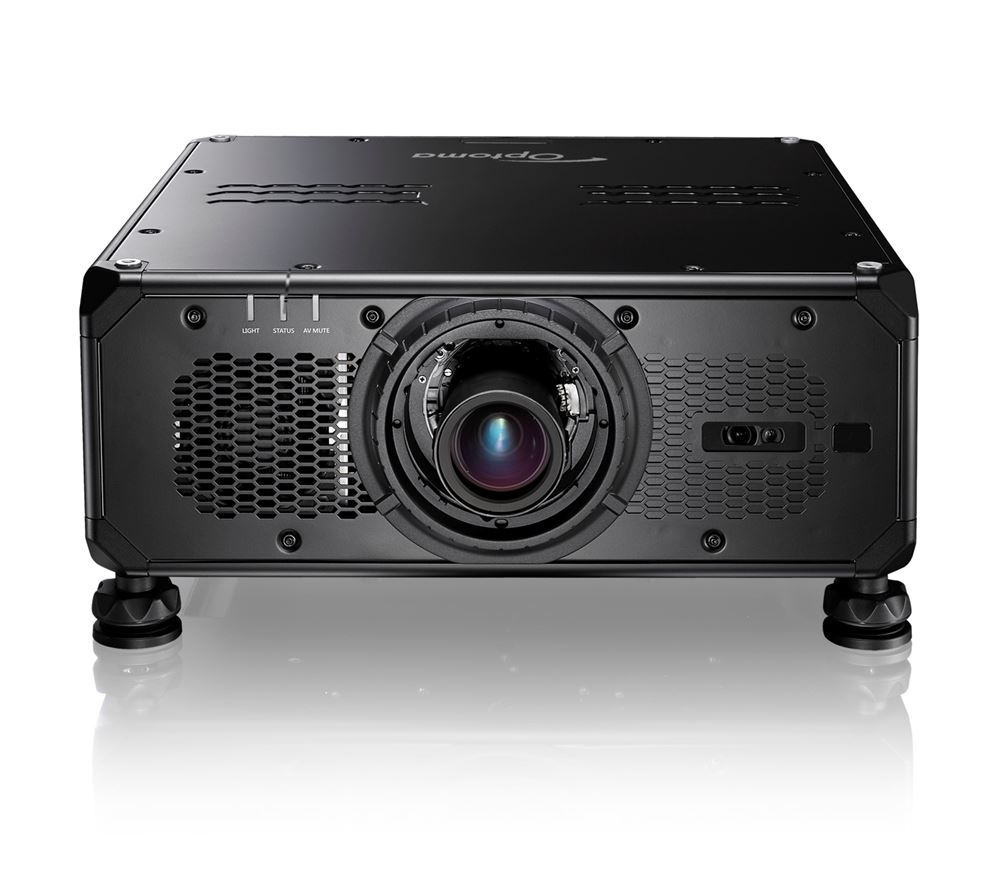

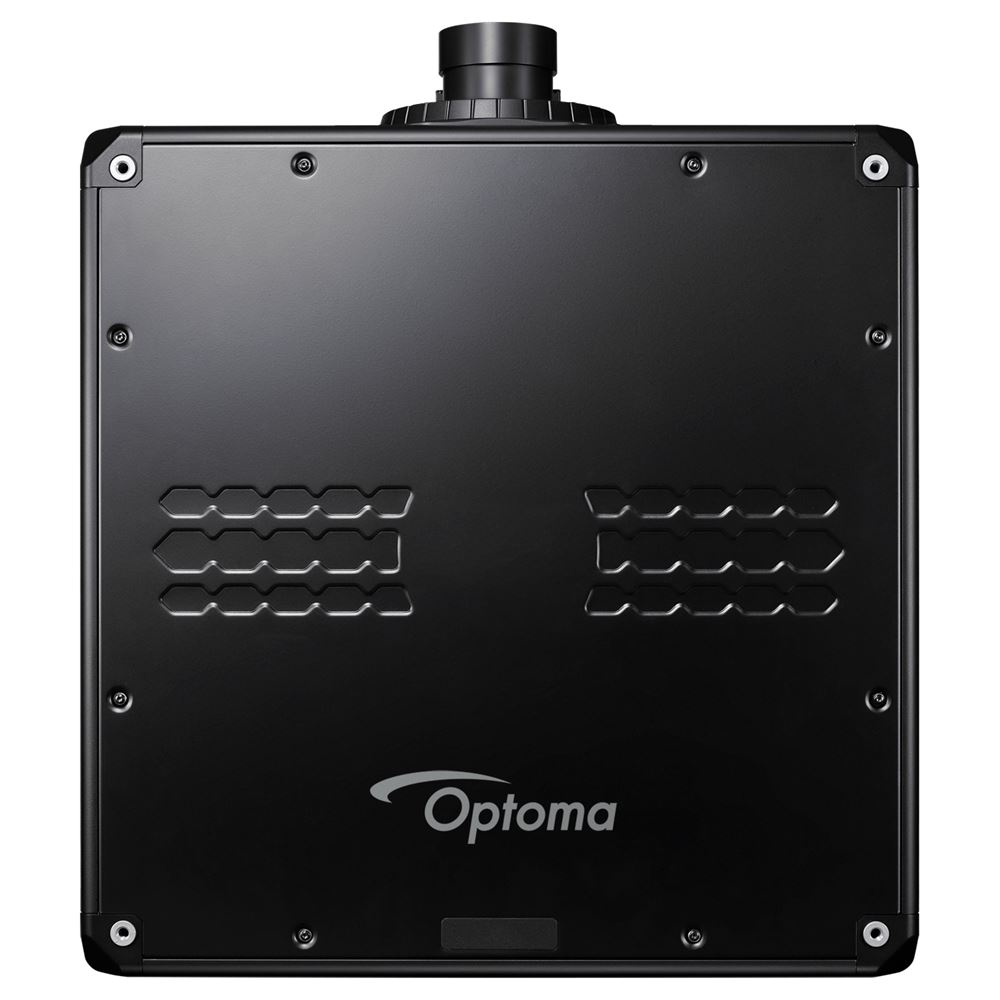

Optoma ProScene ZU2200

ProScene ZU2200

Ultra bright professional WUXGA laser projector

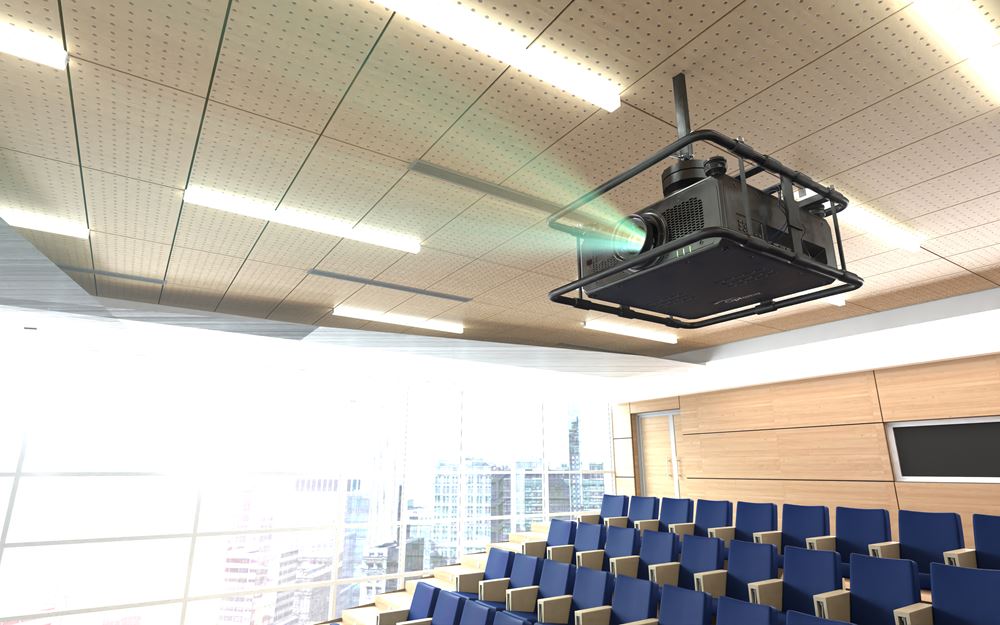

The high brightness ProScene ZU2200 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma’s Ultra Bright Series, this projector offers incredibly high brightness of 22,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.

As part of the Optoma DuraCore laser line up, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing and color matching to produce visually striking, lifelike images with exceptional detail and high color accuracy. Additionally, the ZU2200 achieves superior color rendition through MultiColor Laser (MCL) technology.

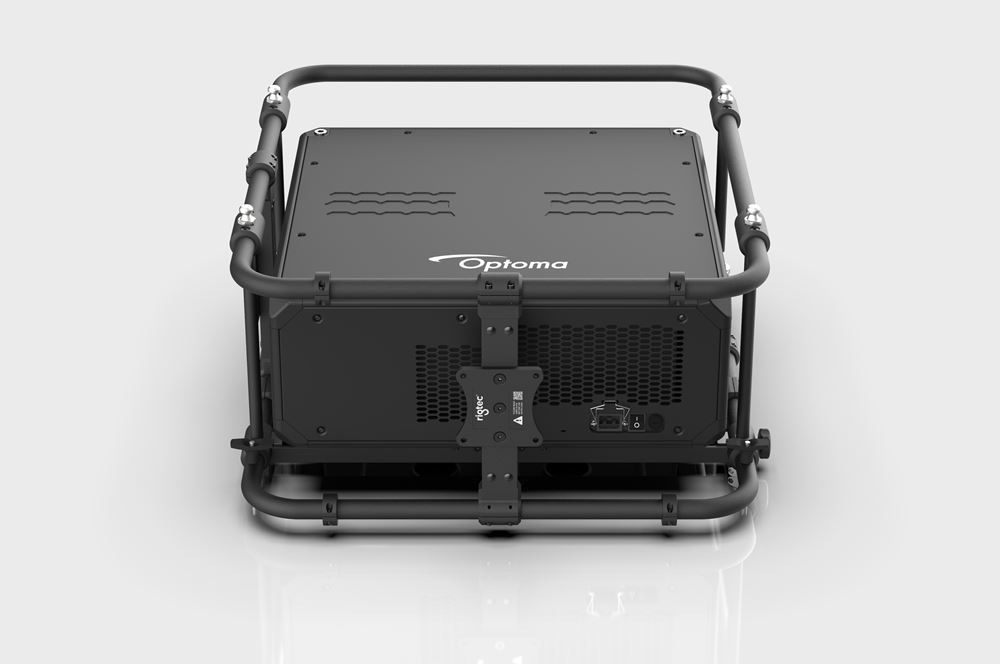

Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multi-projector and dome projection applications.
ProScene ZU2200

Features

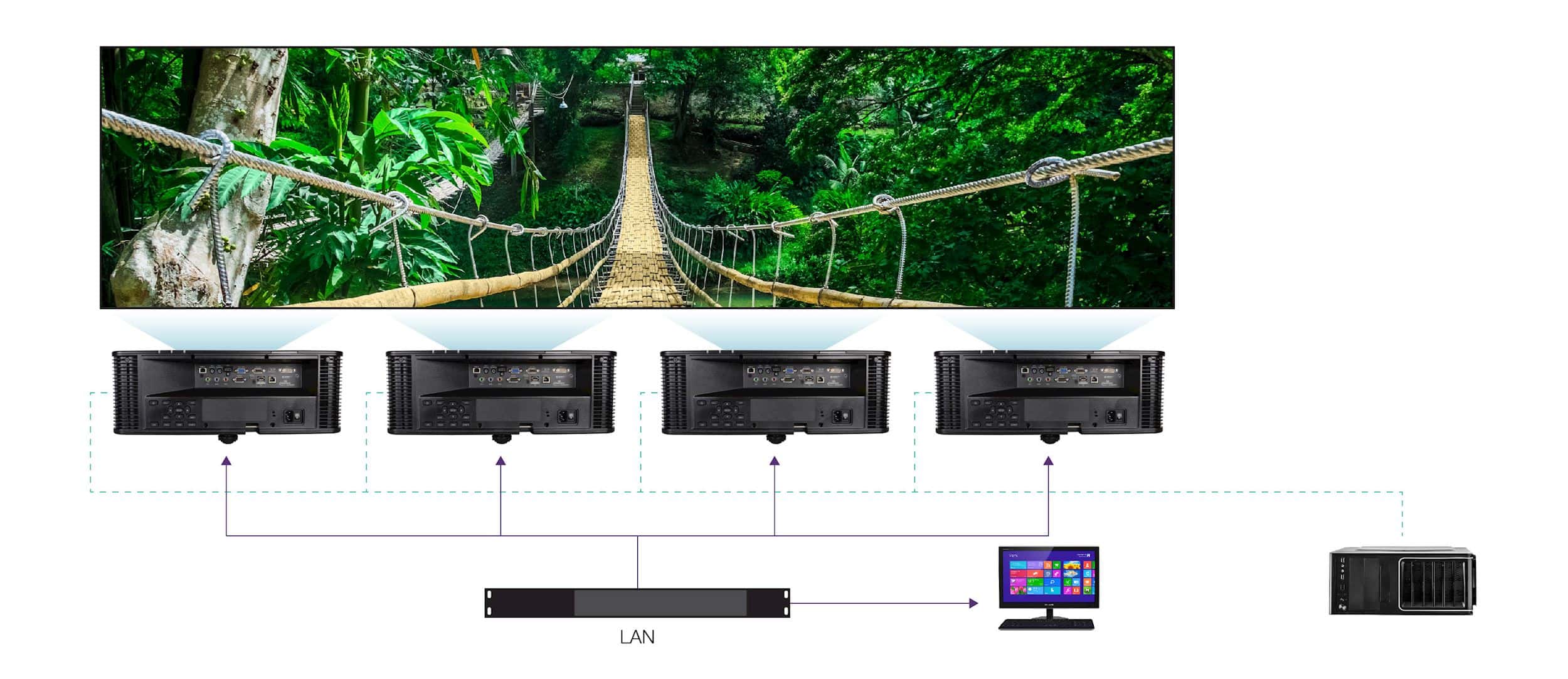

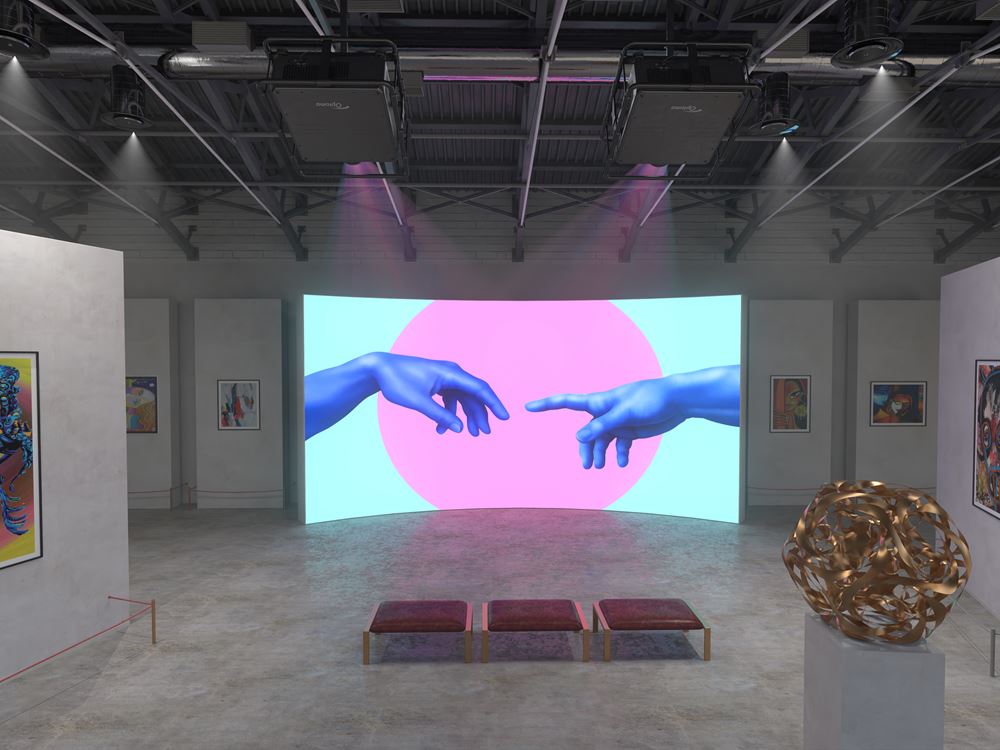

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Compatible multi output graphics card with overlap function is required.*

Passive 3D compatibility

Passive 3D is now available on single chip DLP laser Phosphor projectors. Thanks to the high efficiency light output, these models enable effective 3D solutions for operators to reduce total cost of ownership.

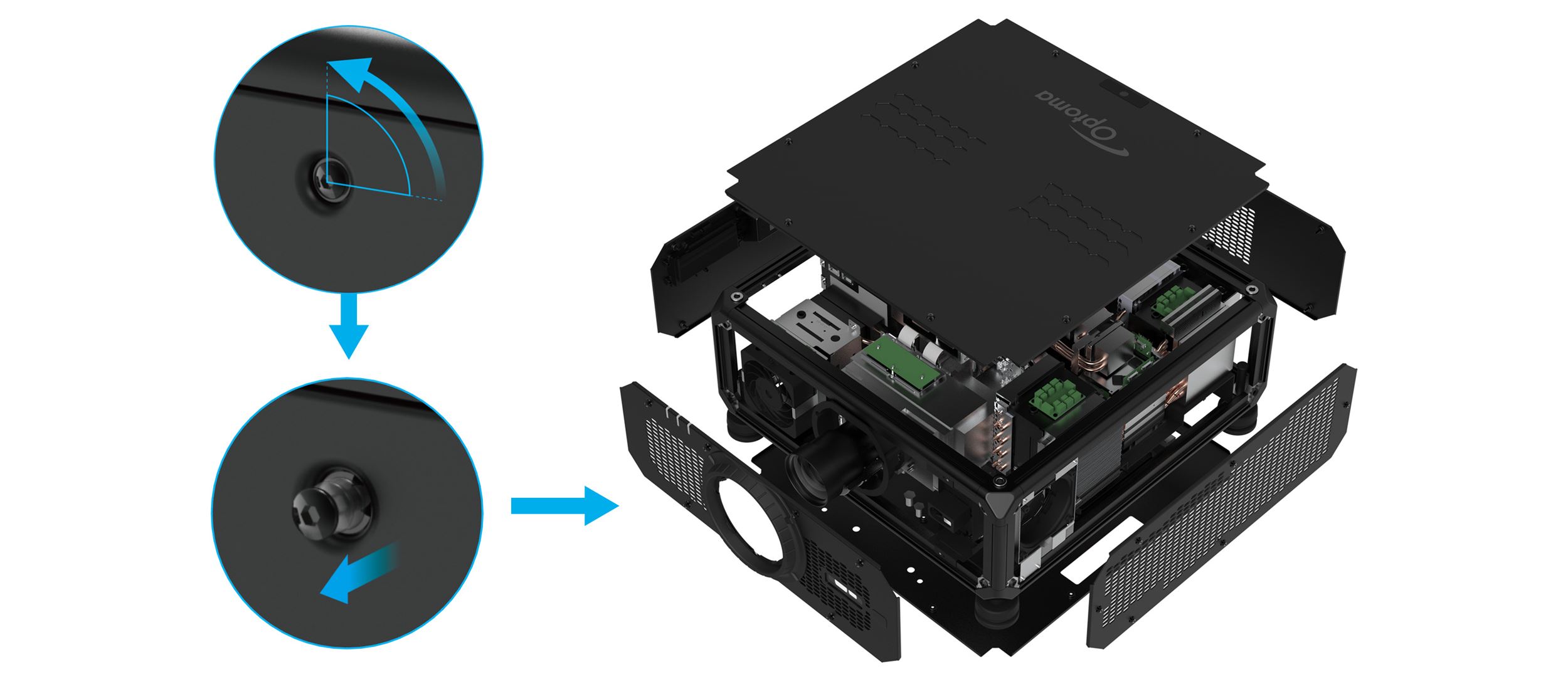

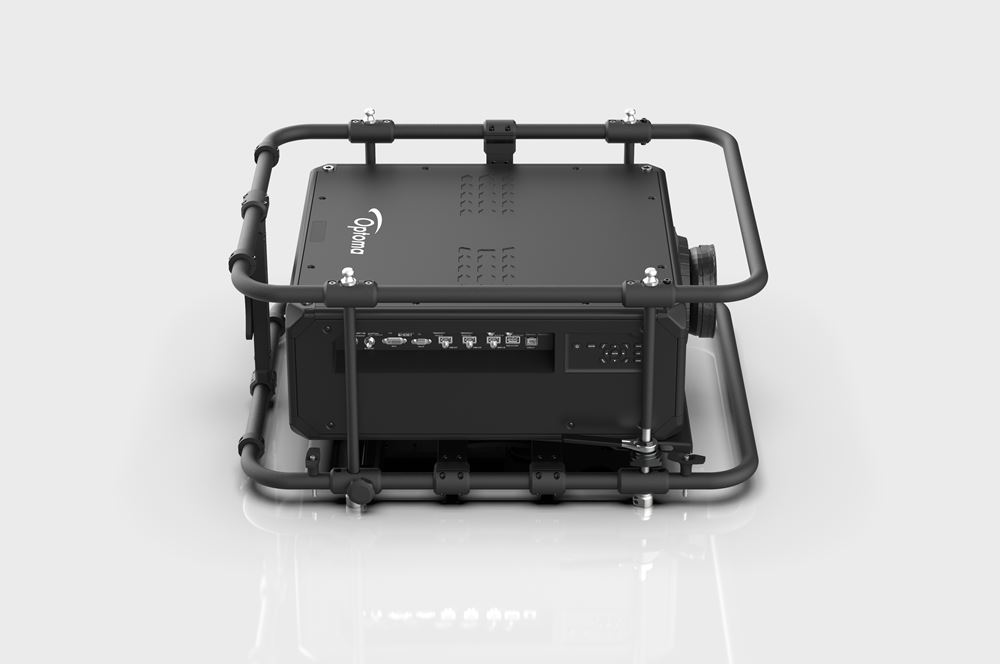

Metal chassis with modular design

Modular metal chassis panels and quick release screws make routine maintenance easier than ever.

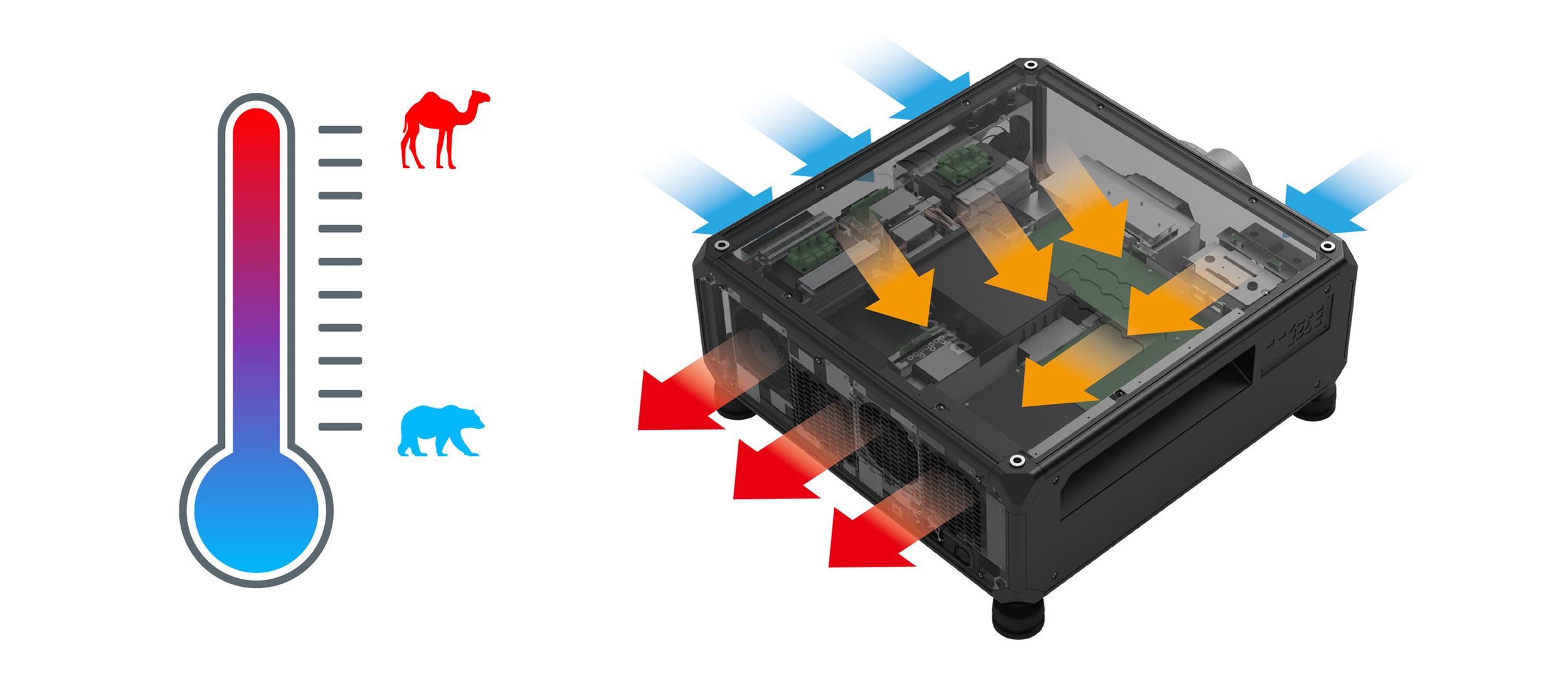

Wide temperature operating range

Suitable for various operating environments. Robust and efficient cooling design allow the projector the ability to withstand an ambient operating temperature range of 0~122°F

Auto Color Uniformity

Providing a quick, hassle free and more convenient setup; you can enjoy accurate color uniformity in a matter of seconds with the super-fast camera based auto color uniformity feature.

*The auto color uniformity feature is compatible with image sizes up to 300"

Auto focus (AF)

Providing a quick, hassle free and more convenient setup; you can enjoy a crystal clear image in a matter of seconds with the super-fast camera based auto focus.

*Auto focus is compatible with image sizes up to 300"

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Picture by picture picture-in-picture

Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual
  • Portrait projection

    Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

    IP5X Dust resistant optical engine

    Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

    Telnet

    This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems

    PJLink

    PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Multicolor Laser

    Innovative Multicolor Laser (MCL) technology adds a second red laser to the common blue laser. This results in greatly improved color performance.
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    WUXGA (1920x1200)
    Brightness
    22,000 lumens
    ANSI brightness
    18,500
    Contrast ratio
    2,000,000:1
    Native aspect ratio
    16:10
    Aspect ratio - compatible
    16:9, 16:10, 4:3
    Screen size
    Dependent on lens
    Light source type
    DuraCore MultiColor Laser
    LASER life
    30,000 hours
    Throw ratio
    Dependent on lens
    Projection distance
    Dependent on lens

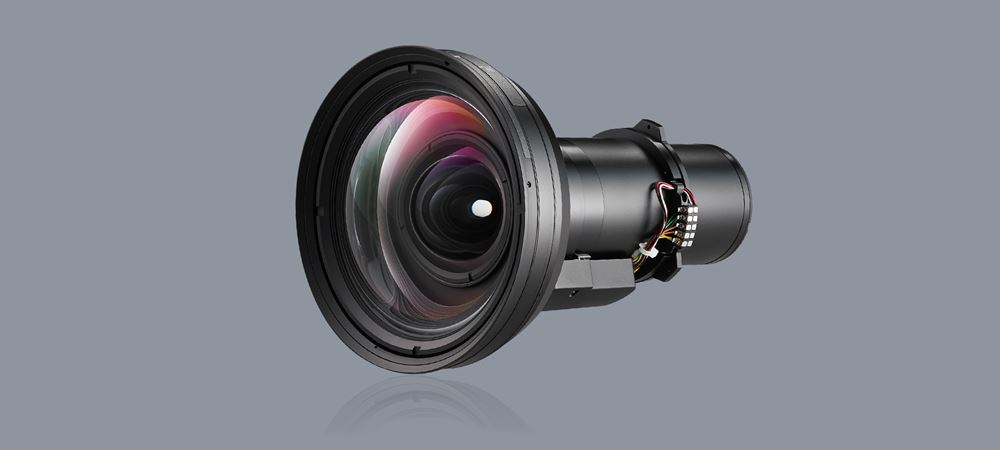

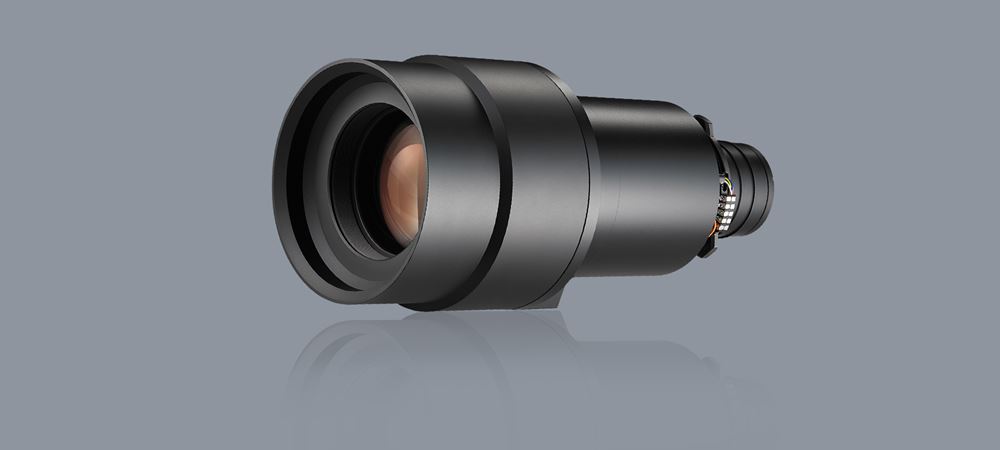

    Lens options
    BX-CTA11: 0.65 ~ 0.75:1
    BX-CTA12: 0.75 ~ 1.08:1
    BX-CTA18: 0.84 ~ 1.02:1
    BX-CTA19: 1.02 ~ 1.36:1
    BX-CTA20: 1.2 ~ 1.5:1
    BX-CTA21: 1.5 ~ 2.0:1
    BX-CTA22: 2.0 ~ 4.0:1
    BX-CTA23: 4.0 ~ 7.2:1
    BX-CTA27: 7.2 ~ 10.8:1

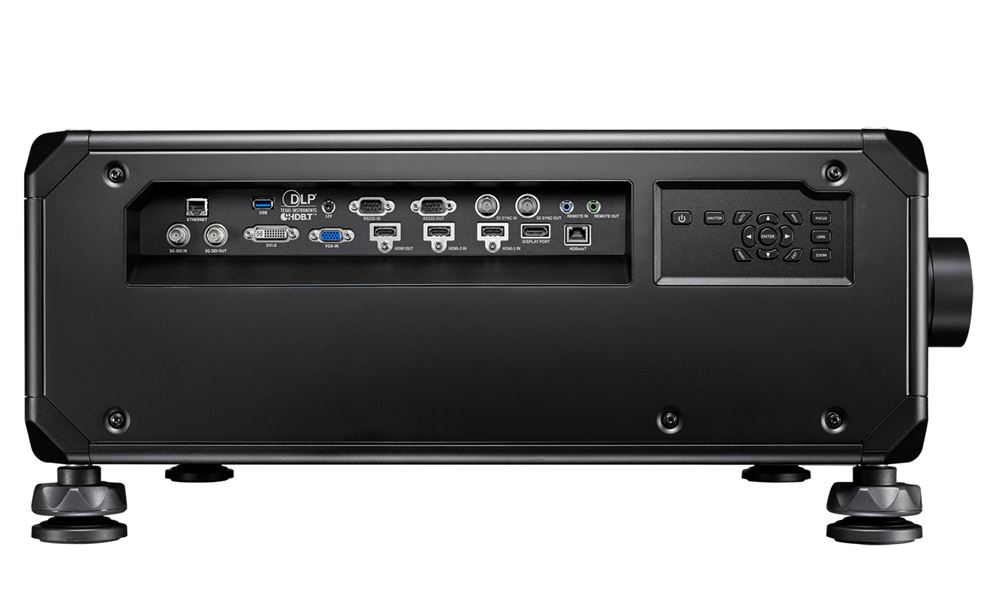

    Inputs
    1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI, 1 x Wired remote
    Outputs
    1 x 3D sync, 1 x HDMI, 1 x 3G-SDI, 1 x 12V trigger
    Control
    1 x RJ45, 1 x RS232, 1 x USB-A service
    Noise level (min)
    38dB
    Noise level (max)
    40dB
    3D
    Full 3D
    IP rating
    IP5X
    OSD / display languages
    11 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
    24/7 operation
    Yes
    360° operation
    Yes
    Operating conditions
    Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing

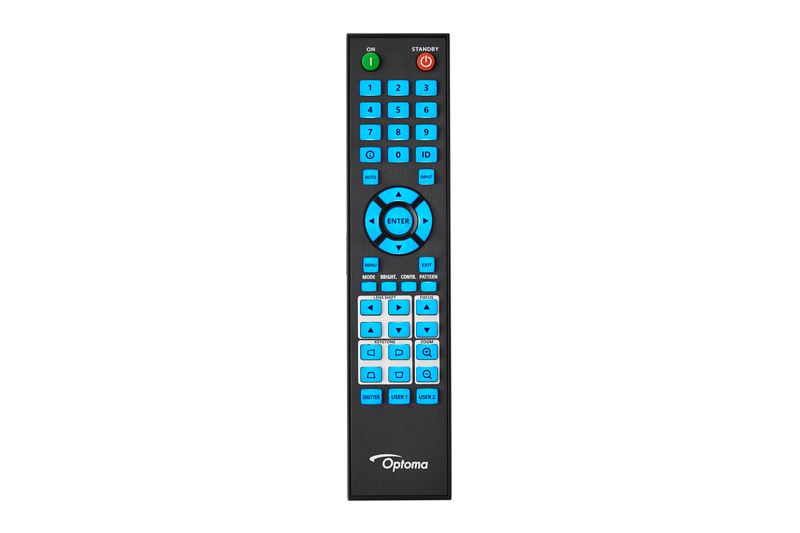

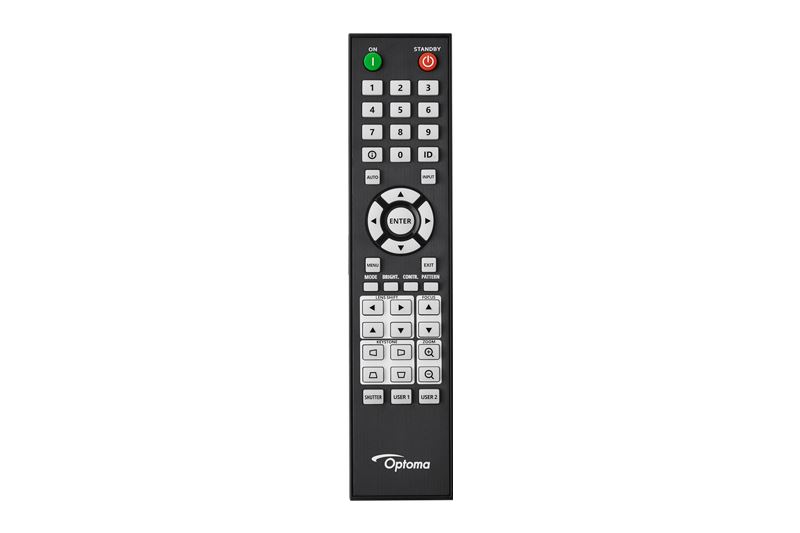

    Remote control
    Backlit ProAV remote
    LAN - display
    Yes
    LAN - wireless networking
    No
    LAN
    Yes
    Power supply
    AC 100–240 V @ 50/60 Hz
    Power consumption (standby)
    0.5W
    Power consumption (min)
    590W
    Power consumption (max)
    1,200W
    Dimensions (W x D x H)
    25.59" x 26.85" x 11.84"
    Gross weight
    146.61 lbs
    Net weight
    119.05 lbs
    UPC
    796435 44 554 6
