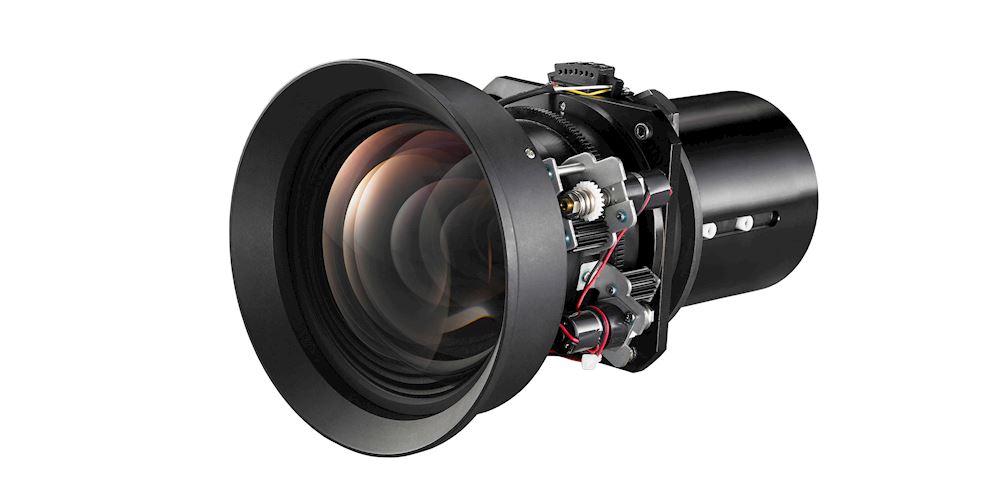

BX-CTA19

Motorized Wide Zoom Lens

The BX-CTA19 motorized zoom lens is ideal for a variety of rental and permanent install applications, such as within the entertainment or museum sectors. This lens has a throw ratio of 1.02 ~ 1.36:1 and can produce image sizes from 50" up to 1000".

Designed for use with Optoma ZU1700, ZU1900, ZU2200 Ultra Bright DuraCore laser projectors

Features

Specification
General
Net weight
3.68 lbs
Gross weight
4.78 lbs
UPC
796435 07 115 8
Lens
Throw ratio (min)
1.02
Throw ratio (max)
1.36
Min throw distance (feet)
3.61
Max throw distance (feet)
47.97
f-stop (min)
2
f-stop (max)
2.3
Focal length (mm)
21.5 ~ 28.7
Min screen size (inch)
50
Max screen size (inch)
1,000
Zoom type
Motorised
Zoom
1.33x
Motorised lens
Yes
Downloads
