BX-CTA23

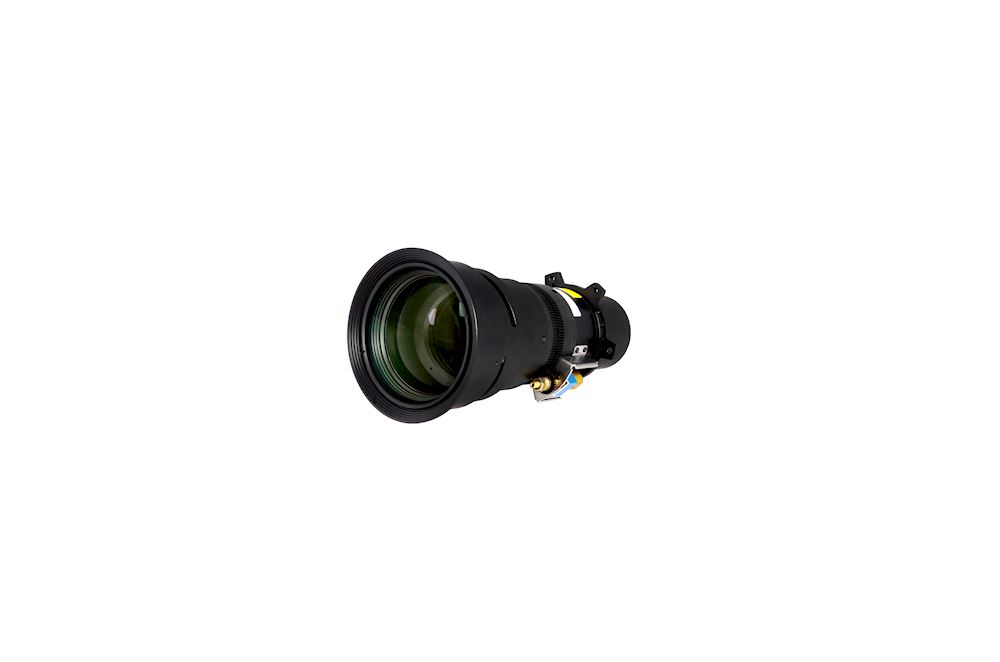

Ultra Long throw Motorized Zoom Lens with 1.8x Zoom

The BX-CTA23 ultra long throw lens is ideal for distance installations and live venue entertainment requiring a long distance from projector to screen. This lens produces images ranging in size from 50" up to 500".

Designed for use with Optoma ZK1320 and ZK1120 4K UHD+ projectors, as well as ZU2200, ZU1900, and ZU1700 Ultra Bright laser projectors.

Features

Specification
General
Net weight
3.68 lbs
Gross weight
4.78 lbs
UPC
796435 07 120 2
Lens
Throw ratio (ZK1320/ZK1120)
4.8 ~ 8.64:1
Throw ratio (UB Series WUXGA)
4 ~ 7.2:1
Min throw distance (feet)
14.11
Max throw distance (feet)
253.94
f-stop (min)
2.3
f-stop (max)
2.6
Focal length (mm)
84.1 ~ 149.8
Min screen size (inch)
50
Max screen size (inch)
1,000
Zoom
1.8x
Motorised lens
Yes
