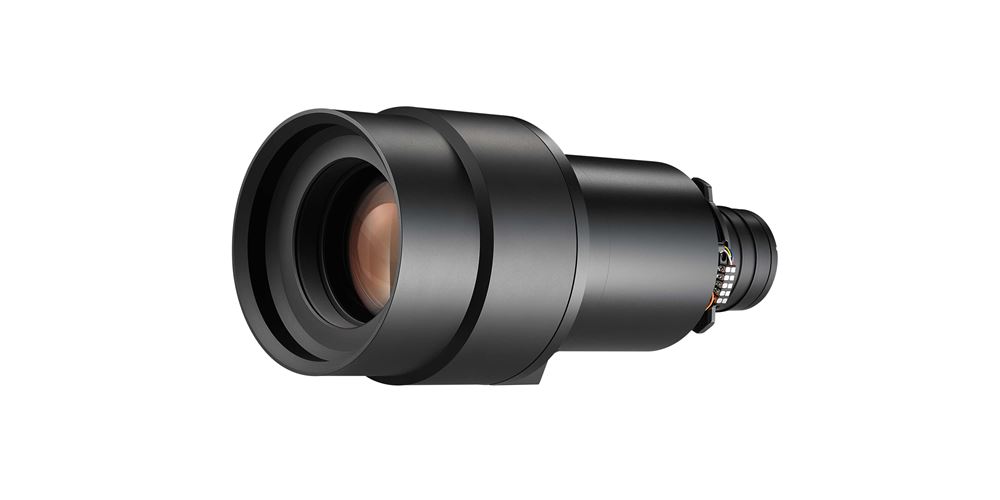

BX-CTA27

Extreme Long throw Motorized Zoom Lens

Optoma's longest throw lens, the BX-CTA27 Extreme long throw lens is ideal for distance installations and large venue entertainment requiring an extra long distance from projector to screen. This lens has a throw ratio of 7.2 ~ 10.8:1 and can produce an image size from 50" up to 1000"

Designed for use with Optoma ZU2200, ZU1900, and ZU1700 DuraCore laser projectors

Features

Specification
General
Net weight
8.82 lbs
Gross weight
10.93 lbs
UPC
796435 07 145 5
Lens
Throw ratio (min)
7.2
Throw ratio (max)
10.8
Min throw distance (feet)
25.59
Max throw distance (feet)
763.12
f-stop (min)
2.4
f-stop (max)
3.1
Focal length (mm)
150.9 ~ 226.4
Min screen size (inch)
50
Max screen size (inch)
1,000
Zoom type
Motorised
Zoom
1.5x
Motorised lens
Yes
