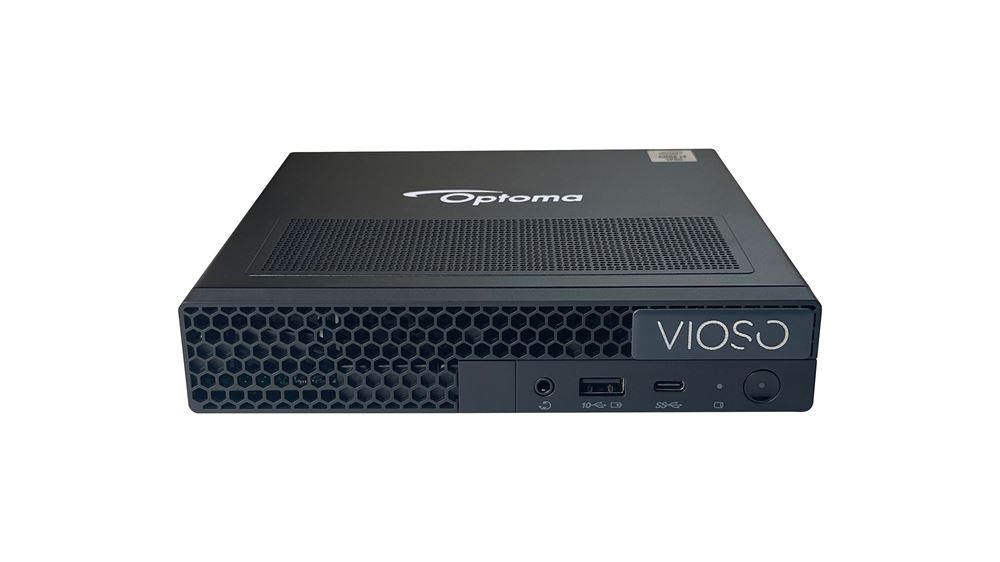

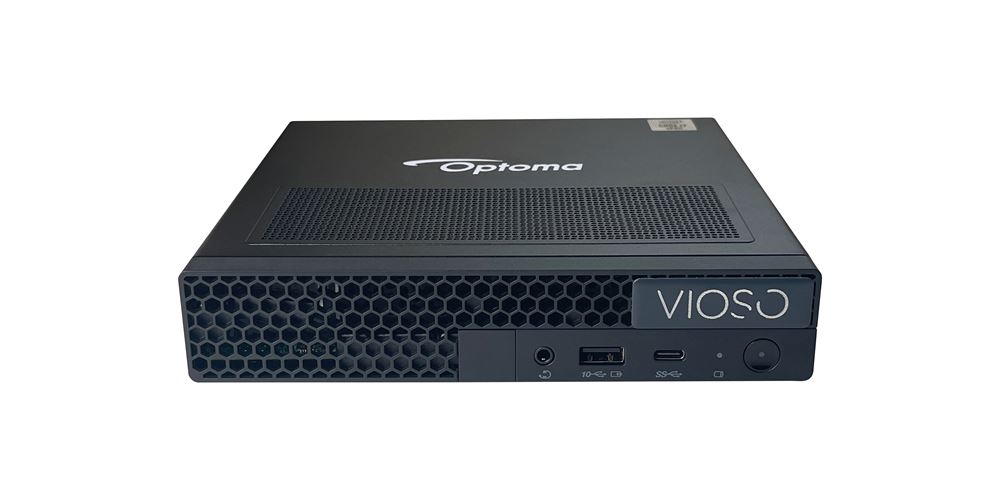

VIOSO Nano 6

All-in-one content playback, warping and edge blending solution

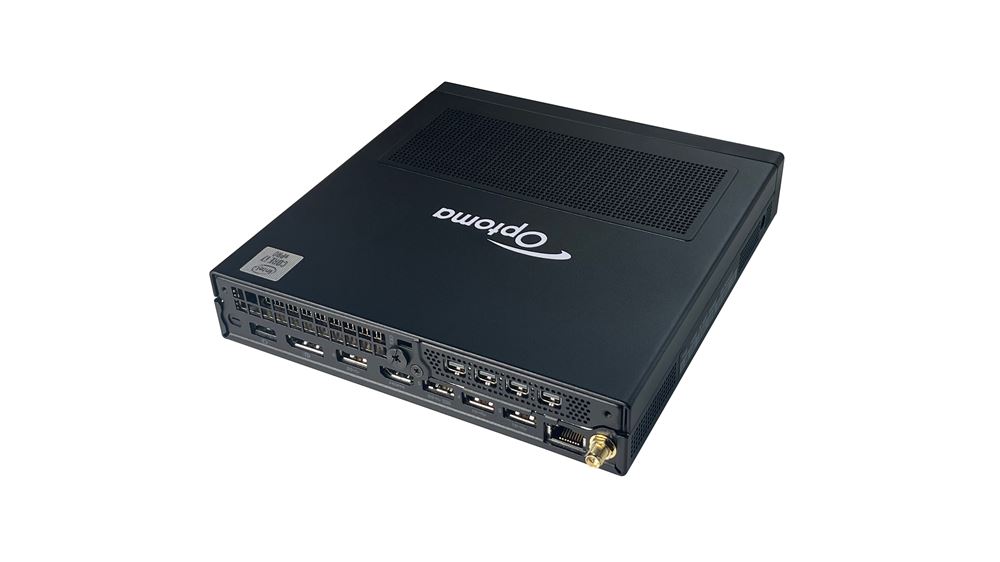

The VIOSO Nano 6 has a small footprint about the size of a sheet of paper, but incorporates a highly powerful feature set including Intel i5 processor and NVIDIA QUADRO graphics. It is ideal for a multi-projector installation where powerful edge-blending, warping and content playback are required from one compact package.

It supports the use of a simple USB camera for auto-blending of projectors using the famous patented VIOSO auto-alignment technology. For more advanced setups, IP network cameras that provide greater flexibility are optionally available.

The VIOSO Nano 6 features mini-display port output connectors. Adapters are available from third party providers and are not included as standard.

Features

Powered by VIOSO

Powered by VIOSO the market leaders in multi projector alignment solutions the Optoma Nano is a simple to use all-in-one content playback, warping and edge blending solution.

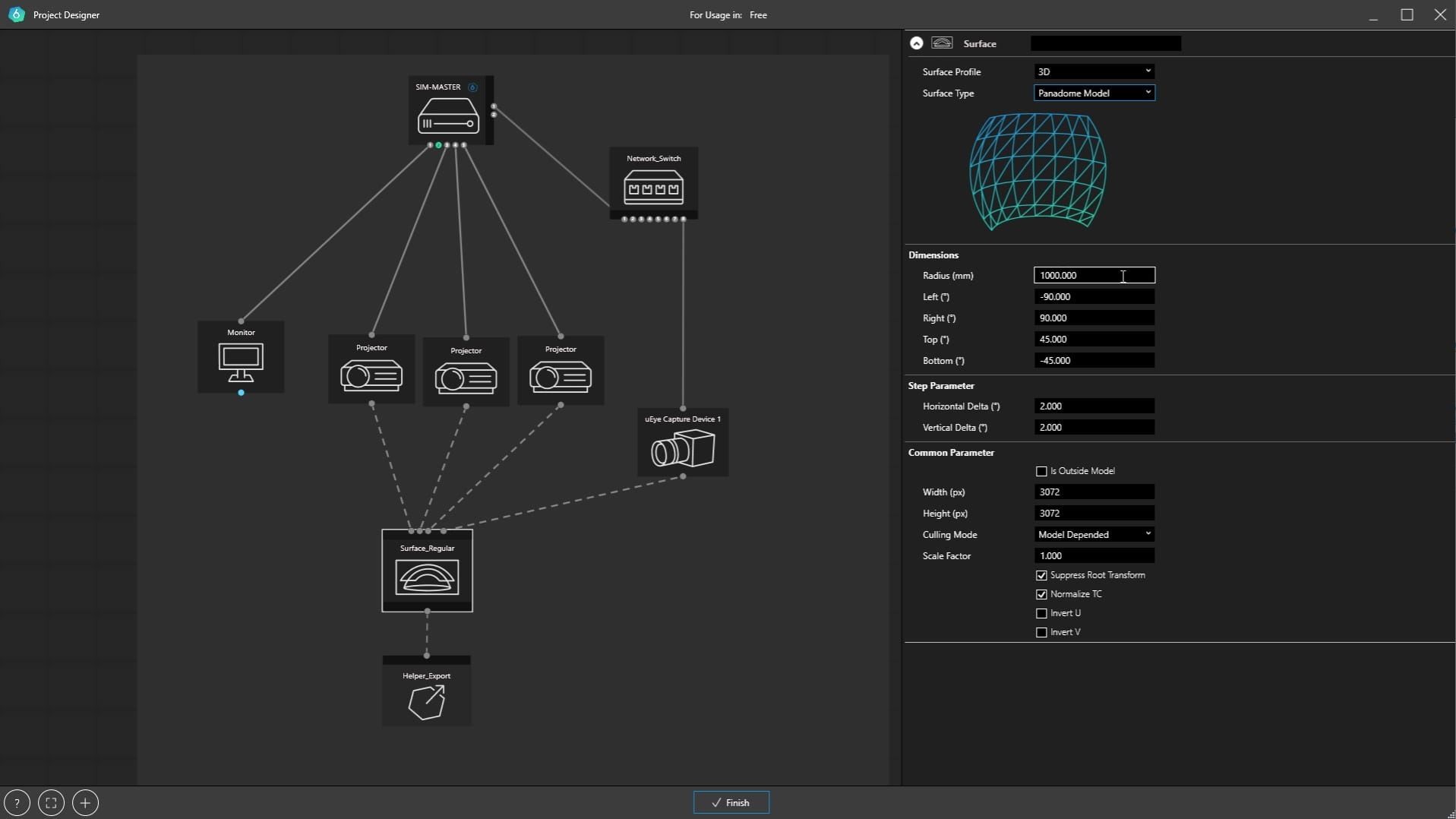

Patented projector auto-alignment & calibration

Using VIOSO patented auto alignment technology - you will be able to set up even the most complex projection scenarios within minutes. Support is included for flat screens, domes, curved screens and irregular surfaces. Auto alignment and calibration can be acheived using a simple USB webcam, but fisheye and widescreen networked cameras for more complex installations are also supported.

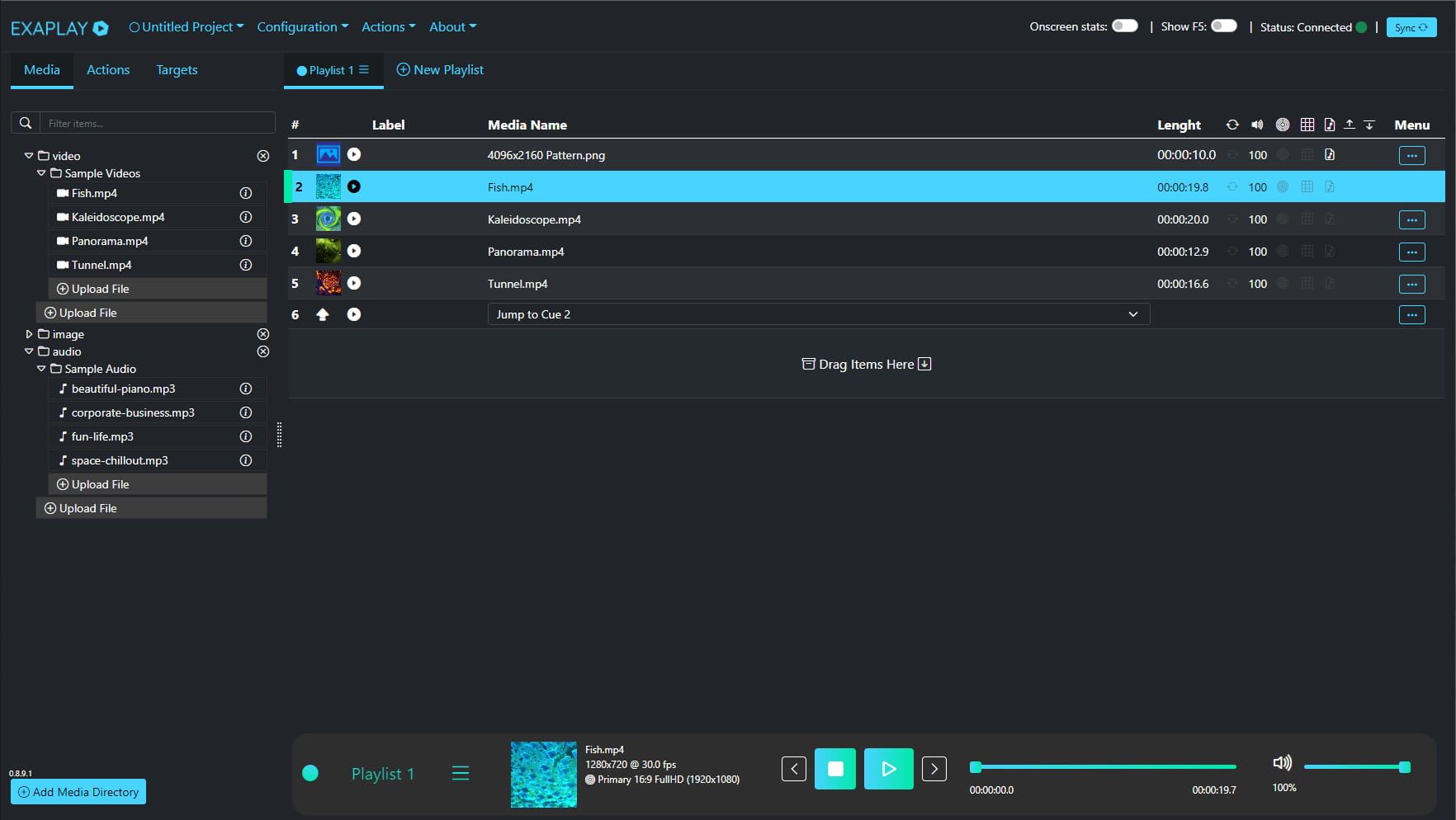

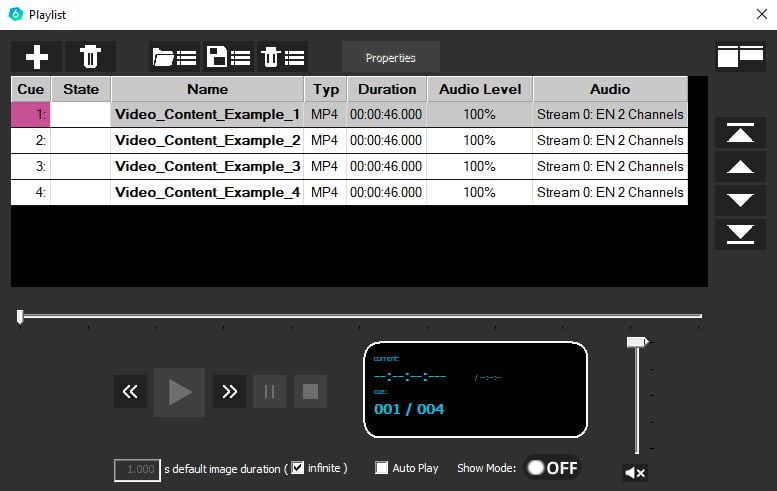

Integrated content playback

The built-in content playback suite supports over 50 different video & image formats, including high-res HEVC and a Playlist and watchdog function to keep you in control of your playback at all times.

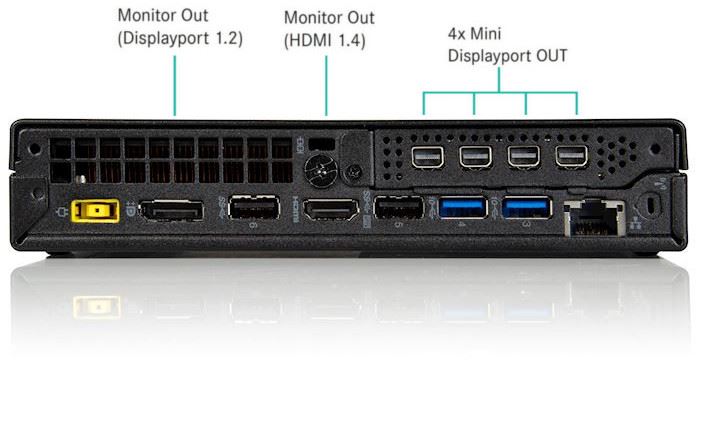

Multichannel display output

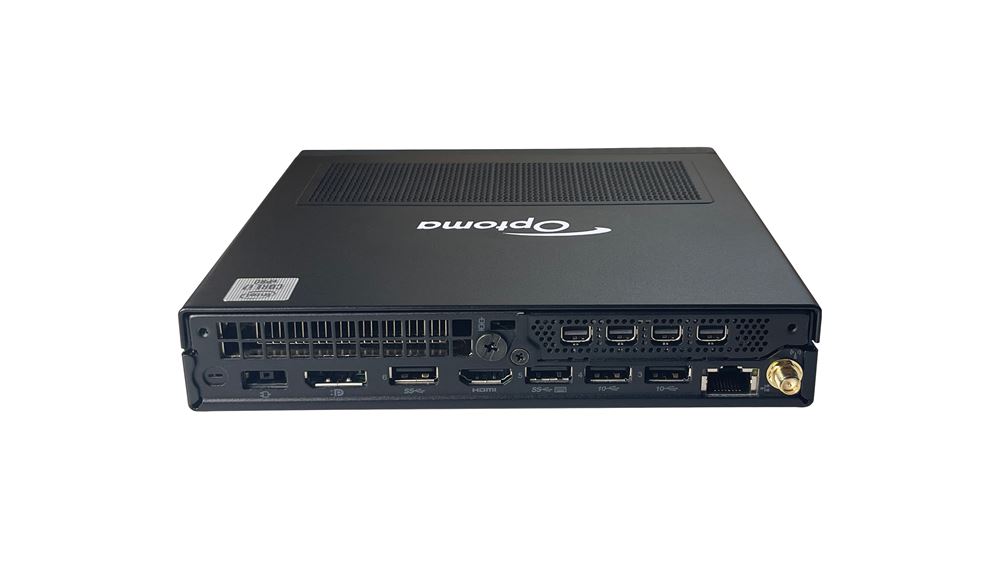

Optoma Nano features 4x Mini DisplayPort outputs for connection to projectors. An HDMI and standard DisplayPort connector are included for monitoring and setup purposes.

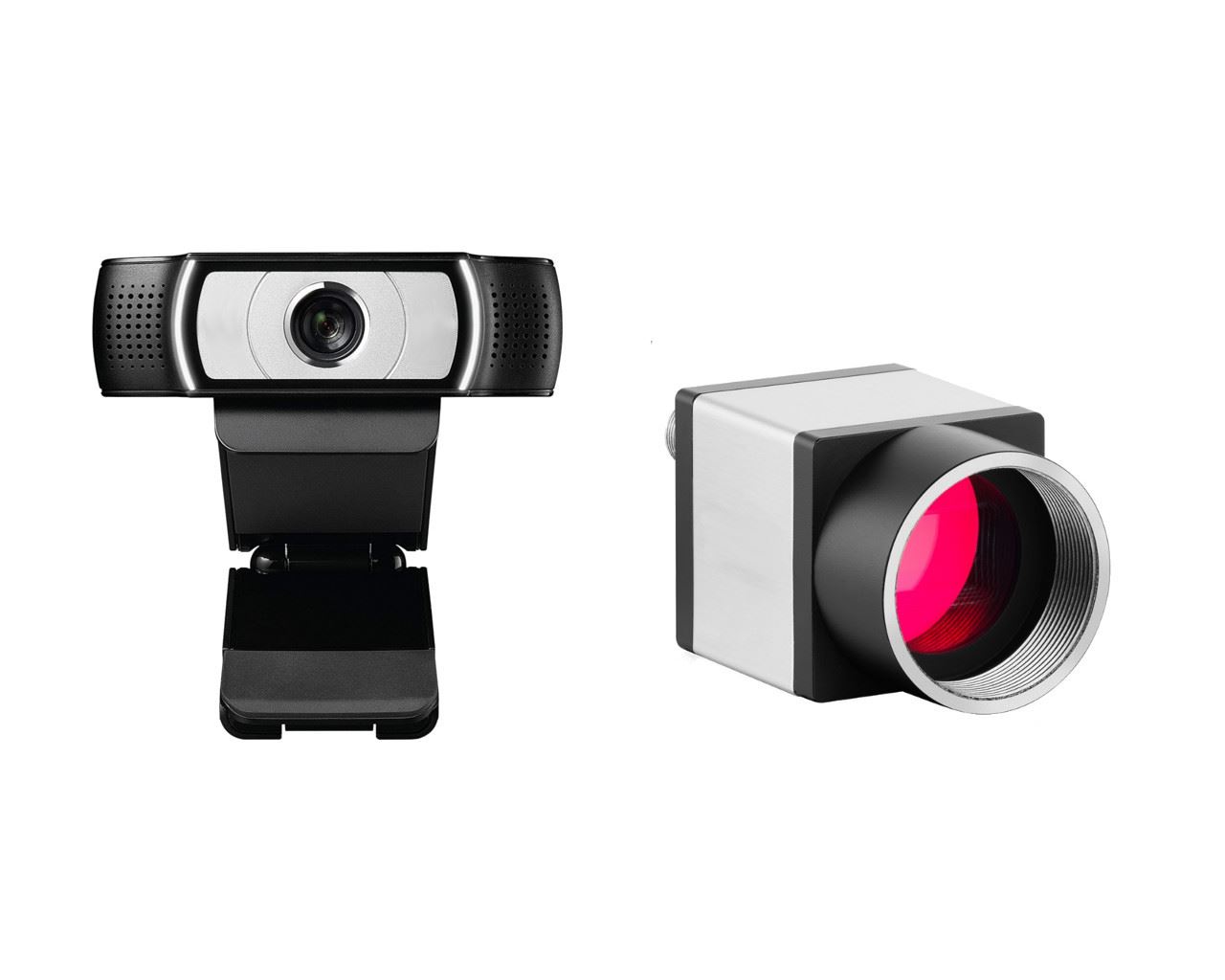

Various camera options supported

Depending on the installation environment different camera models may be required for successful auto calibration completion. Optoma Nano supports a variety of USB webcams or industrial network cameras with different lens options. Contact us for recommendations on which camera is suitable for your project.

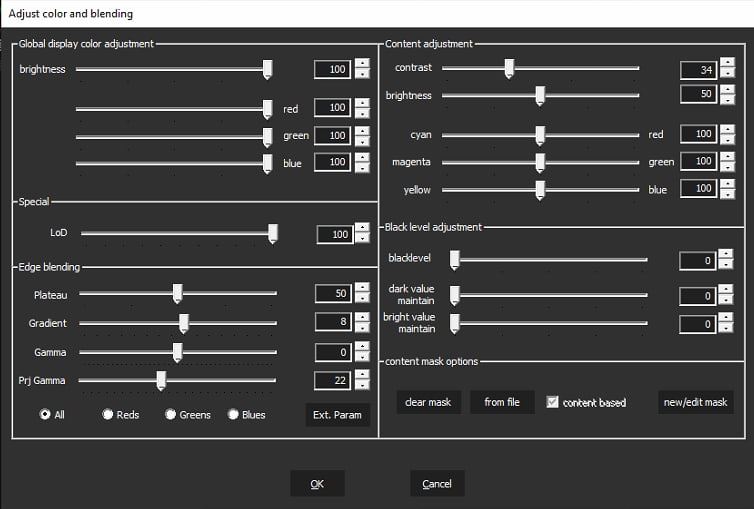

Masking and color correction

Optoma Nano features advanced projector masking and color correction for the perfect image.

Network control

Content on Optoma Nano can be controlled using TCP or UDP commands or Via an HTTP web interface to perfectly integrate within your project.
Specification
General
Dimensions (W x D x H)
7.1" x 7.2" x 1.4"
Power supply
100~240v 1.5A 50~60hz
Connections
Inputs 1 x Mic 3.5mmOutputs 4 x Mini DisplayPort, 1 x DisplayPort, 1 x HDMI, 1 x Audio 3.5mmControl 1 x RJ45, 1 x USB-C, 5 x USB-A
In the box
VIOSO Nano 6, Carry case, Power Adapter
Flight case dimensions
11.89" x 11.85" x 4.72"mm
Net weight
2.87 lbs
Gross weight
8.38 lbs
System
Processor
Intel Core i5, 6/12 Cores, 2.0/3.6 GHz Base/Turbo freq.
Memory
8GB DDR4 2400 MHz
Operating system
Windows 10 Pro 64
GPU
Intel UHD Graphics 630 (for monitoring) NVIDIA Quadro P620 (for projectors)
Storage
256 GB M.2-SSD, PCIe
Security
Kensington Lock
