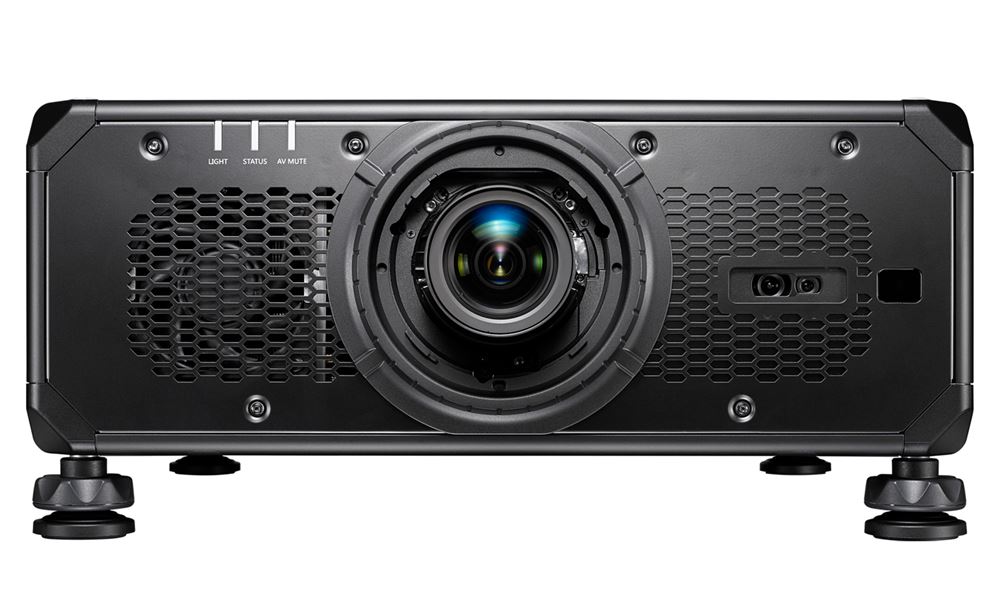

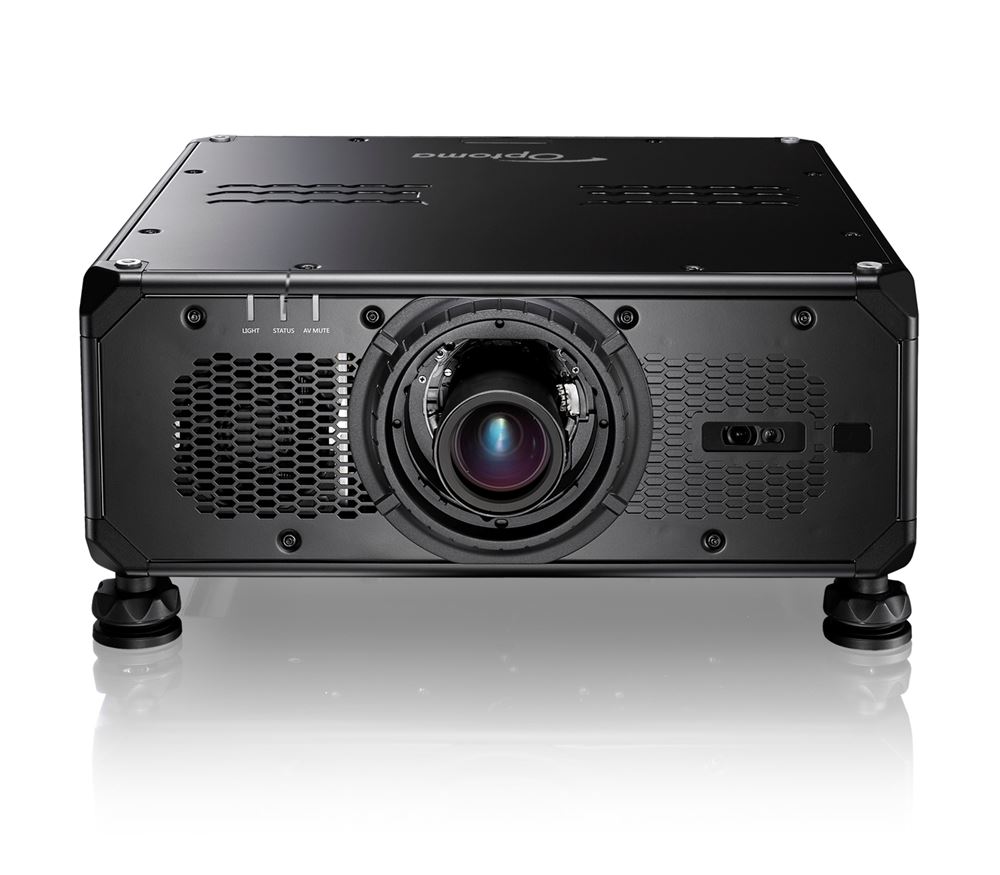

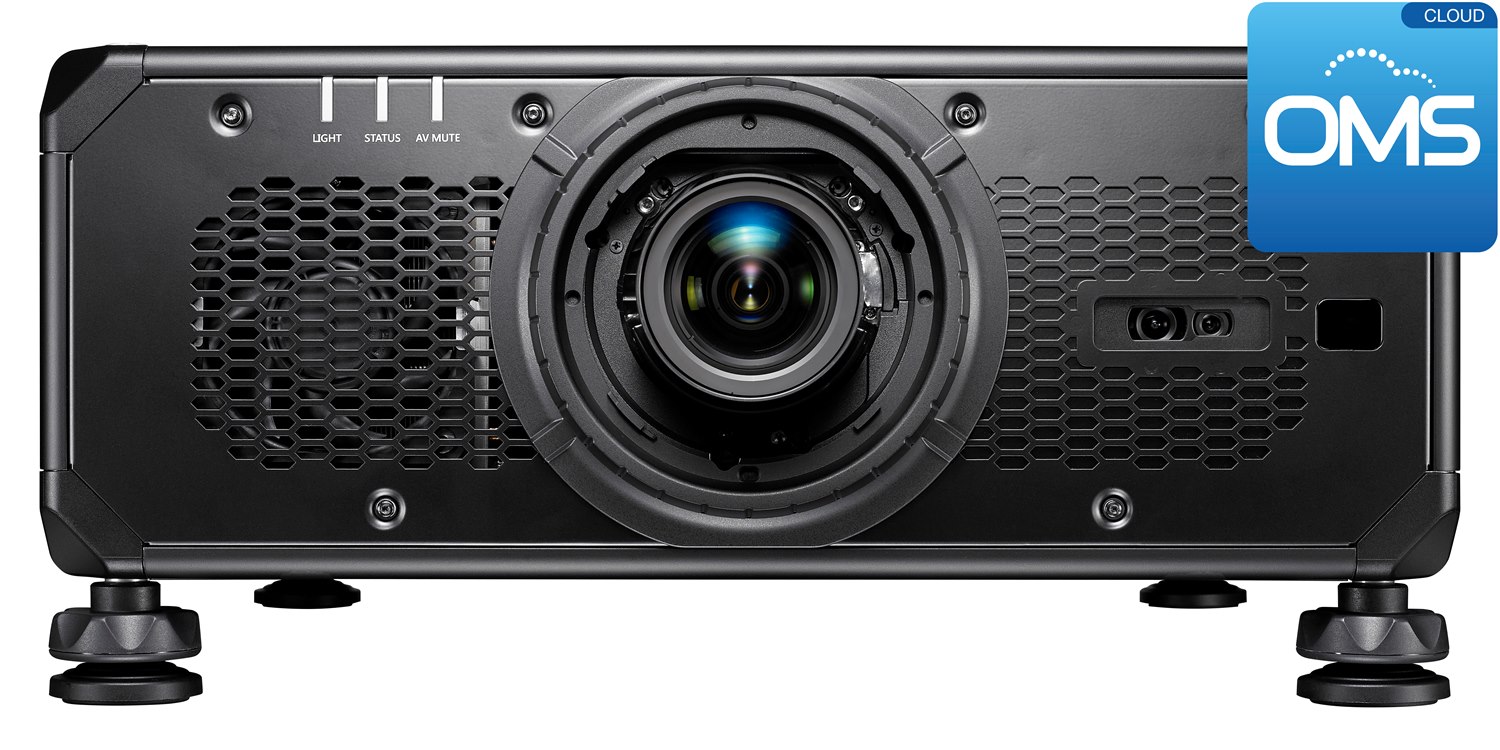

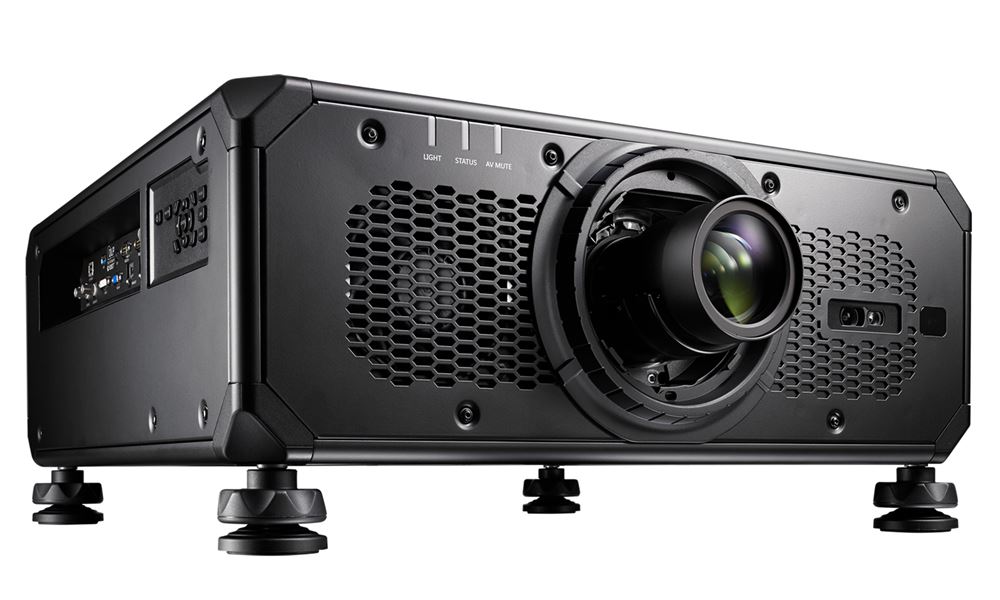

Optoma ProScene ZU1900

ProScene ZU1900

Ultra bright professional WUXGA laser projector

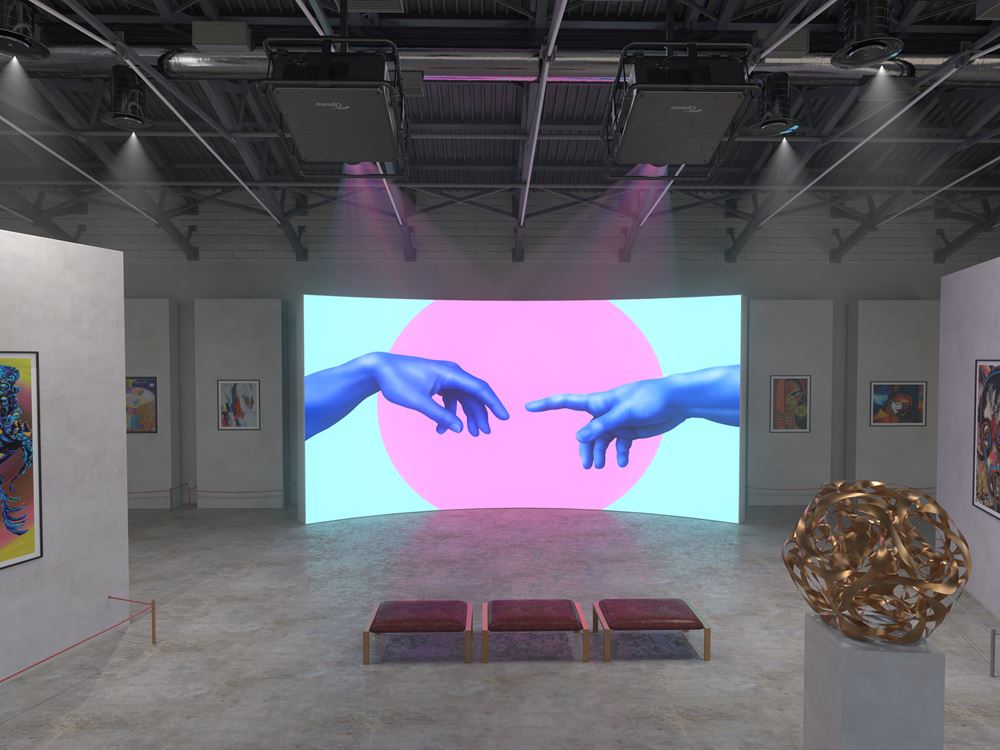

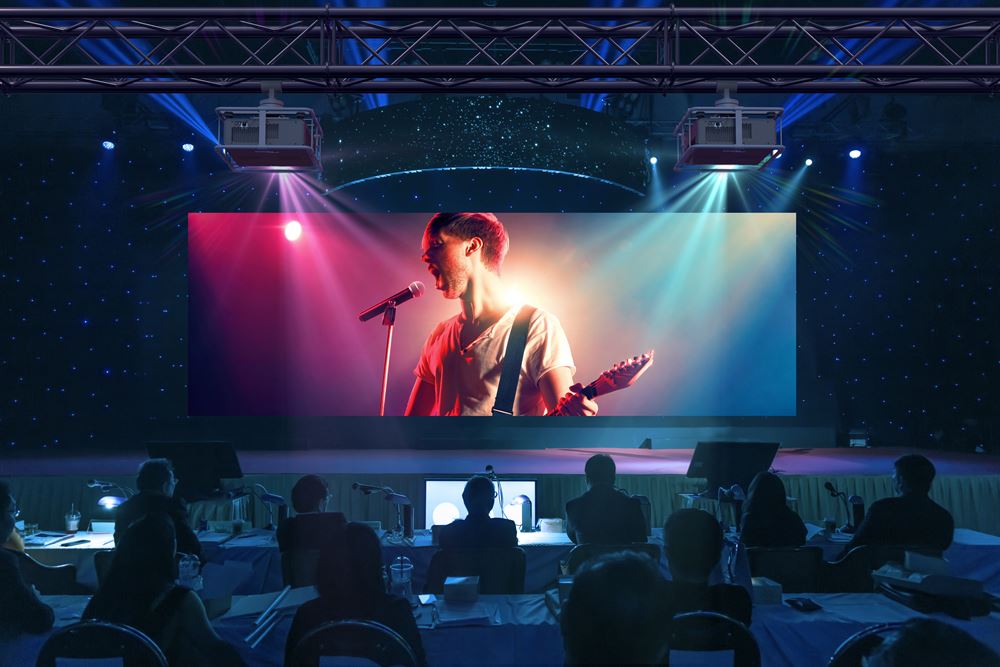

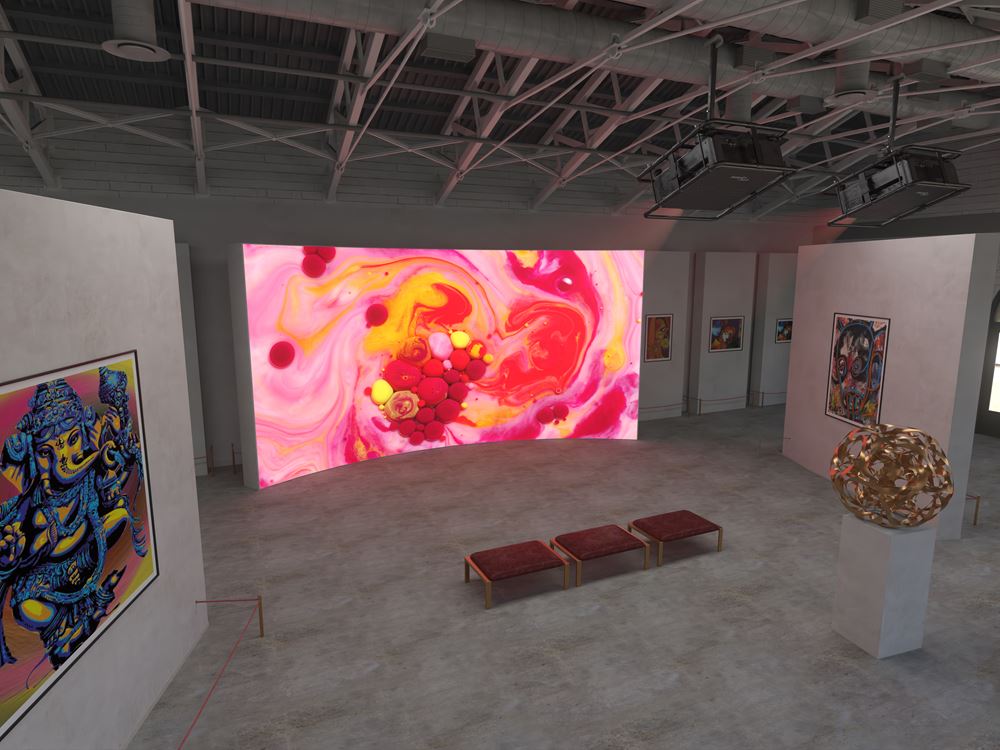

The Ultra Bright ProScene ZU1900 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. This projector offers incredibly high brightness of 19,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.

As part of the Optoma DuraCore laser line up, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing and color matching to produce visually striking, lifelike images with exceptional detail and high color accuracy.

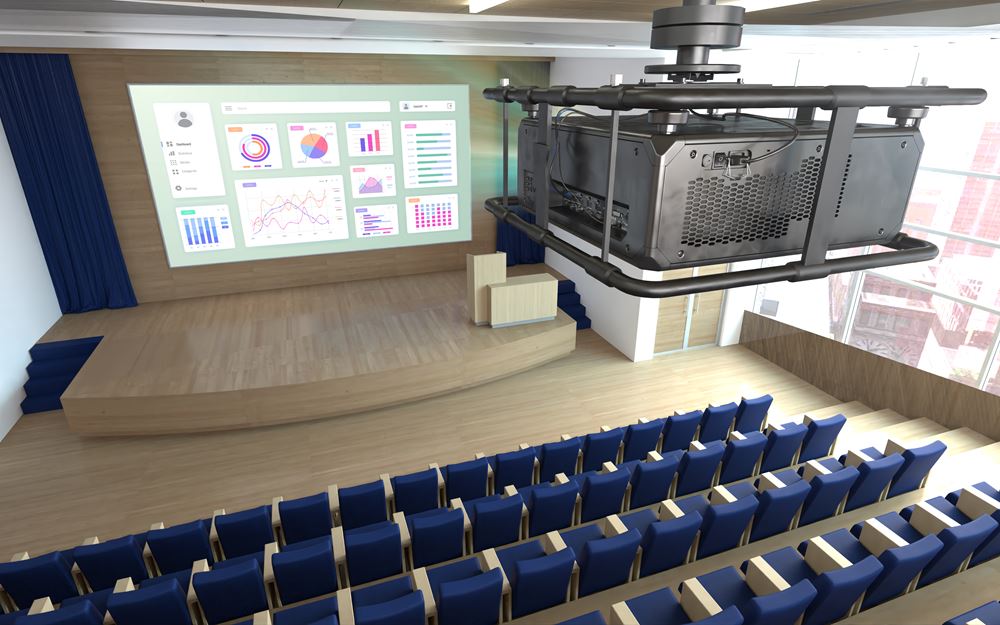

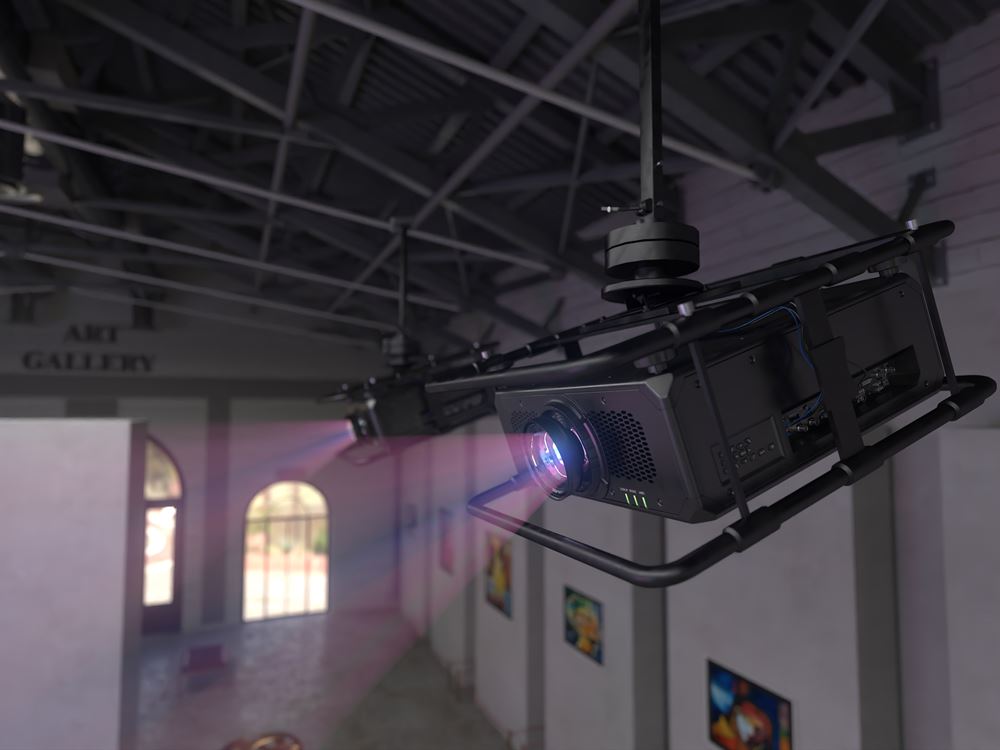

Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multi-projector and dome projection applications.
ProScene ZU1900

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Auto Color Uniformity

Providing a quick, hassle free and more convenient setup; you can enjoy accurate color uniformity in a matter of seconds with the super-fast camera based auto color uniformity feature.

*The auto color uniformity feature is compatible with image sizes up to 300"

Auto focus (AF)

Providing a quick, hassle free and more convenient setup; you can enjoy a crystal clear image in a matter of seconds with the super-fast camera based auto focus.

*Auto focus is compatible with image sizes up to 300"

Redundant input with fast switching

The unique signal input detection function provides instant source switching in the event of the failure of the signal source device. This feature ensures an image never fails to display in mission critical installations such as control rooms, live events or other similar scenarios.

Passive 3D compatibility

Passive 3D is now available on single chip DLP laser Phosphor projectors. Thanks to the high efficiency light output, these models enable effective 3D solutions for operators to reduce total cost of ownership.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Compatible multi output graphics card with overlap function is required.*

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

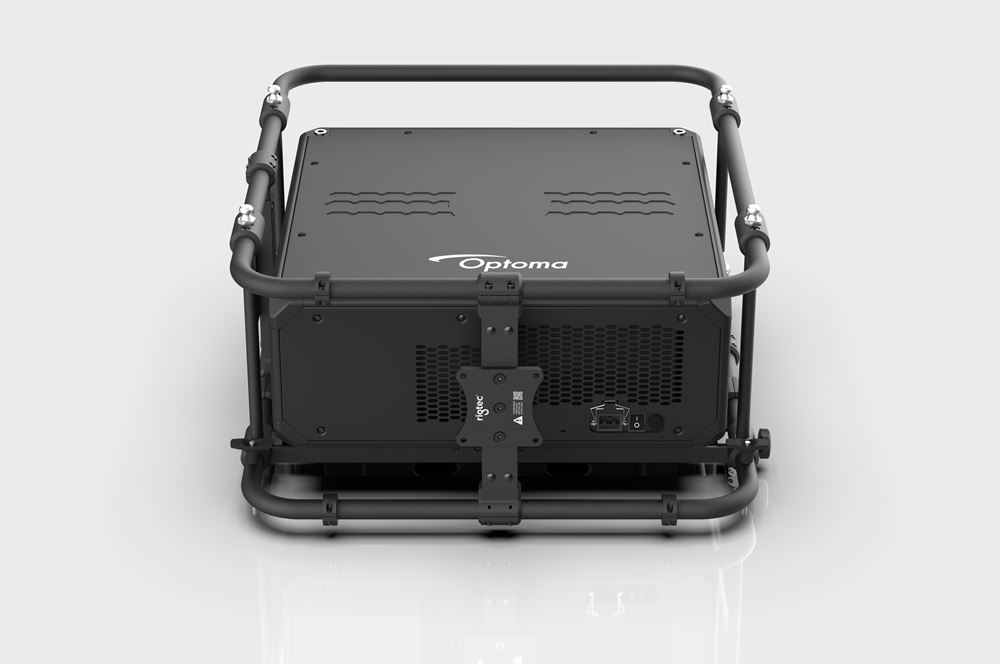

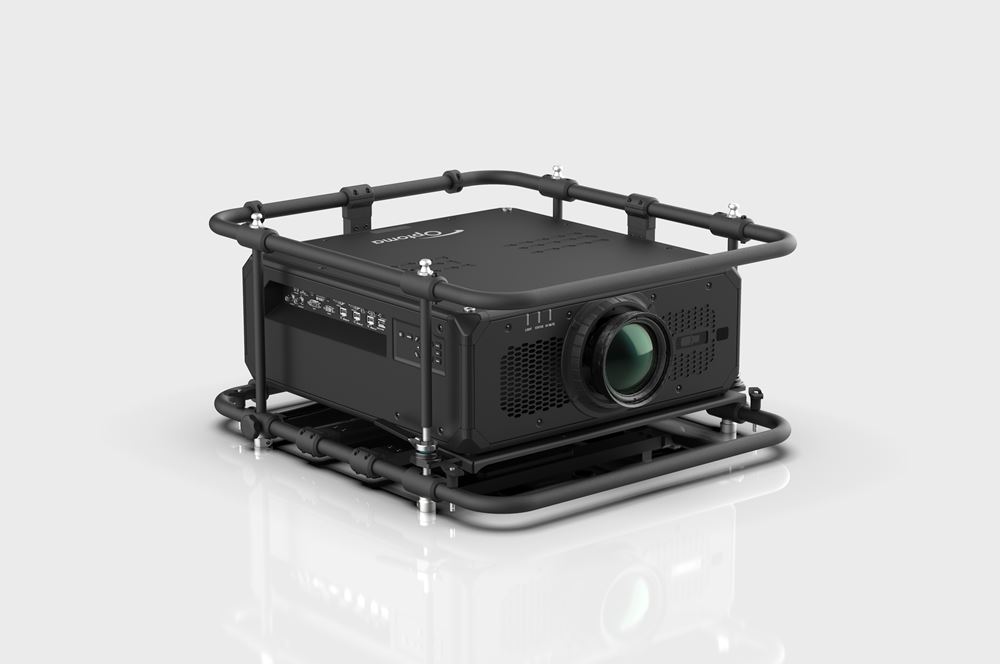

Metal chassis with modular design

Modular metal chassis panels and quick release screws make routine maintenance easier than ever.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Brightness matching

A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine-tuned to give the same brightness levels; important, especially when side by side.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Picture by picture picture-in-picture

Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual
  • Portrait projection

    Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

    Wide temperature operating range

    Suitable for various operating environments. Robust and efficient cooling design allow the projector the ability to withstand an ambient operating temperature range of 0~122°F

    IP5X Dust resistant optical engine

    Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems

    PJLink

    PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

    Telnet

    This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    WUXGA (1920x1200)
    Brightness
    19,000 lumens
    ANSI brightness
    16,000
    Contrast ratio
    2,000,000:1
    Native aspect ratio
    16:10
    Aspect ratio - compatible
    16:9,16:10, 4:3
    Screen size
    Dependent on lens
    Light source type
    DuraCore Laser
    LASER life
    30,000 hours
    Throw ratio
    Dependent on lens
    Projection distance
    Dependent on lens
    Lens options
    BX-CTA11: 0.65 ~ 0.75:1
    BX-CTA12: 0.75 ~ 1.08:1
    BX-CTA18: 0.84 ~ 1.02:1
    BX-CTA19: 1.02 ~ 1.36:1
    BX-CTA20: 1.2 ~ 1.5:1
    BX-CTA21: 1.5 ~ 2.0:1
    BX-CTA22: 2.0 ~ 4.0:1
    BX-CTA23: 4.0 ~ 7.2:1
    BX-CTA27: 7.2 ~ 10.8:1

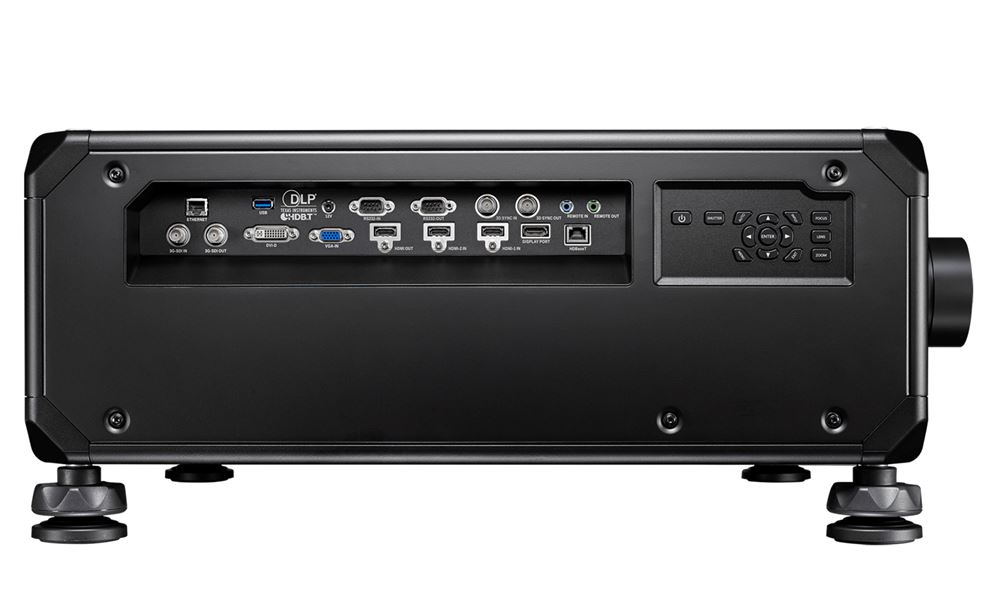

    Inputs
    1 x 3D sync, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI, 1 x Wired remote
    Outputs
    1 x RS232, 1 x 3D sync, 1 x HDMI, 1 x 3G-SDI, 1 x 12V trigger
    Control
    1 x RJ45, 1 x RS232, 1 x USB-A service
    Noise level (min)
    36dB
    Noise level (max)
    38dB
    3D
    Full 3D
    IP rating
    IP5X
    OSD / display languages
    11 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
    24/7 operation
    Yes
    360° operation
    Yes
    Operating conditions
    Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing

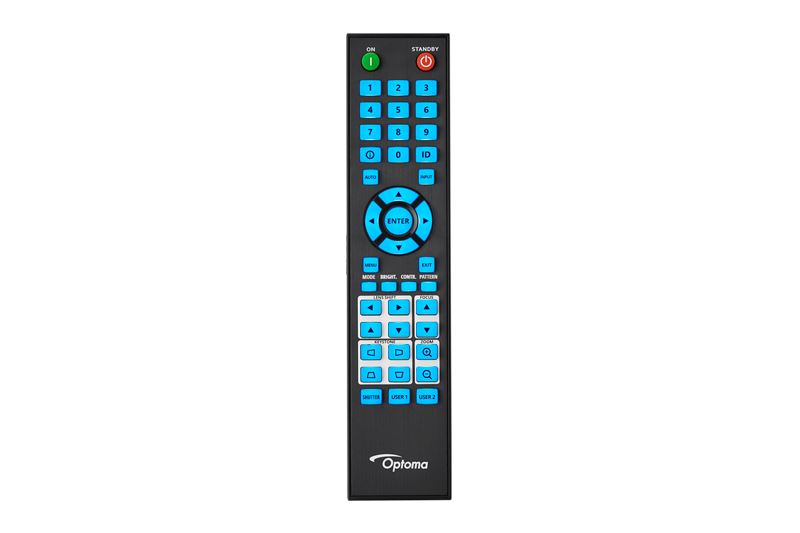

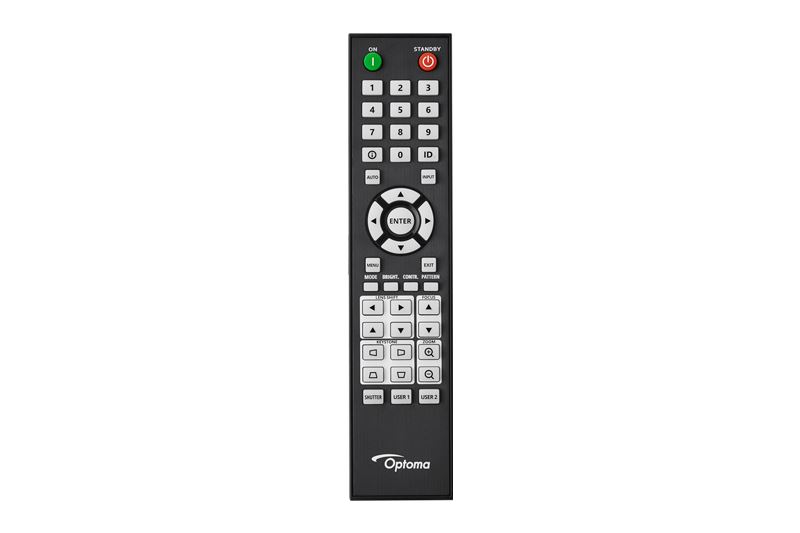

    Remote control
    Backlit ProAV remote
    LAN - display
    Yes
    LAN - wireless networking
    No
    LAN
    Yes
    Power supply
    AC 100–240 V @ 50/60 Hz
    Power consumption (standby)
    0.5WW
    Power consumption (min)
    460W
    Power consumption (max)
    1,000W
    Dimensions (W x D x H)
    25.59" x 26.85" x 11.84"
    Gross weight
    137.79 lbs
    Net weight
    110.23 lbs
    UPC
    796435 44 548 5
