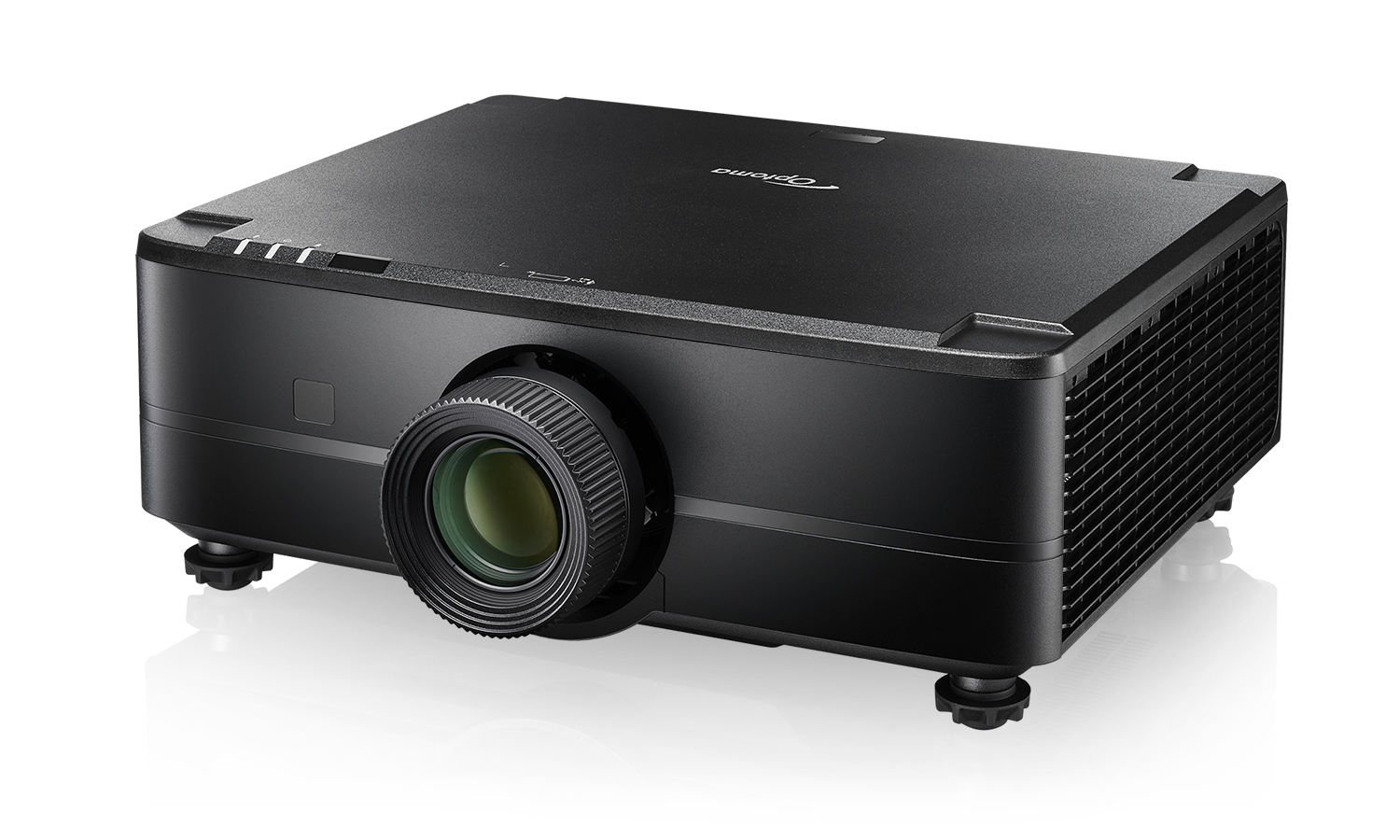

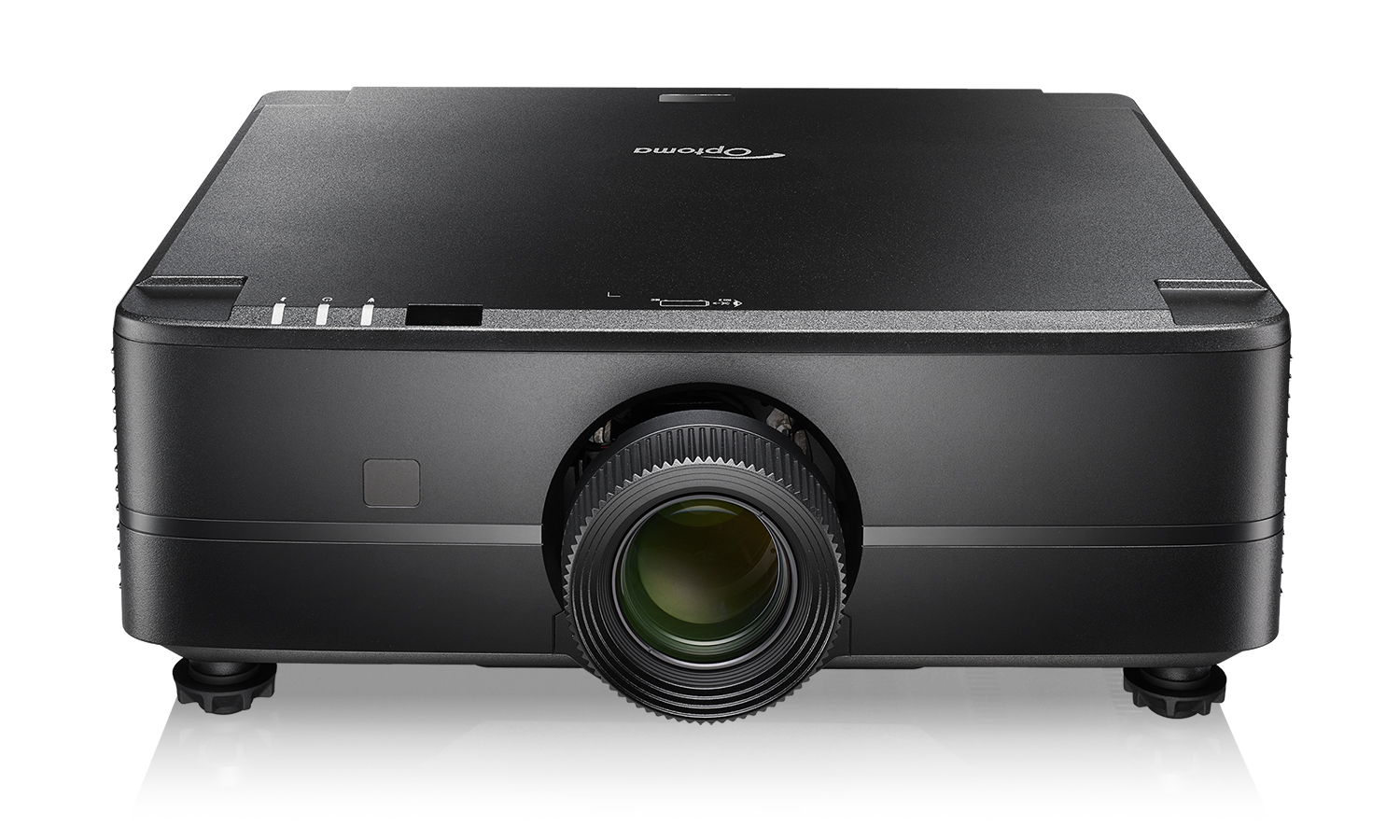

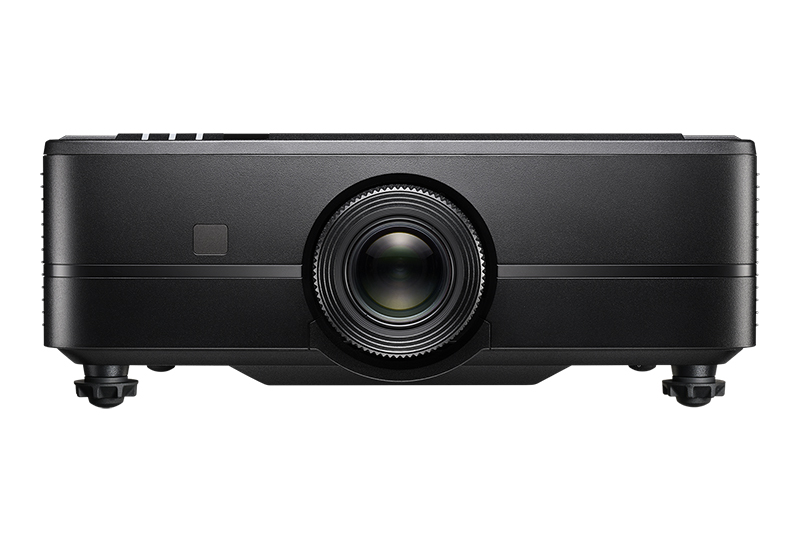

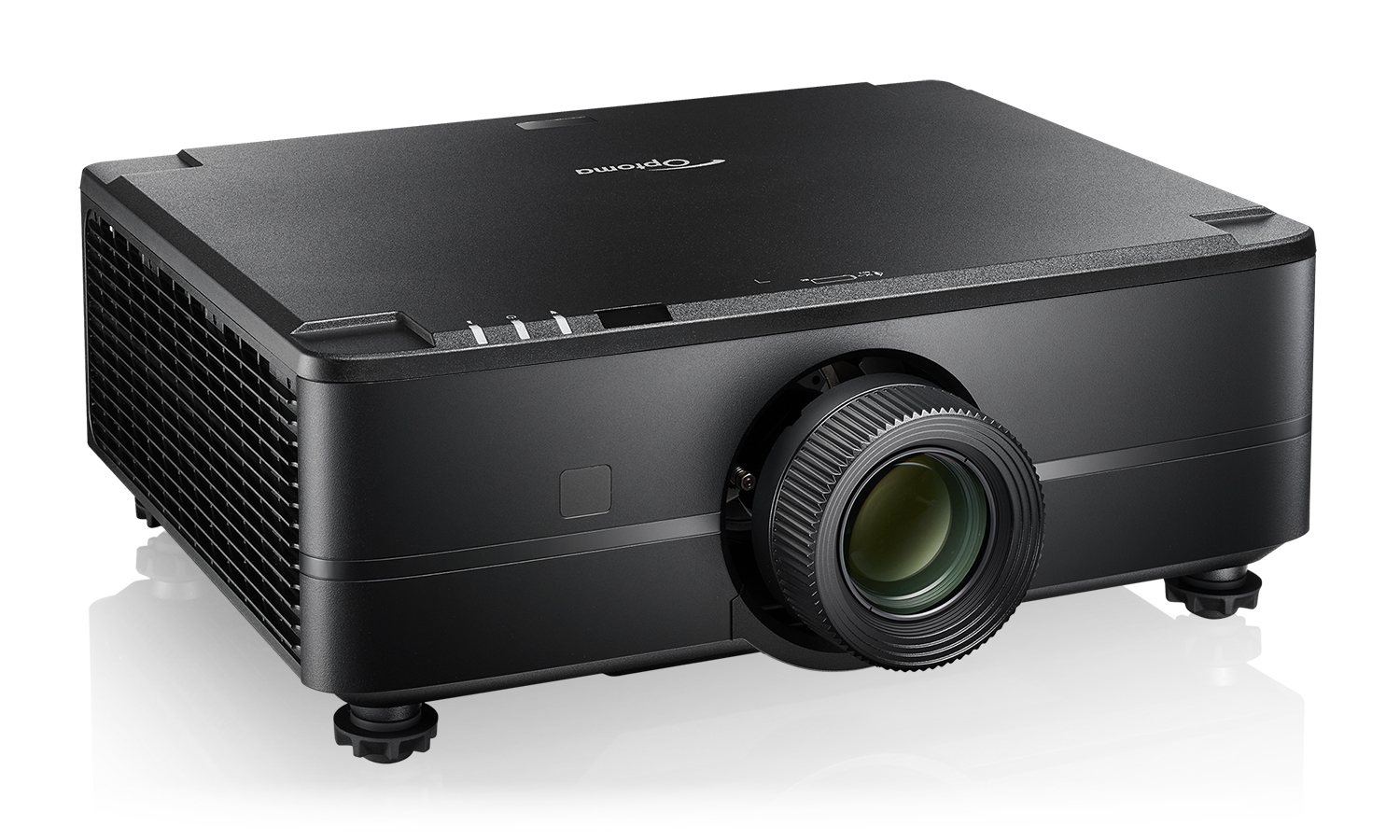

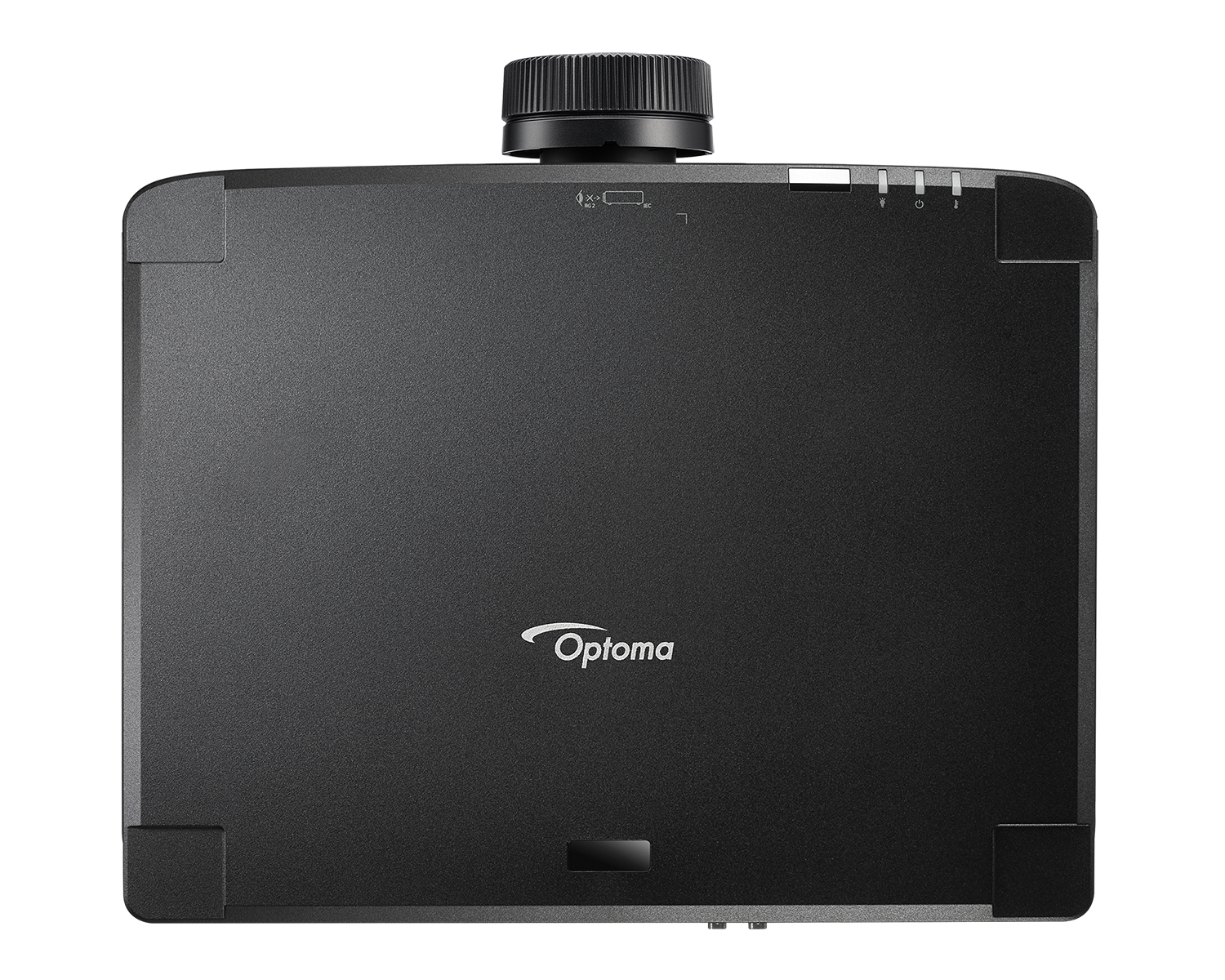

Optoma ProScene ZU820TNL

ProScene ZU820TNL

High-Brightness Professional Laser Projector

The ProScene ZU820TNL WUXGA Laser Projector delivers 8,800 lumens of brilliant brightness with 4K and HDR compatibility — built for demanding environments that require reliable, around-the-clock performance. Its IP5X-certified, dust-resistant optical engine supports 24/7 operation and up to 30,000 hours of truly maintenance-free projection in Eco mode.

Designed for installation flexibility, the ZU820TNL features motorized zoom, focus, and full lens shift, along with built-in warping and edge-blending for seamless multi-projector setups. Dual 10W speakers are included for integrated audio without the need for additional equipment.

Paired with the recommended BX-CTA13 long throw lens*, this projector is an exceptional choice for House of Worship installations where image quality, color accuracy, and quiet operation are paramount.

*BX-CTA13 lens sold separately. Additional lens options; BX-CAA01, BX-CAA03, BX-CAA06, BX-CTA15
BX-CTA17.
ProScene ZU820TNL
Features Specs Downloads

Features

Built for Every Service!

The ideal projector for Houses of Worship

Meet the Optoma ProScene ZU820TNL — high-brightness laser projector engineered for the unique demands of house of worship environments.

With DuraCore laser technology and a 30,000-hour light source life, this projector is engineered for houses of worship that run multiple services, events, and rehearsals every week — all year long.

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

360 projection*

With 360° projection,images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Intelligent image blending and warping

Optoma Visual Suite simplifies the creation of immersive visual experiences by offering a comprehensive range of adjustment functions, including blending, warping, masking, brightness and color settings, lens control, and more. It is particularly well-suited for making image adjustments to projectors installed in hard-to-reach locations.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Compatible multi output graphics card with overlap function is required.*

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Direct power off

Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems
Specification
Display/image
Display technology
DLP®
Resolution
WUXGA (1920x1200)
Brightness (ISO)
8,800 lumens
Brightness (ANSI)
7,400 lumens
Contrast ratio
3,000,000:1
Contrast ratio - full on/off
1,100:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - horizontal
30°
Keystone correction - vertical
30°
Uniformity
95%
Screen size (when paired with BX-CTA13 lens)
50" ~ 300" diagonal
Light source type
DuraCore Laser
LASER life
30,000 hours
Throw ratio (when paired with BX-CTA13 lens)
2.9:1 ~ 5.5:1
Projection distance (when paired with BX-CTA13 lens)
10.43' ~ 116.6'
Zoom (when paired with BX-CTA13 lens)
1.9x
Zoom type
Motorized
Focal length (mm) (when paired with BX-CTA13 lens)
42.6 ~ 80.9
Lens shift
Vertical: +/-55%, Horizontal: +/-25%
Native offset
50%

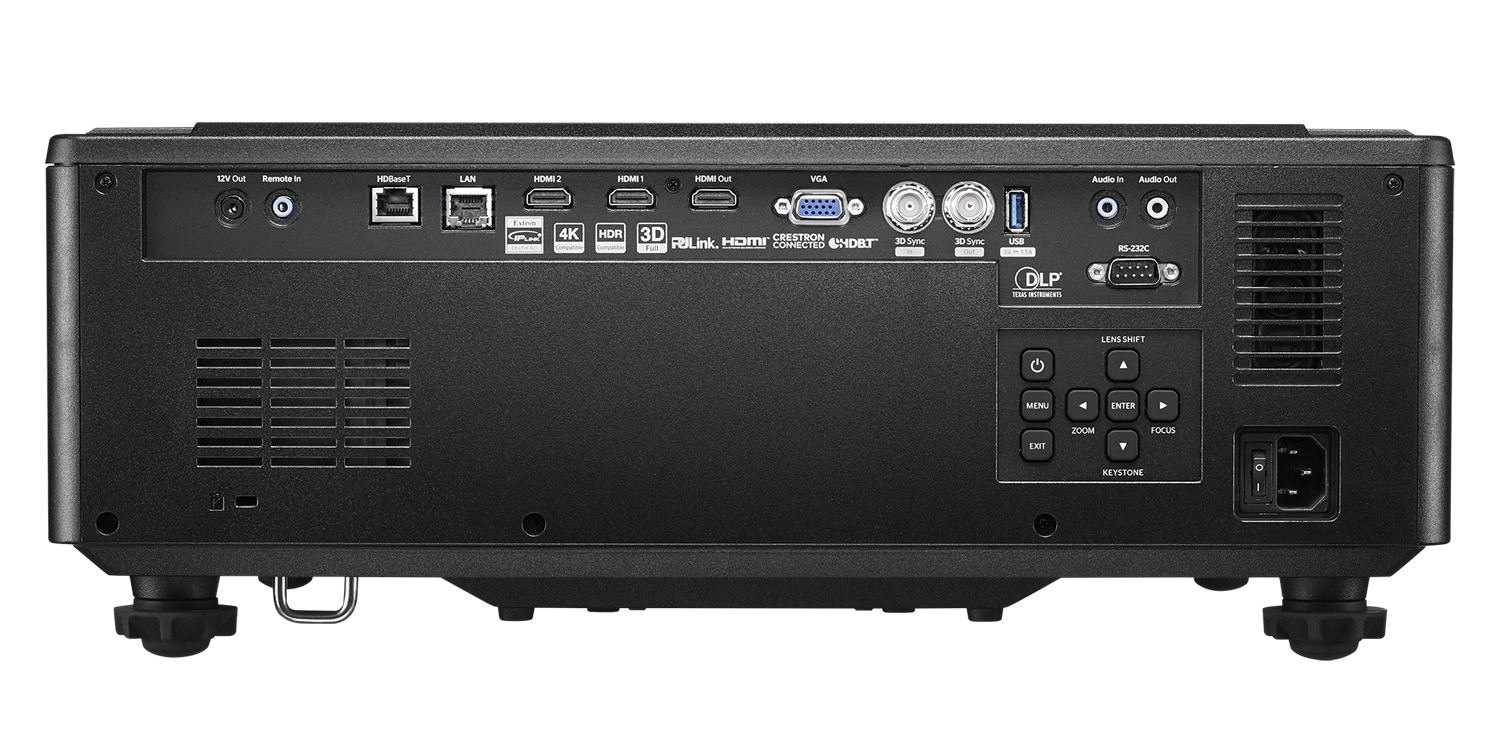

Inputs
1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm
Outputs
1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm
Control
1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232
Noise level (min)
27dB
Noise level (max)
36dB
Security
Security bar, Kensington Lock
OSD / display languages
9 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional)
24/7 operation
Yes
360° operation
Yes
Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
10W
LAN - wireless networking
No
LAN
Yes
Power supply
AC 90 – 264V 50/60 Hz
Power consumption (min)
260W
Power consumption (max)
598W
Dimensions (W x D x H) (without feet)
19.13" x 14.8" x 6.93"
Dimensions (W x D x H) (with feet)
19.13" x 14.8" x 7.3"
Gross weight
39.24 lbs.
Net weight
27.78 lbs.
UPC
796435 44 841 7
