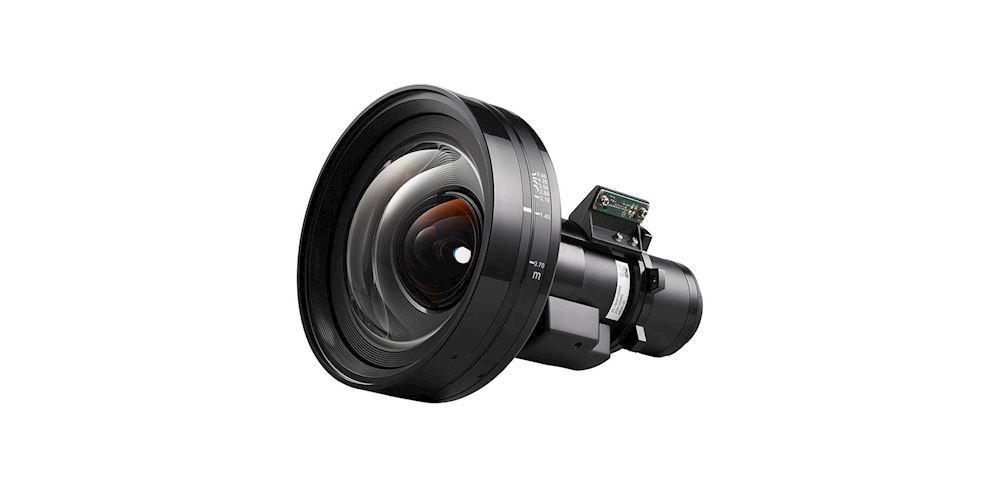

BX-CTA17

Short Throw Lens with Motorized Zoom

The BX-CTA17 short throw lens is ideal for immersive installations requiring a short distance from projector to screen. With a throw ratio of 0.65 ~ 0.75:1, you can easily produce images in sizes from 50" up to 500"

Works with Optoma ZU1300 and ZU110050 DuraCore laser projectors.

Features

Specification
General
Net weight
2.58 lbs
Gross weight
3.92 lbs
UPC
796435 07 139 4
Lens
Throw ratio (min)
0.65
Throw ratio (max)
0.75
Min throw distance (feet)
2.3
Max throw distance (feet)
26.51
f-stop (min)
2
f-stop (max)
2.1
Focal length (mm)
9.69 ~ 11.19
Min screen size (inch)
50
Max screen size (inch)
500
Zoom type
Motorised
Zoom
1.15
Motorised lens
Yes
