Home Page > Product > Accessories > Optional lenses > BX-CTA15

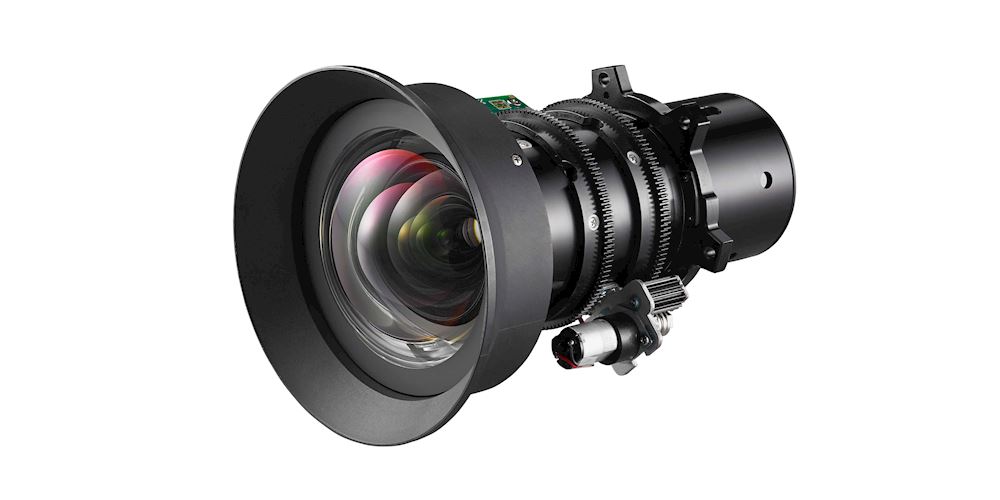

BX-CTA15

Short Throw Motorized Zoom Lens

The BX-CTA15 short throw lens is ideal for immersive installations and other small-space installs. With a throw ratio of 0.75 ~ 0.95:1 and a 1.26x Motorised zoom, easily produce images in sizes from 50" up to 500"

Works with Optoma ProScene ZU1100, ZU1300, ZU860, ZU1050, ZU850, ZU750, and ZU660 projectors.

Features

Compatible Models
Specification
General
Net weight
1.54 lbs
Gross weight
2.45 lbs
UPC
796435 07 122 6
Lens
Throw ratio (min)
0.75
Throw ratio (max)
0.95
Min throw distance (feet)
2.66
Max throw distance (feet)
33.56
f-stop (min)
2.3
f-stop (max)
2.53
Focal length (mm)
11.11 ~ 14.06
Min screen size (inch)
50
Max screen size (inch)
500
Zoom type
Motorised
Zoom
1.26x
Motorised lens
Yes
