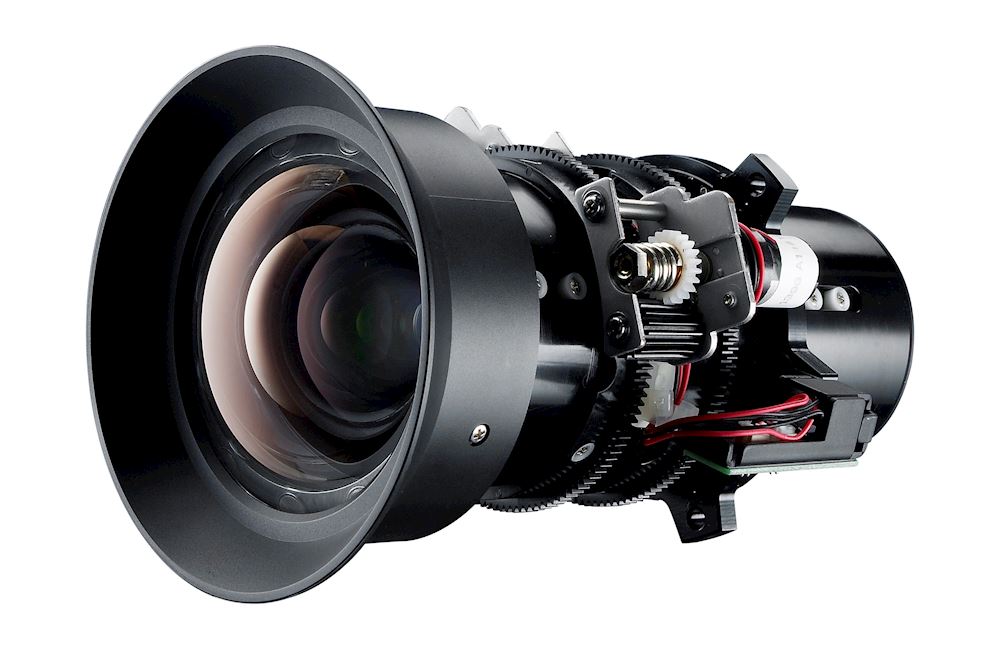

BX-CAA01

Wide Zoom short-throw lens with Motorized Zoom

The BX-CAA01 wide zoom lens is ideal for rental installations or permanent install applications within the entertainmant or museum sectors. This short-throw lens with a throw ratio of 0.95 ~ 1.22:1 can produce an image size from 50" up to 500".

Designed for for use with Optoma ZU1300 and ZU1100 DuraCore laser projectors

Features

Specification
General
Net weight
1.27 lbs
Gross weight
1.95 lbs
UPC
796435 07 018 2
Lens
Throw ratio (min)
0.95
Throw ratio (max)
1.22
Min throw distance (feet)
3.35
Max throw distance (feet)
43.11
f-stop (min)
2.3
f-stop (max)
2.57
Focal length (mm)
14.03 ~ 17.96
Min screen size (inch)
50
Max screen size (inch)
500
Zoom type
Motorized
Zoom
1.28x
Motorised lens
Yes
