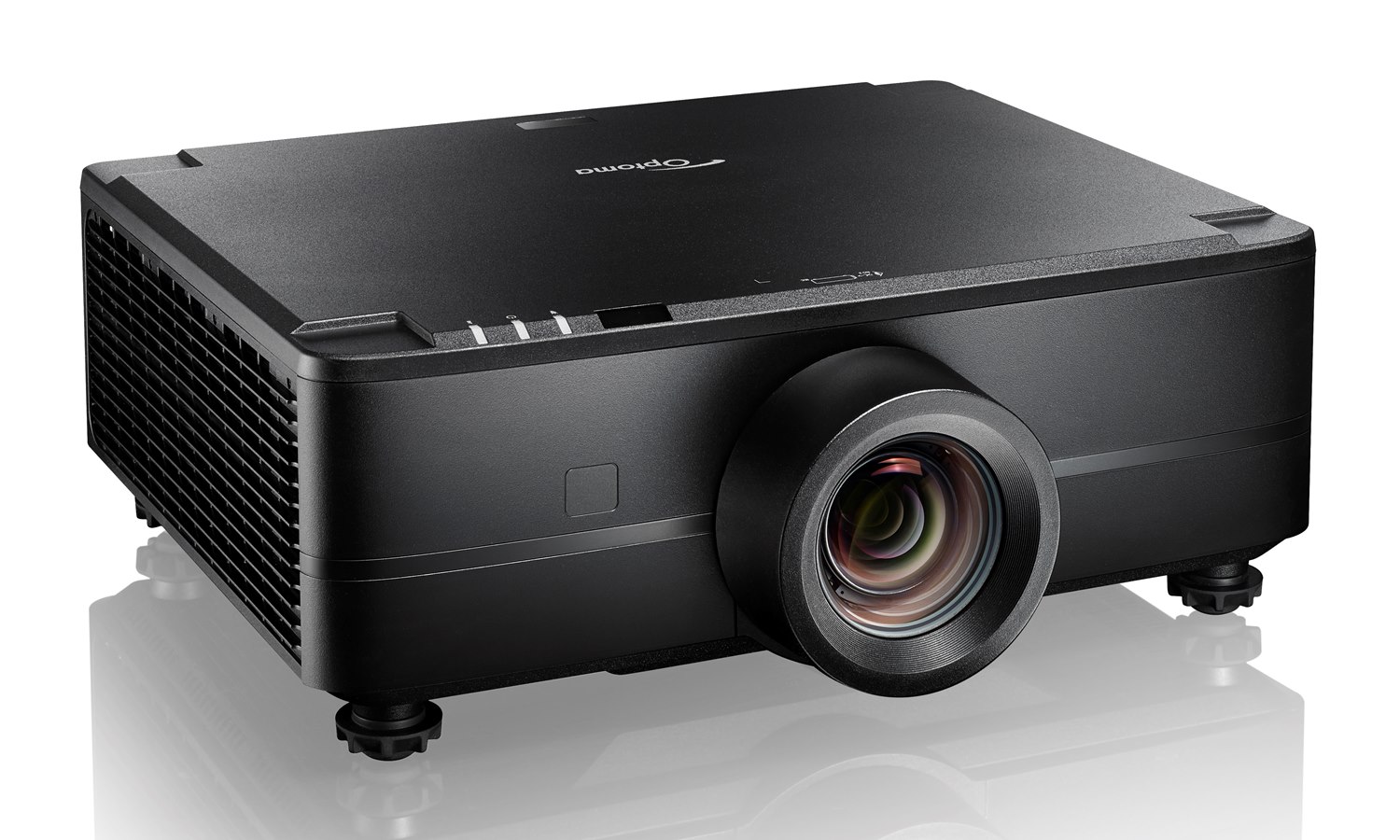

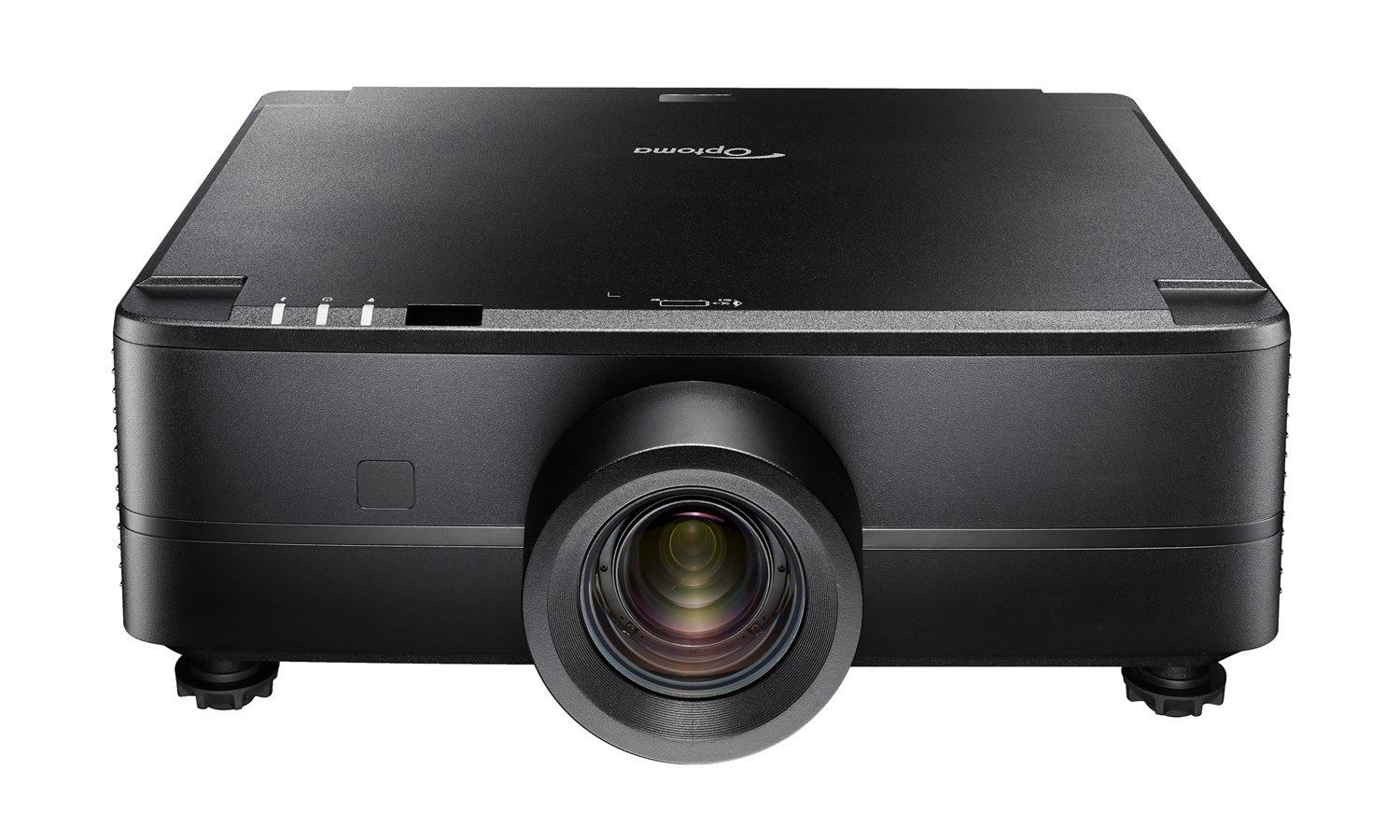

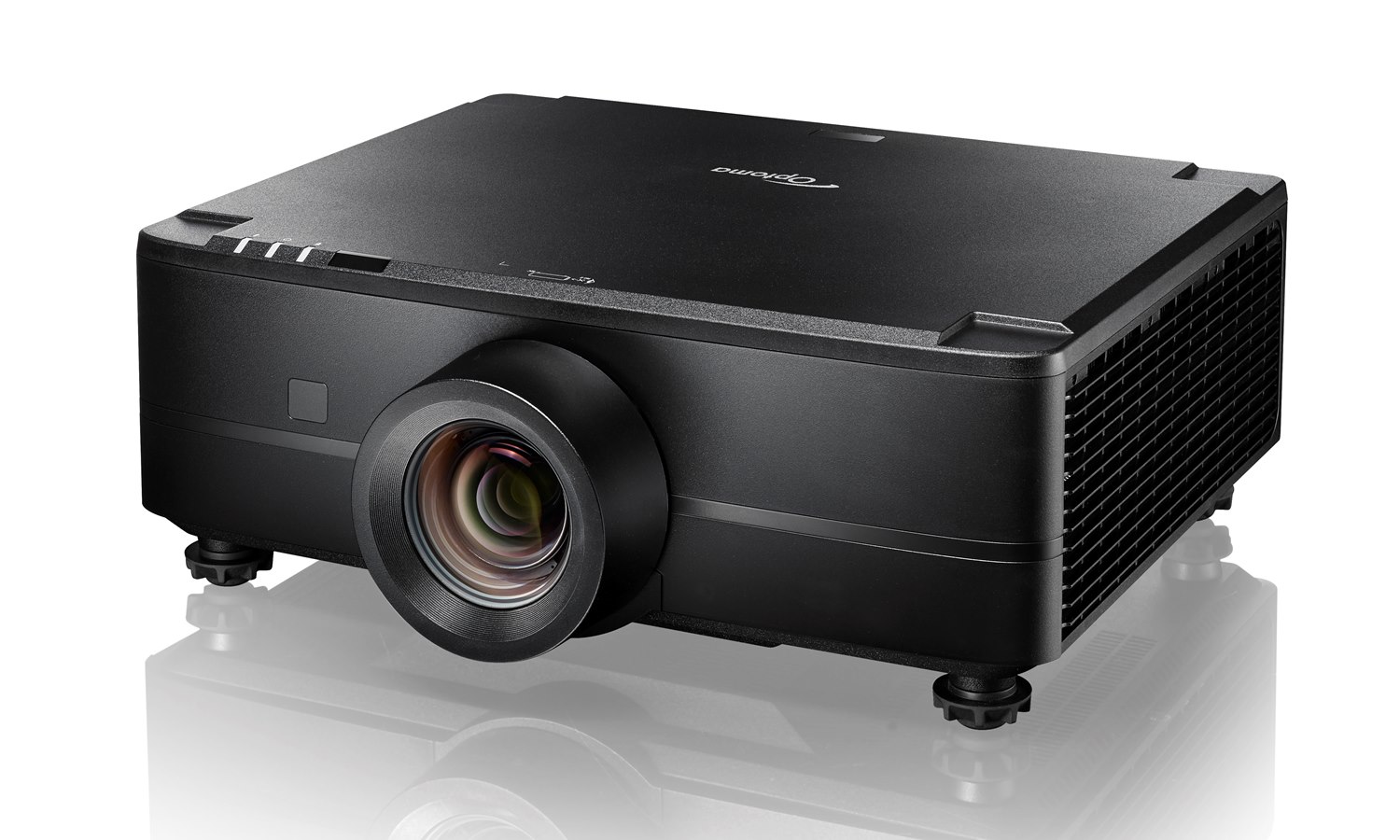

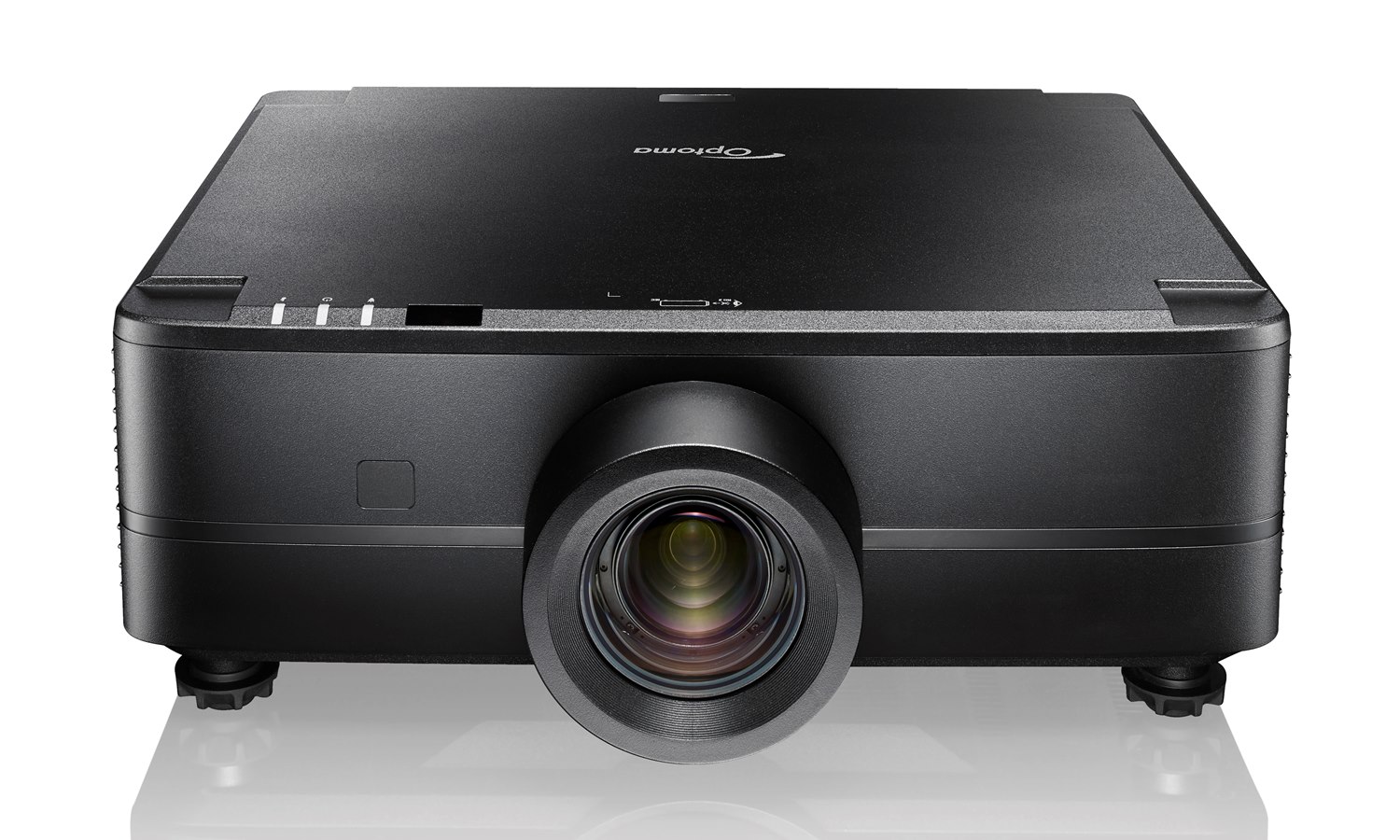

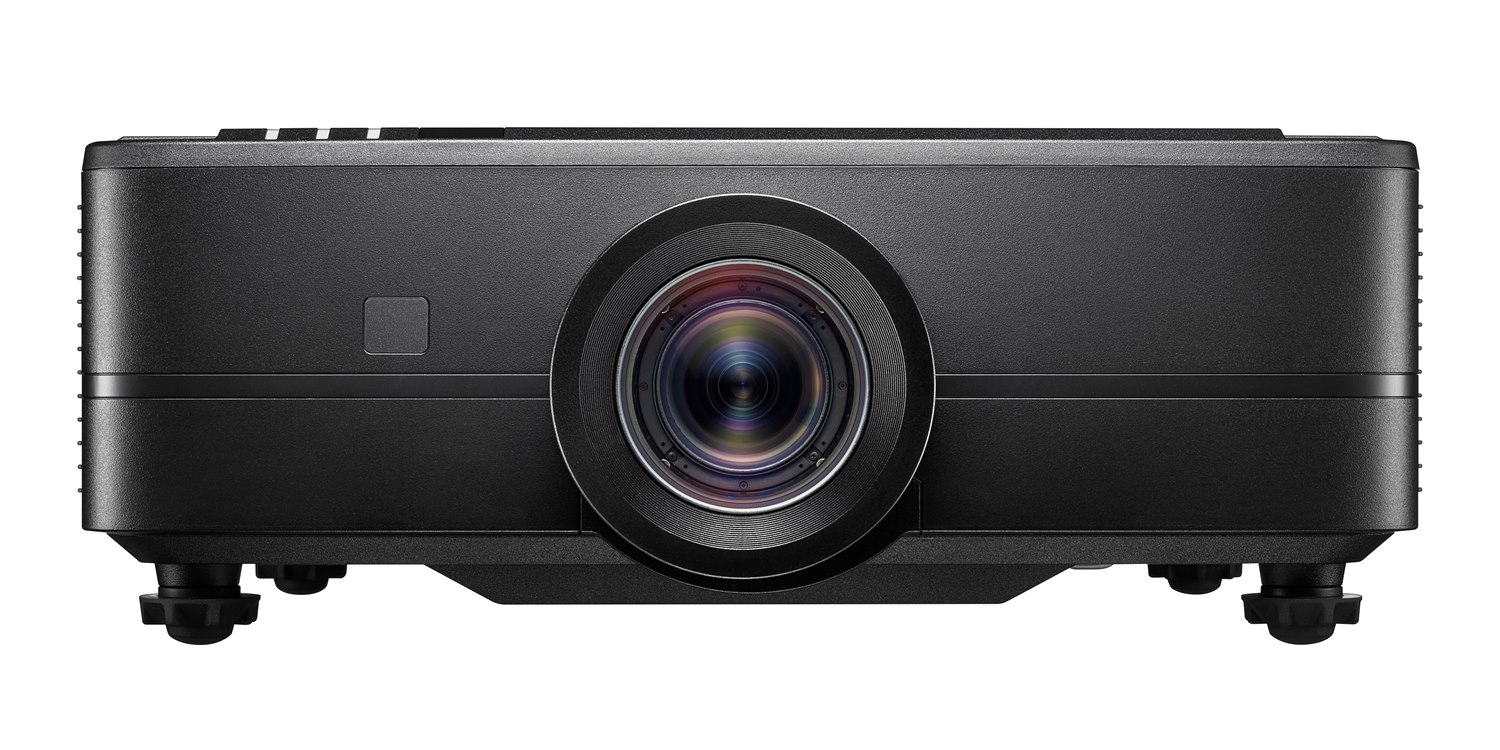

ProScene ZK810T

High brightness professional 4K UHD laser projector

Spectacular 4K UHD image quality, low maintenance and ultimate reliability

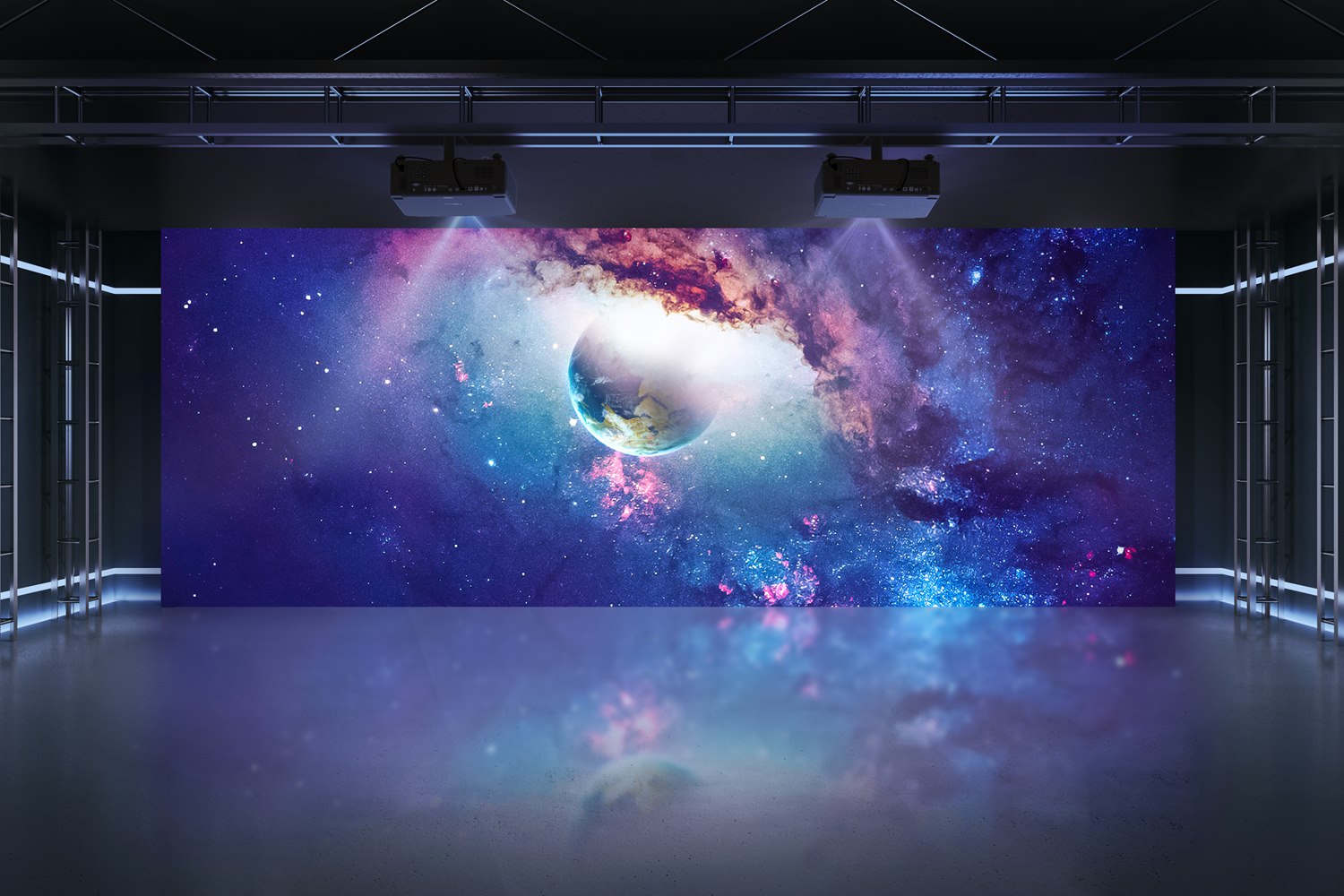

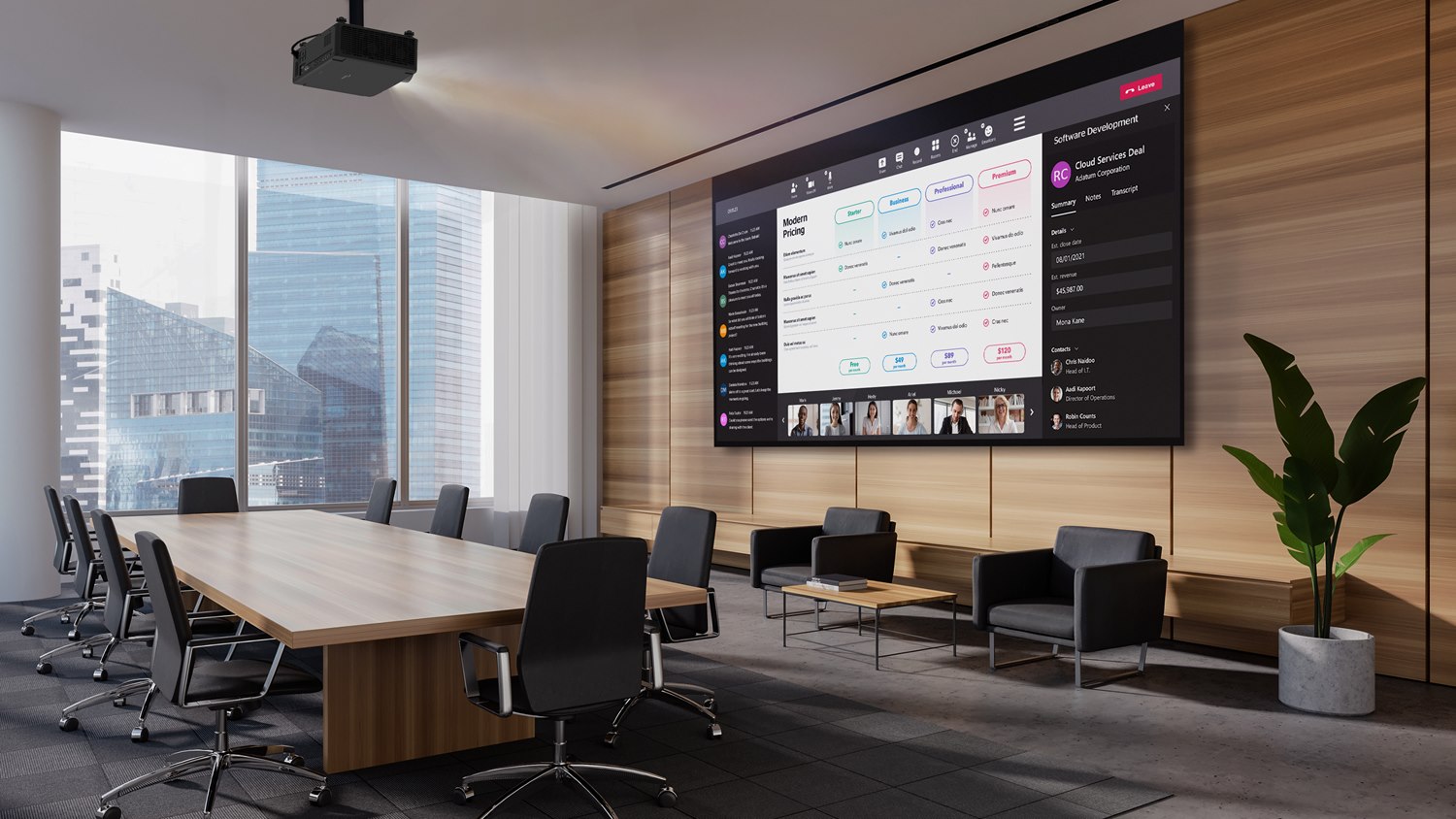

The ProScene ZK810T 4K UHD laser projector is perfect for fixed installations within education, museums, houses of worship, large venues, simulation or immersive applications.

Designed with the environment in mind, these are one of the first ProAV projectors to be part of Optoma's Eco Promise. The eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.

Delivering an astonishing 30,000 hours, the ProScene ZK810T combines a long-lifetime light source and an independent IP5X certified optical engine for 24/7 operation capabilities, offering truly maintenance-free projection.

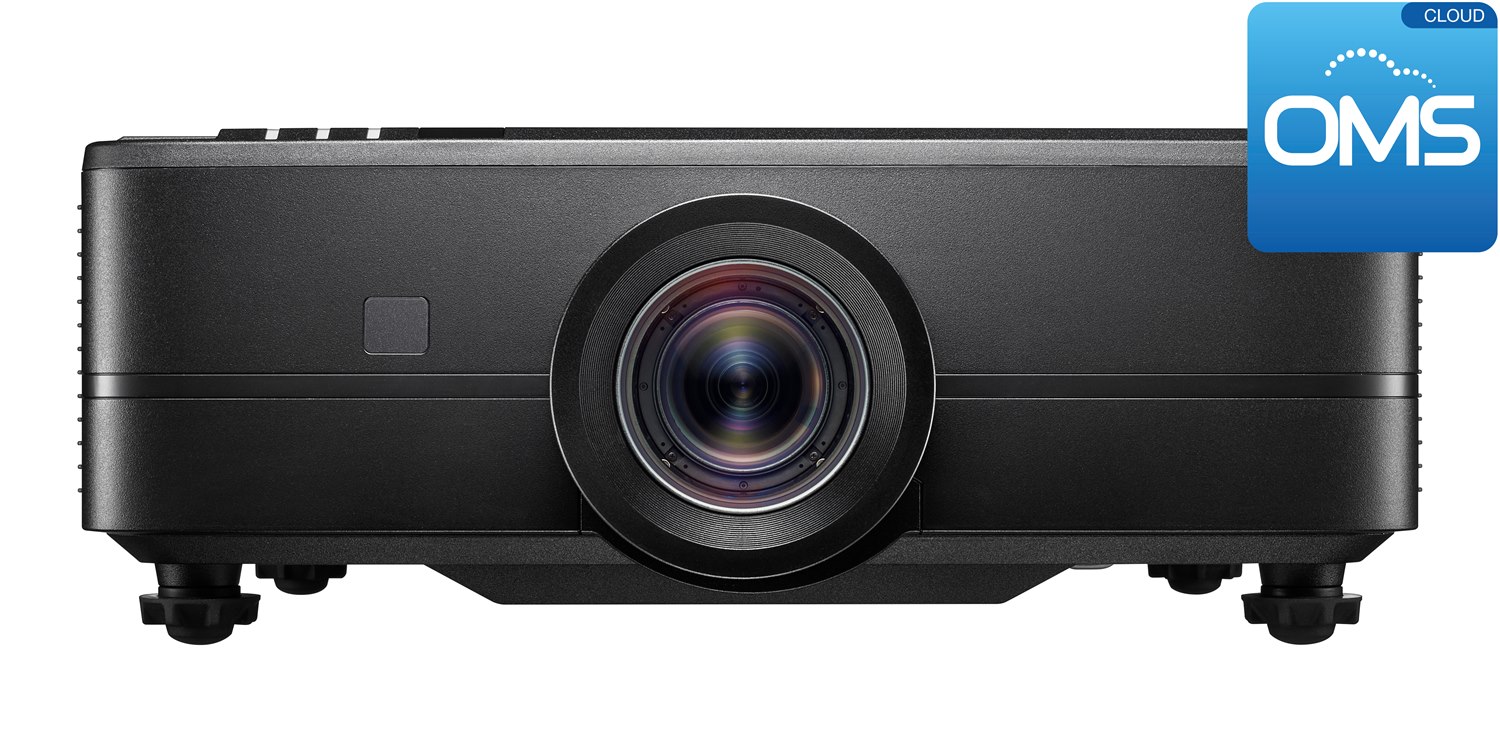

With high brightness, color precision and quiet operation, along with a fixed standard throw lens, this projector is the ideal solution for a variety of end user scenarios and professional environments. The added control flexibility of HDBaseT 3.0, RS232, LAN, OMS and OSS makes this projector an affordable install and forget solution.

Features

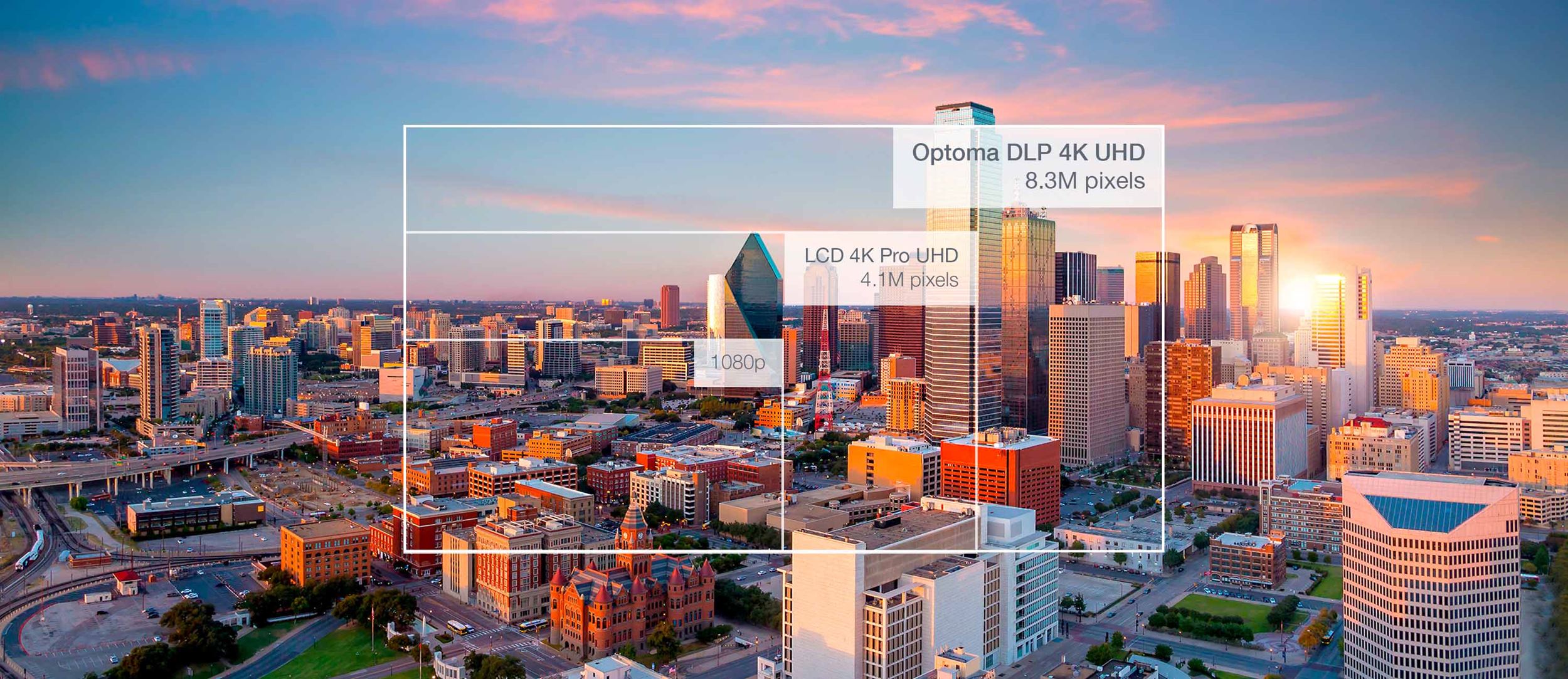

True 4K UHD resolution

Ultra HD 4K resolution delivers sharper, life-like images and richer colors - allowing you to sit closer to the screen and enjoy a more immersive experience.

Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.

HDR and HLG compatible

Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.

Designed for the future

We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.

Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, logistics, and usage, to packaging.

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

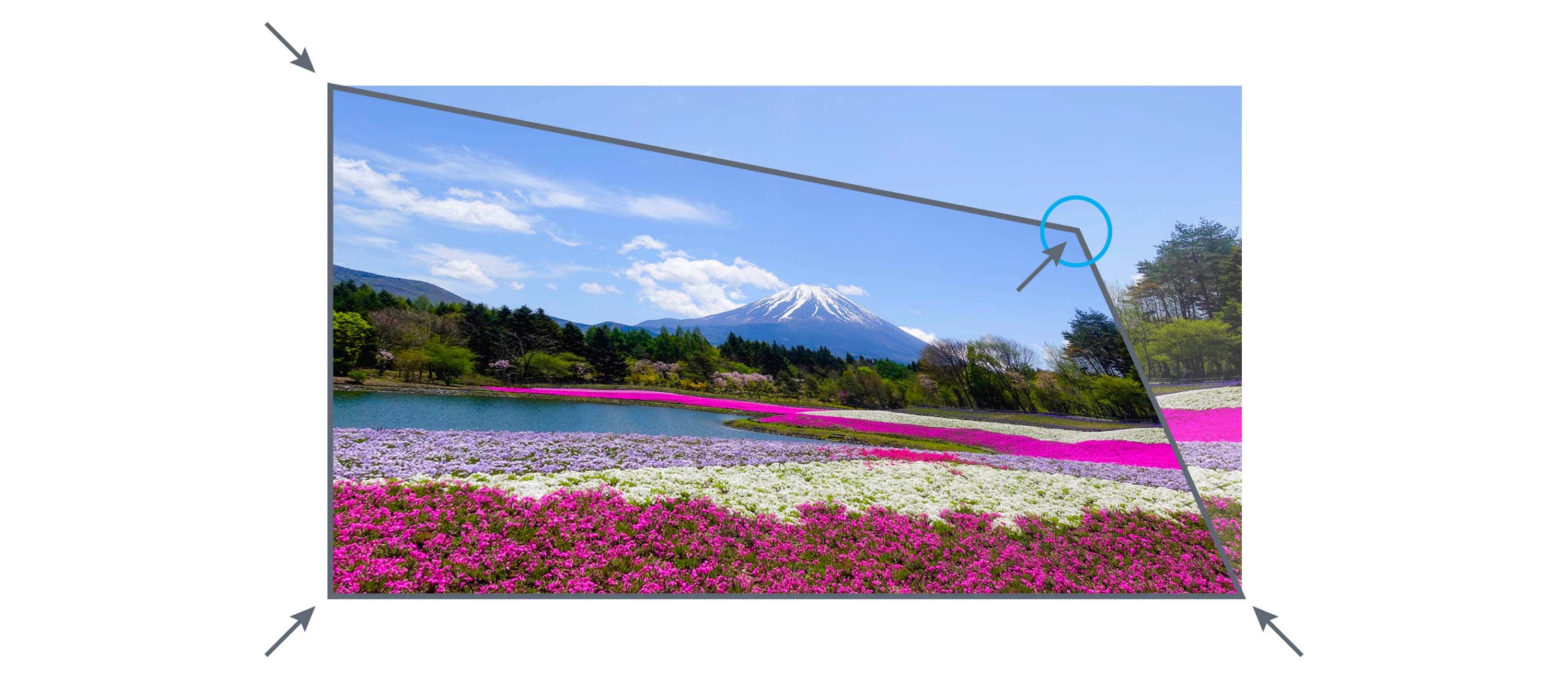

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

360 projection*

With 360° projection,images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems
Specification
Display/image
Display technology
DLP®
Resolution
UHD (3840x2160)
Brightness
8,500 lumens
ANSI brightness
7,200
Contrast ratio
3,000,000:1
Contrast ratio - full on/off
1,100:1
Native aspect ratio
16:9
Aspect ratio - compatible
16:9, 16:10, 4:3, 21:9
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-40°
Displayable colors (millions)
1073.4
Horizontal scan rate
15.375 ~ 91.146 Khz
Vertical scan rate
24 ~ 85Hz
Uniformity
95%
Screen size
50" ~ 300" diagonal
Lamp info
Light source type
DuraCore Laser
LASER life
30,000 hours
Optical
Throw ratio
1.26:1 ~ 2:1
Projection distance
52.36" - 514.17"
Zoom
1.6
Zoom type
Motorized
Focal length (mm)
18.72~29.59
Lens shift
Vertical: +/-55%, Horizontal: +/-25%

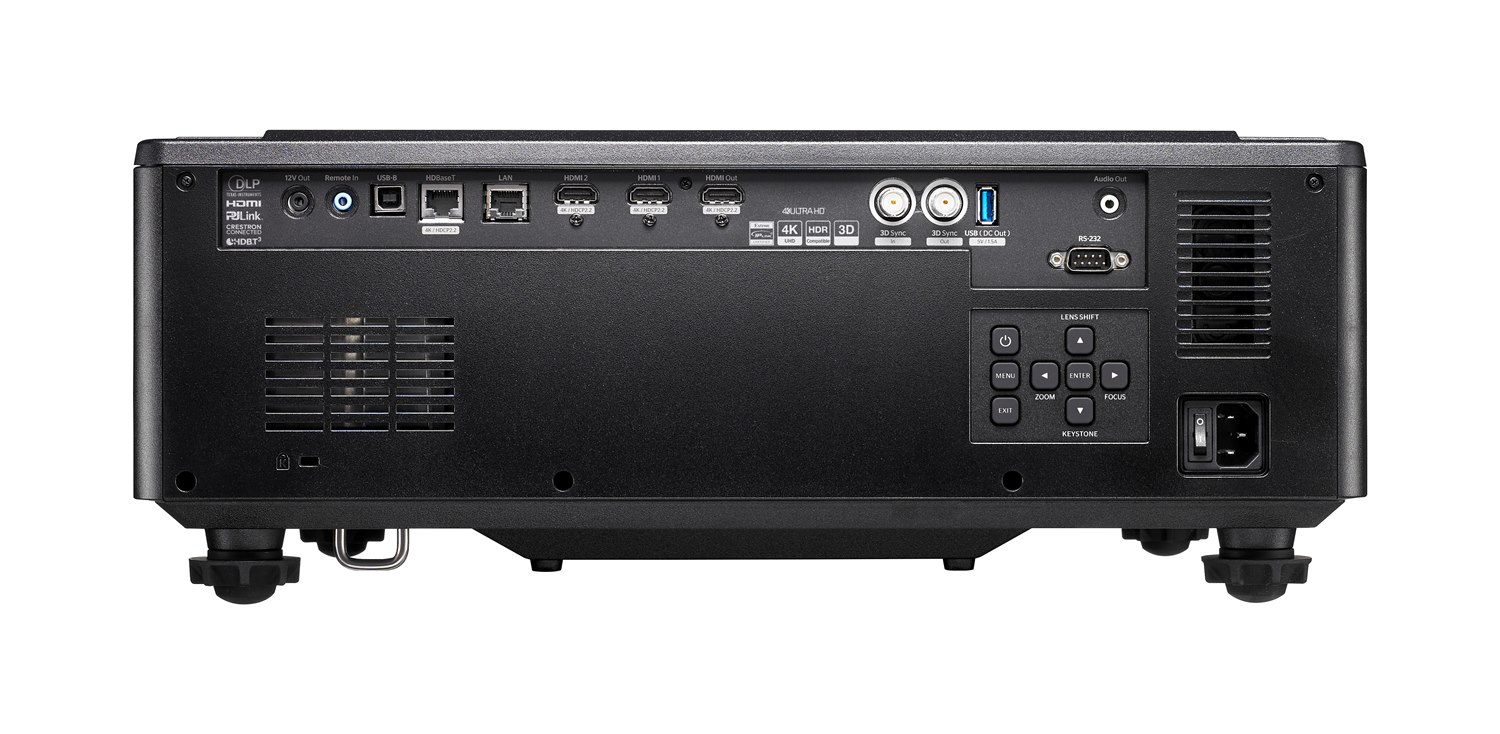

Connectivity
Inputs
2 x HDMI 2.0, 1 x 3D sync,
Outputs
1 x HDMI 2.0, 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x 3D sync
Control
1 x HDBaseT 4K, 1 x RJ45, 1 x 12V trigger, 1 x RS232, 1 x USB-B service,1 x Wired remote
General
Noise level (min)
34dB
Noise level (max)
38dB
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP5X
OSD / display languages
11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
24/7 operation
Yes
360° operation
Yes
Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
10W
In the box
Quick-start-guide, Back-lit remote control, Power cable, AAA Batteries
Networking
LAN - control
Yes
LAN - wireless networking
No
LAN
Yes
Power
Power supply
AC 100 – 240 V @ 50/60 Hz
Power consumption (standby)
0.5W
Power consumption (min)
280W
Power consumption (max)
530W
Weight and dimensions
Dimensions (W x D x H)
19.13" x 17.03" x 7.3"
Gross weight
43.21 lbs
Net weight
31.97 lbs
UPC
796435 44 720 5
