This product has been discontinued.

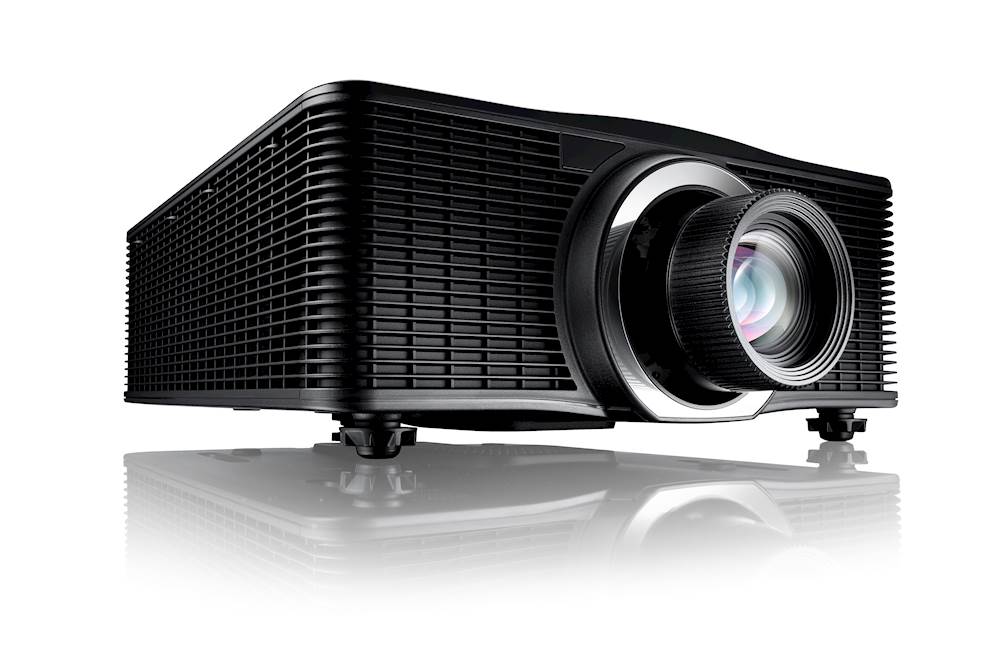

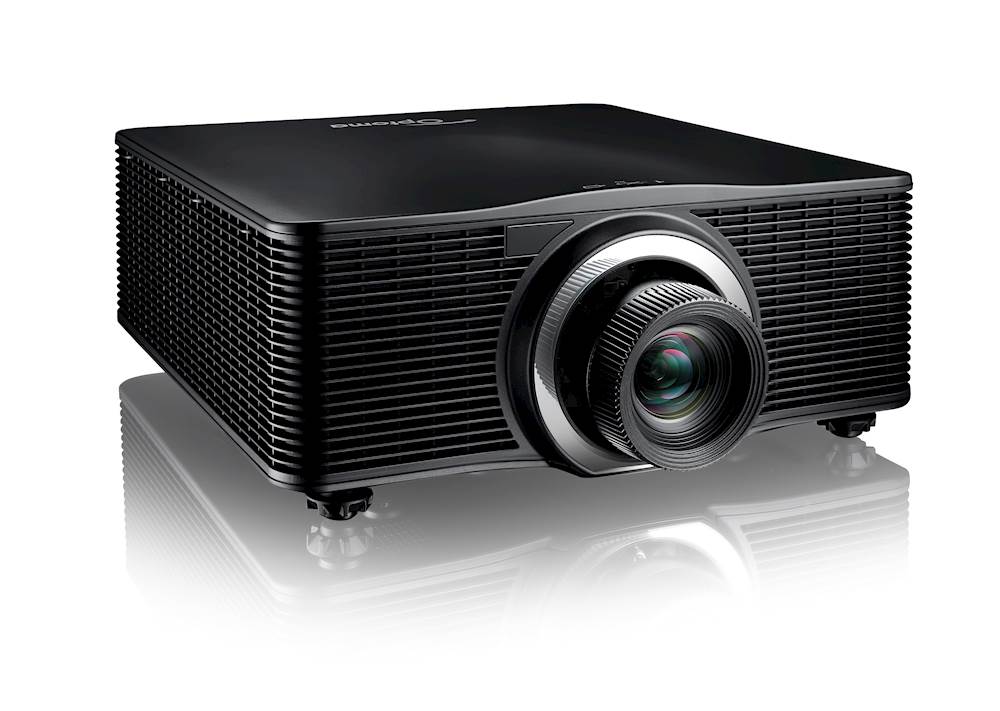

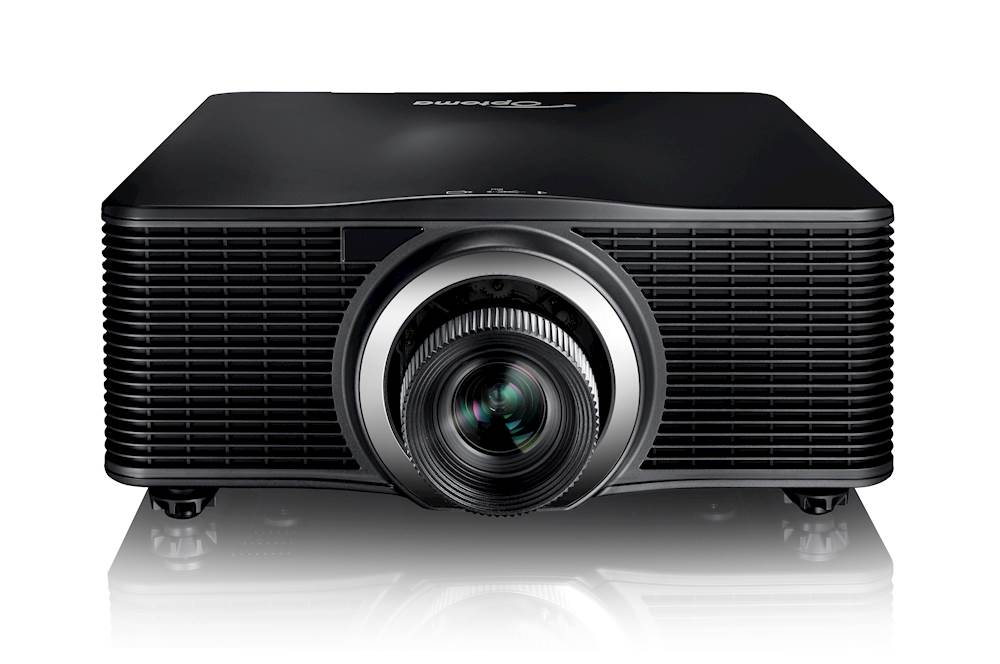

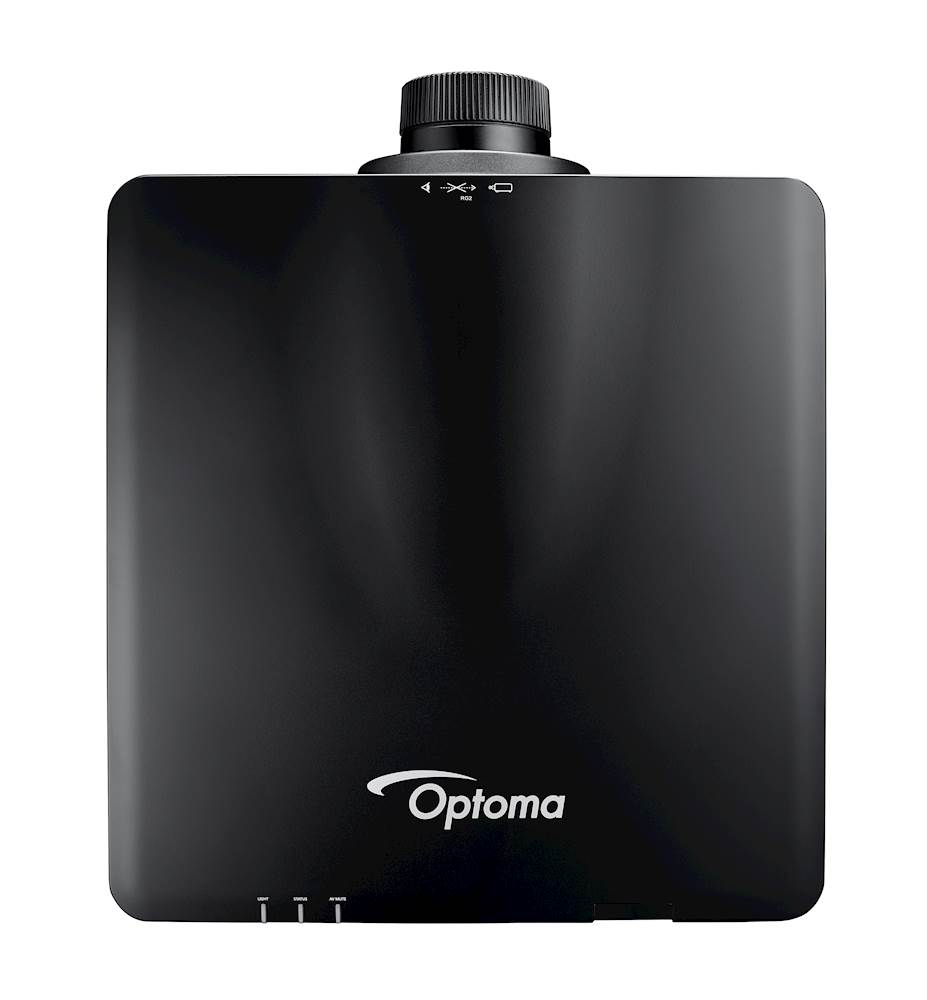

ZU750

Spectacular image quality, low maintenance and ultimate reliability

The ZU750 builds on the success of the Duracore range of professional installation projectors. With enhanced features such as warping and edge blending, it joins the DuraCore laser line up which combines industry-leading lifetime of the light source with an independent dust resistant certification for ultimate peace of mind.

Providing up to an astonishing 30,000 hours of impressive, virtually maintenance free operation, laser technology eliminates the need for lamp and filter replacements for an even lower total cost of ownership.

Designed for meeting rooms, boardrooms, auditoriums, museums and other large venues, the laser-phosphor light source delivers great colours and more consistent brightness, along with high resolution and contrast for stunning quality images. It is also ultra-quiet making the ZU750 an ideal companion for quieter environments, smaller rooms or those with lower ceilings.

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Compatible multi output graphics card with overlap function is required.*

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

Picture by picture picture-in-picture

Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

360 projection*

With 360° projection,images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

.

Have your projector in any color. Chose from any RAL color. Perfect for bespoke installations.
*Contact us for more information"
Compatible Models
Specification
Display/image
Display technology
DLP®
Resolution
WUXGA (1920x1200)
Brightness
8,000 lumens
ANSI brightness
7,500
Contrast ratio
2,000,000:1
Contrast ratio - dynamic
6,000:1
Contrast ratio - full on/off
2,000:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - horizontal
+/-20°
Keystone correction - vertical
+/-20°
Uniformity
90%
Screen size
Dependent on lens
Lamp info
Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
Dependent on lens
Projection distance
Dependent on lens
Lens options
BX-CTA16- 0.36 ~ 0.36BX-CTA17- 0.65~0.75BX-CTA15- 0.75 ~ 0.95BX-CTA01- 0.95 ~ 1.22BX-CTA06- 1.22 ~ 1.53BX-CTA03- 1.52 ~ 2.92BX-CTA13- 2.90 ~ 5.50BX-CTADOME- Dome lens
Connectivity

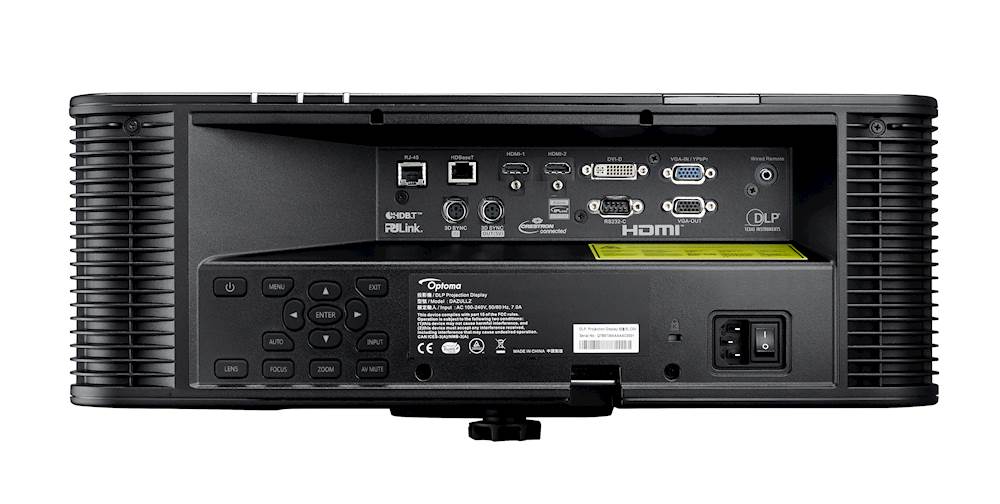

Connections
Inputs 2 x HDMI, 1 x DVI-D, 1 x VGA, 1 x HDBaseT, 1 x 3D syncOutputs 1 x VGA, 1 x 3D sync, 1 x USB-AControl 1 x RS232, 1 x Wired remote, 1 x mini USB service, 1 x RJ45
General
Noise level (min)
36dB
Noise level (max)
38dB
PC compatibility
HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
2D compatibility
PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock
IP rating
IP5X
OSD / display languages
11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
24/7 operation
Yes
360° operation
Yes
Operating conditions
5°C~40°C/41°F~104°F

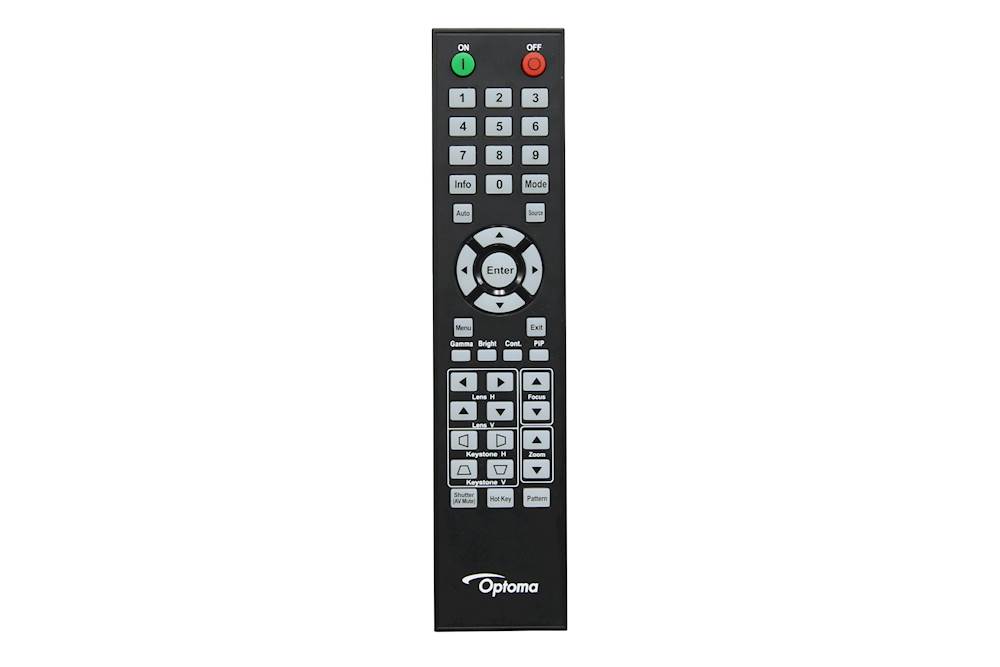

Remote control
Wired ProAV remote
Heat dissipation
2,109BTU/hour
In the box
Remote control, 2x AAA batteries, Power lead, VGA cable, Standard Lens ring (A01, A03, A13 ONLY) , A06 Lens ring
Optional wireless models
QuickCast Bundle, QuickCast starter kit
Networking
LAN
Yes
Power
Power supply
100 - 240V, 50 - 60Hz
Power consumption (standby)
0.5W
Power consumption (min)
299W
Power consumption (max)
618W
Weight and dimensions
Dimensions (W x D x H)
19.06" x 20.04" x 7.28"
Gross weight
48.94 lbs
Net weight
38.14 lbs
