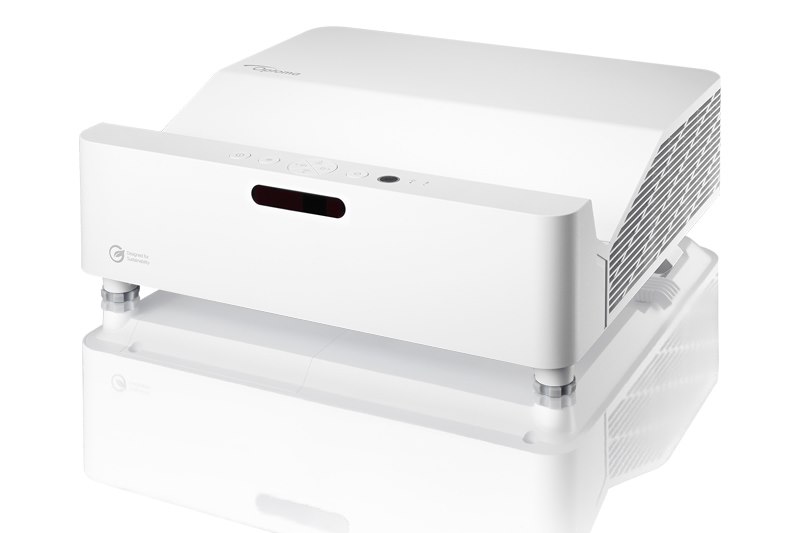

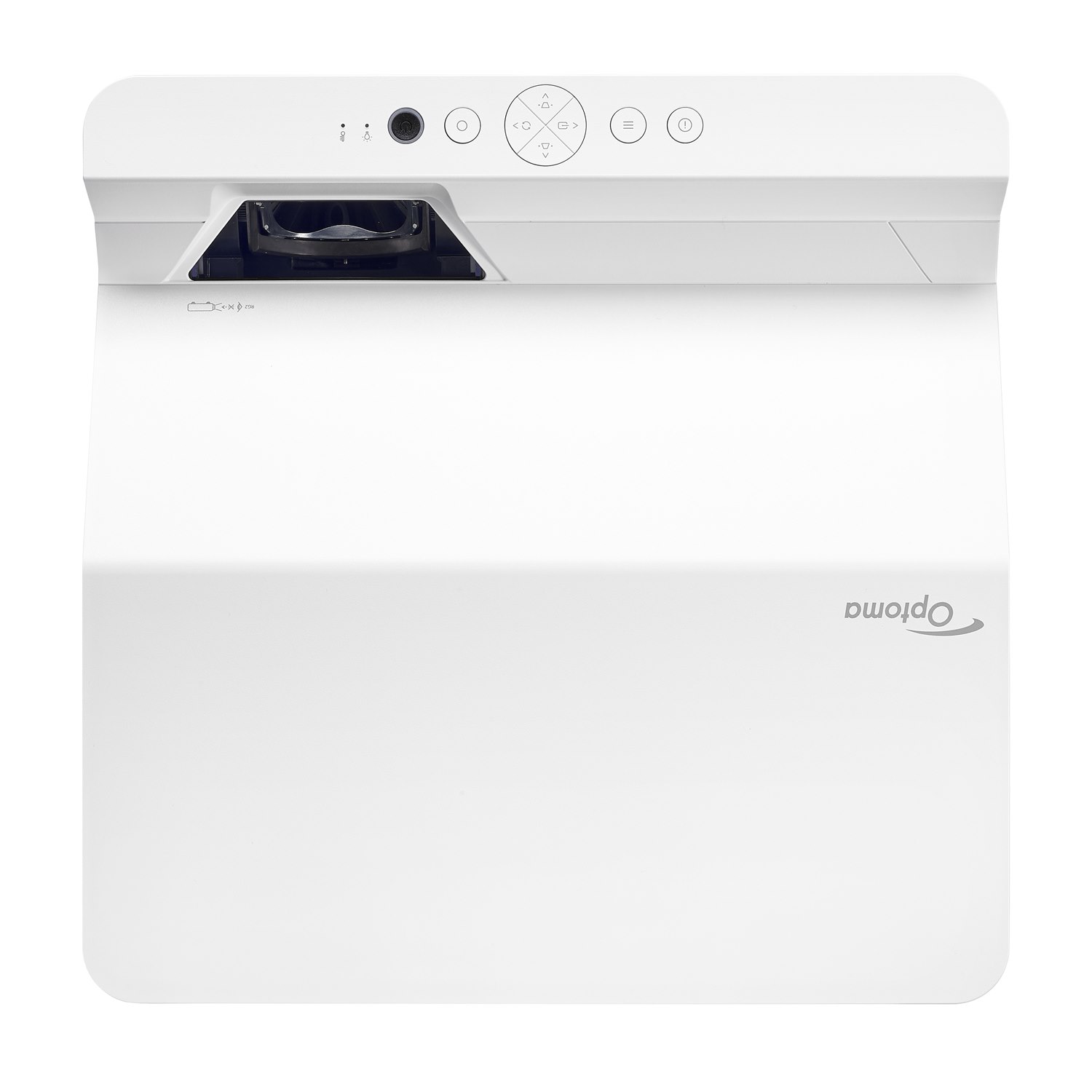

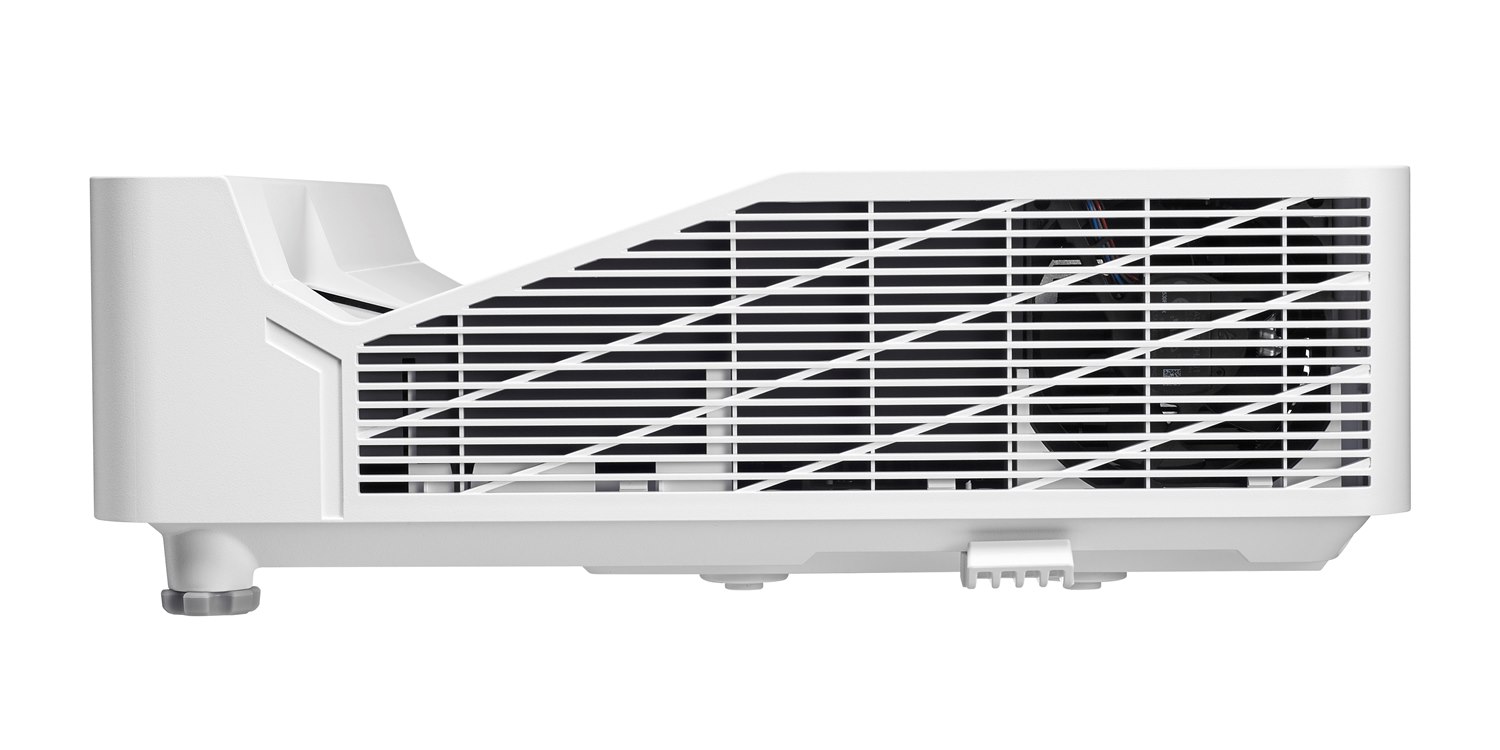

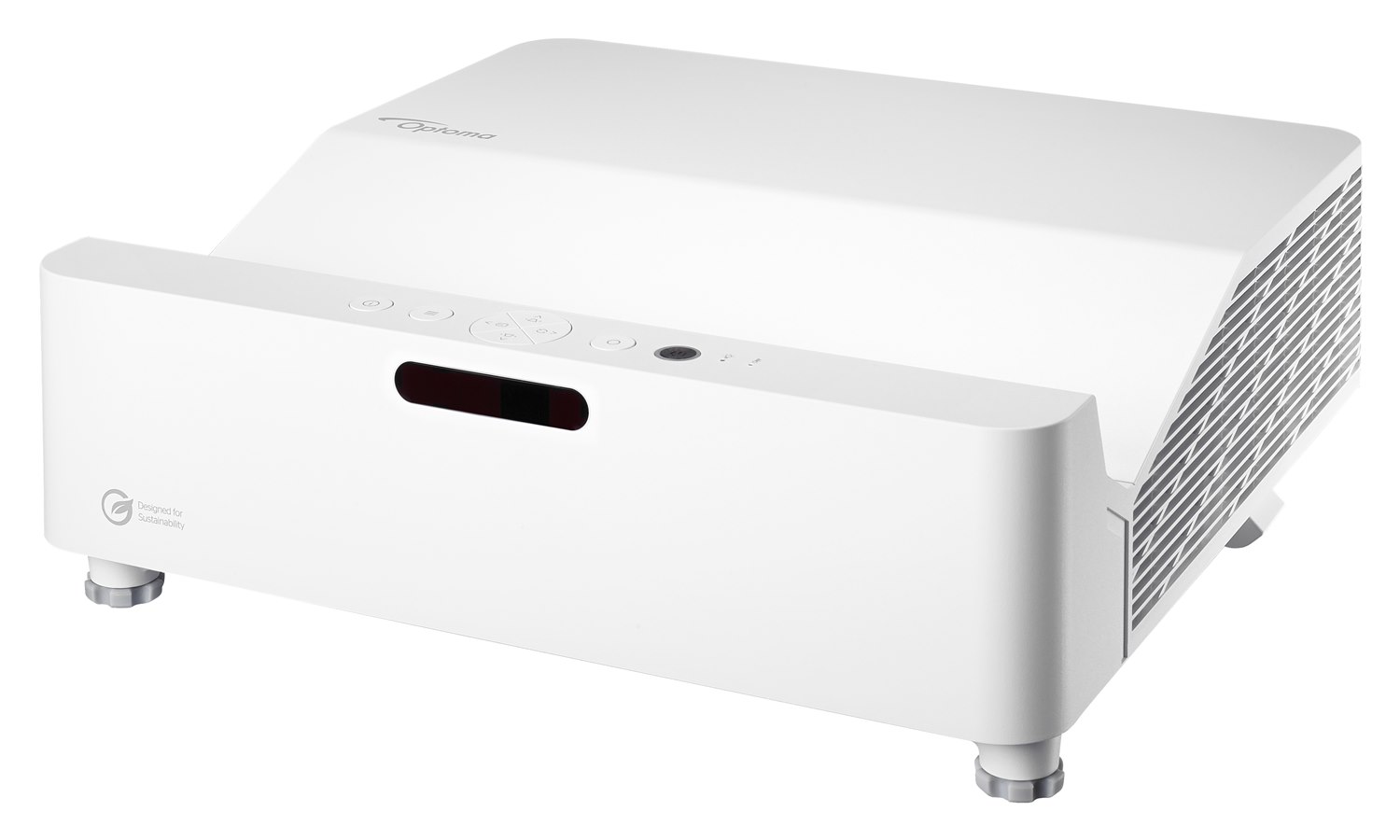

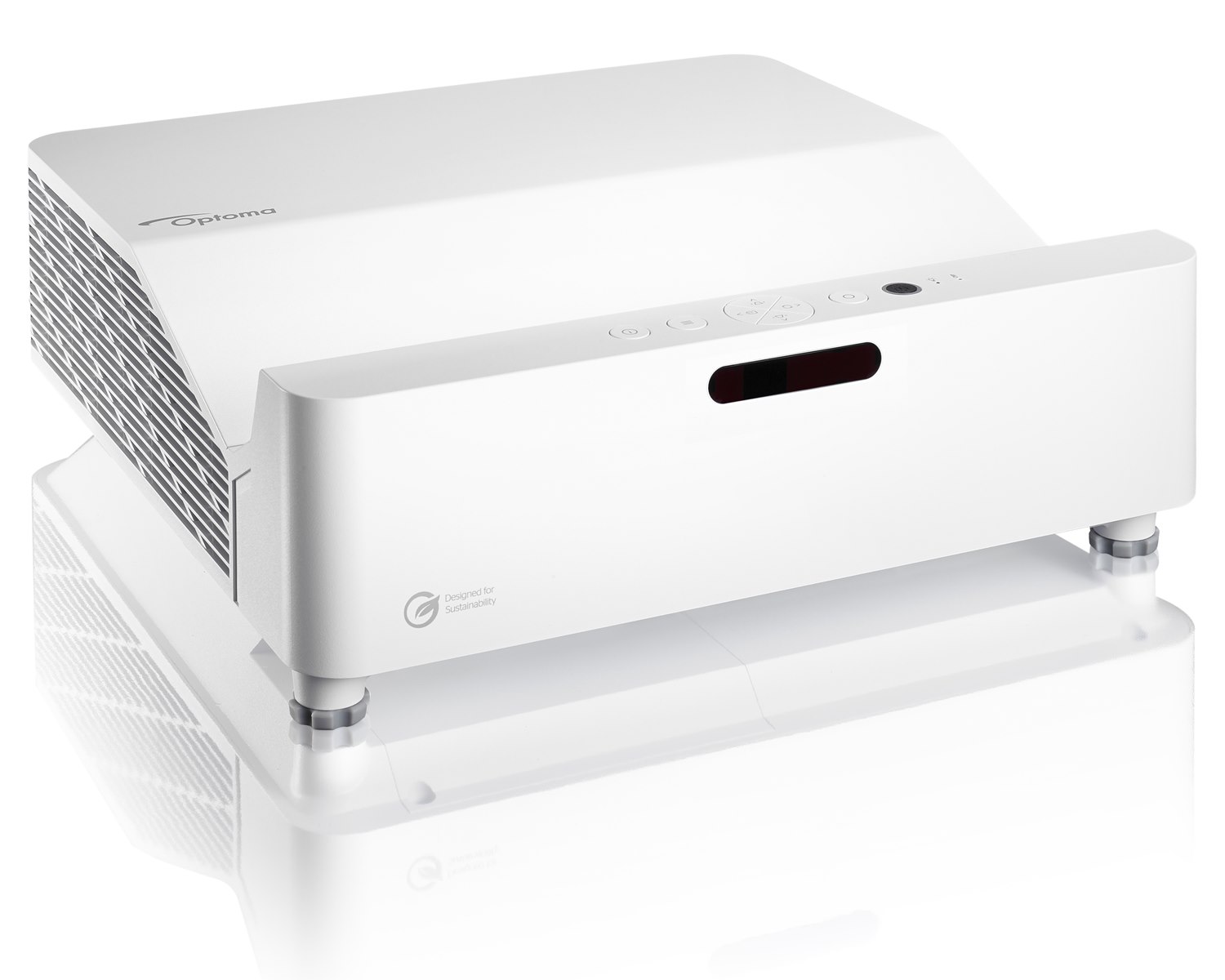

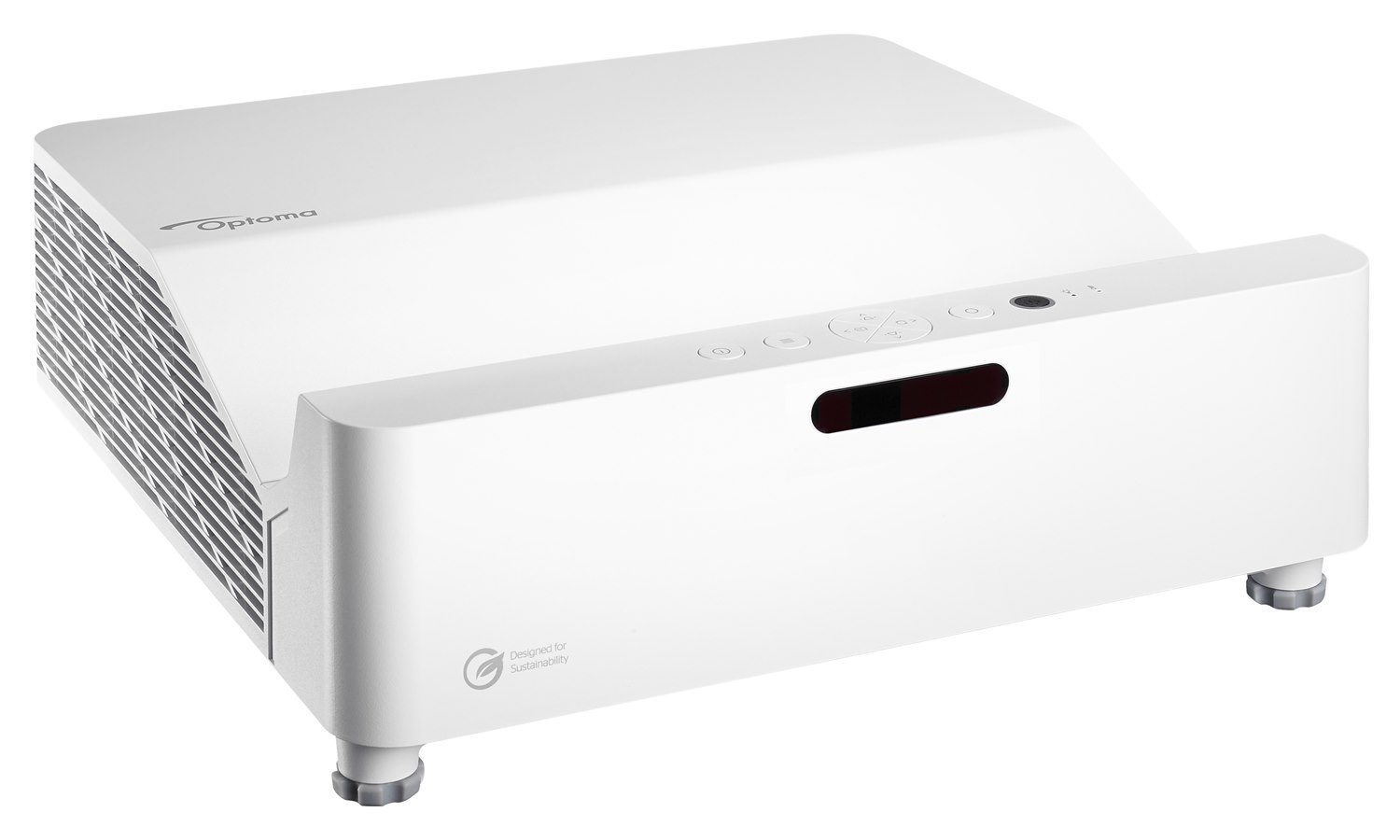

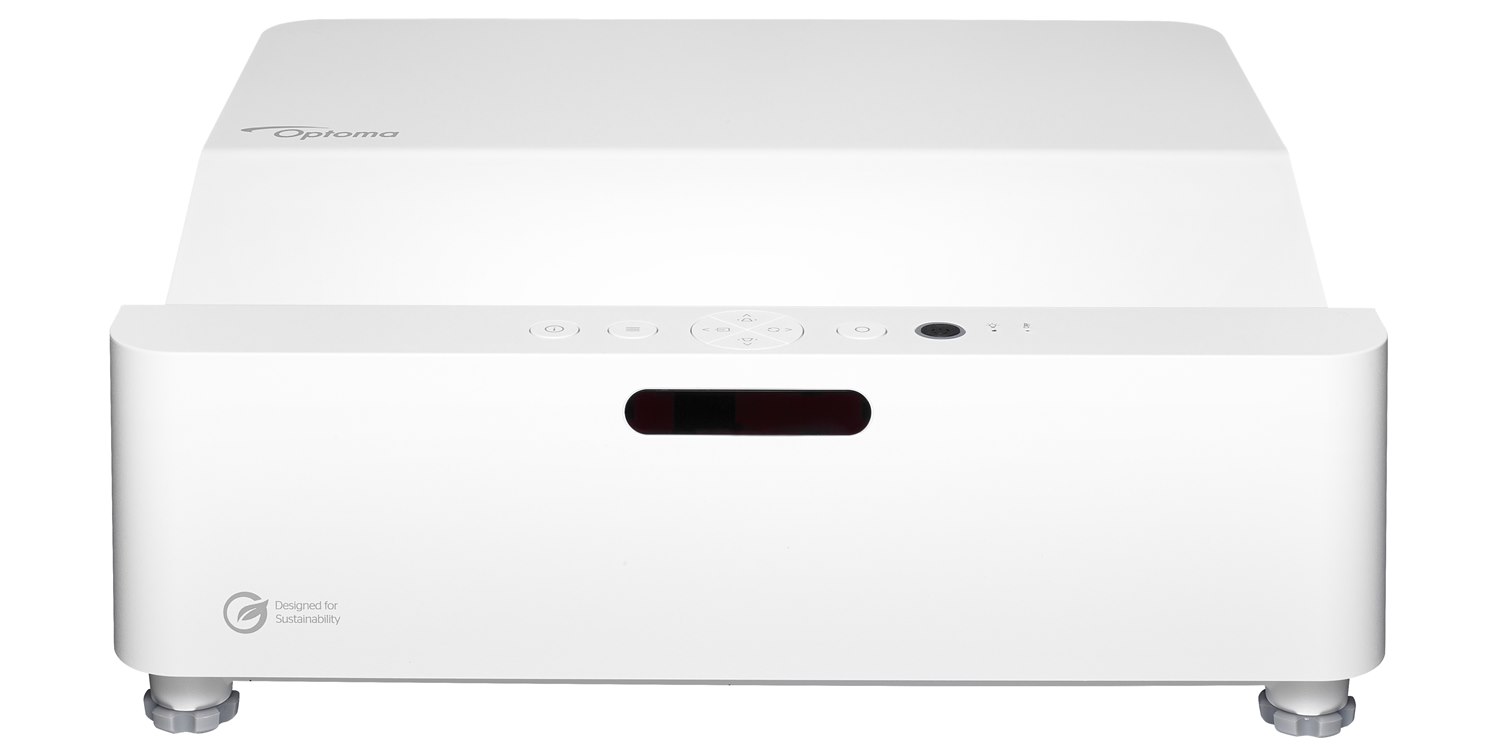

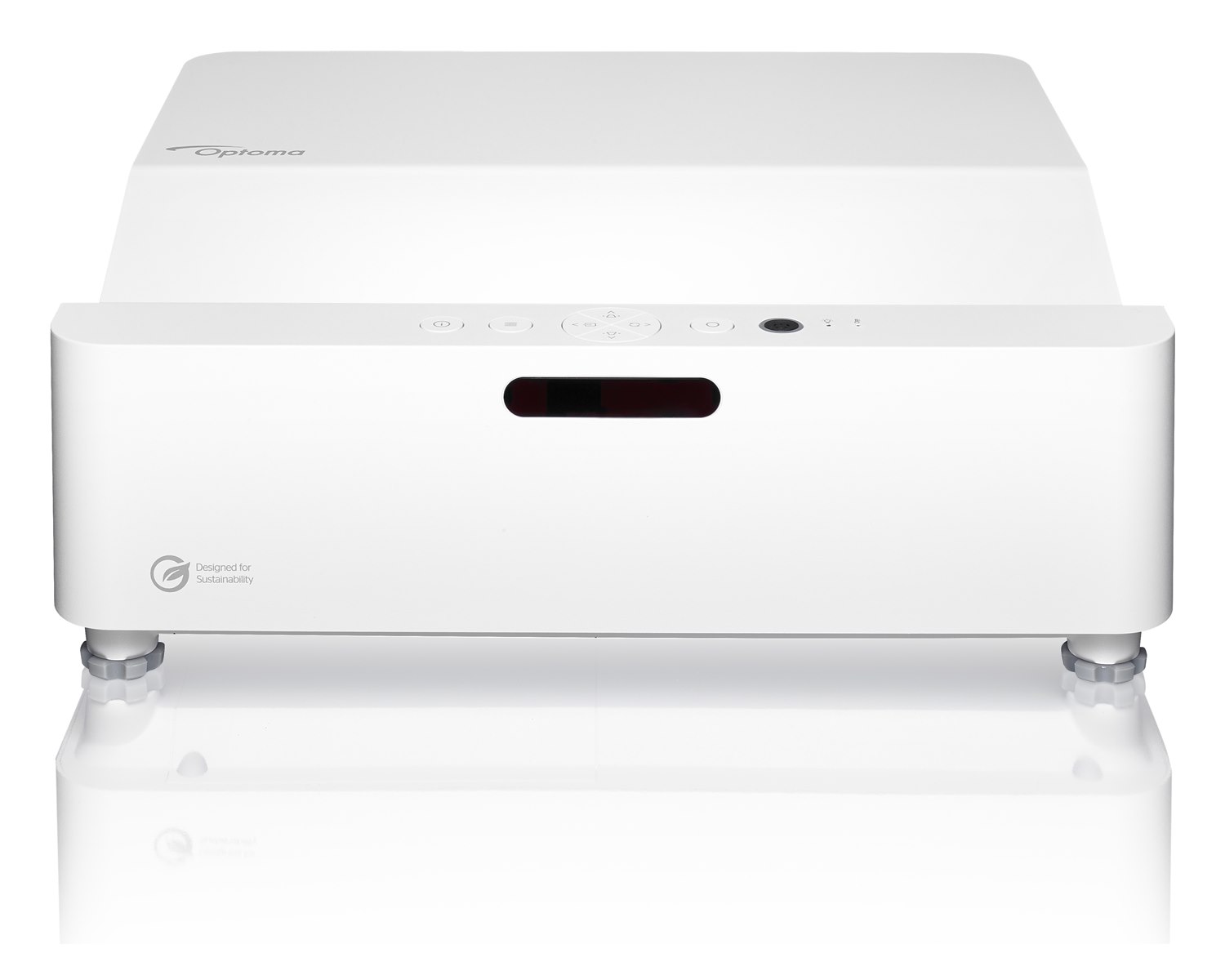

Optoma ZK420UST

ZK420UST

Compact 4K UHD ultra short throw laser projector with HDBaseT

The ZK420UST is one of Optoma's most compact and hassle-free 4K DuraCore laser projectors to date. Designed for 30,000 hours of maintenance-free operation, this 4200-lumen projector delivers powerful and eye catching image performance, perfect for meeting rooms, classrooms to immersive installations.

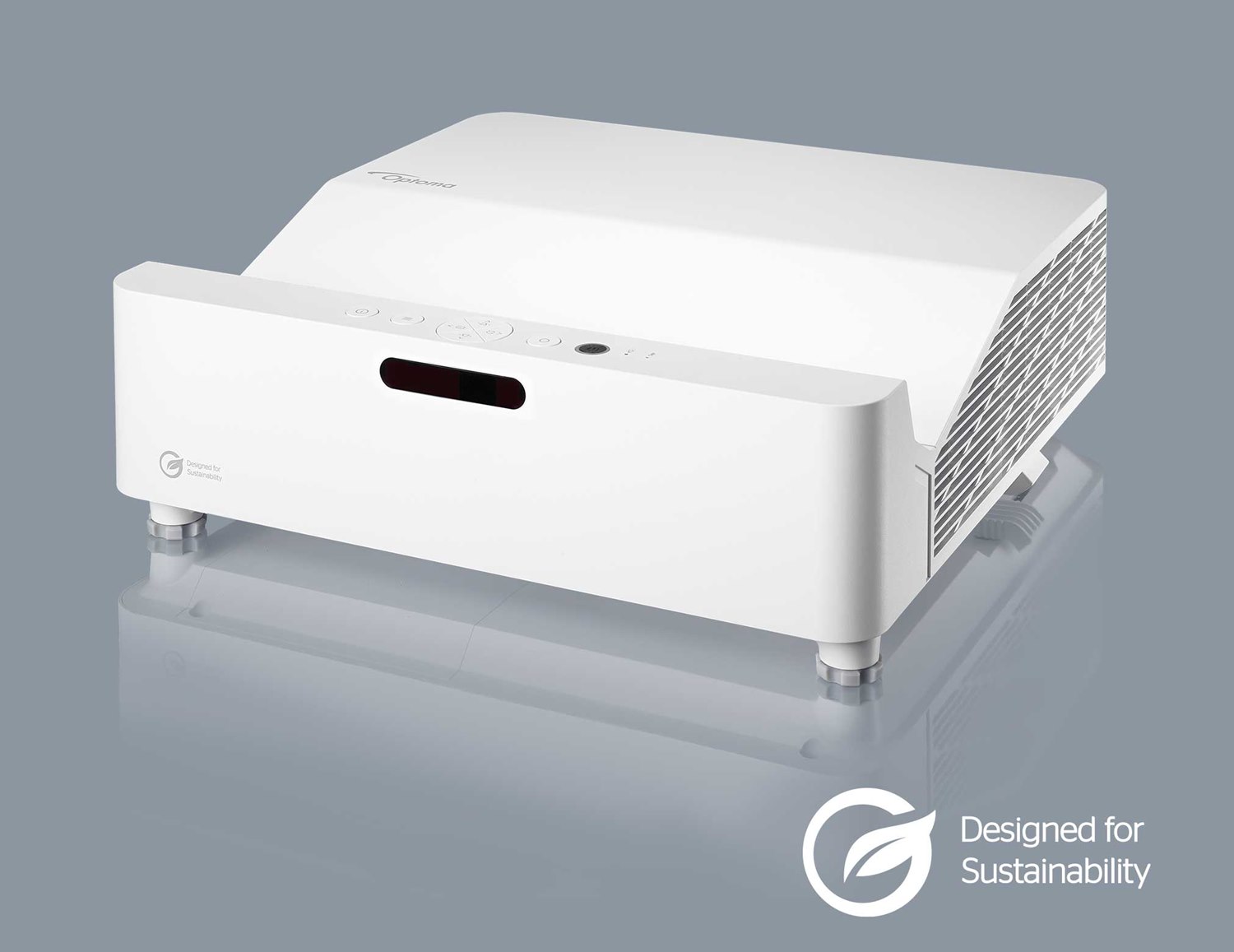

To support Optoma’s commitment to sustainability, the ZK420UST designed with the environment in mind, the eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.

The ZK420UST features an ultra short throw lens meaning it can project a 100” image from less than 12 inches away, avoiding shadows being cast across the screen from the presenter(s). For ultimate convenience it comes with RS232, HDBaseT3.0 & OMS (Optoma Management Suite) for monitoring and controlling.

Features

Ultra Short Throw

With an ultra-short throw lens, you can project an impressive image greater than 100” from only inches away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.

True 4K UHD resolution

Ultra HD 4K resolution delivers sharper, life-like images and richer colors - allowing you to sit closer to the screen and enjoy a more immersive experience.

Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.

HDR and HLG compatible

Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.

Four corner correction

Four corner correction enables the keystone of the projector to be adjusted in both the vertical and horizontal plane, so you can individually warp each corner of the projected image to make it perfectly square. Ideal for uneven walls or in spaces where the projector placement is awkward or limited and needs to be installed at an angle.

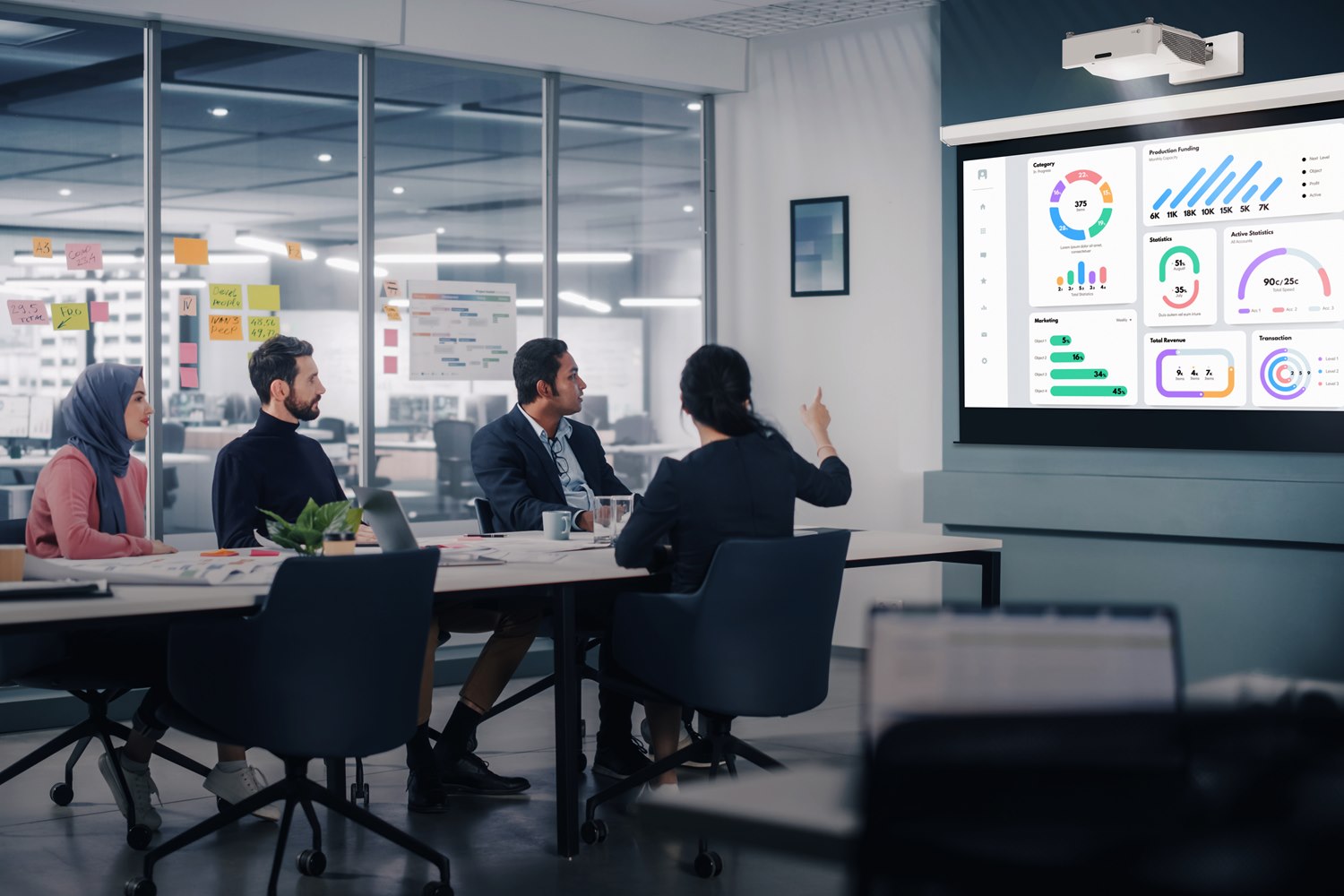

Bright 4K UHD Ultra Short Throw Projection

This versatile projector combines high brightness and vivid colors for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

*With no direct sunlight or lights directed on screen.

Laser technology

Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior color performance, instant on/off and an extraordinary life span of up to 30,000 hours.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual
  • HDBaseT™

    Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    24/7 operation

    Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

    *24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*

    Auto power off

    There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

    Integrated speaker

    Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

    Connect anytime, anywhere

    Peace of mind

    Businesses can have confidence in the ability of their IT managers to provide remote support with the Optoma Management Suite (OMS)™ solution. IT managers can easily monitor and diagnose issues related to any Optoma AV display, ensuring employees are not left without assistance. For an extra layer of readiness, companies can also set alerts and broadcast emergency announcements.
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    UHD (3840x2160)
    Brightness
    4,200 lumens
    Contrast ratio
    1,800:1
    Contrast ratio - dynamic
    500,000:1
    Native aspect ratio
    16:9
    Aspect ratio - compatible
    4:3,16:9
    Screen size
    100" ~ 150" diagonal
    Light source type
    DuraCore Laser
    LASER life
    30,000 hours
    Throw ratio
    0.25:1
    Projection distance
    11.25" - 22.25"
    Zoom type
    Fixed
    Native offset
    120%

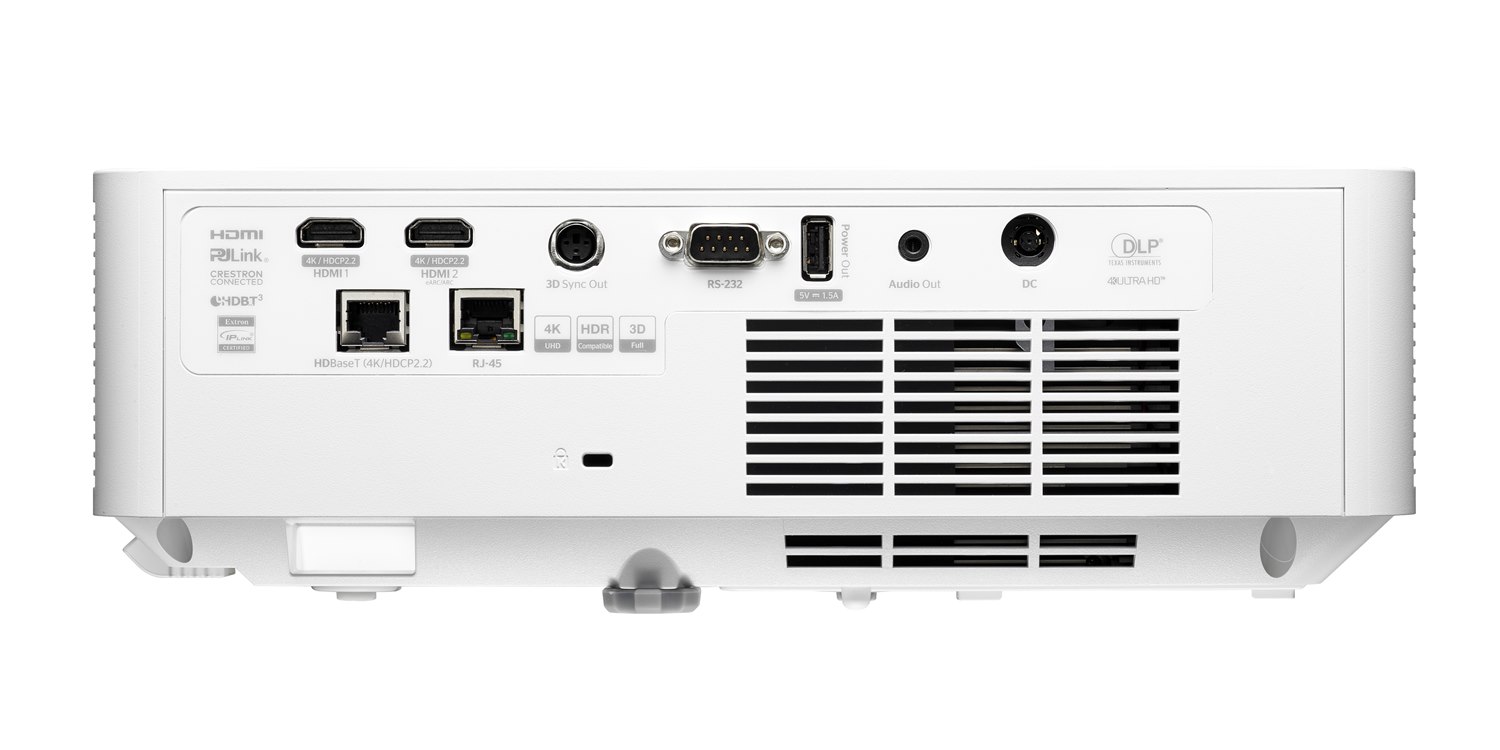

    Connections
    HDMI 2.0
    HDMI 2.0 (eARC)
    USB-A power
    Audio-out 3.5mm
    3D sync
    HDBaseT 4K
    RJ45
    RS232
    Noise level (min)
    29dB
    Noise level (max)
    34dB
    3D
    Full 3D
    Security
    Security bar, Kensington Lock
    IP rating
    IP6X
    OSD / display languages
    25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
    24/7 operation
    Yes
    360° operation
    Yes
    Operating conditions
    0°C~40°C/32°F~104°F, max. altitude 3,048m/10,000ft, max. humidity operating 80%, non-operating 90%
    Speaker count
    1
    Watts per speaker
    15W
    What's in the box
    QSG
    Power Adapter
    Cable

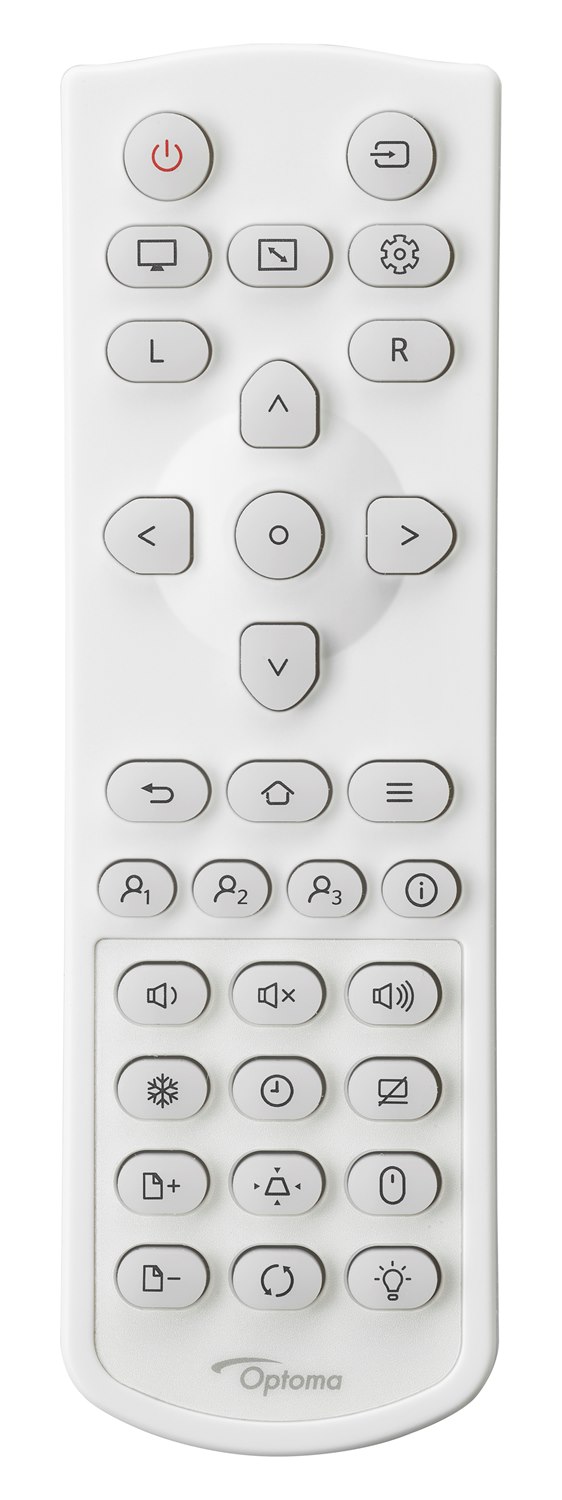

    Remote
    Batteries (2xAAA)
    LAN
    Yes
    Power supply
    250W
    Dimensions (W x D x H)
    12.87" x 12.91" x 3.35"
    Net weight
    9.92 lbs
    UPC
    796435 44 758 8
