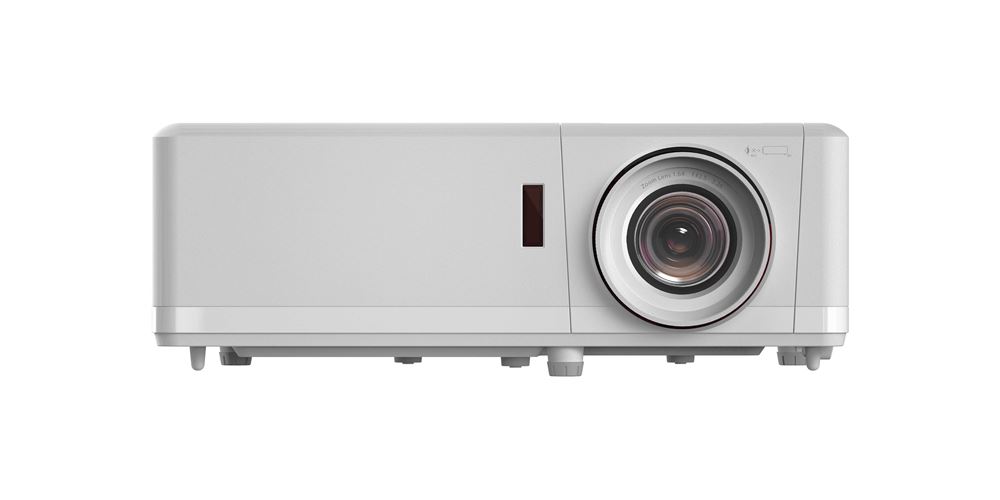

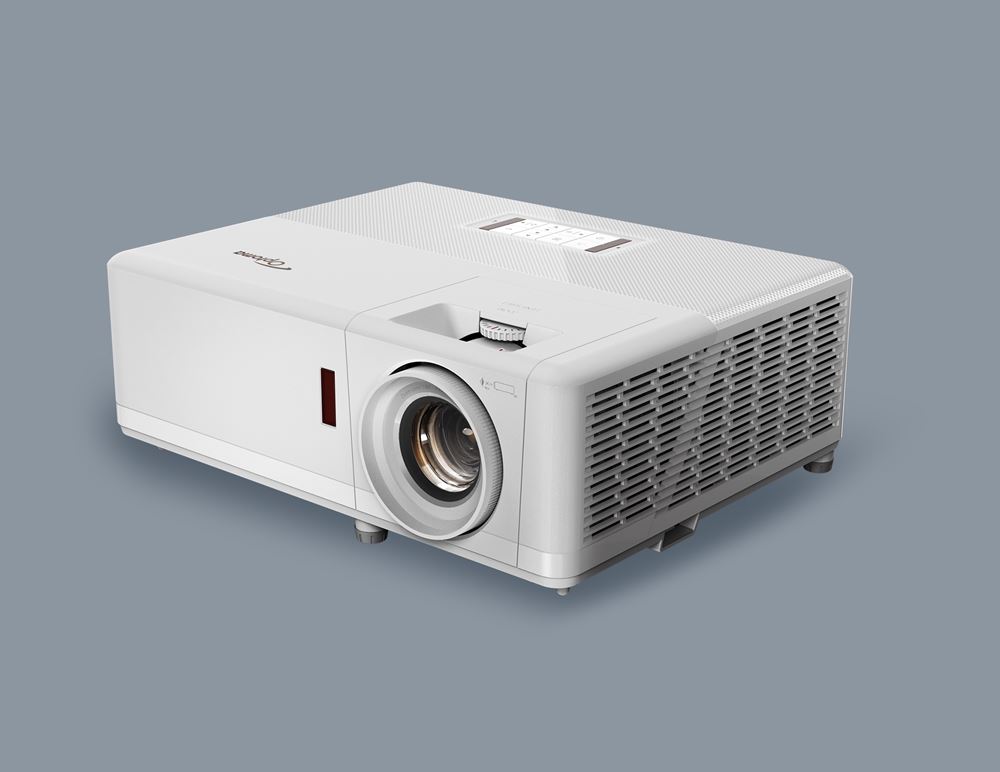

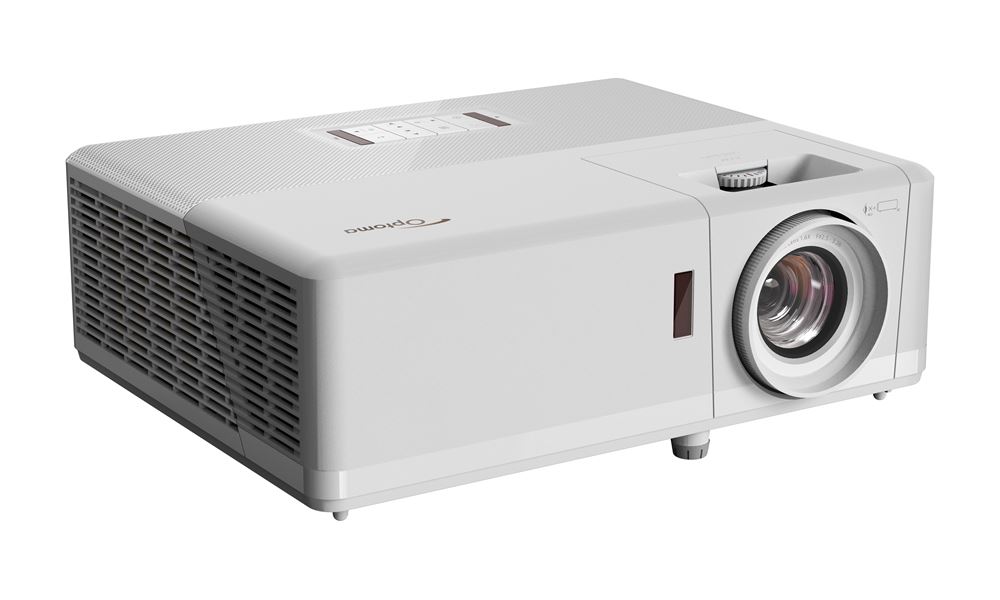

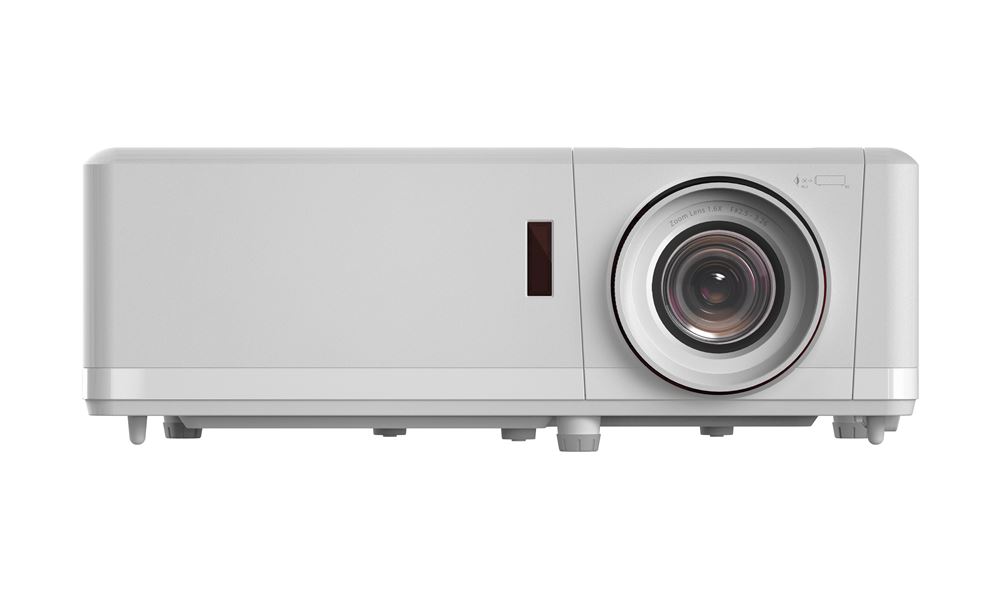

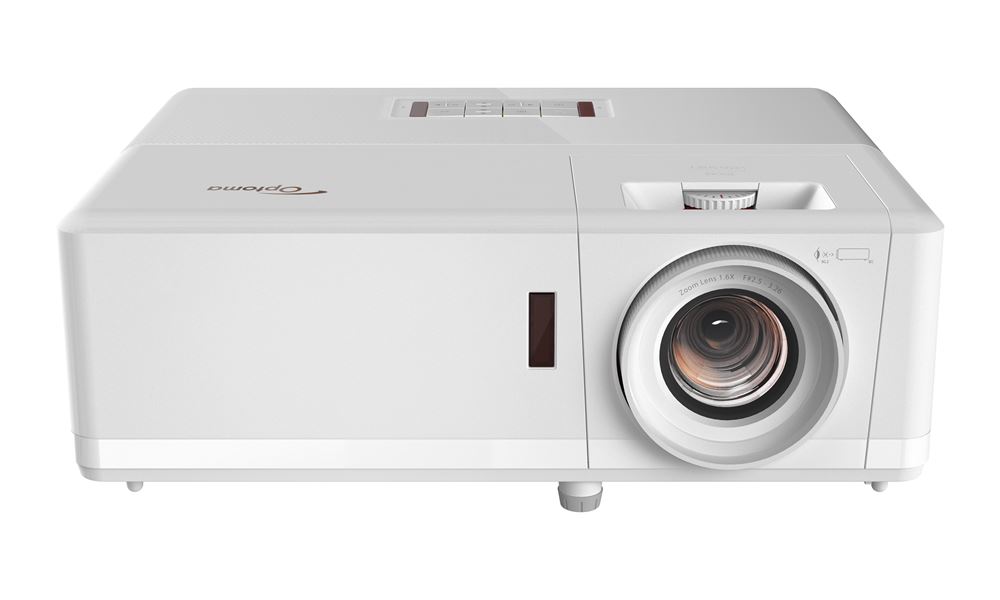

ZH507+

High brightness smart DuraCore laser projector

The ZH507+ projector offers true convenience with low maintenance and longer-life laser technology in a small and lightweight chassis with an impressive 5500 lumens brightness. With 1.6 zoom, vertical lens shift and built-in 10W speakers, the ZH507+ is part of a range of products that come with the added control flexibility of Crestron.

Supporting built-in Smart functions such as CreativeCast Pro allowing for wireless presentations and the shift in bring your own devices (BYOD), along with support of Optoma Management Suite Cloud allowing you to control and manage the ZH507+ from any location.

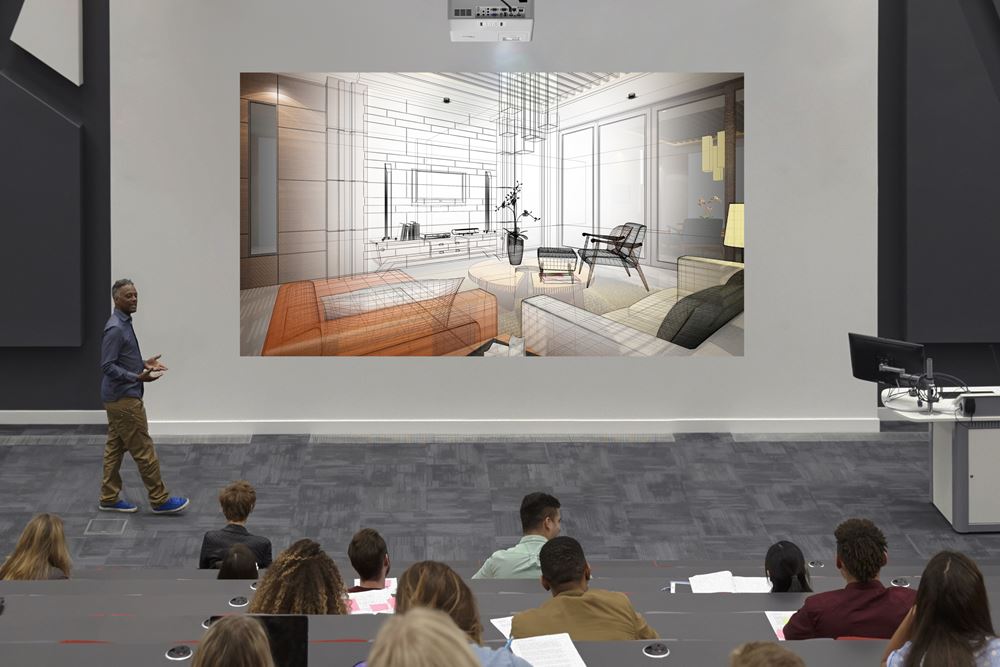

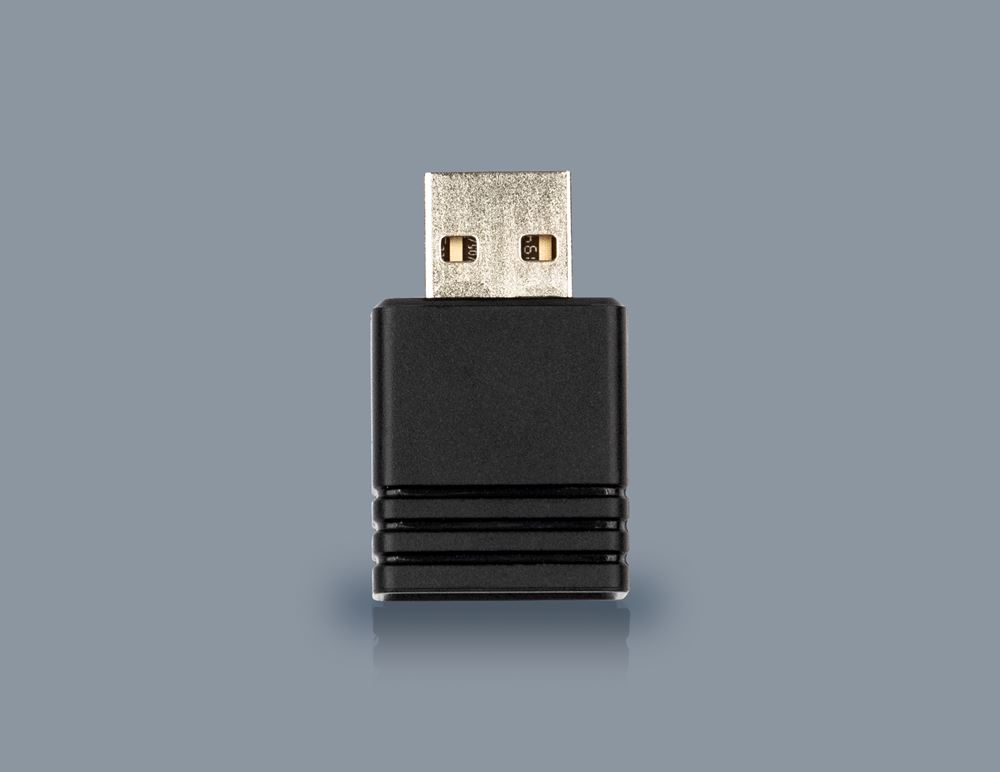

Suitable for a wide variety of applications, the Full HD 1080p ZH507+ is 16:9 native making it perfect for large venues, education, museums, houses of worship and anywhere a sharp and bright image is required. This projector includes additional USB-A support as well as a USB Wireless adaptor for WiFi and app connectivity. Wirelessly access and share photos, videos and other media content with the Media Player app.

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

CONNECT ACROSS PLATFORMS

Connect any device.

Wirelessly broadcast, share or stream your content to the big screen with Creative Cast Pro™. Screen mirror high-quality images, video, documents and audio from your smartphone, laptop or PC – all with a touch of a button. Bringing your own device has never been easier.

CONNECT ANYTIME, ANYWHERE.

Peace of Mind.

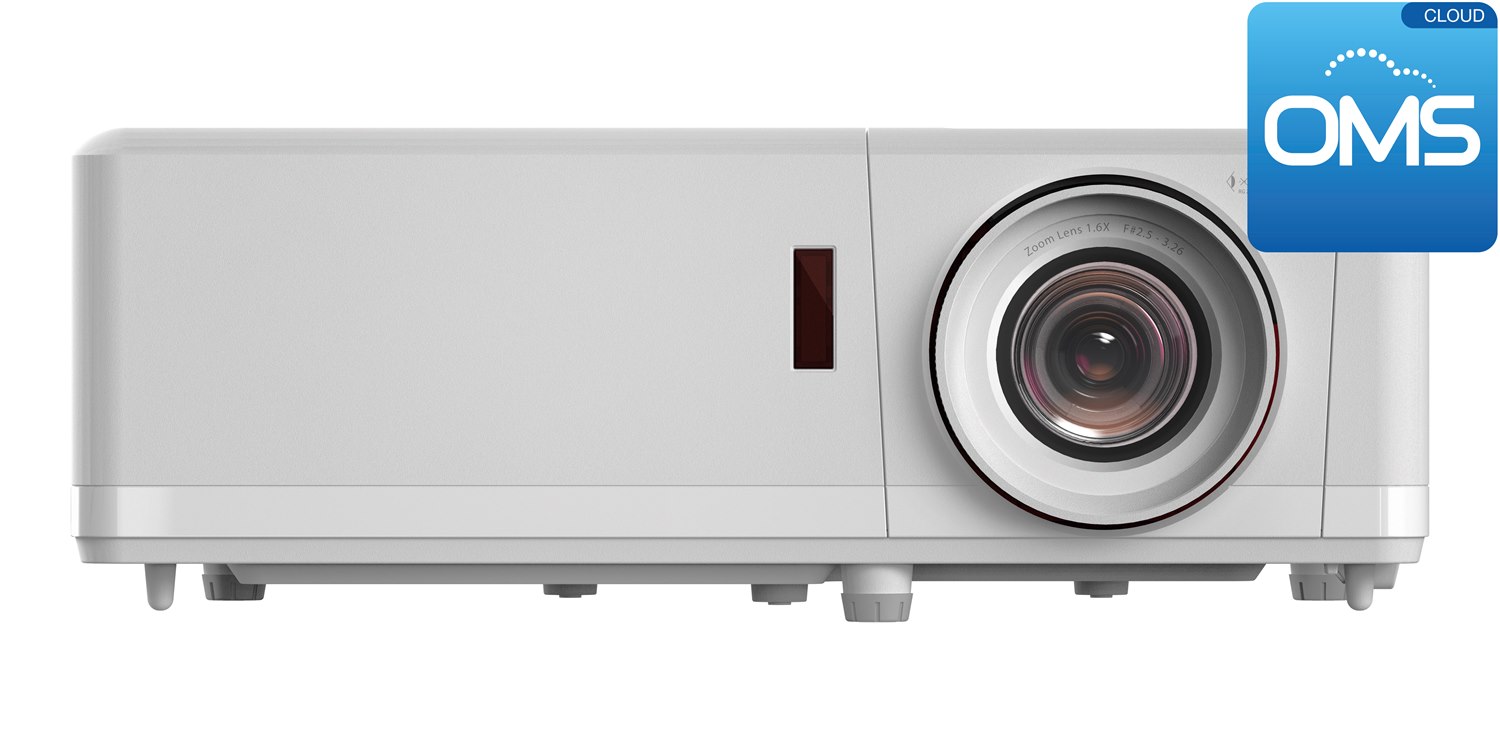

Teachers can have peace of mind knowing their IT managers can support them remotely using Optoma’s Management Suite (OMS) solution. IT managers can monitor and diagnose issues with any AV display so teachers aren’t left in the dark. Teachers can also set alerts and broadcast emergency announcements.

Full HD 1080p

1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.

IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Superior contrast

Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

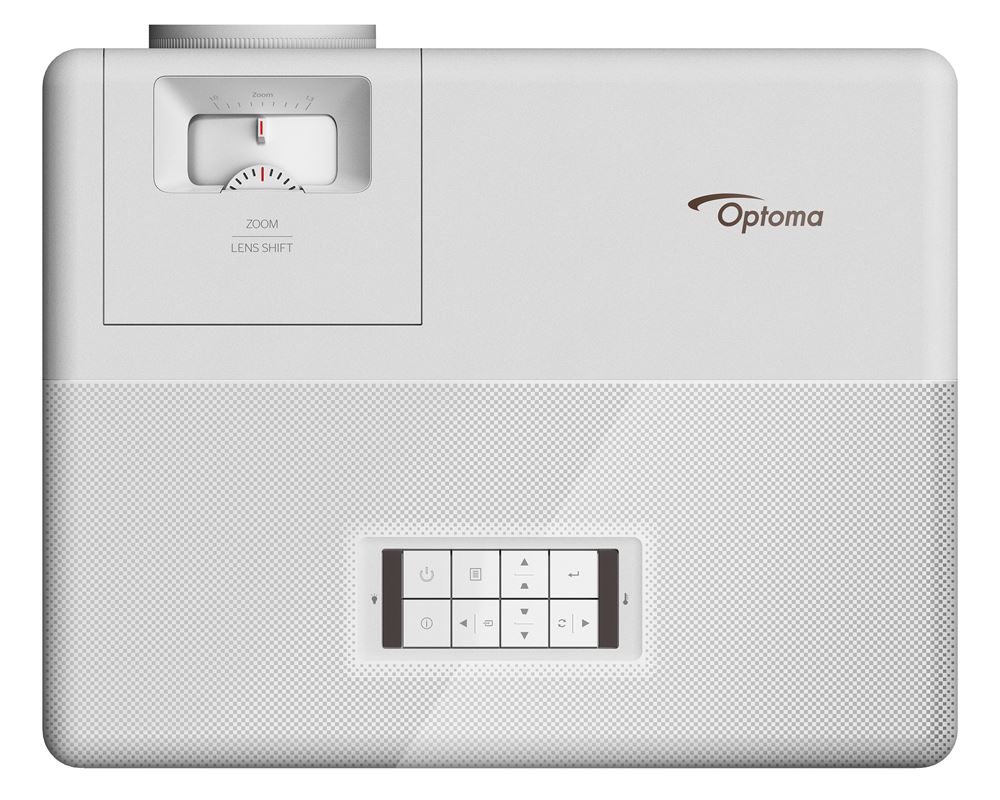

Vertical Lens Shift

Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

360 projection*

With 360° projection,images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Integrated speaker

A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

AV mute

Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.

Quick resume

This feature allows the projector to be instantly powered on again, if it is accidentally switched off.

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Direct power on

The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.

Direct power off

Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

*24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*

WiFi

Connect to your network wirelessly for internet access and OTA (over the air updates).
Specification
Display/image
Display technology
DLP®
Resolution
1080p Full HD (1920x1080)
Brightness
5,500 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-30°
Has vertical auto keystone correction
Yes
Displayable colors (millions)
1073.4
Horizontal scan rate
15.375 ~ 91.146 KHz
Vertical scan rate
50 ~ 85 Hz (120Hz for 3D)
Uniformity
80%
Screen size
20.2" ~ 320.4" diagonal
Lamp info
Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
1.4:1 ~ 2.24:1
Projection distance
39.37" - 393.7"
Zoom
1.6
Zoom type
Manual
Focal length (mm)
20.91mm~32.62mm/0.823"~1.284"
Lens shift
Vertical +16%
Native offset
100%

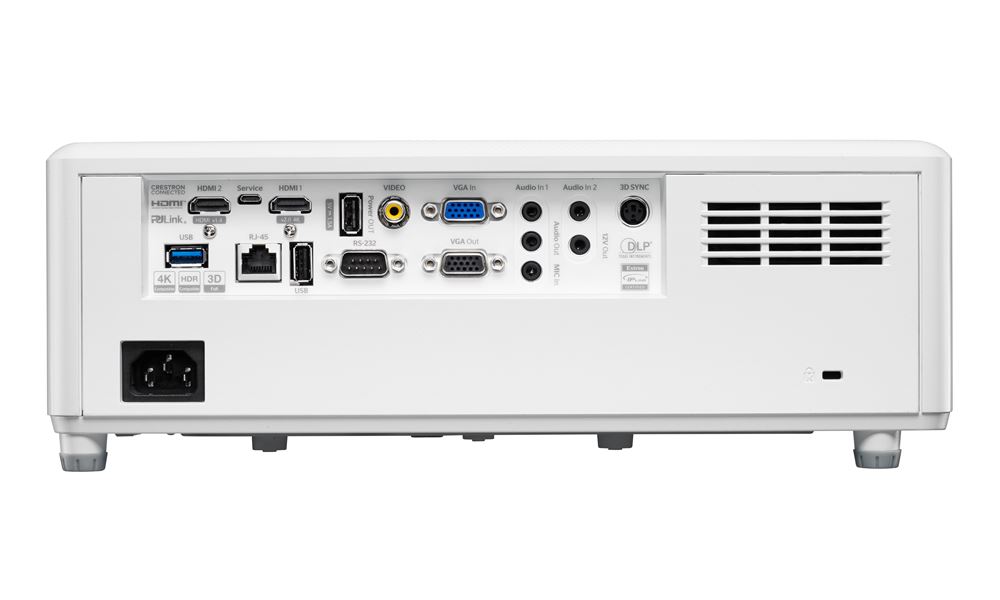

Connectivity
Inputs
1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 2 x Audio 3.5mm, 1 x Mic 3.5mm, 1 x Composite video
Outputs
1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1.5A, 1 x USB-A 2.0 (Power)
Control
1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x micro USB service, 1 x USB-A 3.0 (Wi-Fi dongle), 1 x 3D sync
General
Noise level (min)
29dB
Noise level (max)
35dB
PC compatibility
UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%

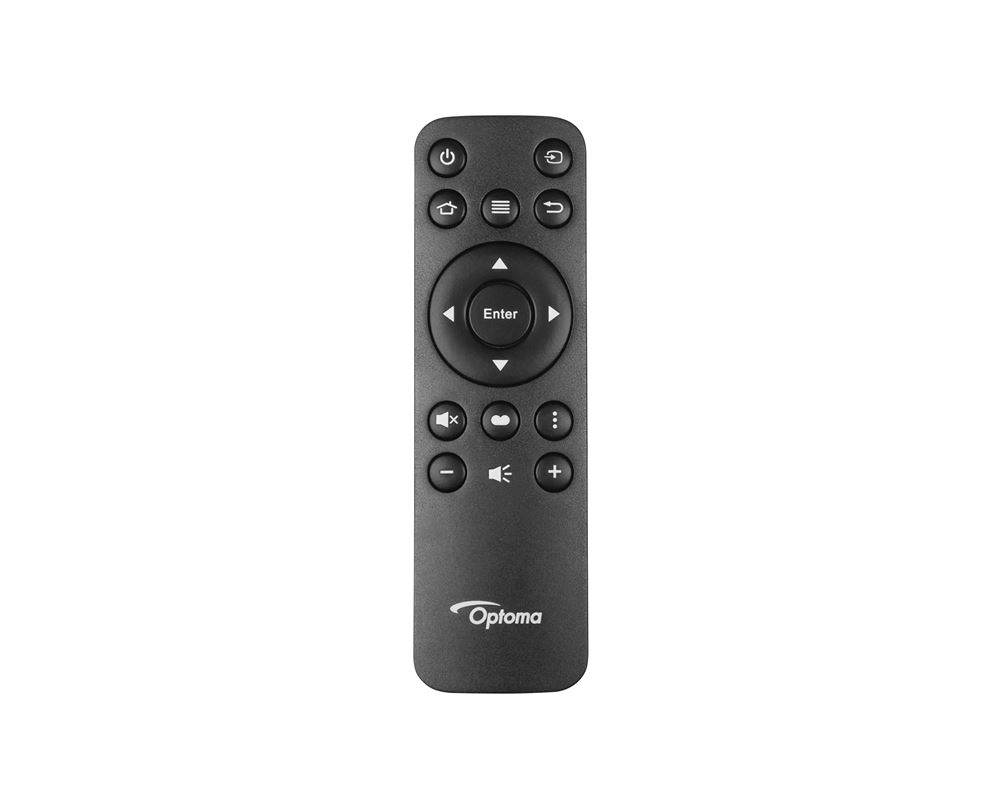

Remote control
Data remote with mouse function
Heat dissipation
918BTU/hour
Speaker count
2
Watts per speaker
10W
In the box
AC power cordRemote control1x CR2025 USB Wireless Adaptor Basic user manual
Input lag
16.20ms
Optional wireless models
UHDCast Pro, QuickCast Bundle, QuickCast starter kit
Networking
LAN - control
Yes
Power
Power supply
100V ~ 240V, 50-60Hz
Power consumption (standby)
Power consumption (min)
227W
Power consumption (max)
282W
Weight and dimensions
Dimensions (W x D x H)
13.27" x 10.43" x 4.82"
Gross weight
14.55 lbs
Net weight
9.92 lbs
UPC
796435 44 625 3
