This product has been discontinued.

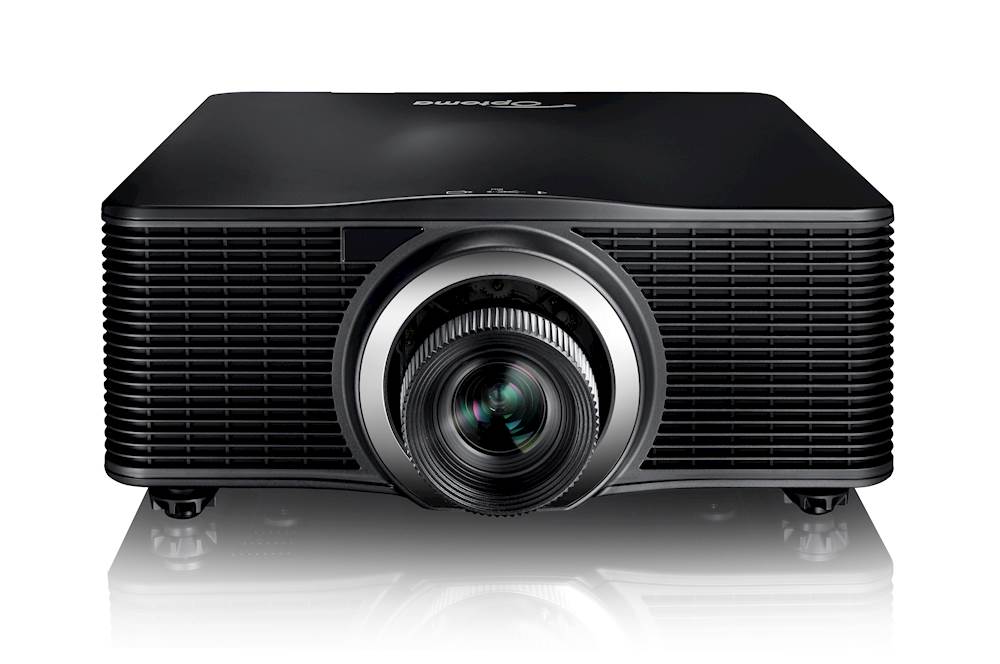

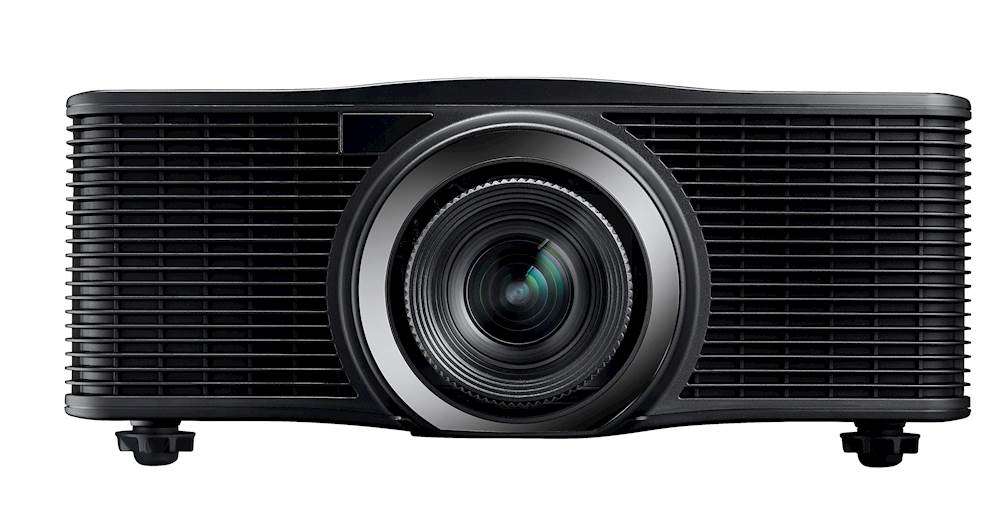

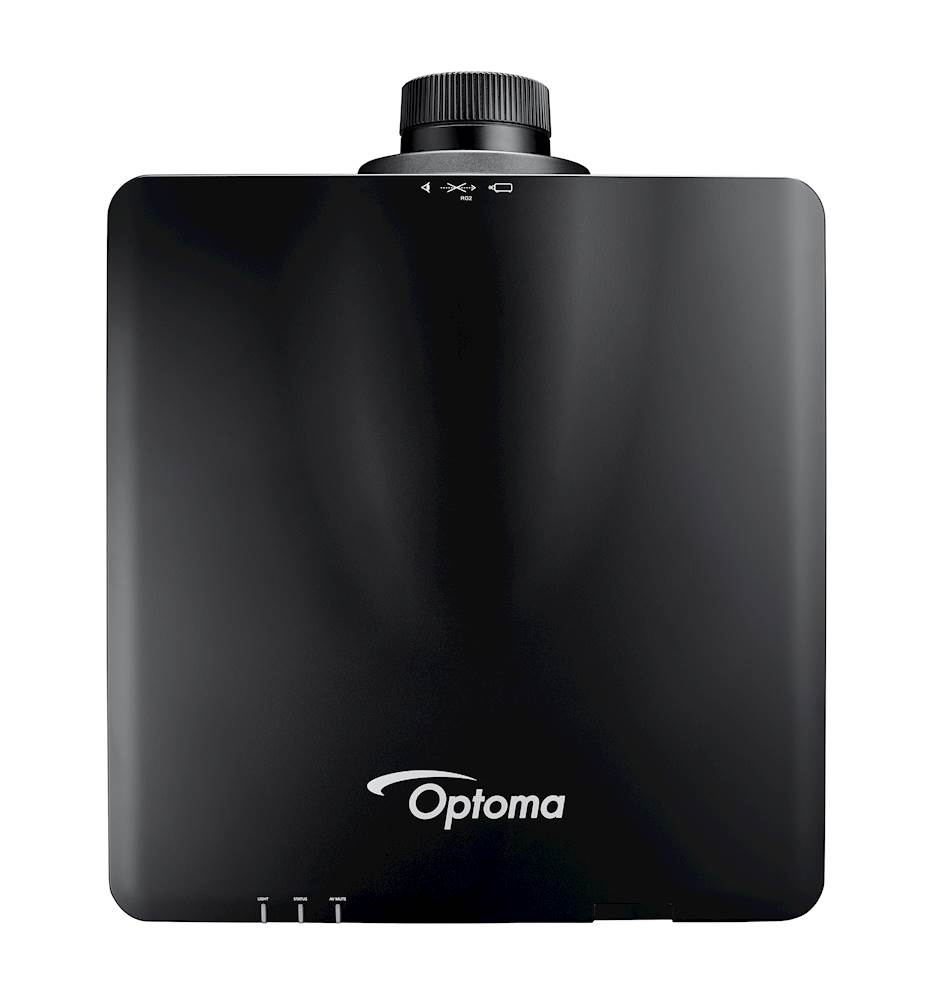

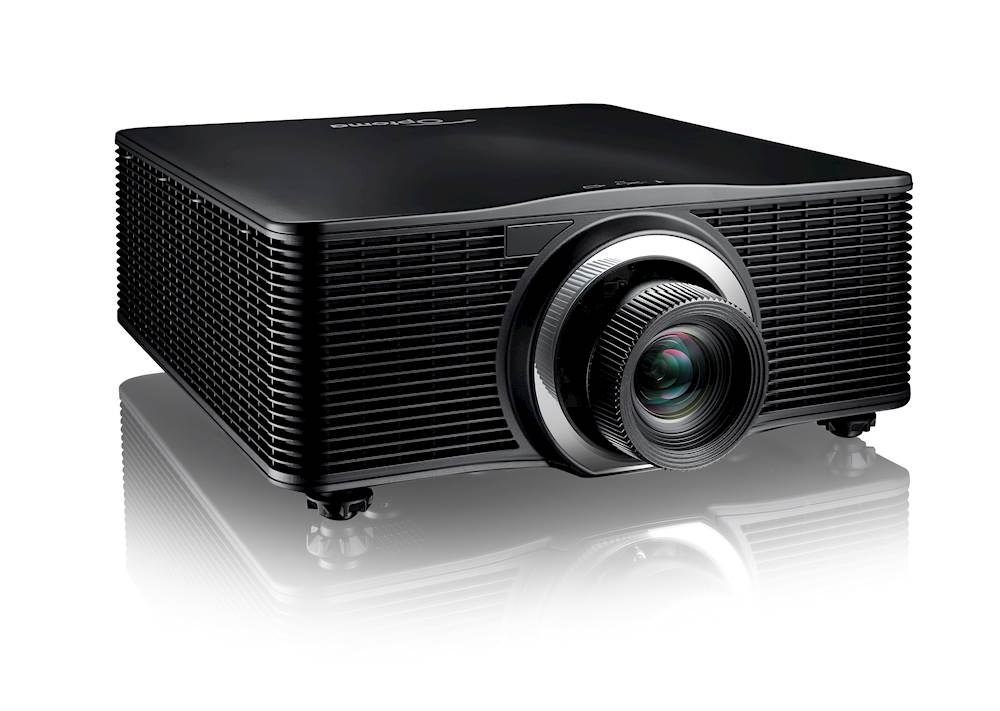

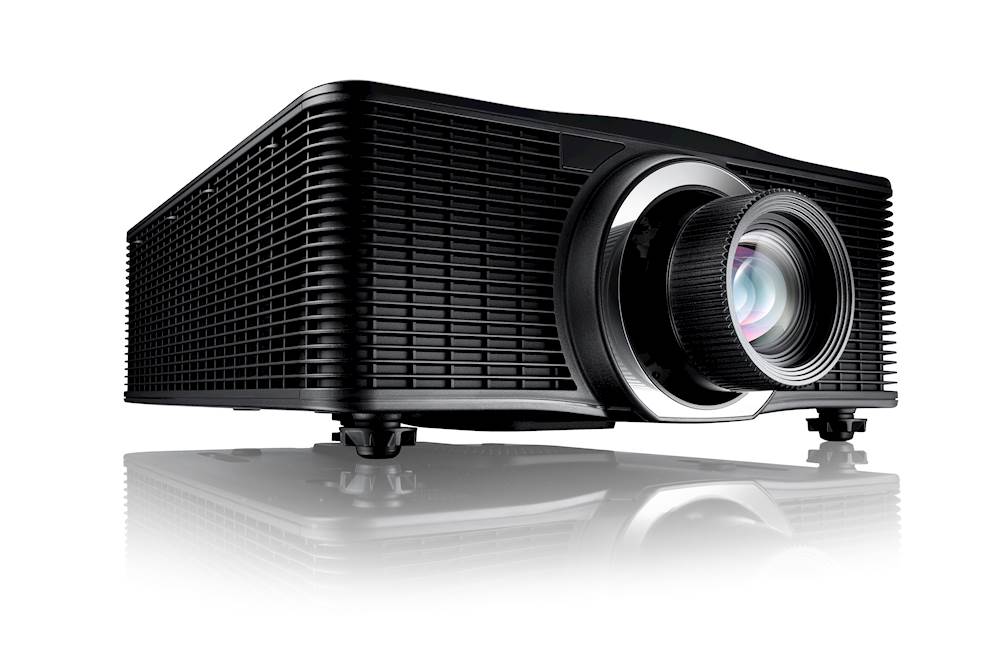

Optoma ZU1050

ZU1050

Spectacular image quality, low maintenance and ultimate reliability

The ZU1050 offers enhanced features such as MultiColor Laser (MCL) technology and built-in edge-blending and warping. Part of the DuraCore laser line up, it combines longer-lifetime light source and an independent IP rated dust certification for ultimate peace of mind.

Delivering up to an astonishing 30,000 hours , this projector achieves superior colour rendition through MCL technology producing visually striking lifelike images with exceptional detail.

Designed for even the most complex professional installations, the ZU1050 offers seven interchangeable lens options including an ultra short throw lens and single-projector dome lens for ultimate flexibility.


For large-scale projection or stacking, the ZU1050 features built-in edge-blending and warping. It also offers portrait and 360-degree orientation support. Additionally, an HDBaseT™ input is included to simplify cabling requirements and reduce installation complexity, saving time and reducing costs.

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Multicolor Laser

Innovative Multicolor Laser (MCL) technology adds a second red laser to the common blue laser. This results in greatly improved color performance.

IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Compatible multi output graphics card with overlap function is required.*

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Picture by picture picture-in-picture

Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual
  • Portrait projection

    Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

    .

    Have your projector in any color. Chose from any RAL color. Perfect for bespoke installations.
    *Contact us for more information"

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Wired remote

    The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems

    PJLink

    PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

    Telnet

    This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
    Compatible Models
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    WUXGA (1920x1200)
    Brightness
    10,000 lumens
    ANSI brightness
    9,500
    Contrast ratio
    2,000,000:1
    Contrast ratio - dynamic
    6,000:1
    Contrast ratio - full on/off
    1,200:1
    Native aspect ratio
    16:10
    Aspect ratio - compatible
    4:3,16:9,16:10
    Keystone correction - horizontal
    +/-20°
    Keystone correction - vertical
    +/-20°
    Uniformity
    90%
    Screen size
    Dependent on lens
    Light source type
    Laser
    LASER life
    30,000 hours
    Throw ratio
    Dependent on lens
    Projection distance
    Dependent on lens

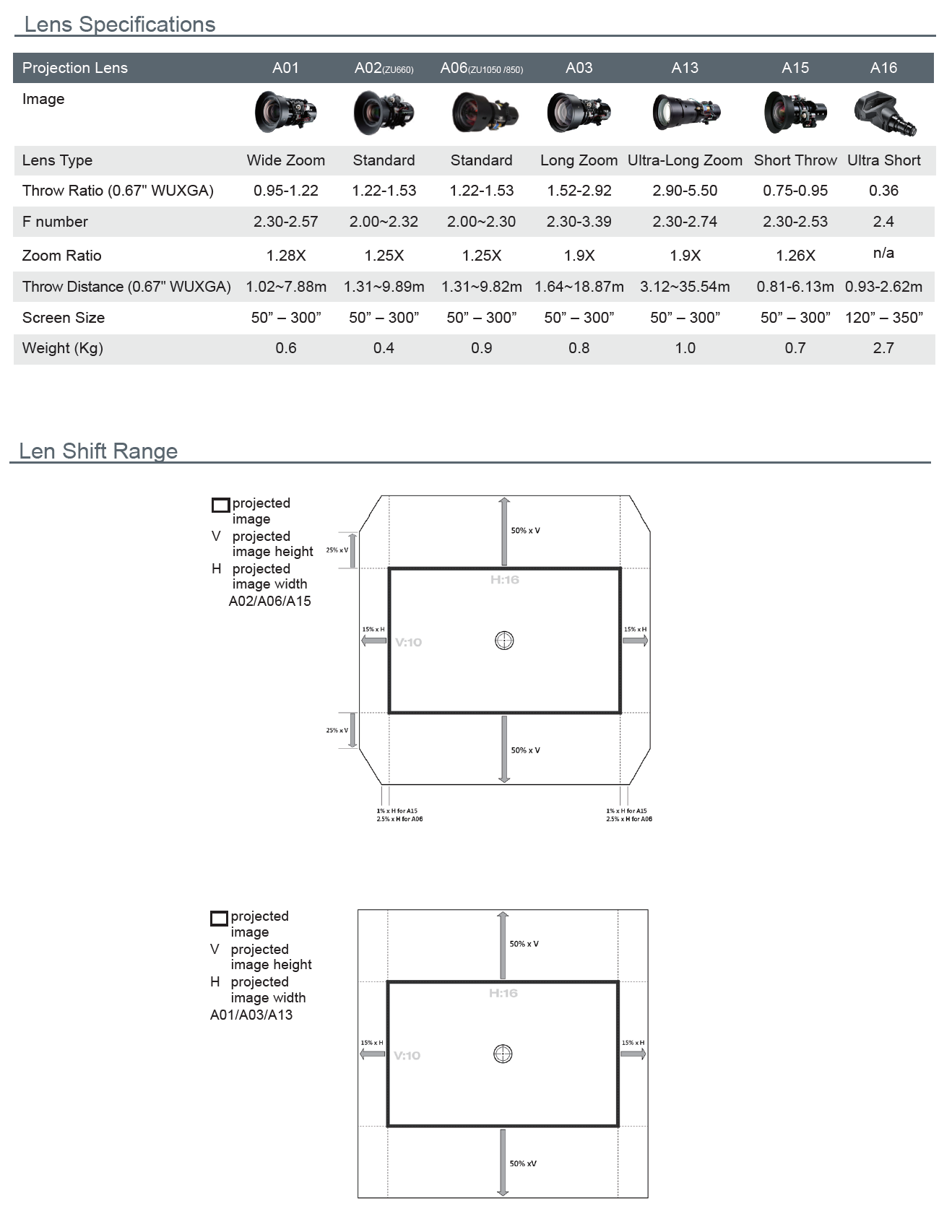

    Lens options
    BX-CTA16- 0.36 ~ 0.36
    BX-CTA17- 0.65~0.75
    BX-CTA15- 0.75 ~ 0.95
    BX-CTA01- 0.95 ~ 1.22
    BX-CTA06- 1.22 ~ 1.53
    BX-CTA03- 1.52 ~ 2.92
    BX-CTA13- 2.90 ~ 5.50
    BX-CTADOME- Dome lens
    Lens shift
    Yes - see product downloads for more information

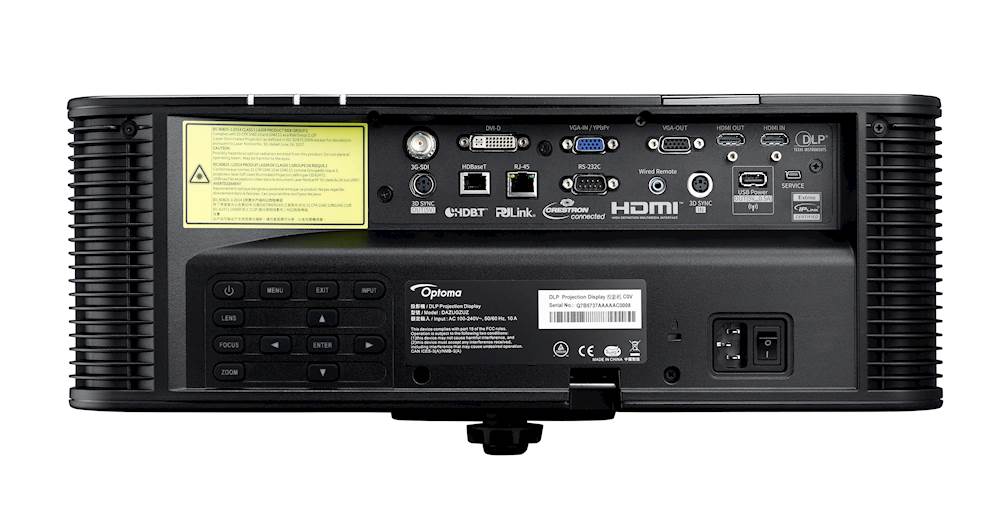

    Connections
    Inputs 1 x HDMI, 1 x VGA (YPbPr/RGB), 1 x 3D sync, 1 x DVI-D, 1 x HDBaseT, 1 x 3G-SDIOutputs 1 x VGA (YPbPr/RGB), 1 x 3D sync, 1 x HDMIControl 1 x RS232, 1 x Wired remote, 1 x USB-A service, 1 x mini USB service, 1 x RJ45
    Noise level (min)
    35dB
    Noise level (max)
    37dB
    PC compatibility
    HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
    2D compatibility
    PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
    3D compatibility
    Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
    3D
    Full 3D
    Security
    Security bar, Kensington Lock
    IP rating
    IP6X
    OSD / display languages
    11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
    24/7 operation
    Yes
    360° operation
    Yes
    Operating conditions
    5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%

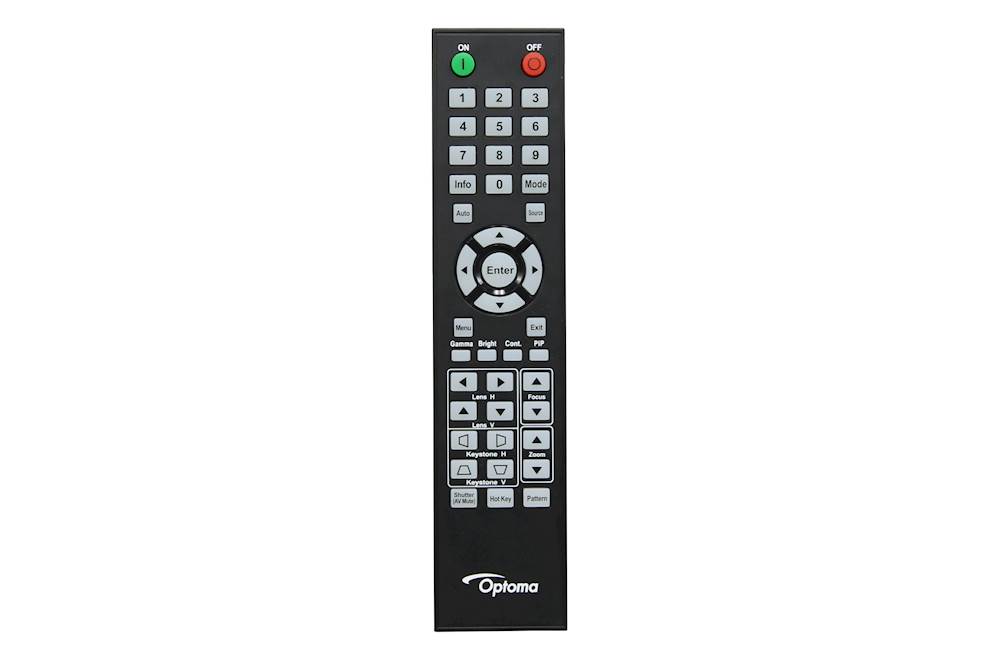

    Remote control
    Wired ProAV remote
    Heat dissipation
    2,625BTU/hour
    In the box
    AAA Battery, AC power cable 3M, Lens cover, VGA cable 1.8m, User manual CD, Quick start guide
    Optional wireless models
    QuickCast Bundle, QuickCast starter kit
    LAN
    Yes
    Power supply
    100 - 240V, 50 - 60Hz
    Power consumption (standby)
    0.5W
    Power consumption (min)
    470W
    Power consumption (max)
    910W
    Dimensions (W x D x H)
    19.06" x 20.04" x 7.13"
    Gross weight
    62.17 lbs
    Net weight
    51.59 lbs
