This product has been discontinued.

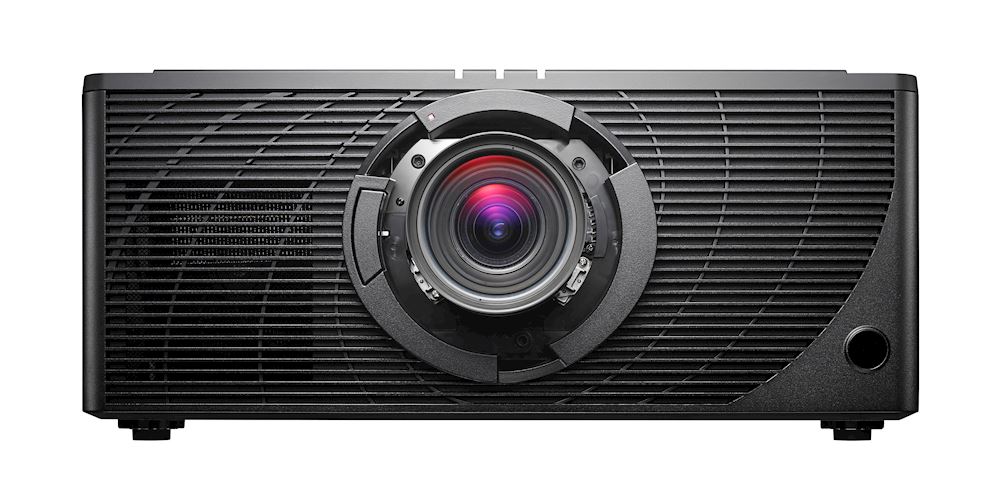

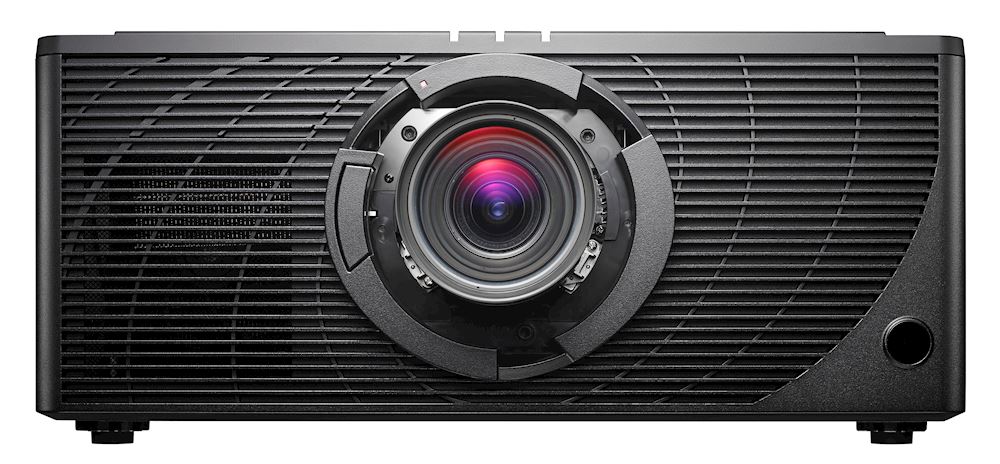

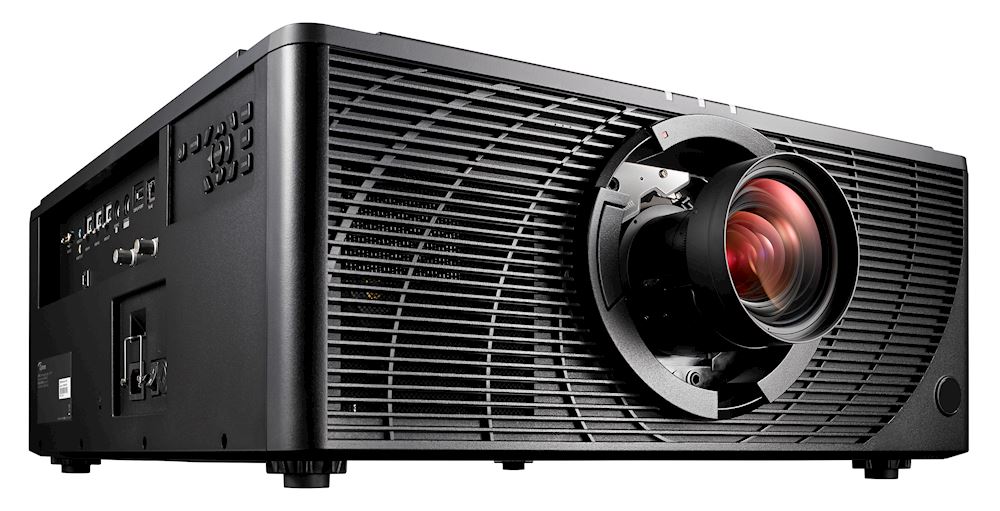

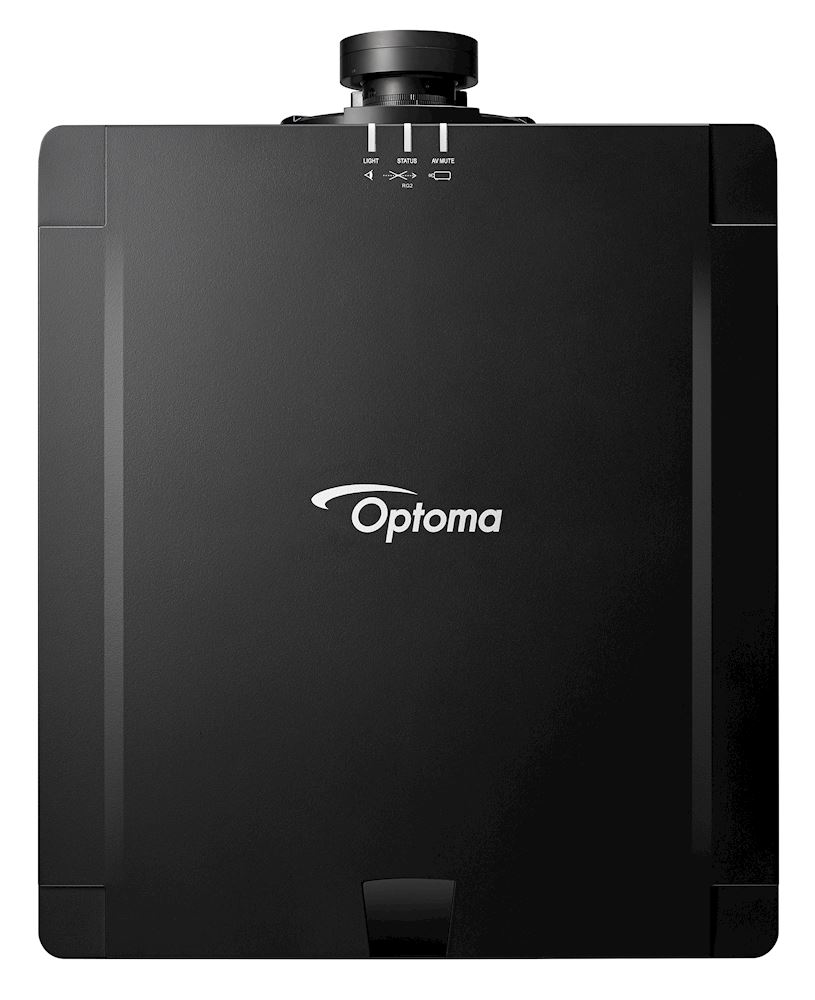

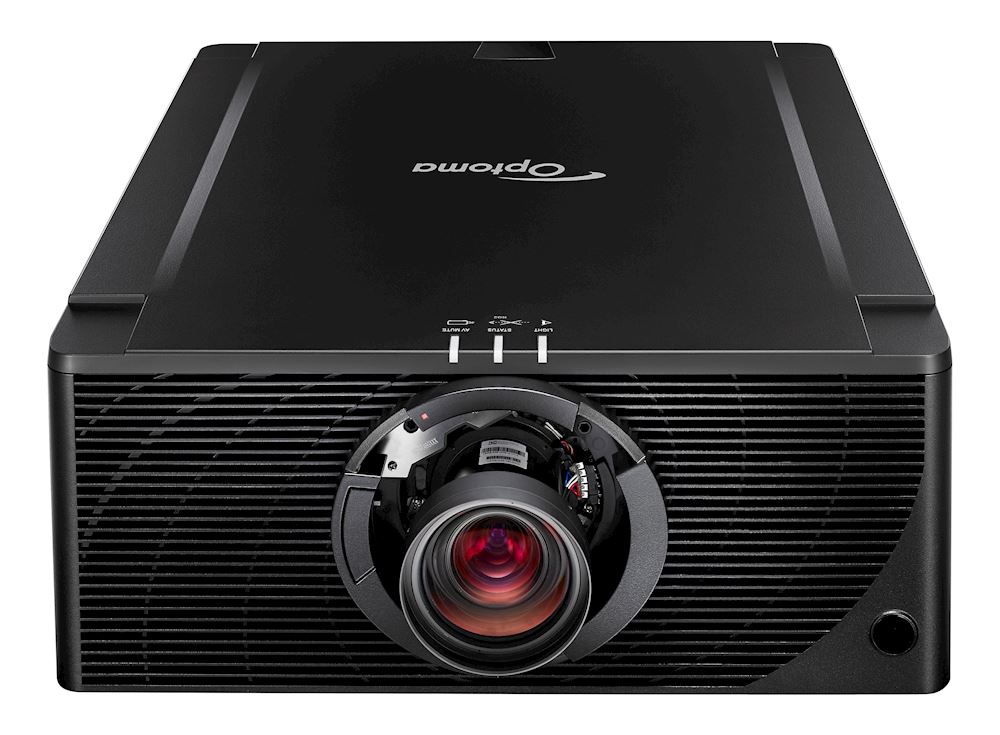

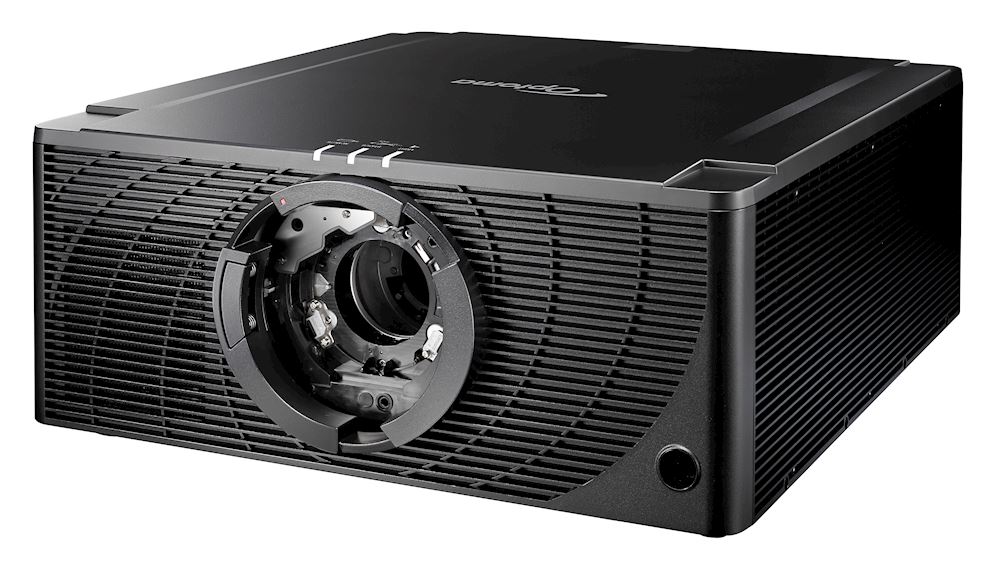

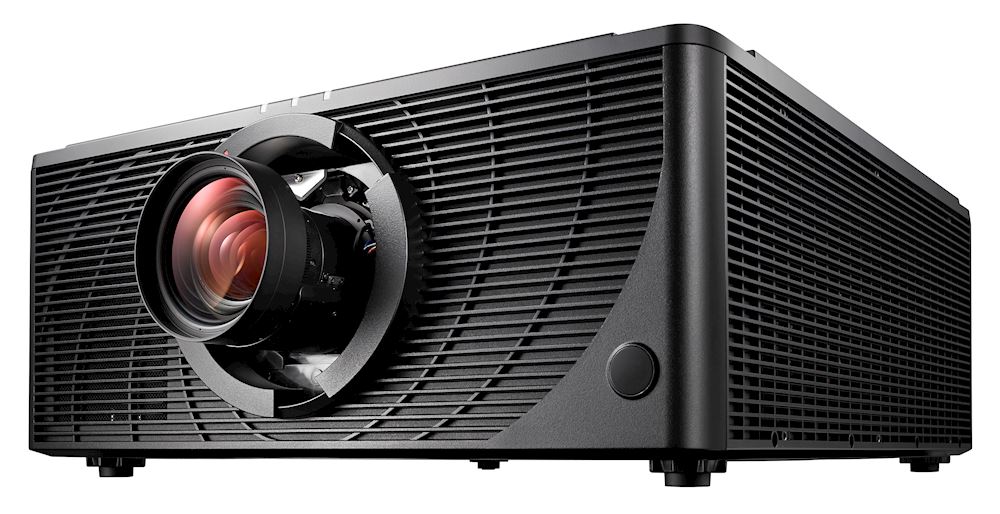

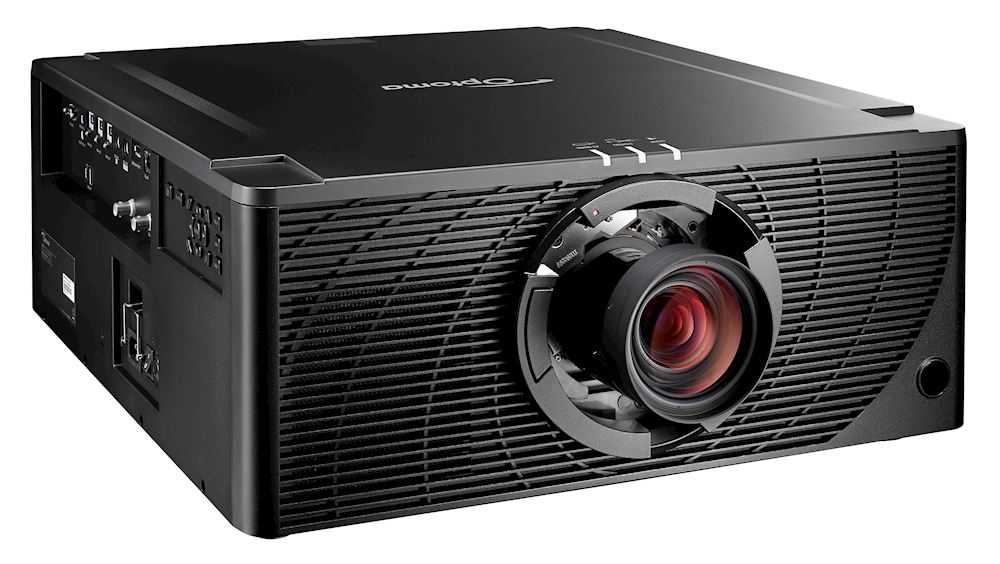

Optoma ZK750

ZK750

High brightness professional 4K UHD laser projector

**Spectacular 4k UHD image quality, low maintenance and ultimate reliability**

The ZK750 offers enhanced features such as MultiColor Laser (MCL) technology. Part of the DuraCore laser line up, it combines longer-lifetime light source and an independent IP rated dust certification for ultimate peace of mind.

Delivering an astonishing 30,000 hours, this projector achieves superior colour rendition through MultiColor laser technology producing visually striking lifelike images with exceptional detail.

Designed for even the most complex professional installations, the ZK750 offers five interchangeable lens options for ultimate flexibility.

It also offers portrait and 360-degree orientation support. Additionally, an HDBaseT™ input is included to simplify cabling requirements and reduce installation complexity, saving time and reducing costs.

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Multicolor Laser

Innovative Multicolor Laser (MCL) technology adds a second red laser to the common blue laser. This results in greatly improved color performance.

True 4K UHD Resolution

Ultra HD 4K resolution delivers sharper, life-like images and richer colors - allowing you to sit closer to the screen and enjoy a more immersive experience.

Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Integrated warping and edge blending processor

Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Compatible multi output graphics card with overlap function is required.*

IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

UltraDetail

This technology ensures all the information contained in an image is faithfully reproduced on the screen giving a stunning crystal clear, pin-sharp picture.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Amazing color

Watch your movies, TV shows and play games with stunning colors in any environment. Optoma projectors provide reliable performance suitable for any content and environment. Our home projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended. Or more saturated colors for a punchy looking image, great for gaming and animated movies.

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Constant power

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

Constant brightness

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

True AV mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Extreme Black

Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual
  • Portrait projection

    Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

    .

    Have your projector in any color. Chose from any RAL color. Perfect for bespoke installations.
    *Contact us for more information"

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Wired remote

    The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems

    PJLink

    PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

    Telnet

    This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    UHD (3840x2160)
    Brightness
    7,500 lumens
    ANSI brightness
    7,000
    Contrast ratio
    5,000:1
    Contrast ratio - dynamic
    2,000,000:1
    Contrast ratio - full on/off
    1,000:1
    Native aspect ratio
    16:9
    Aspect ratio - compatible
    16:9
    Keystone correction - horizontal
    +/- 20°
    Keystone correction - vertical
    +/- 20°
    Screen size
    Dependent on lens
    Light source type
    DuraCore MultiColor Laser
    LASER life
    30,000 hours
    Throw ratio
    Dependent on lens
    Projection distance
    Dependent on lens
    Lens options
    A25 0.85~1.02, A26 1.20~1.73 , A20 1.70~2.12, A21 2.12~2.83, A22 2.83~5.66, A23 5.66~10.18

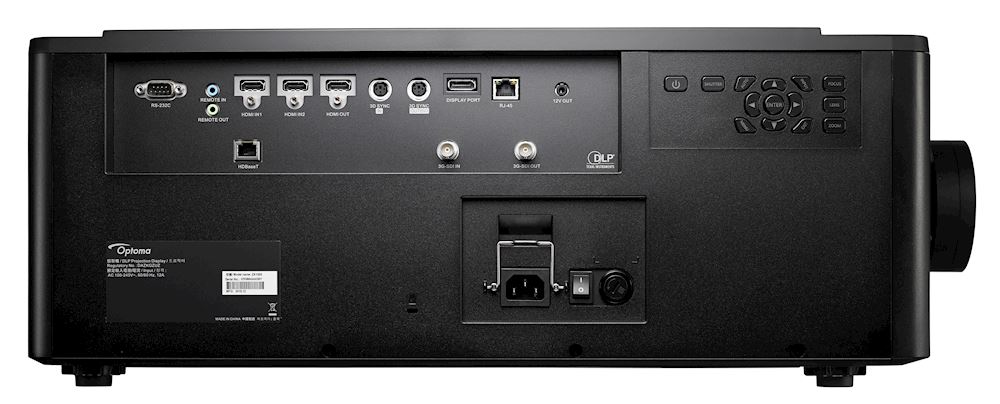

    Connections
    Inputs 2 x HDMI 2.0, 1 x DisplayPort, 1 x HDBaseT, 1 x 3G-SDI, 1 x 3D sync, 1 x Wired remoteOutputs 1 x HDMI, 1 x 3D sync, 1 x Wired remoteControl 1 x RS232, 1 x 12V trigger, 1 x USB-A service, 1 x RJ45
    LAN - wireless networking
    No
    Noise level (min)
    32dB
    Noise level (max)
    36dB
    3D
    Full 3D
    Security
    Security bar
    IP rating
    IP6X
    OSD / display languages
    11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
    24/7 operation
    Yes
    360° operation
    Yes
    Remote control
    Backlit ProAV remote
    Heat dissipation
    3,224BTU/hour
    In the box
    TBC
    LAN - control
    Yes
    LAN - wireless networking
    No
    LAN
    Yes
    Power supply
    AC 100 – 240 V @ 50/60 Hz
    Power consumption (standby)
    0.5W
    Power consumption (min)
    530W
    Power consumption (max)
    1,035W
    Dimensions (W x D x H)
    23.62" x 20.47" x 8.62"
    Gross weight
    102.51 lbs
    Net weight
    72.97 lbs
