This product has been discontinued.

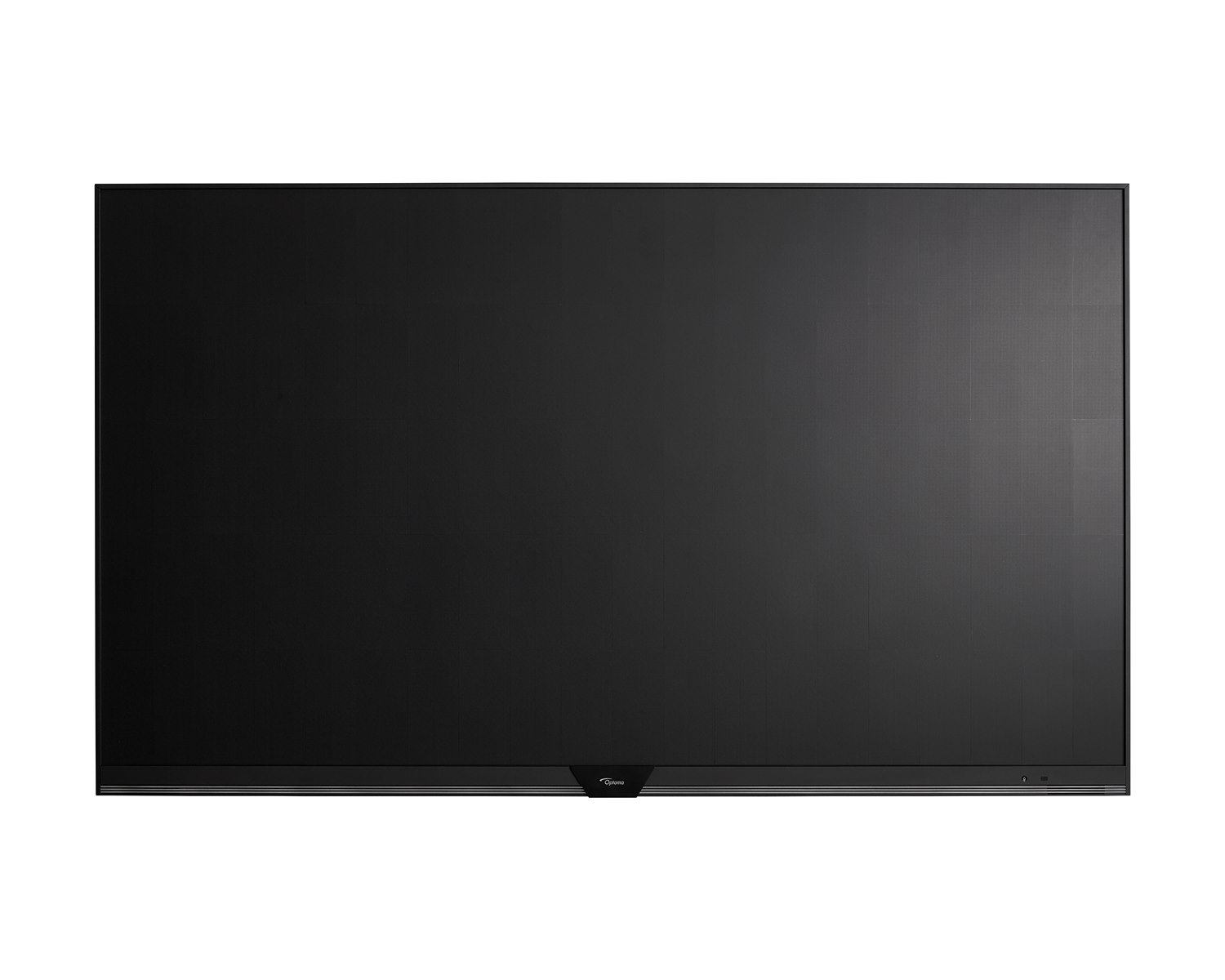

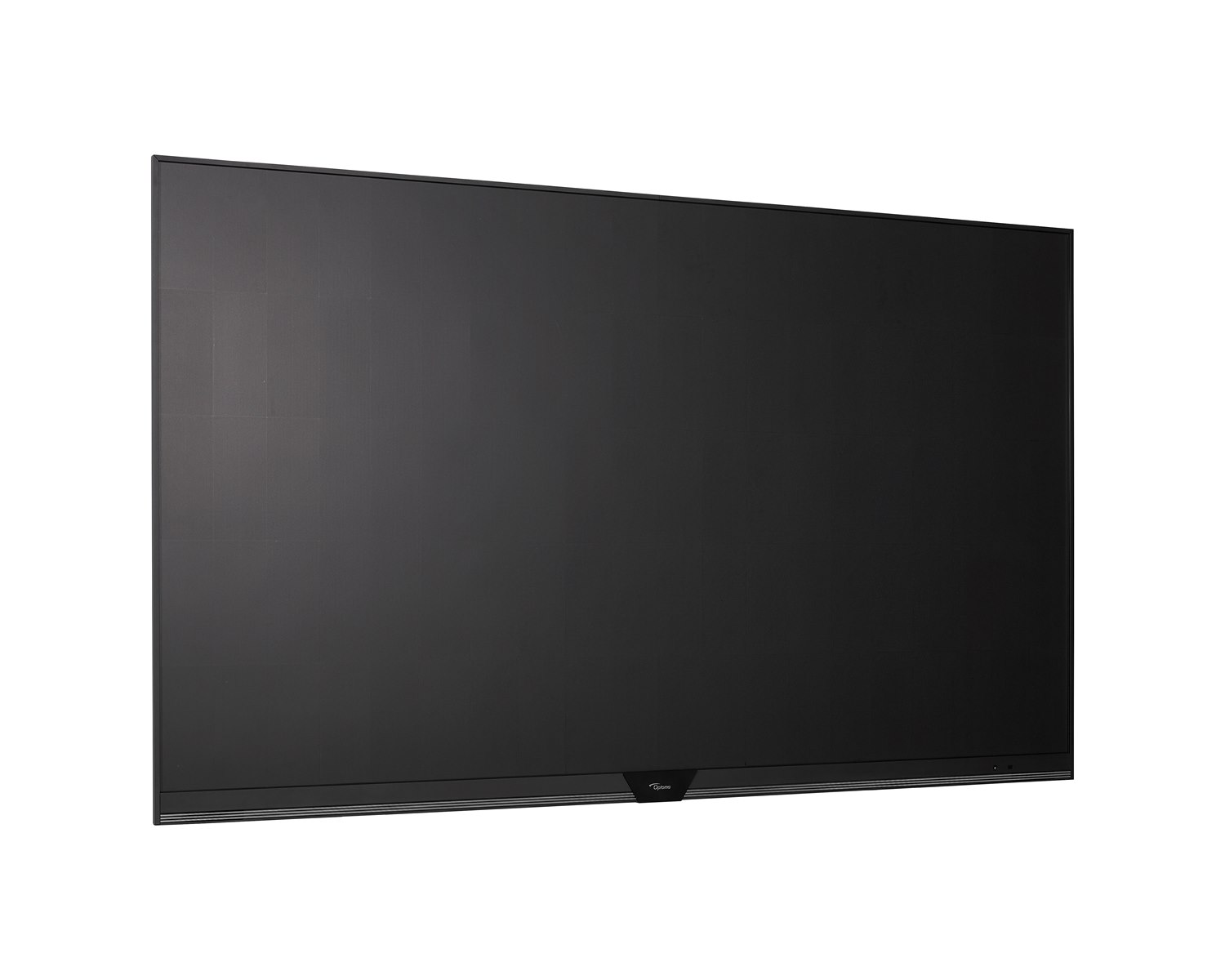

Optoma FHDQ135S

FHDQ135S

Fully optimized 135" all-in-one Quad LED display

Featuring up to 850 nits of high brightness and an impressive contrast ratio, the all-in-one FHDQ135S's 4-1 LED layout uses flip chip technology to improve energy efficiency and reduce running costs by up to 40% vs previous Optoma LED products.* Two (2) built-in 10 Watt speakers eliminate the need for external equipment and speak to the design and concept of a true All-in-One (AiO) LED Display.

Supporting OSS (Optoma Solution Suite) the FHDQ135S provides easy to use tools at your fingertips. Whiteboard, File Manager and Display Share allow you to wirelessly broadcast, share or stream your content to the FHDQ135S. Screen mirror high quality images, video, documents and audio from your smartphone, laptop or PC - all with a touch of a button. Bringing your own device has never been easier.

Compatibility with OMS, (Optoma Management Suite) an intuitive cloud based display management solution, designed to streamline operations by monitoring, diagnosing and controlling audio visual displays from anywhere in the world via a single platform (WiFi/LAN access required).

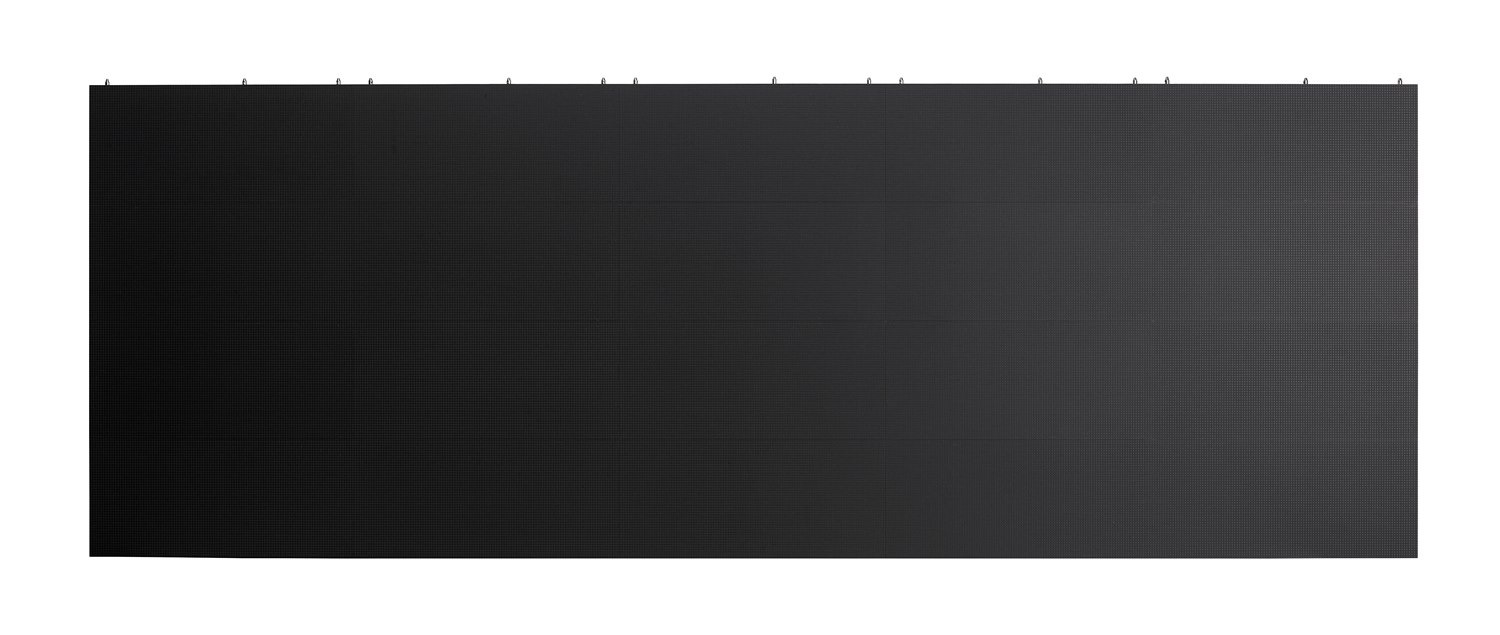

Delivering a smooth screen surface and a 170-degree wide viewing angle, the FHDQ135S can be spliced with a second screen to connect multiple displays offering a customised scalable solution and a more robust design for clear images in various ProAV and digital signage scenarios. *Comparison made vs FHDS130

Features

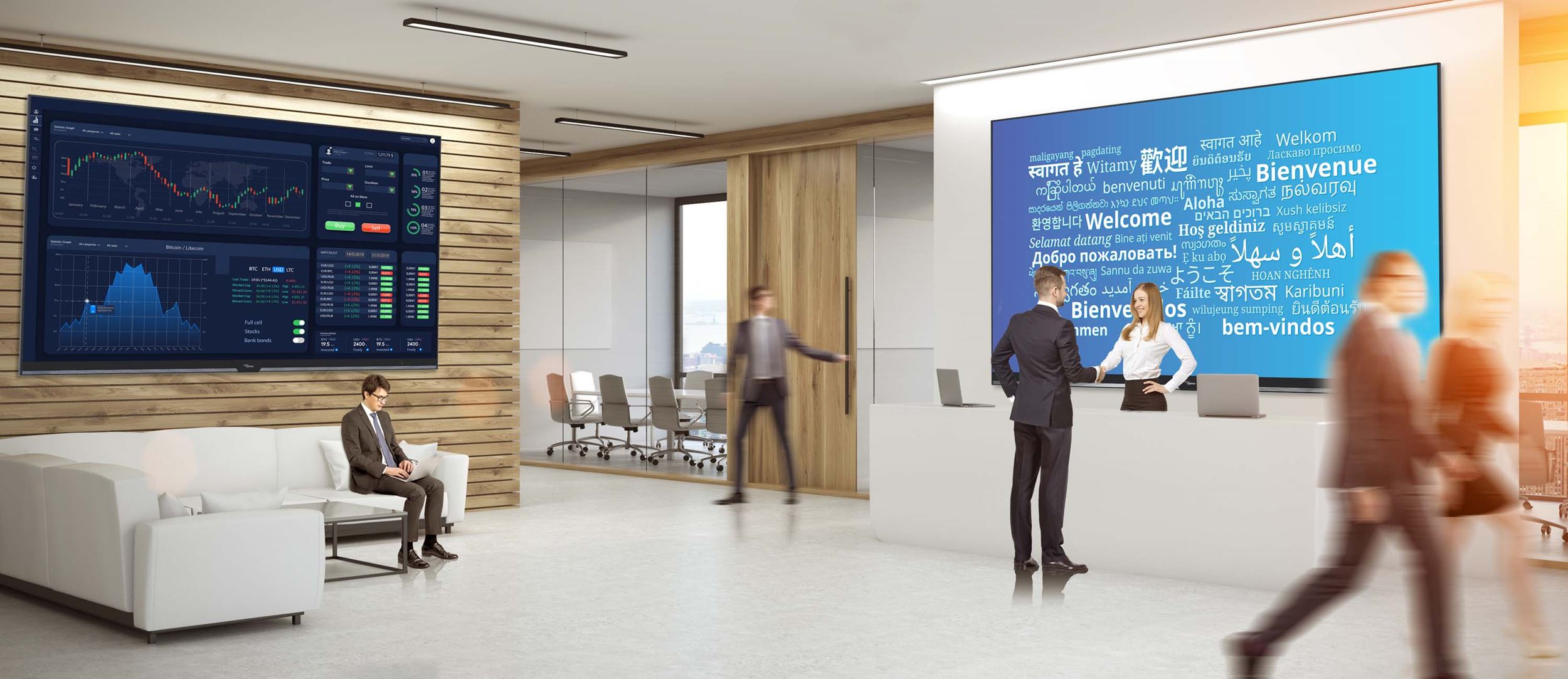

Improve your brand image

Optoma’s Displays are perfect for lobbies and reception areas.

Display information your way.

With a built-in media player and scheduling functionality, you can create, customize and schedule your own media playlists via OMS (Optoma Management Suite) and display content at a specific date or time.

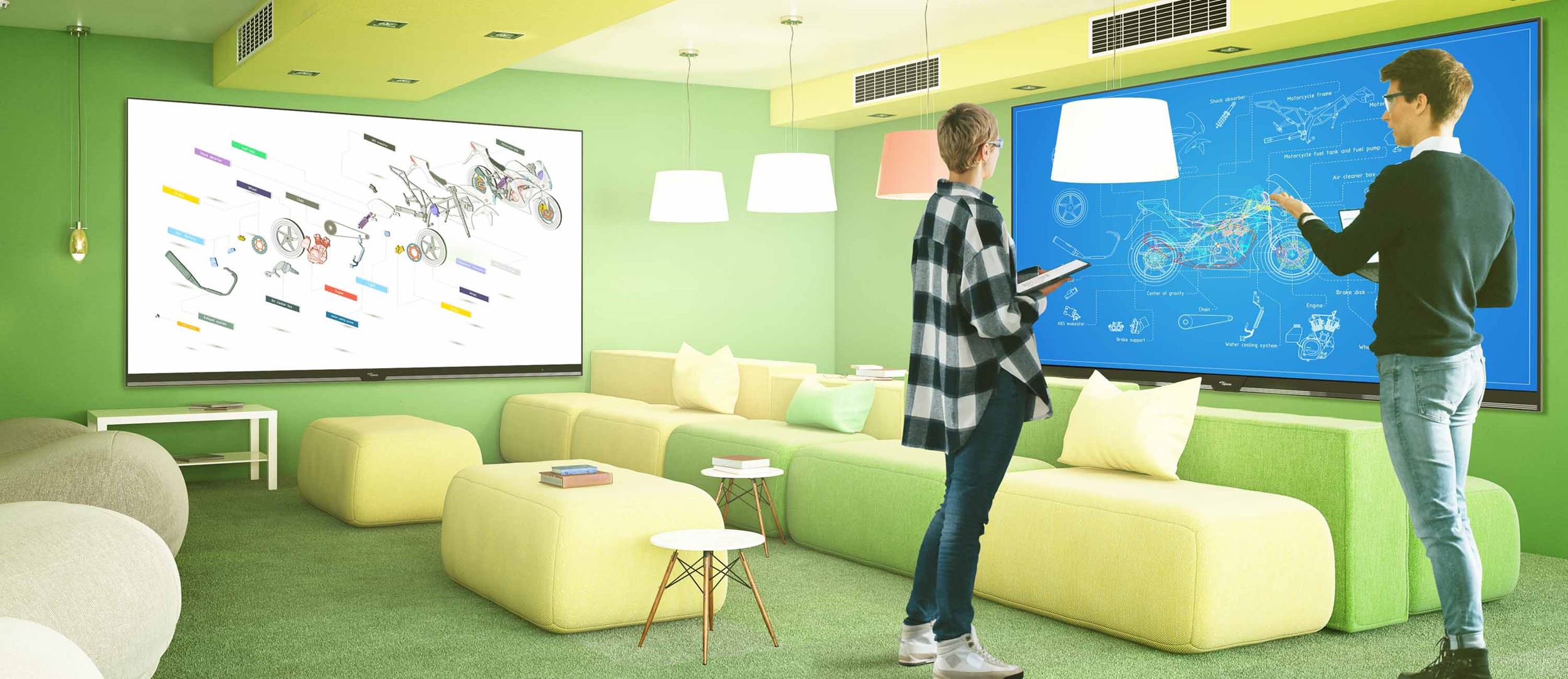

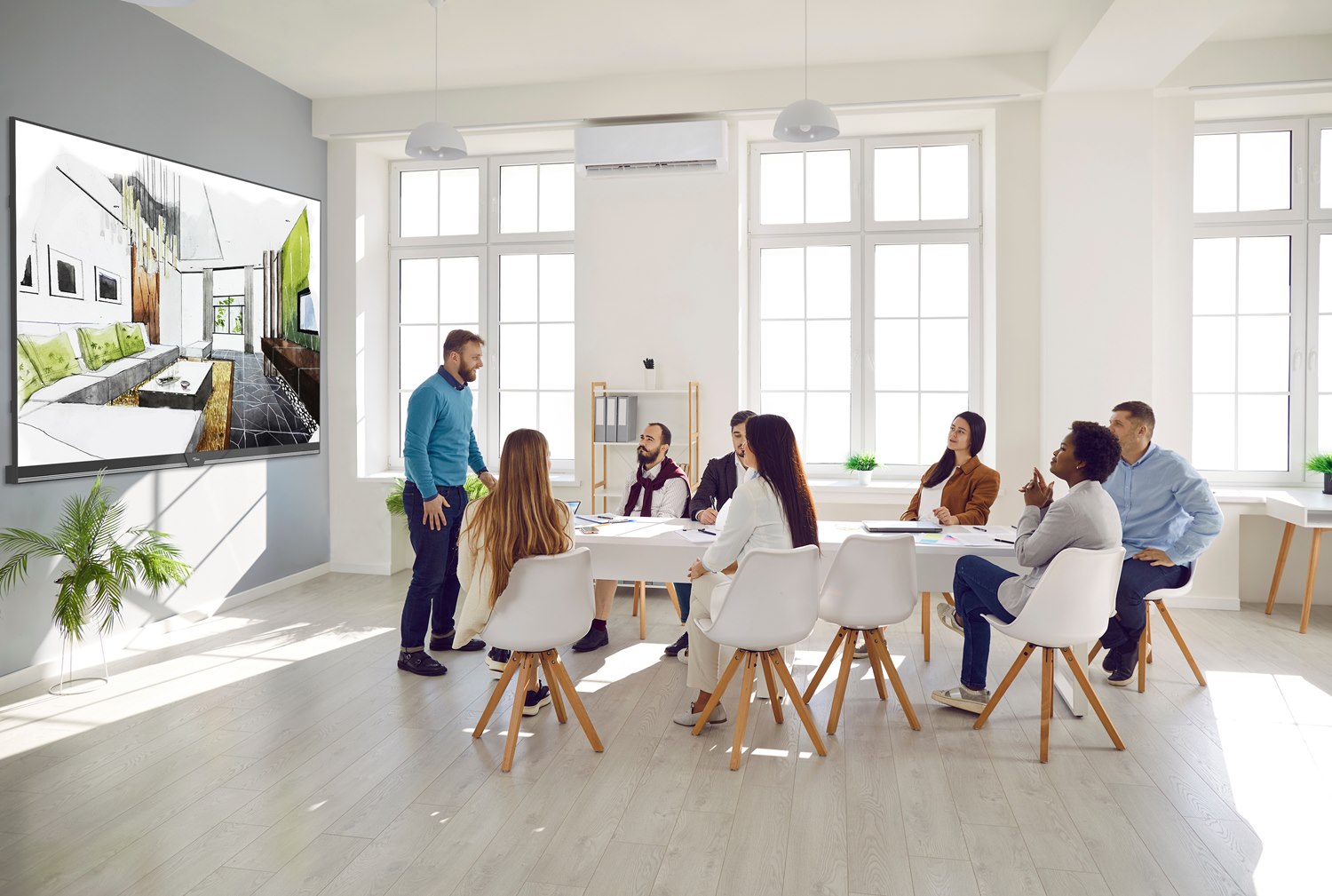

Bring people together

Connect any device. Wirelessly broadcast, share or stream your content with Display Share. Screen mirror high-quality images, video, documents and audio from your smartphone, laptop or PC - all with a touch of a button. Bringing your own device has never been easier.

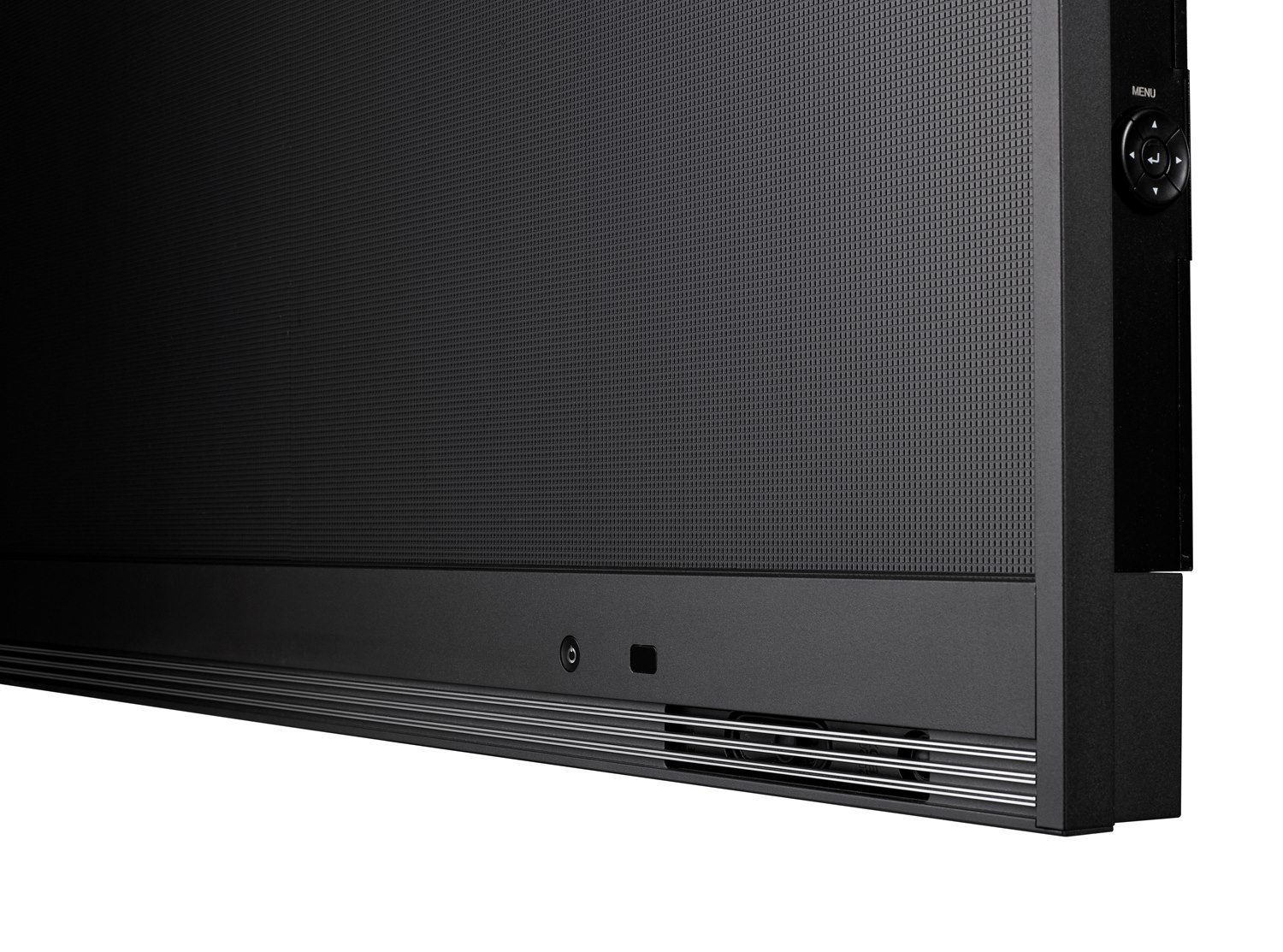

Fully optimized LED display

Optoma QUAD range comes pre-calibrated out-of-the-box, removing the hassle of managing software and the various associated files, whilst ensuring the image is optimized for use straight away. Integrated HQUltra and media player technology eliminates the need for any additional separate devices associated with traditional LED solutions.

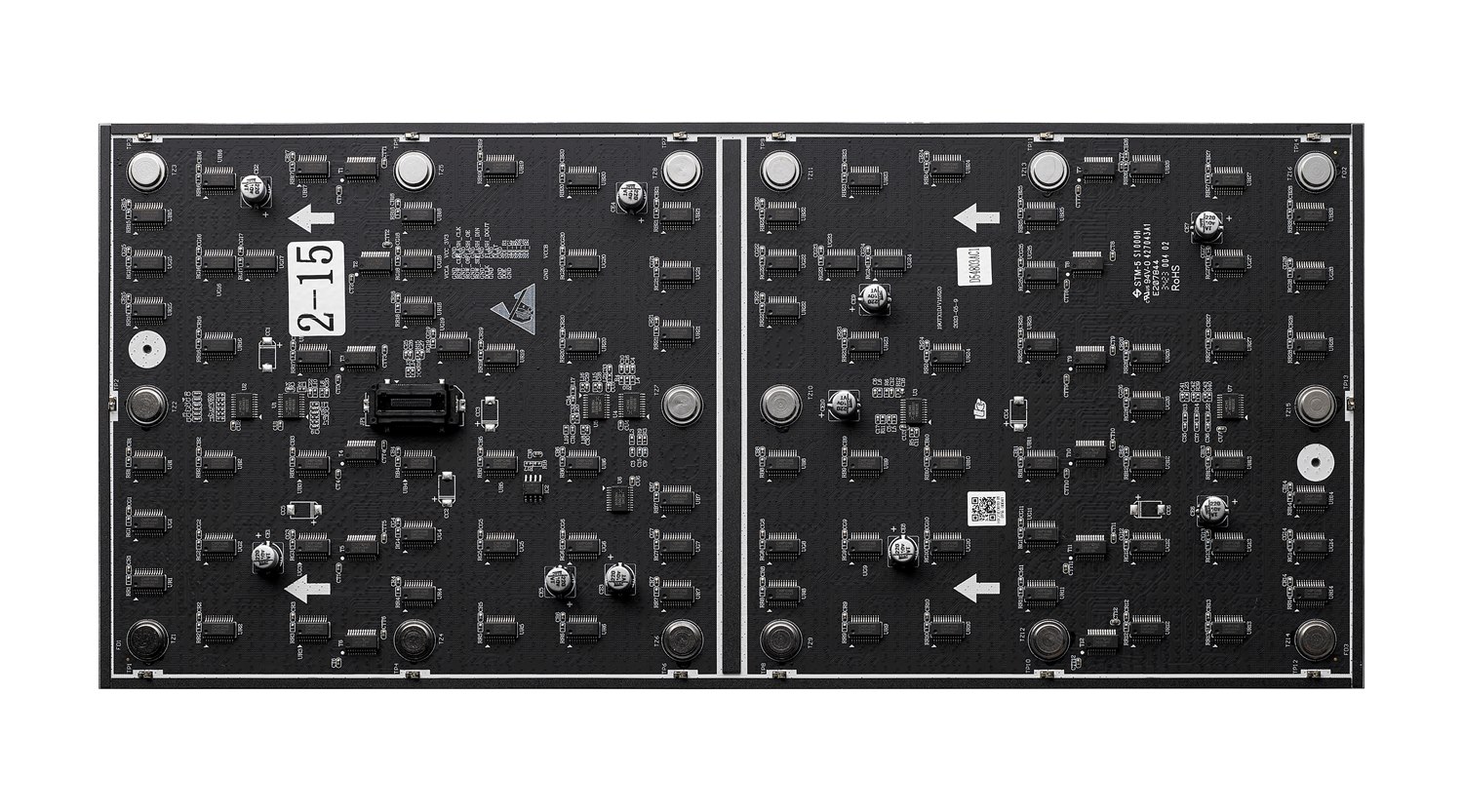

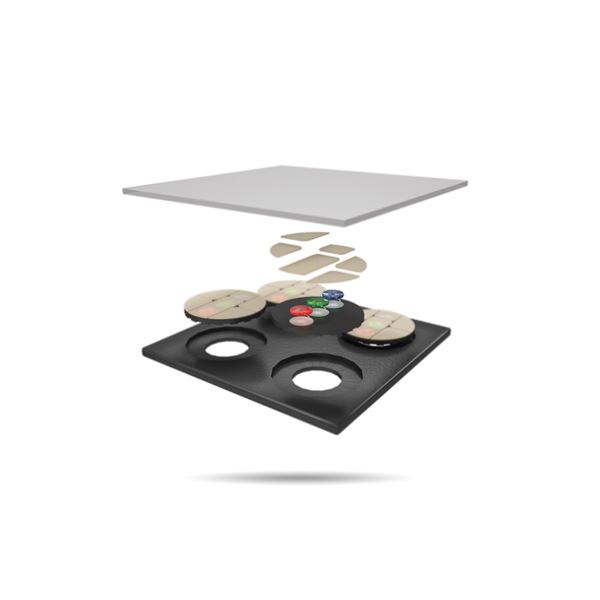

QUAD LED

A unique 4-in-1 SMD layout which sees SMDs grouped in fours under one surface, allowing for a smoother screen surface, wide viewing angle and a more robust design.

Connect anytime, anywhere

Peace of mind

Businesses can have confidence in the ability of their IT managers to provide remote support with the Optoma Management Suite (OMS)™ solution. IT managers can easily monitor and diagnose issues related to any Optoma AV display, ensuring employees are not left without assistance. For an extra layer of readiness, companies can also set alerts and broadcast emergency announcements.

Multi-device compatibility

OMS allows advanced control of selected models across Optoma’s display categories, including, LED display, Interactive flat panels and projection.

Optoma file manager

Optoma file manager allows users to manage files and folders. Users can also access cloud drives and browse, create, rename, copy, move and delete files.

Picture-in-Picture

Signals from two different inputs can be delivered simultaneously – perfect for video-conferencing and other collaborative applications.

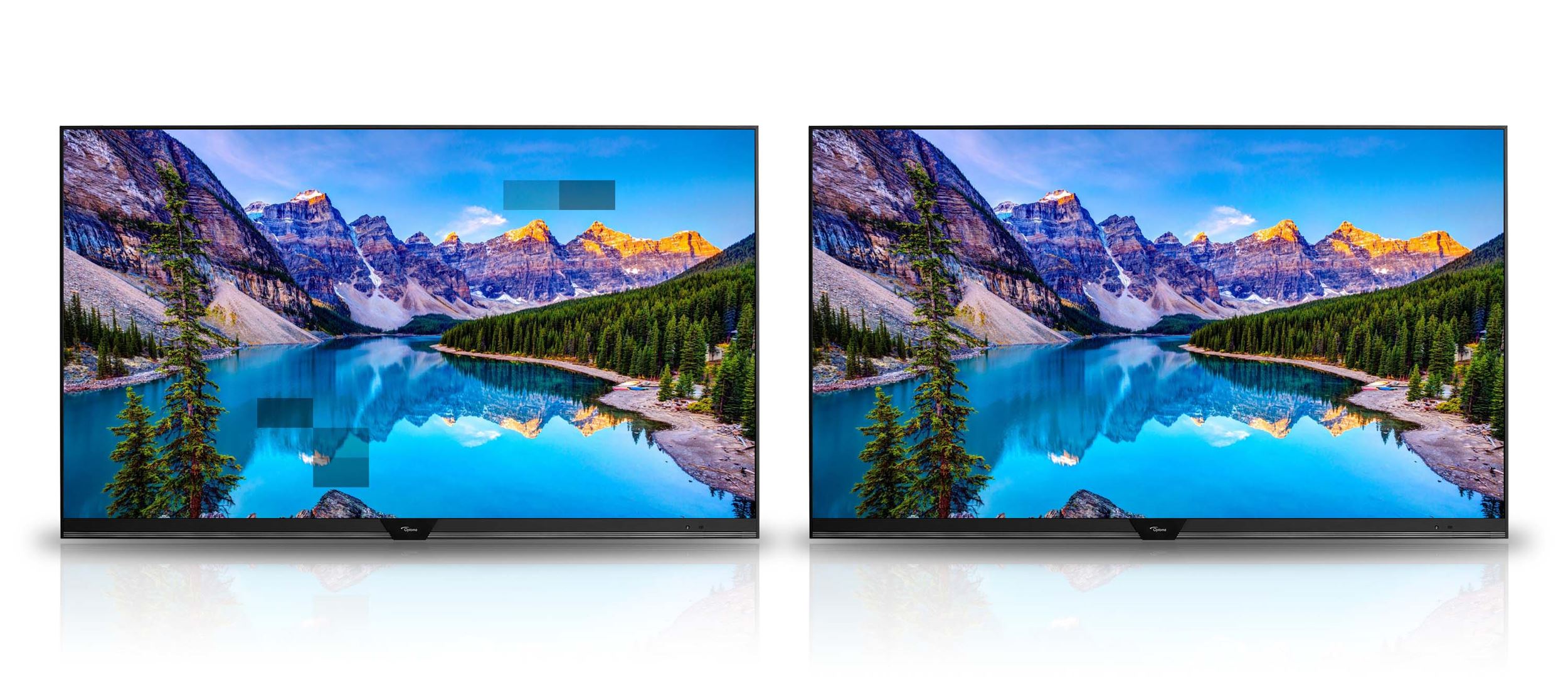

FHDQ135 - Advanced contrast

Boasting a unique QUAD pixel design, contrast levels are improved allowing for darker blacks and brighter whites.

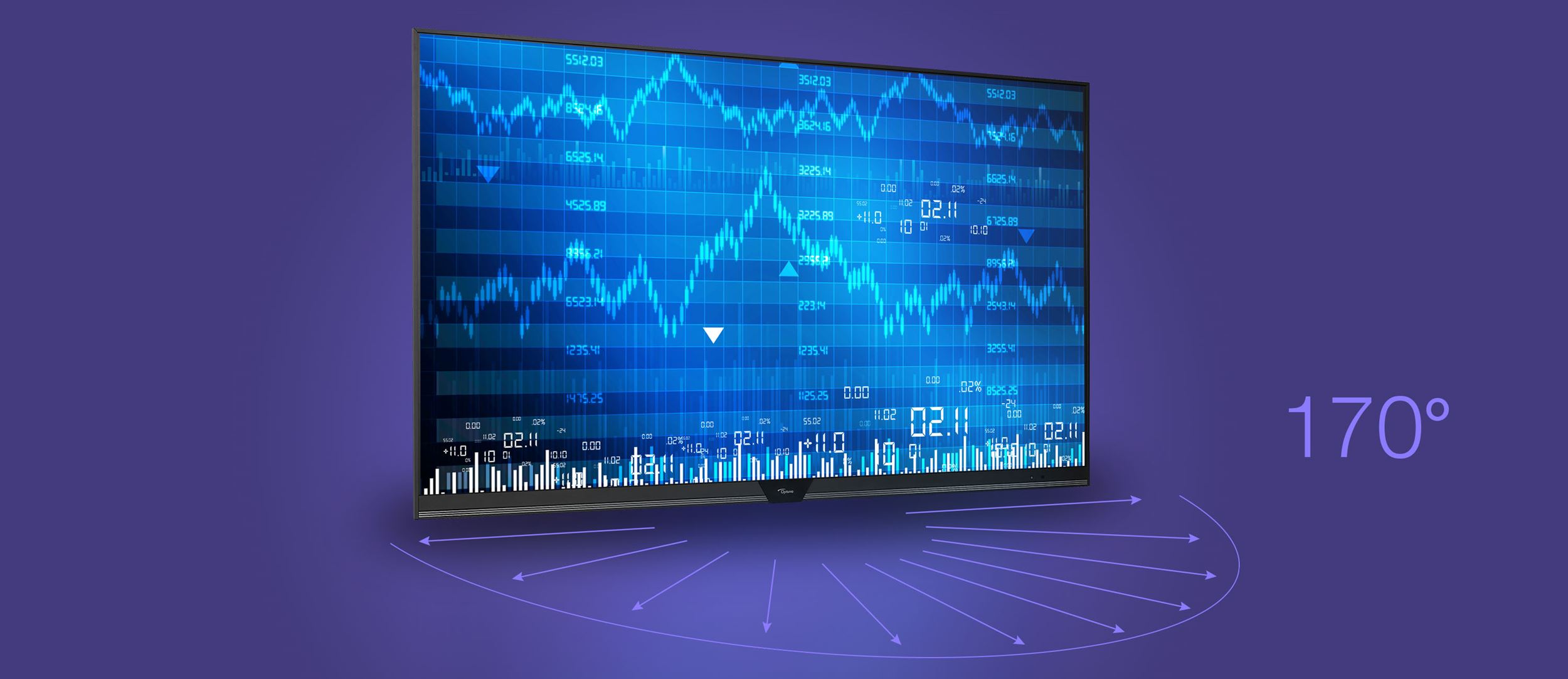

FHDQ135 -Viewing angle

Optoma's FHDQ135S supports a wide viewing angle of 170 degrees allowing for image retention across a range of viewing locations.

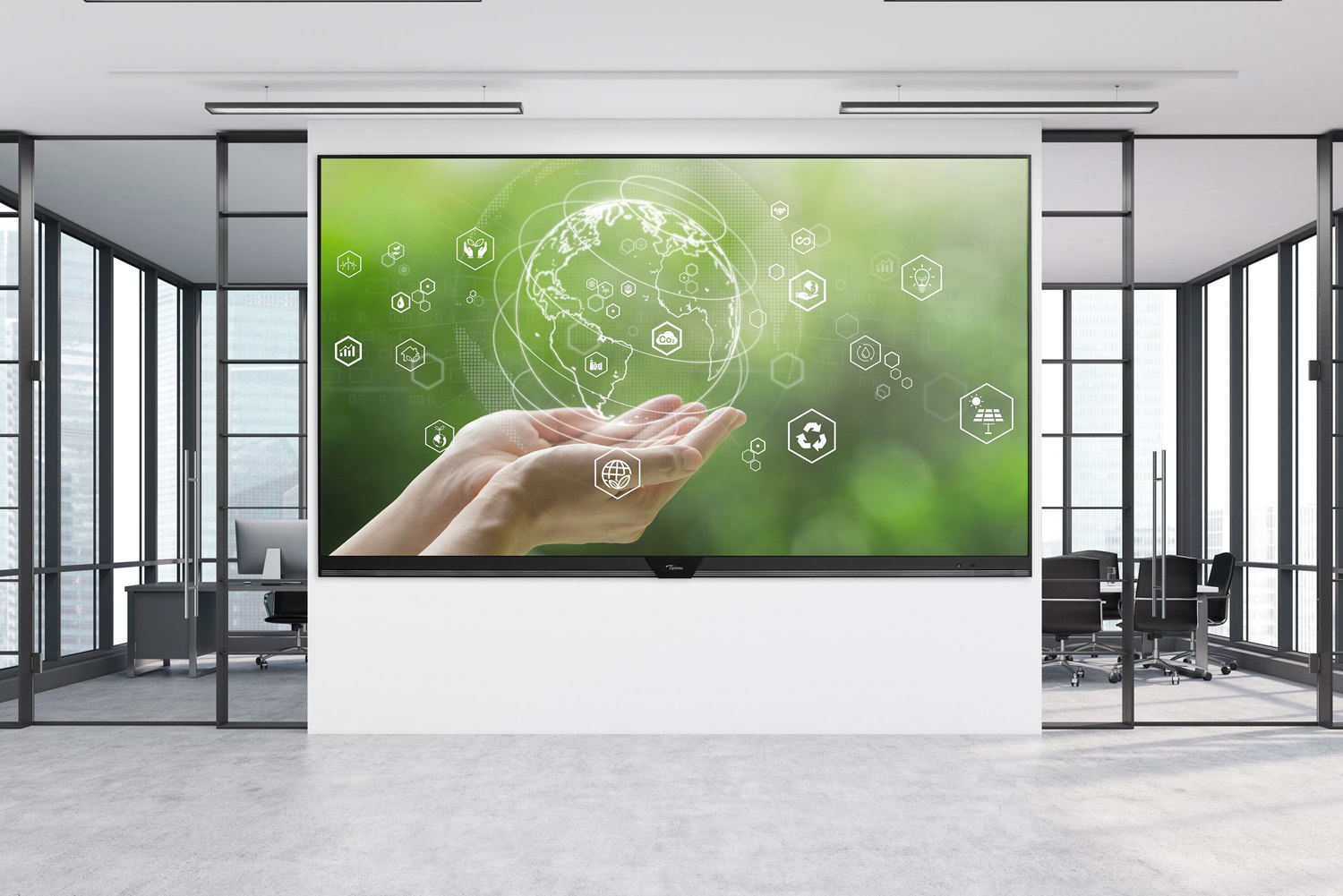

Eco Friendly

Supporting <0.5W in standby mode, that conforms with ErP regulations and the ability to manage the display from a central control system, power consumption is reduced which saves on energy costs.

24/7 Usage* for longer continuous operation

Optoma AIO displays are designed to be used 24/7, offering you continuous operation whatever your display needs. Engineered with heavy-duty components the Optoma AIO range gives you peace of mind regarding your long-term Audio-Visual needs.

(*) under specific conditions:

  • Max 70% power
  • Max 77°F
  • Max 50% relative humidity;
  • Displaying typical moving video content, not a static or mainly white image
  • Specification
    Screen
    Screen resolution
    1080p Full HD (1920x1080)
    Screen size (diagonal)
    135"
    Screen size
    119.37" x 70.59"
    Minimum viewing distance
    4' 11"
    Brightness (before calibration)
    850 nits
    Contrast
    10000:1
    Dimensions (W x D x H)
    119.37" x 3.36" x 70.61"
    Net weight
    418.88 lbs
    Scaler-switcher
    Built in scaler-switcher
    Sender
    Built in sender
    Pixel pitch (H x V)
    1.5625mm
    LEDs per pixel
    4
    Pixel configuration
    Flip Chip
    LED face color
    Black
    LED size
    SMD2121
    Pixel resolution (width)
    216 pixels/module
    Pixel resolution (height)
    96 pixels/module
    Active module width
    119.37"
    Active module height
    70.61"
    Viewing angle - horizontal
    170°
    Viewing angle - vertical
    170°
    Ingress protection (front)
    IP5
    Surface finish
    Black
    LED fixings
    Front access
    Storage temperature range
    -4°F - 104°F
    Operating temperature range
    32°F - 104°F
    Greyscale processing depth
    12 bits
    Number of colors
    281 (trillions)
    Refresh rate
    3,840 Hz
    Contrast ratio
    10,000
    Brightness control levels
    100
    Input power (max)
    1,700watts per panel
    Power supply
    110 - 220V
    Lifespan
    100,000
    Mounting frame
    Wall Mount Included

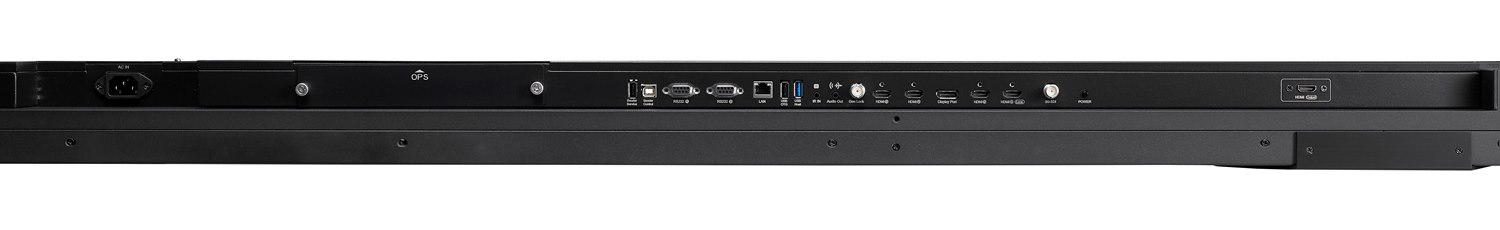

    Connections
    Inputs 3 x HDMI 2.0, 1 x DisplayPort, 1 x 3G-SDI, 1 x USB-A 3.0, 1 x USB-A 2.0, 1 x USB-B, 1 x GenlockOutputs 1 x HDMI 2.0, 1 x RS232Control 1 x RS232, 1 x RJ45
