This product has been discontinued.

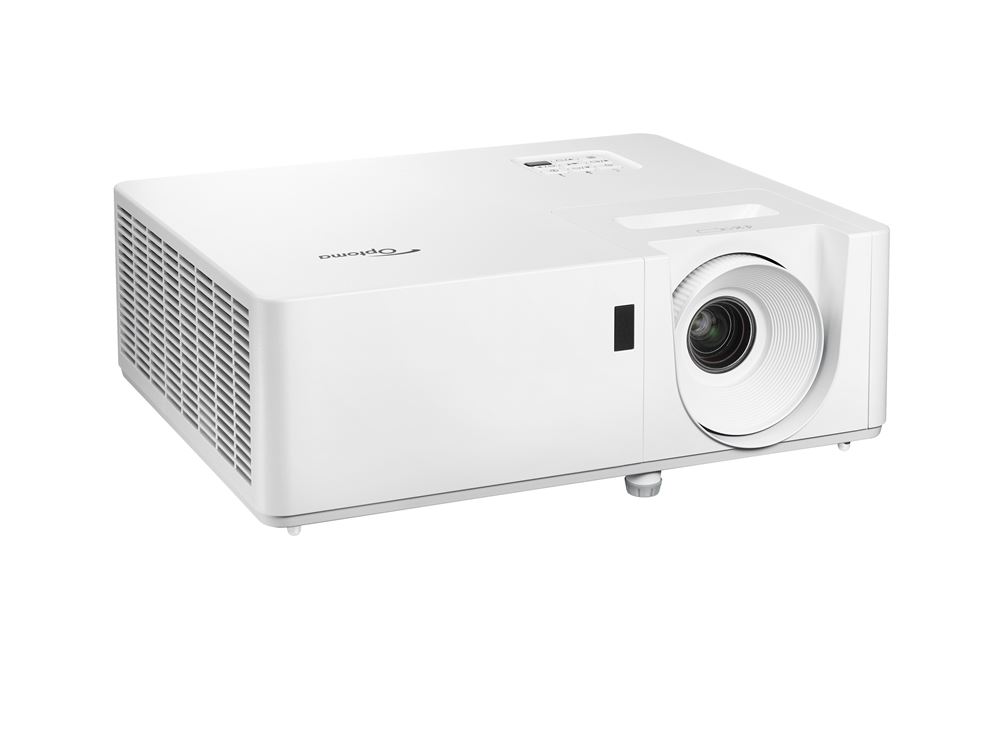

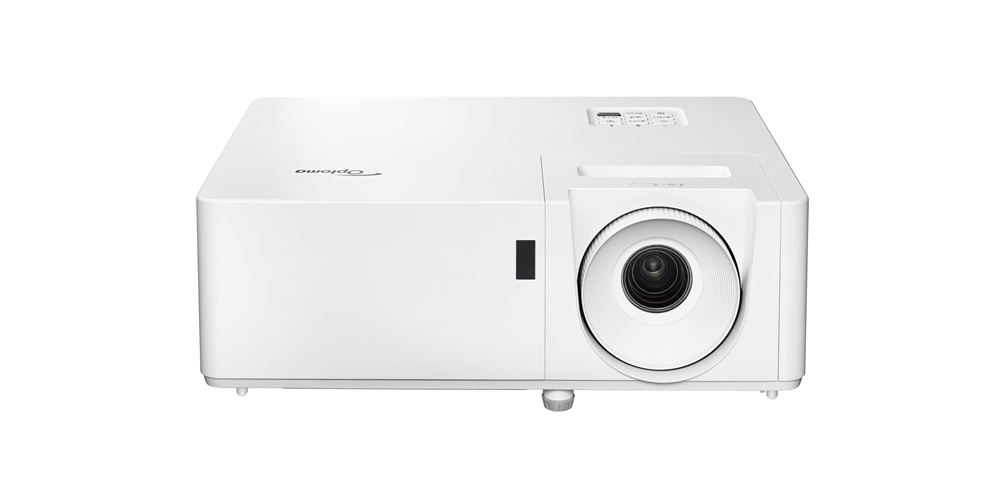

Optoma ZX300

ZX300

Compact high brightness laser projector

The ZX300 is a compact XGA DuraCore IP6X laser projector. Designed for maintenance-free continuous operation, it can be installed in virtually any orientation. Its small and lightweight footprint combined with 360-degree and portrait projection enable easy installation.

This feature-packed projector has a built-in speaker and its laser technology delivers up to 30,000 hours of maintenance-free laser light source.

The ZX300 is geared for medium-sized exhibition venues, events, tradeshows or meeting rooms. It maintains excellent image quality as brightness and color saturation is preserved for longer compared to lamp-based systems.

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

Superior contrast

Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual
  • Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Integrated speaker

    A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

    USB-Power

    Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

    AV mute

    Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.

    Auto power off

    There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

    Quick resume

    This feature allows the projector to be instantly powered on again, if it is accidentally switched off.

    Direct power on

    The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.

    Direct power off

    Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.

    24/7 operation

    Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

    *24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    XGA (1024x768)
    Brightness
    3,500 lumens
    Contrast ratio
    300,000:1
    Native aspect ratio
    4:3
    Aspect ratio - compatible
    4:3,16:9,16:10
    Keystone correction - vertical
    +/-40°
    Has vertical auto keystone correction
    Yes
    Displayable colors (millions)
    1073.4
    Horizontal scan rate
    15.375 ~ 91.146 Khz
    Vertical scan rate
    50 ~ 85 Hz (120Hz for 3D)Hz
    Uniformity
    75%
    Screen size
    25.4" ~ 300" diagonal
    Light source type
    Laser
    LASER life
    30,000 hours
    Throw ratio
    1.94:1 ~ 2.16:1
    Projection distance
    39.37" - 464.57"
    Zoom
    1.1
    Zoom type
    Manual
    Focal length (mm)
    21.85 ~ 24.01
    Native offset
    113%

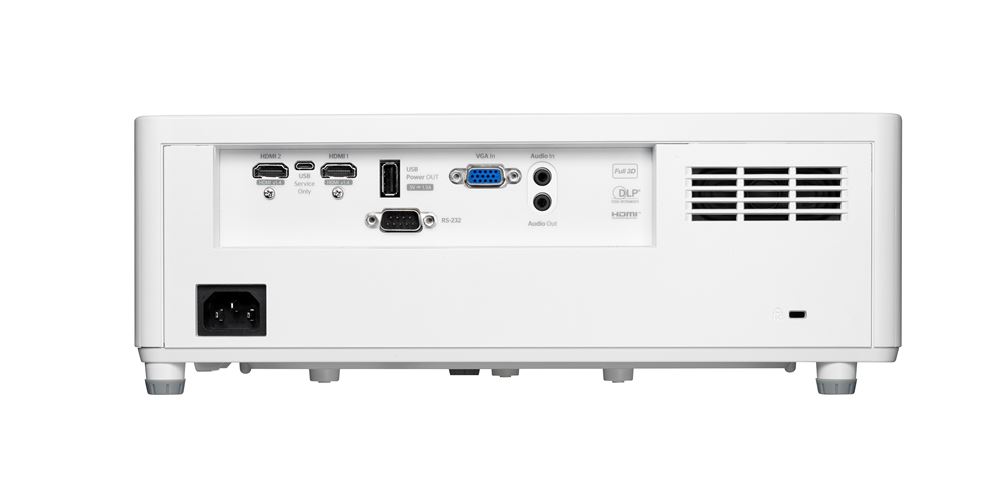

    Connections
    Inputs 2 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mmOutputs 1 x Audio 3.5mm, 1 x USB-A power 1.5AControl 1 x RS232, 1 x micro USB service
    Noise level (min)
    30dB
    Noise level (max)
    32dB
    PC compatibility
    FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
    2D compatibility
    NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
    3D compatibility
    Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
    3D
    Full 3D
    Security
    Security bar, Kensington Lock, Password protected interface
    IP rating
    IP6X
    OSD / display languages
    25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
    24/7 operation
    Yes
    360° operation
    Yes
    Operating conditions
    5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m

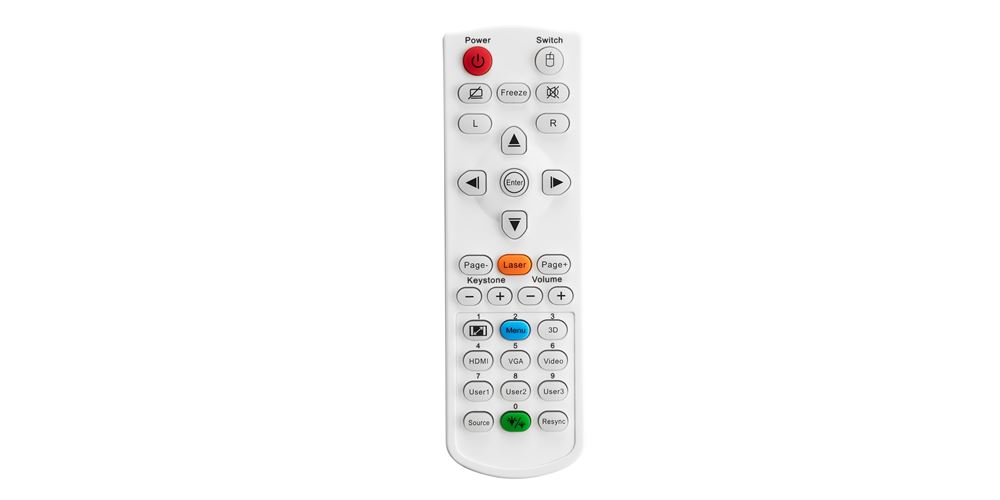

    Remote control
    Data remote with laser and mouse function
    Speaker count
    1
    Watts per speaker
    15W
    In the box
    AC power cord
    Remote control
    2x AAA batteries
    Basic user manual
    Optional wireless models
    UHDCast Pro
    Power supply
    100V ~ 240V, 50-60Hz
    Power consumption (standby)
    Power consumption (min)
    138W
    Power consumption (max)
    161W
    Dimensions (W x D x H)
    13.27" x 10.43" x 4.82"
    Gross weight
    13.67 lbs
    Net weight
    8.82 lbs
