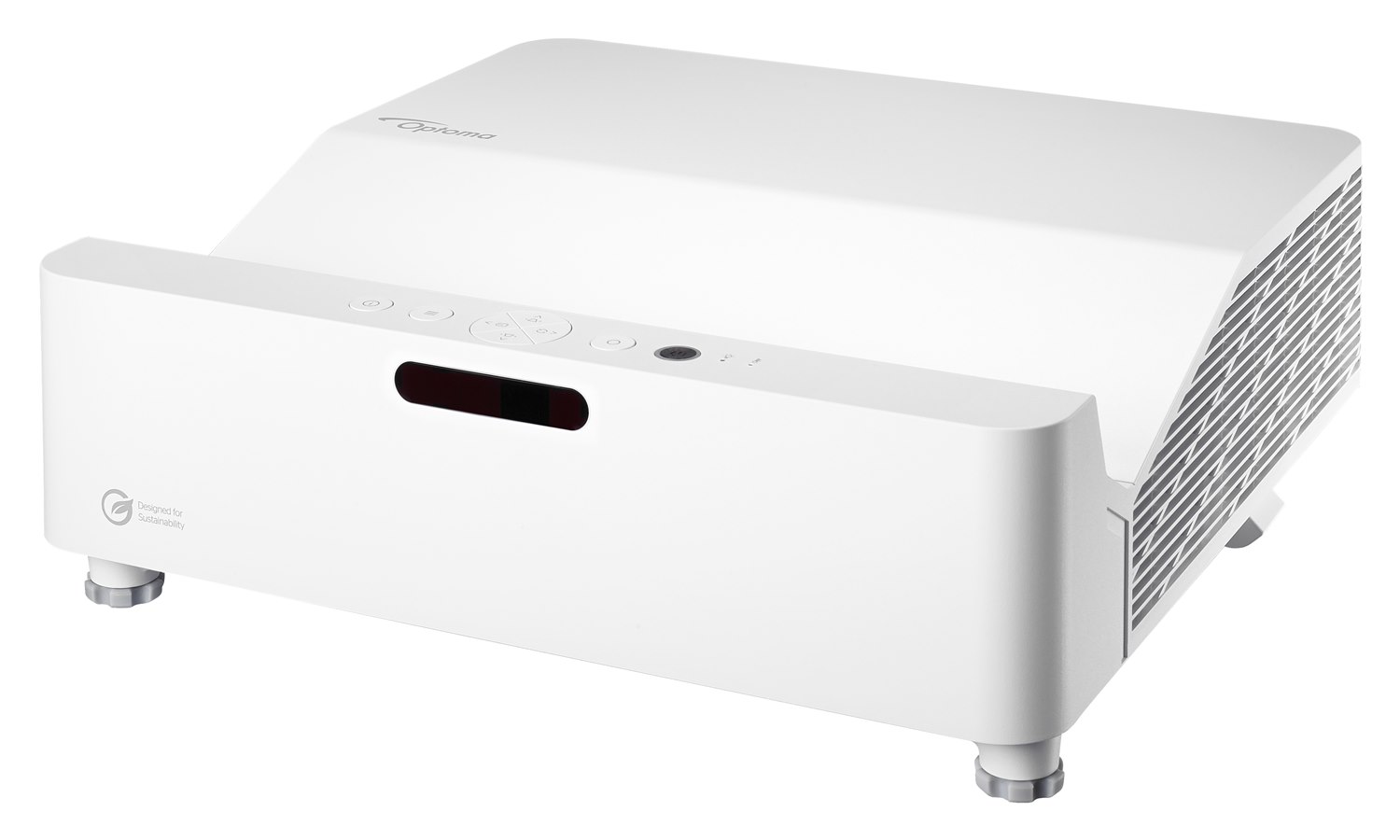

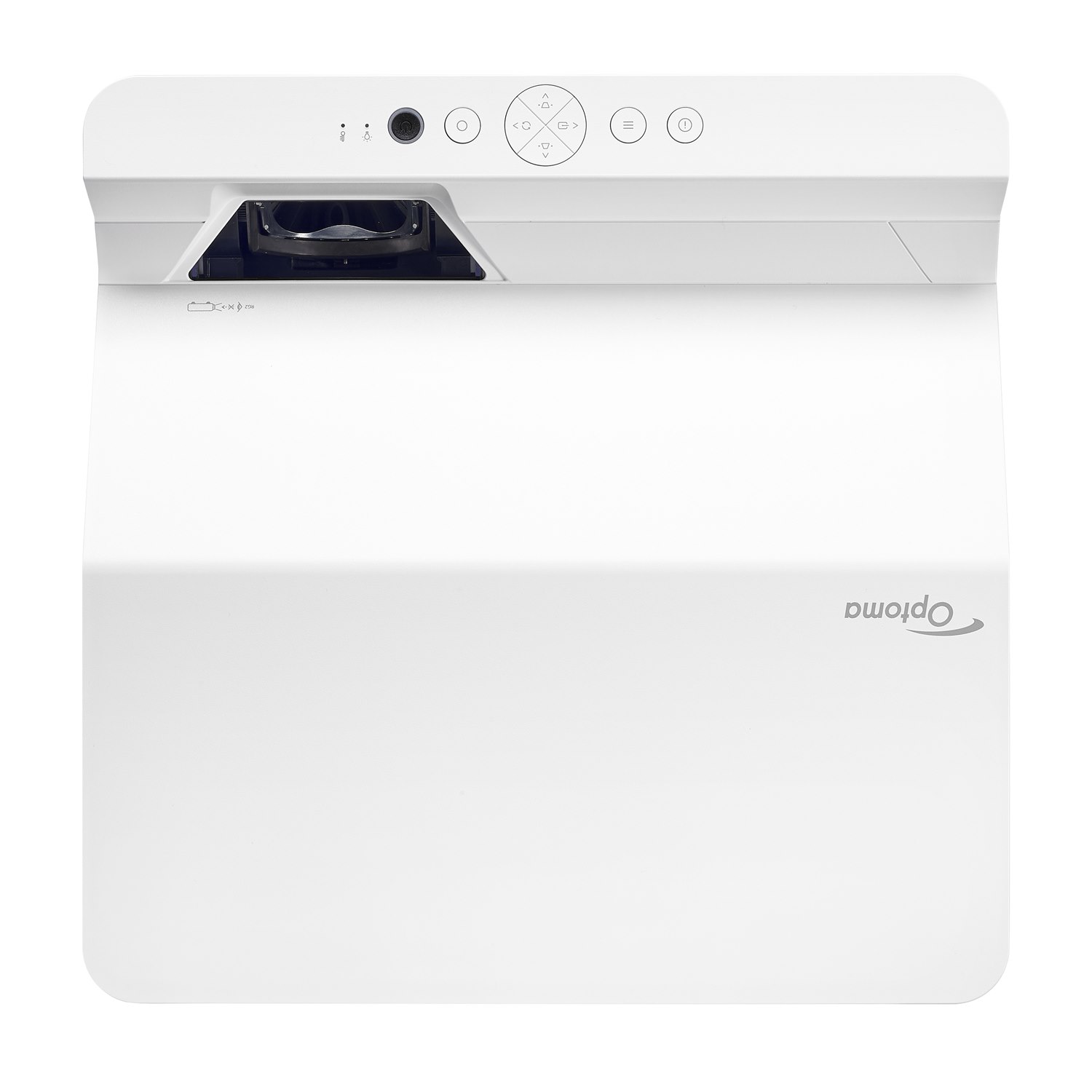

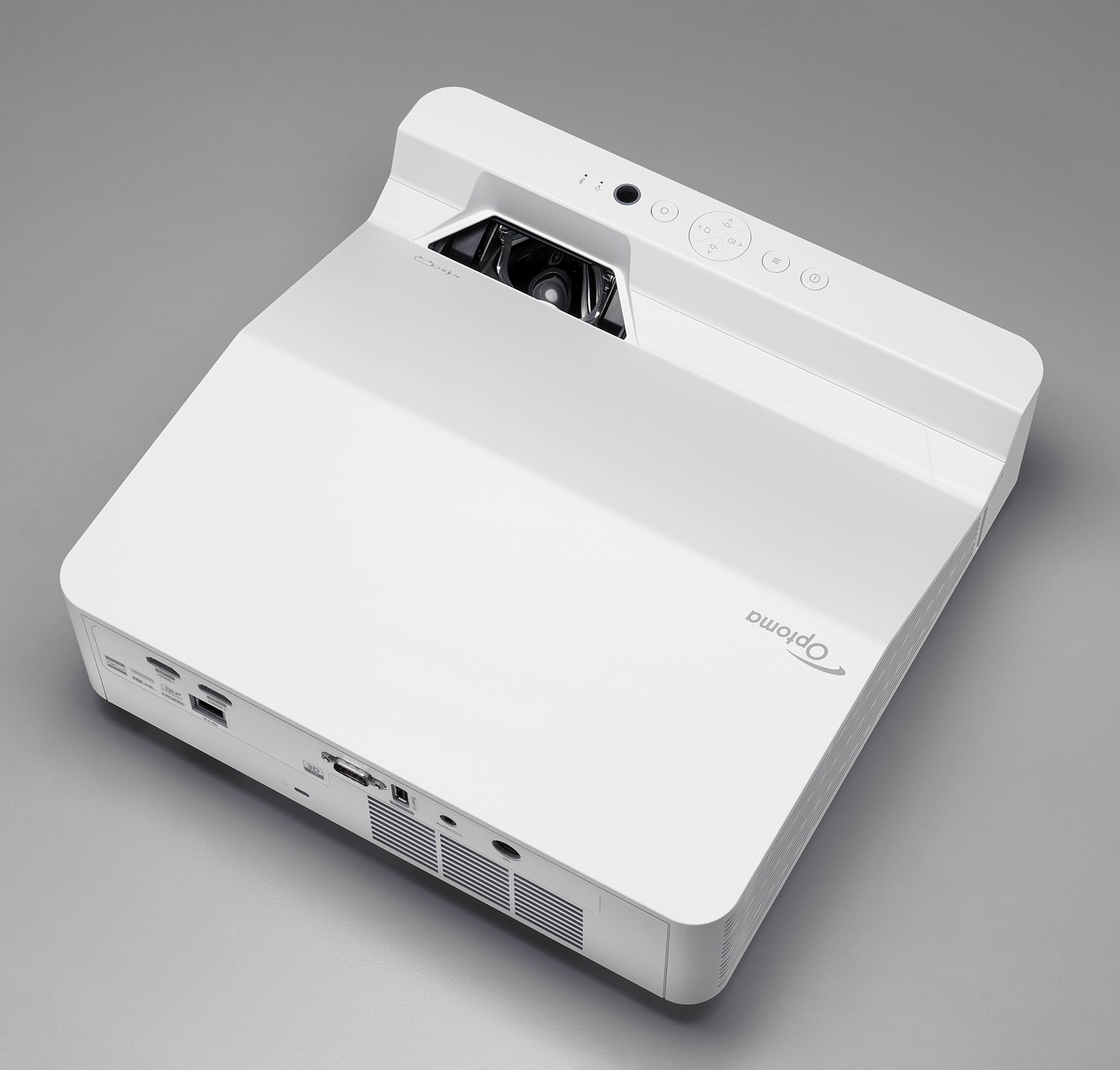

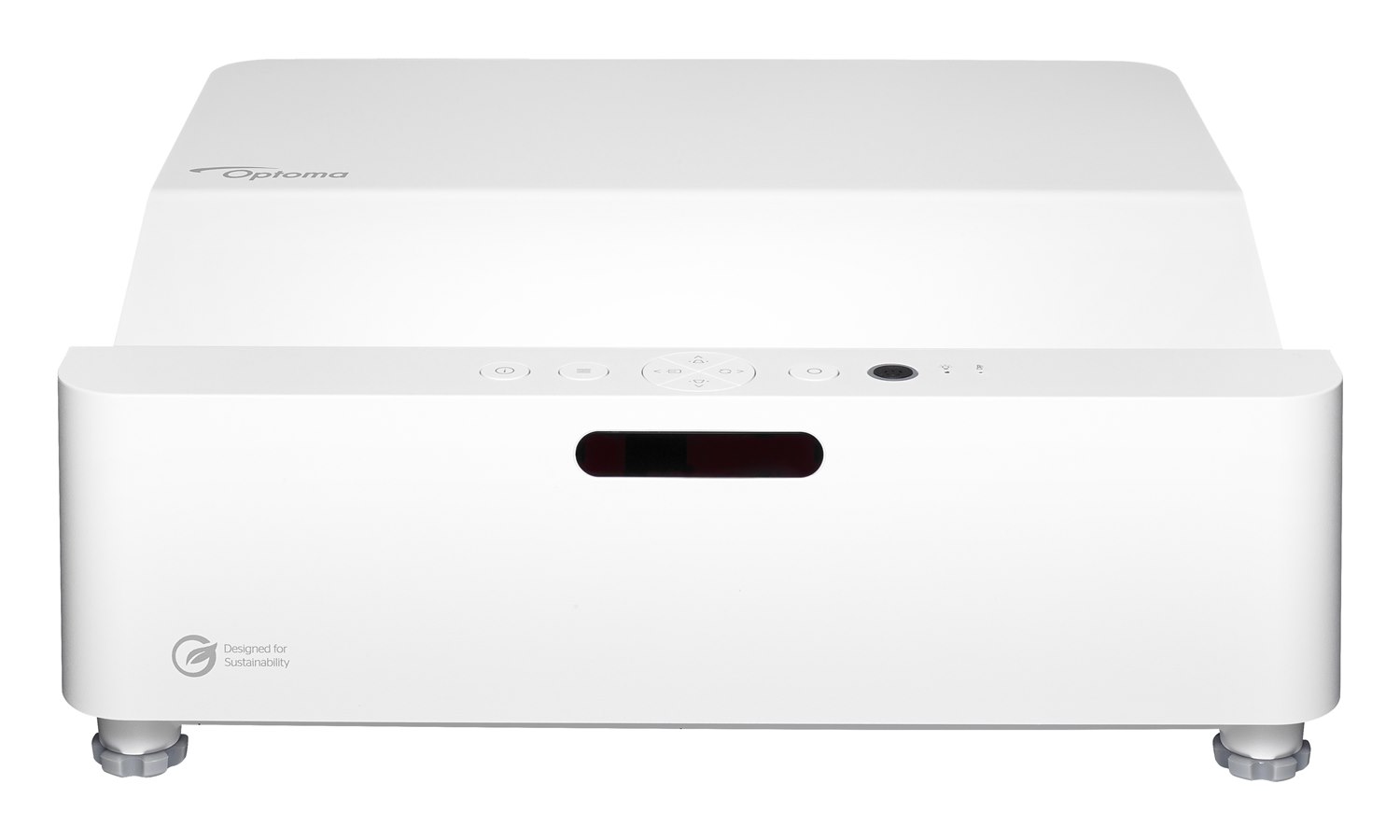

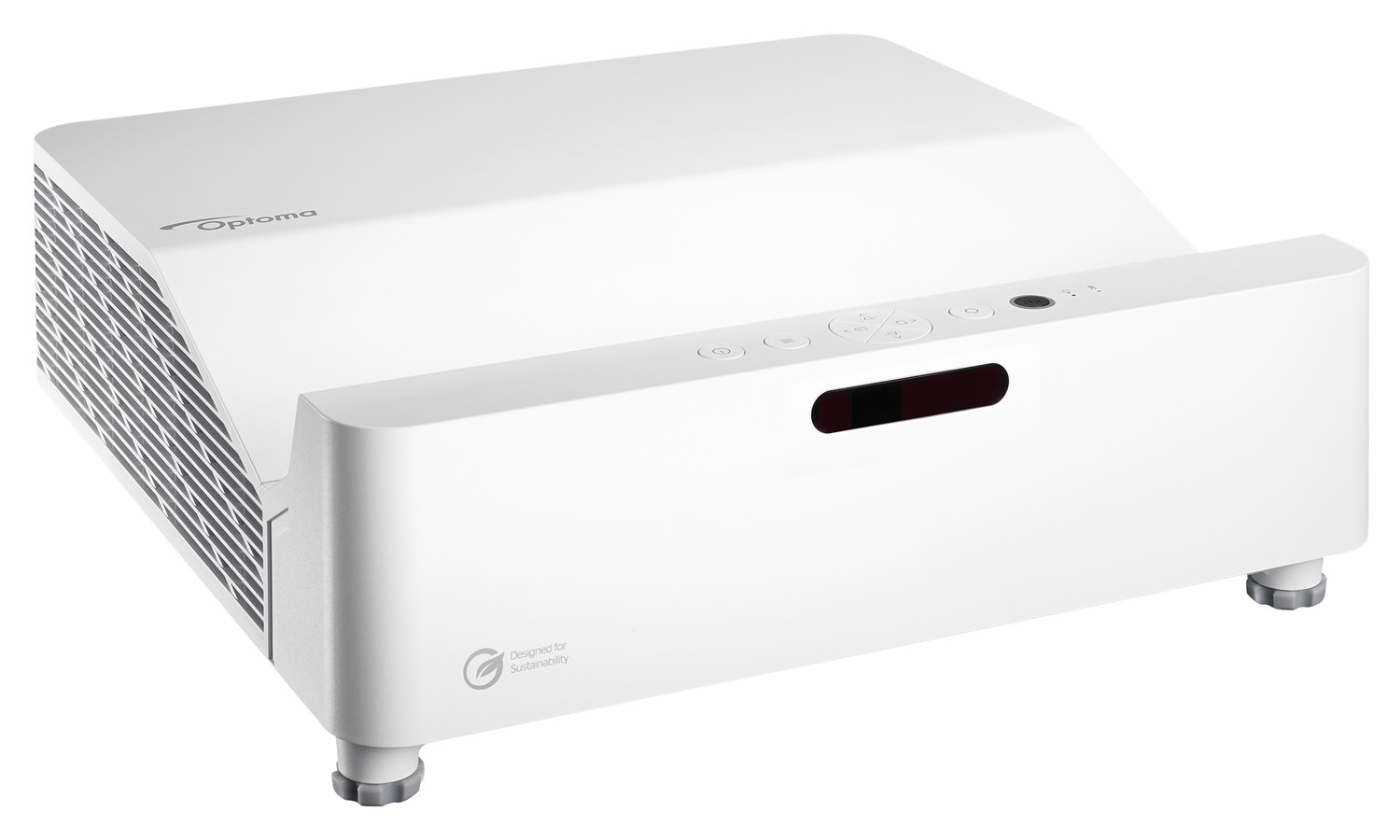

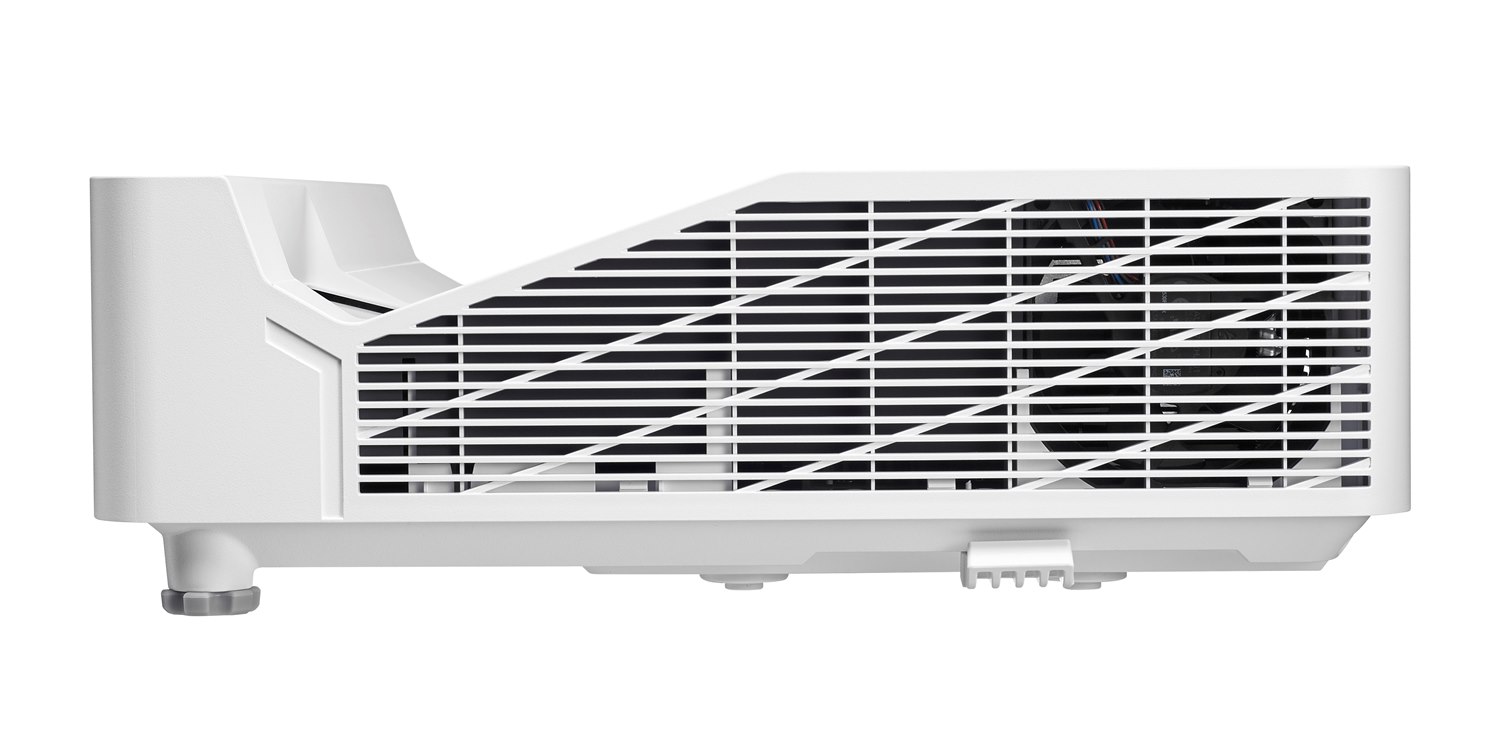

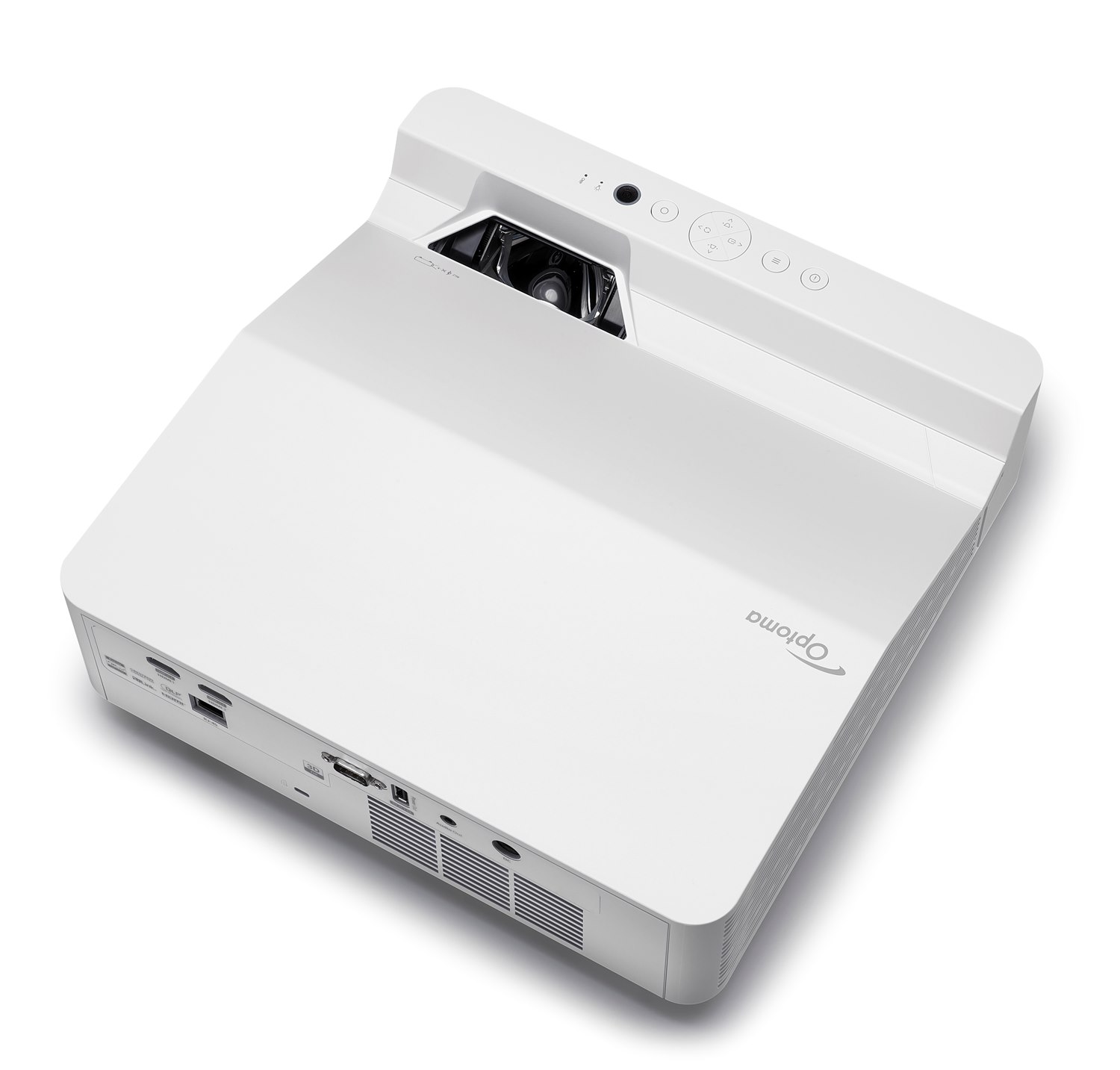

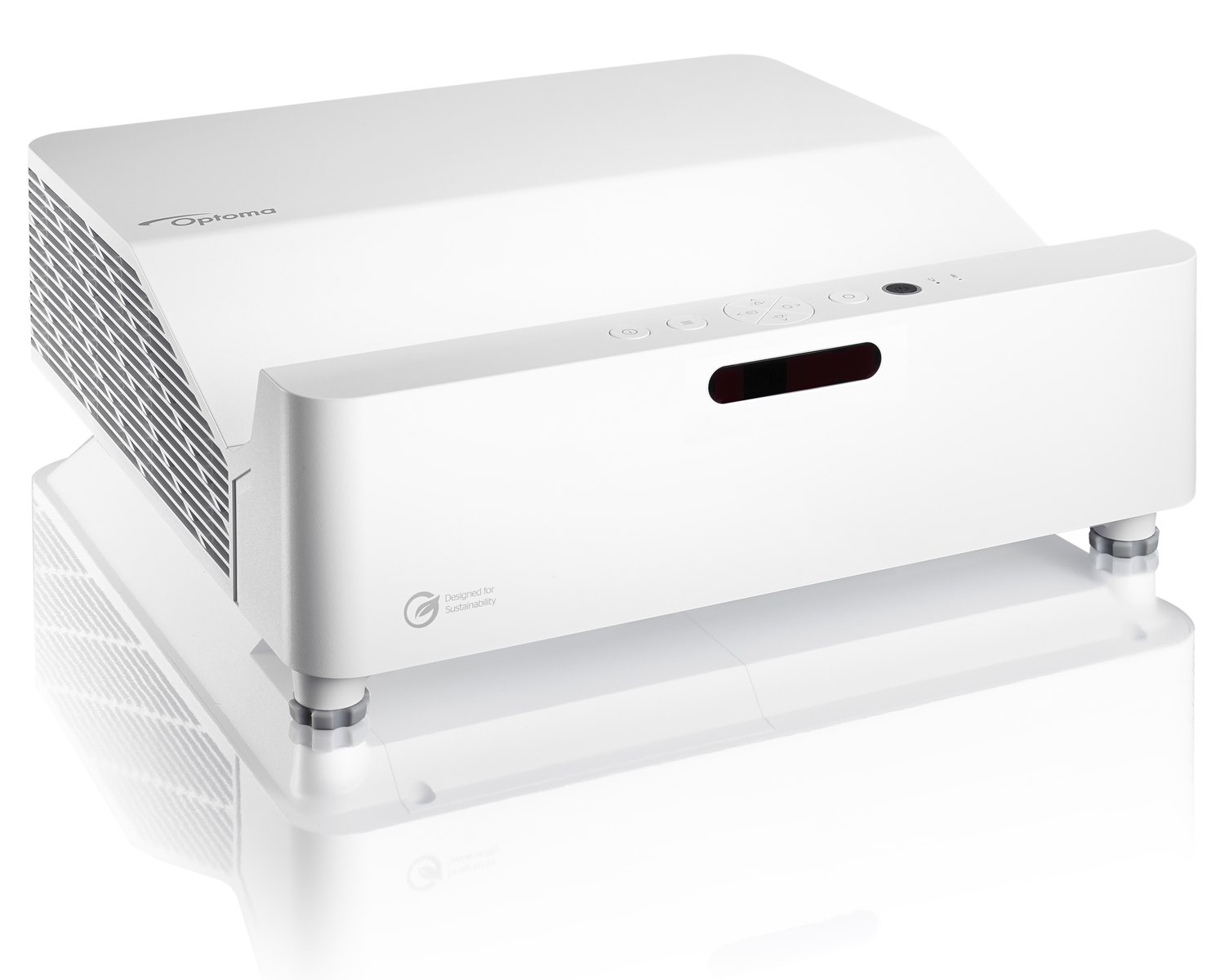

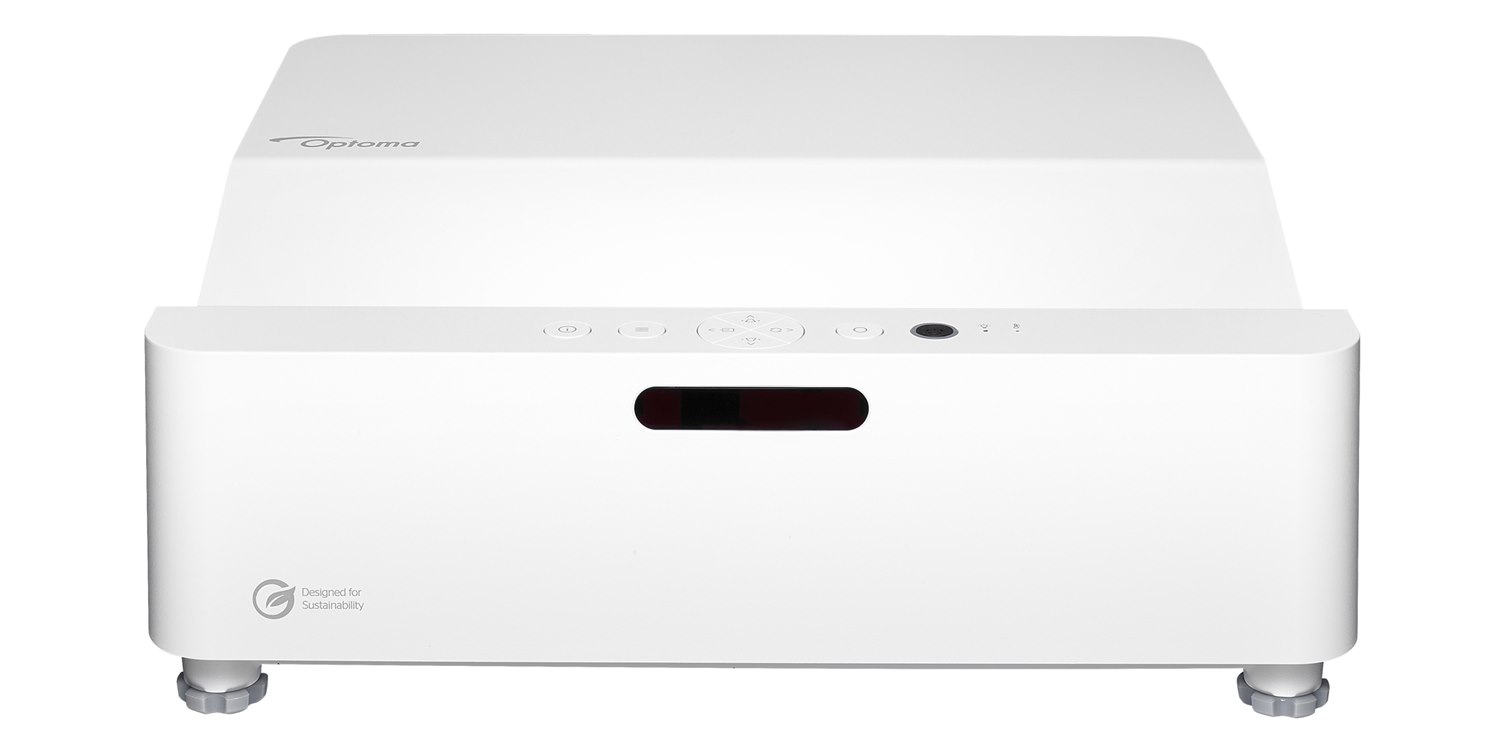

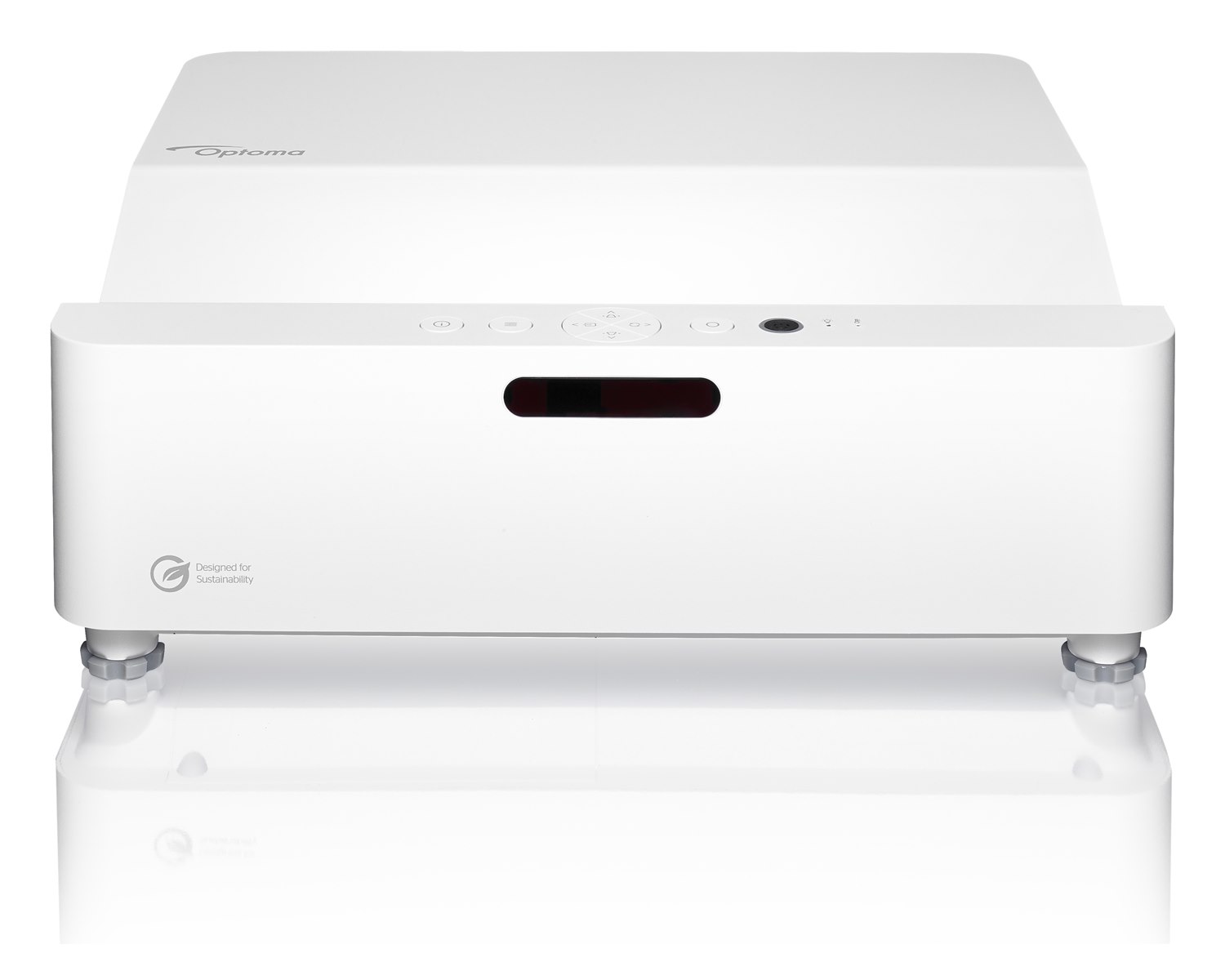

ZW410UST

Compact eco-friendly ultra short throw projector

The ZW410UST is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 4000-lumen projector delivers powerful and eye catching image performance. Ideal for meeting rooms and classrooms, the ZW410UST is designed to be used at any time of day.

Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials.

Installation and setup are simple with four corner adjustment and the added benefit of an external power supply, offering more reliability, portability and energy efficiency.

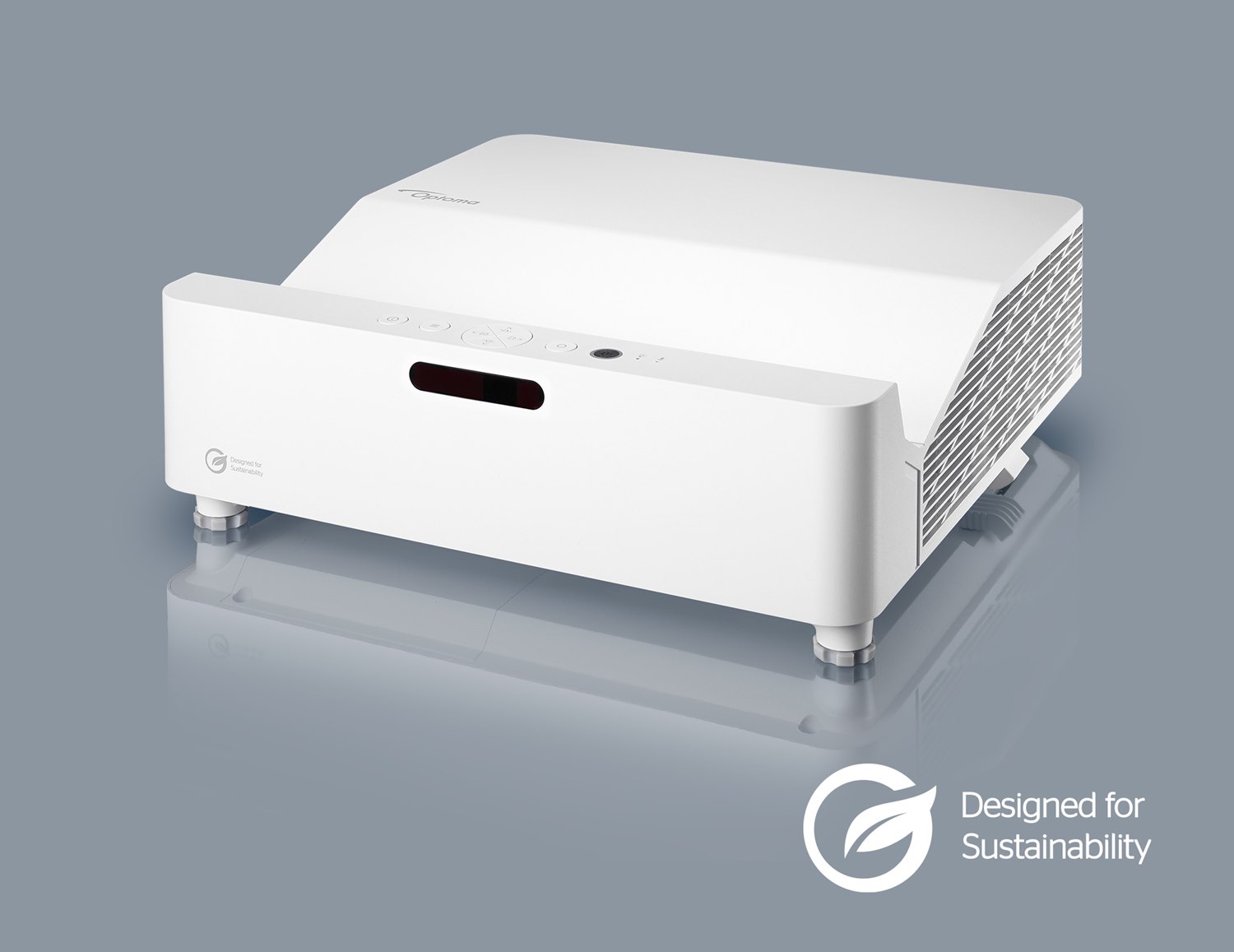

Designed with the environment in mind, the eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the Optoma ZW410UST projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹

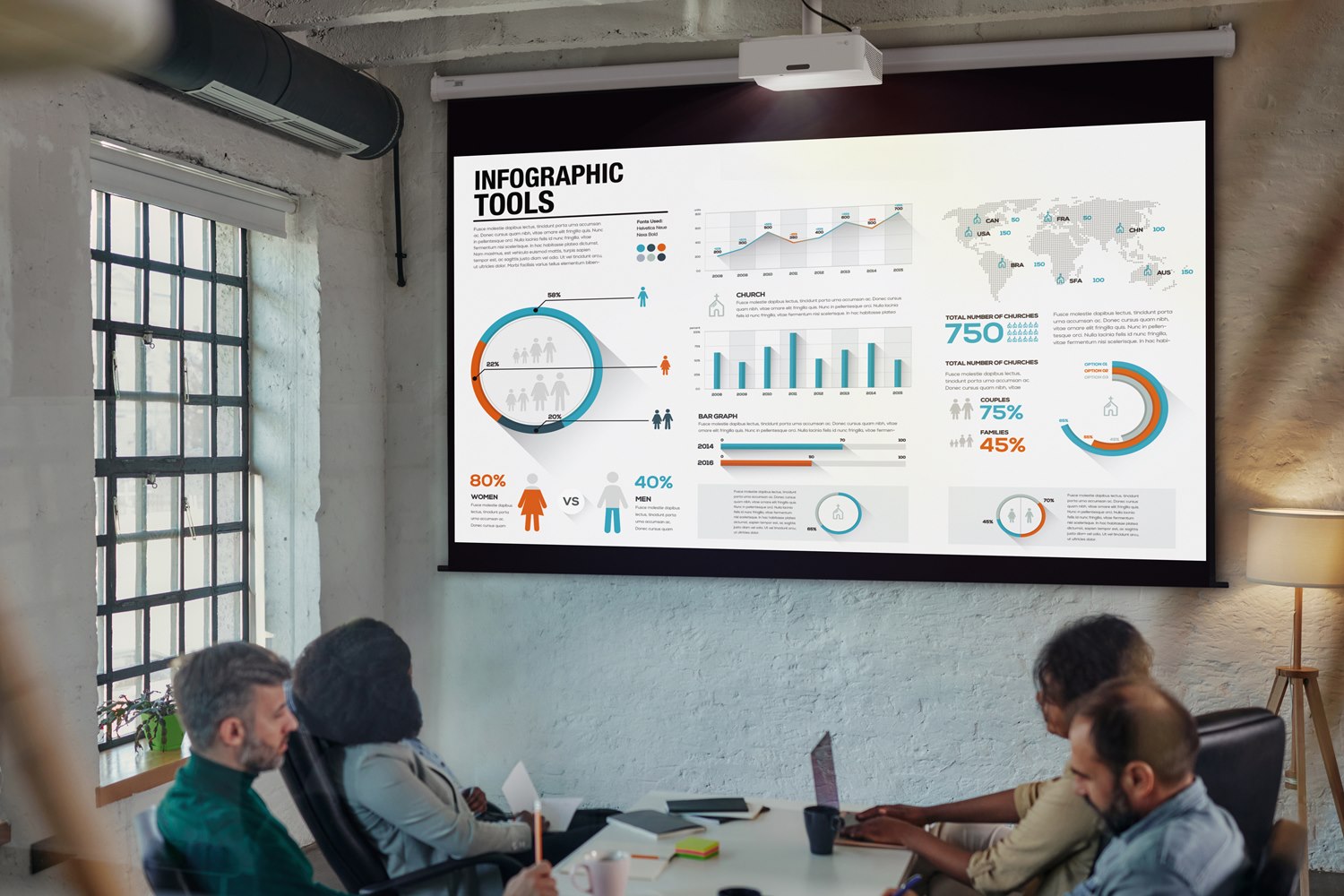

Geared for conference rooms, boardrooms, and other corporate spaces, the ZW410UST features an ultra short throw lens meaning it can project a 100” image from less than two feet away, avoiding shadows being cast across the screen from the presenter(s). For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.

Features

Lights on viewing

This versatile projector combines high brightness and vivid colors for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

*With no direct sunlight or lights directed on screen.

Laser technology

Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior color performance, instant on/off and an extraordinary life span of up to 30,000 hours.

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

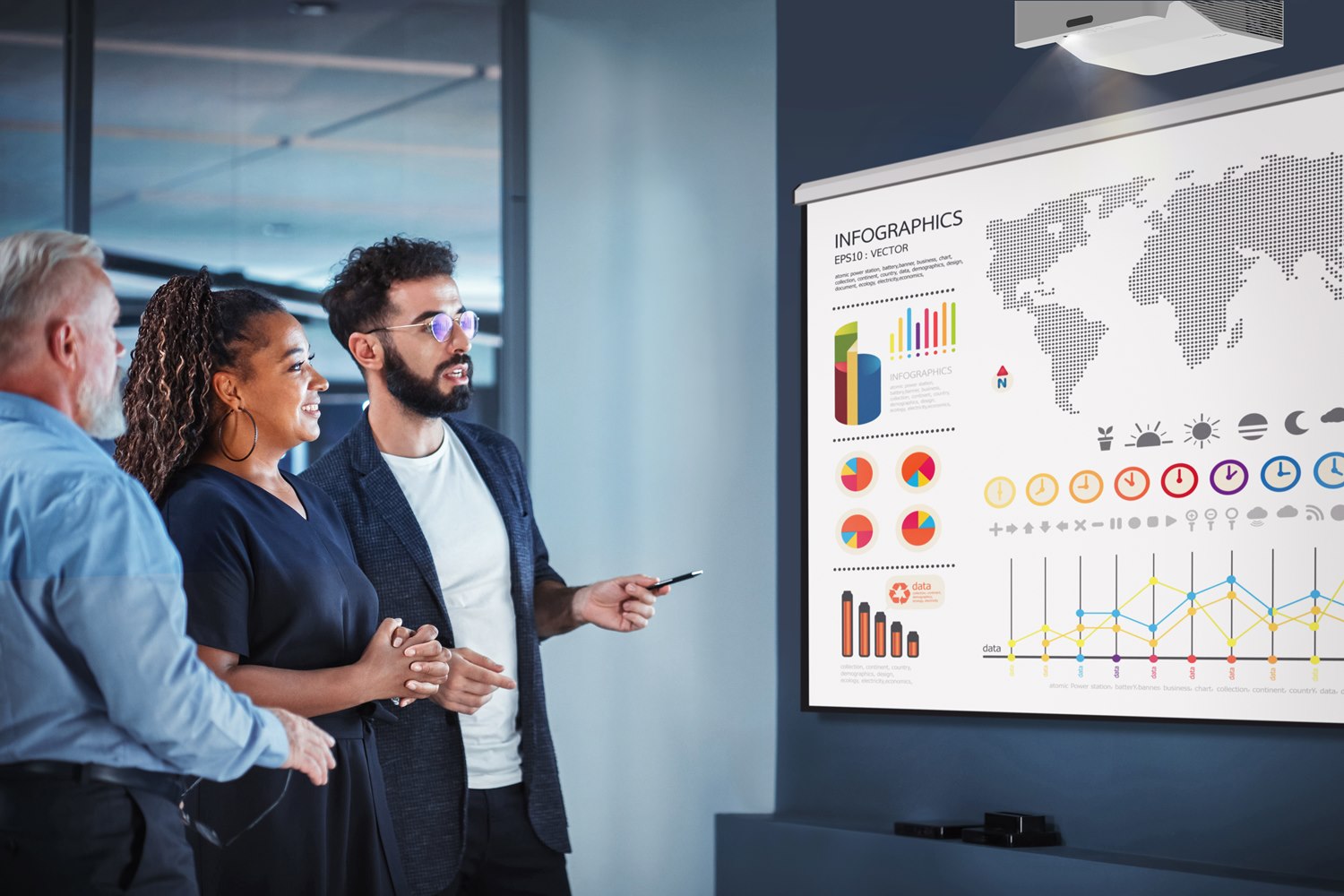

Ultra Short Throw

With an ultra-short throw lens, you can project an impressive image greater than 100” from only inches away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.

Amazing colors

Give powerful presentations and educational lessons with stunning colors. Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to meet your needs. Perfect for a wide range of graphic and video presentations.

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Next generation display management

Peace of mind

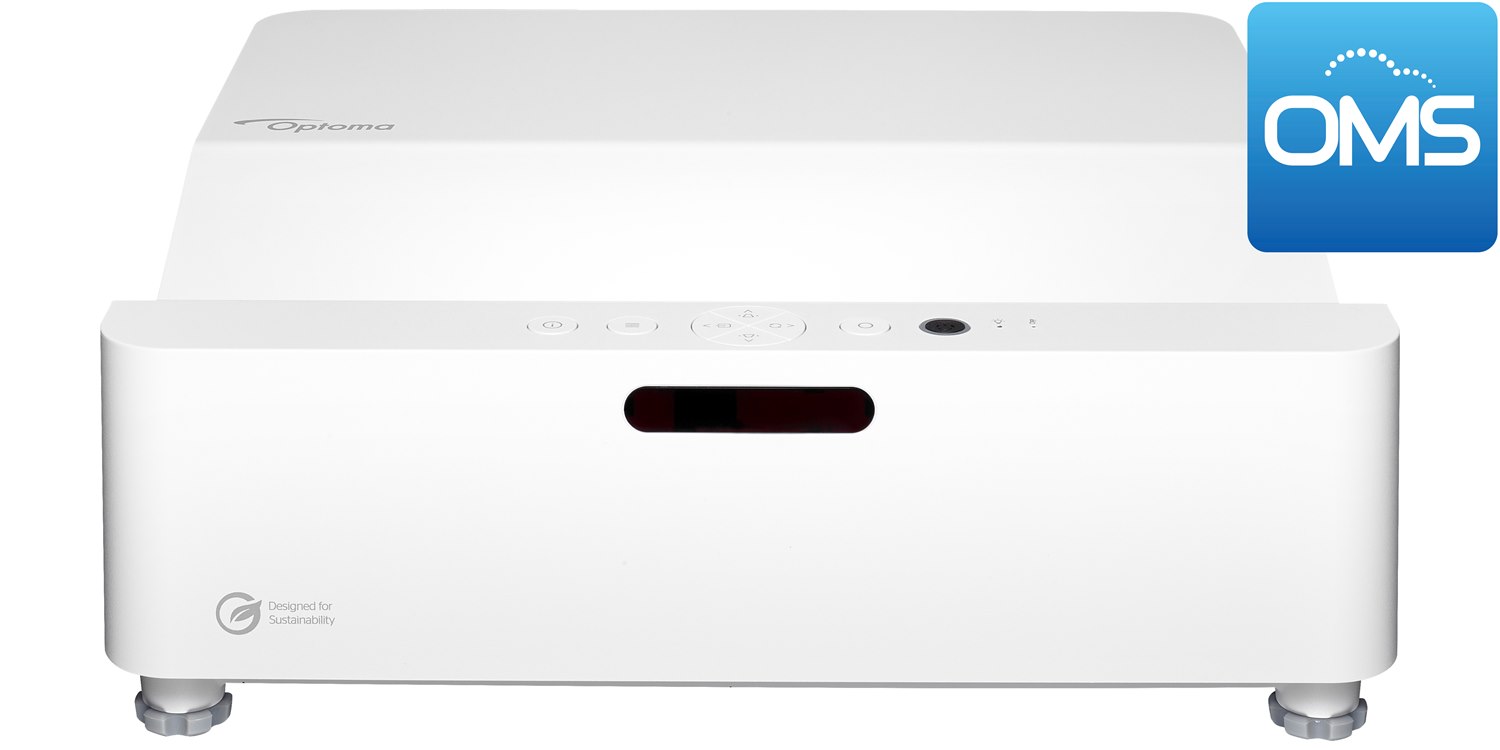

Optoma Management Suite (OMS Local)™ encompasses all Optoma display solutions in a single location to serve as an interface for simultaneously managing, monitoring and diagnosing issues across them all. Whether it's multiple devices in a school, exhibition hall or office space, OMS local is perfect for keeping in control.

OMS™ Local also helps to alert users when a problem arises, and for an extra layer of readiness, institutions can also use this platform to set alerts and broadcast emergency announcements.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

Four corner correction

Four corner correction enables the keystone of the projector to be adjusted in both the vertical and horizontal plane, so you can individually warp each corner of the projected image to make it perfectly square. Ideal for uneven walls or in spaces where the projector placement is awkward or limited and needs to be installed at an angle.

360 projection*

With 360° projection,images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

*24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Integrated speaker

Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
Specification
Display/image
Display technology
DLP®
Resolution
WXGA (1280x800)
Brightness
4,000 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - horizontal
+/-5°
Keystone correction - vertical
+/-5°
Displayable colors (millions)
1073.4
Horizontal scan rate
15 ~ 140Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
75%
Screen size
80" ~ 130" diagonal
Lamp info
Light source type
DuraCore Laser
LASER life
30,000 hours
Optical
Throw ratio
0.266:1
Projection distance
7.95" - 15.67"
Focal length (mm)
3.72mm/0.146"
Native offset
116%

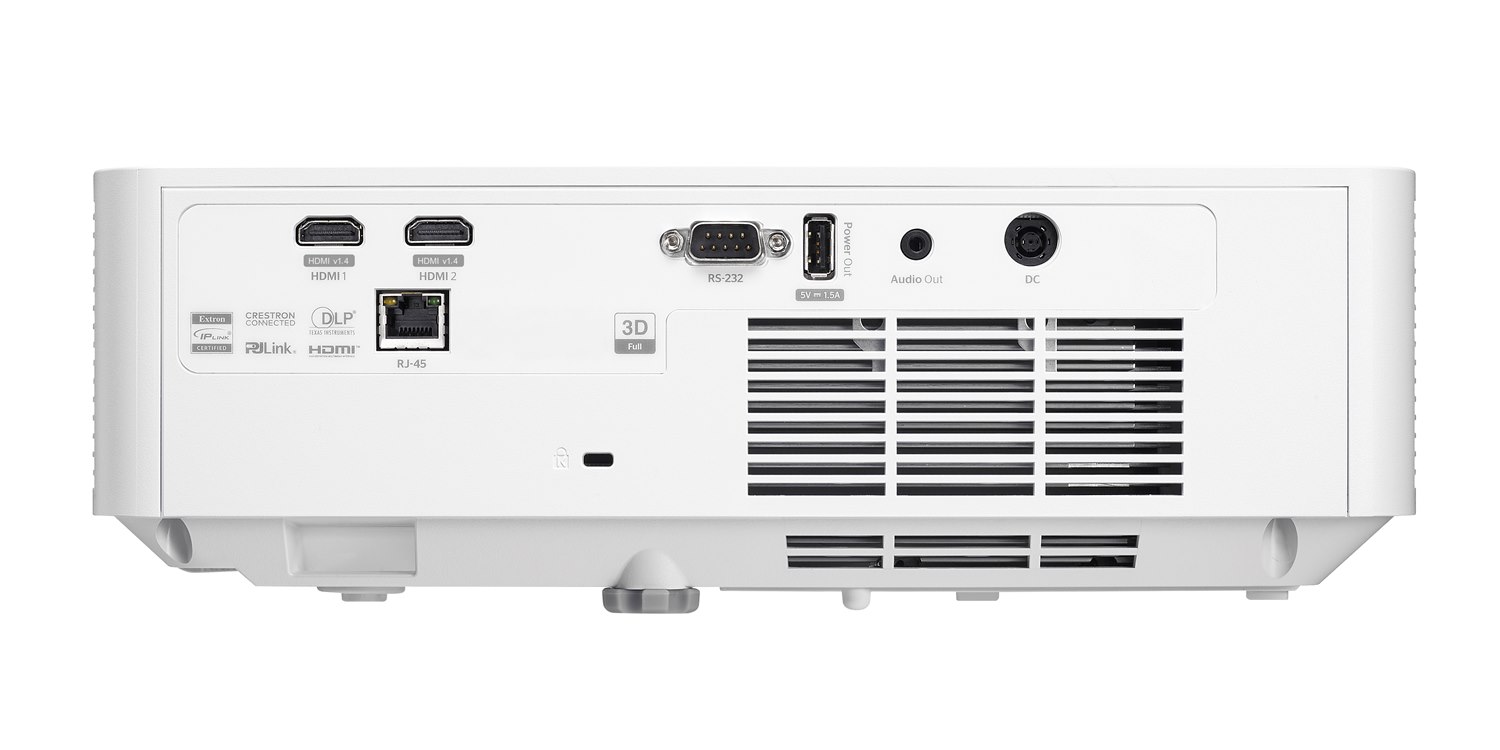

Connectivity
Connections
2xHDMI 1.4b
USB-A power 1.5A
Audio 3.5mm
RS232
RJ45
General
Noise level (min)
27dB
Noise level (max)
34dB
PC compatibility
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
3D compatibility
Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
5°C~40°C, max altitude 10,000ft
Remote control
Card style
Heat dissipation
691BTU/hour
Speaker count
1
Watts per speaker
15W
In the box
AC power cord
Remote control
CR2025 Battery
Quick Start Guide
Networking
LAN - control
Yes
LAN
Yes
Power
Power supply
External power supply, 180W DC 19.5V, 9.23A
Power consumption (standby)
Power consumption (min)
119W
Power consumption (max)
173W
Weight and dimensions
Dimensions (W x D x H)
12.87" x 12.87" x 4.29"
Gross weight
8.6 lbs
Net weight
13.4 lbs
UPC
796435 44 726 7
