This product has been discontinued.

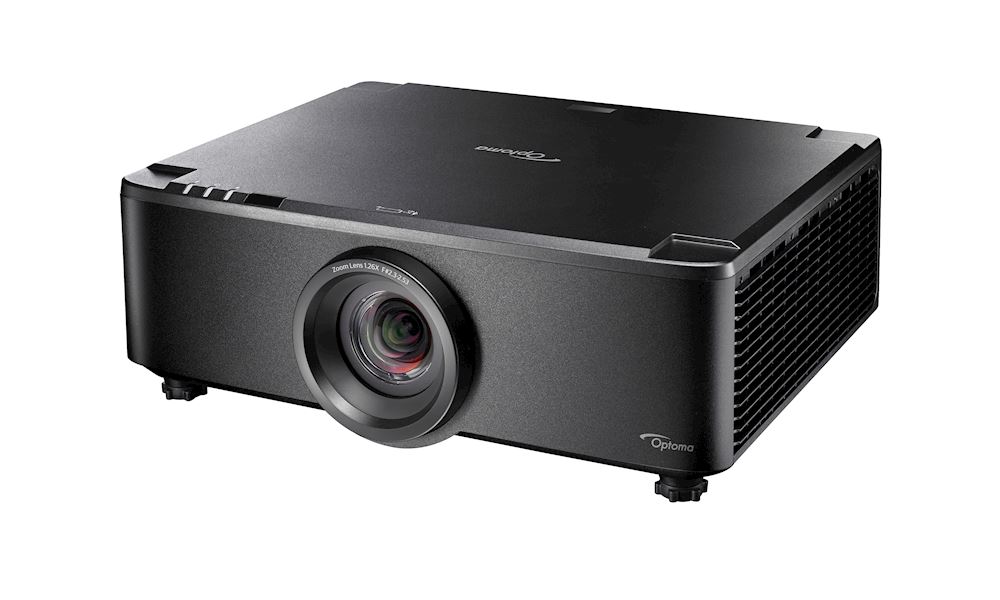

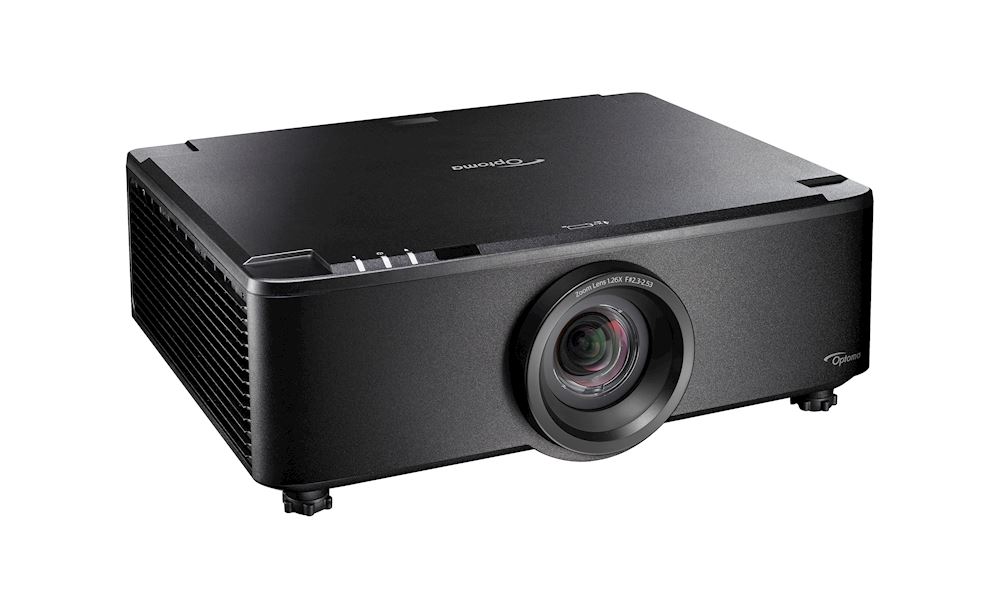

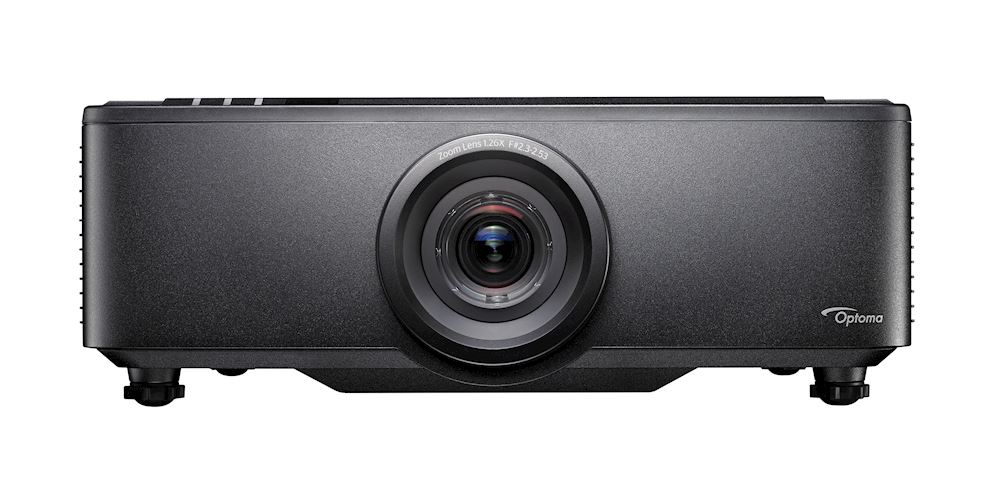

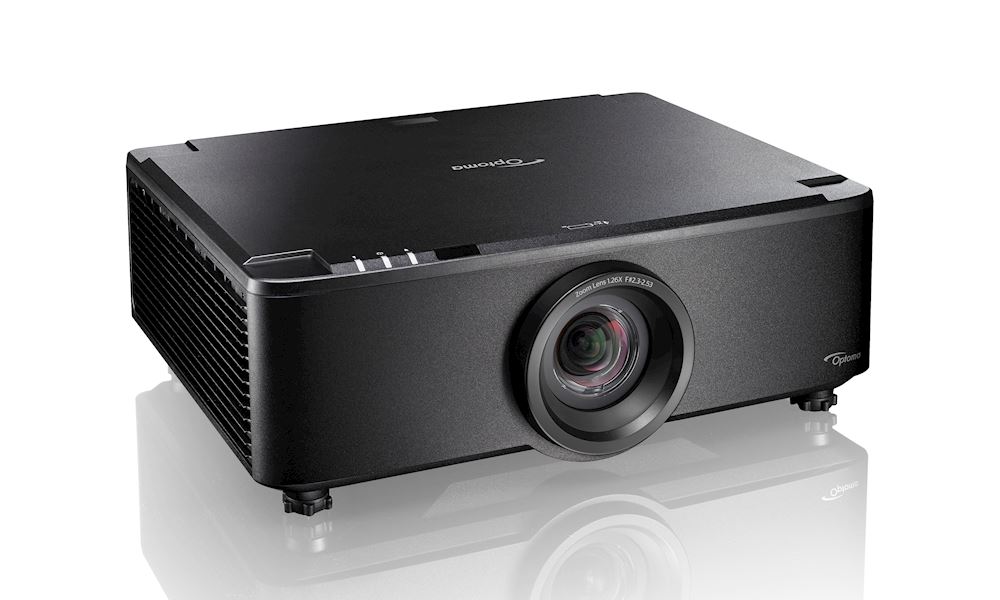

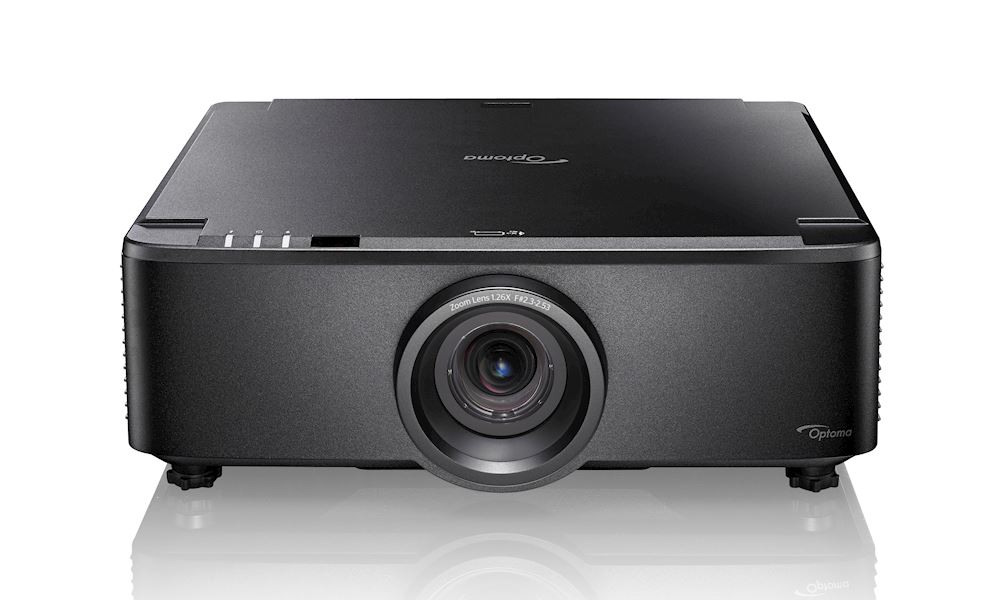

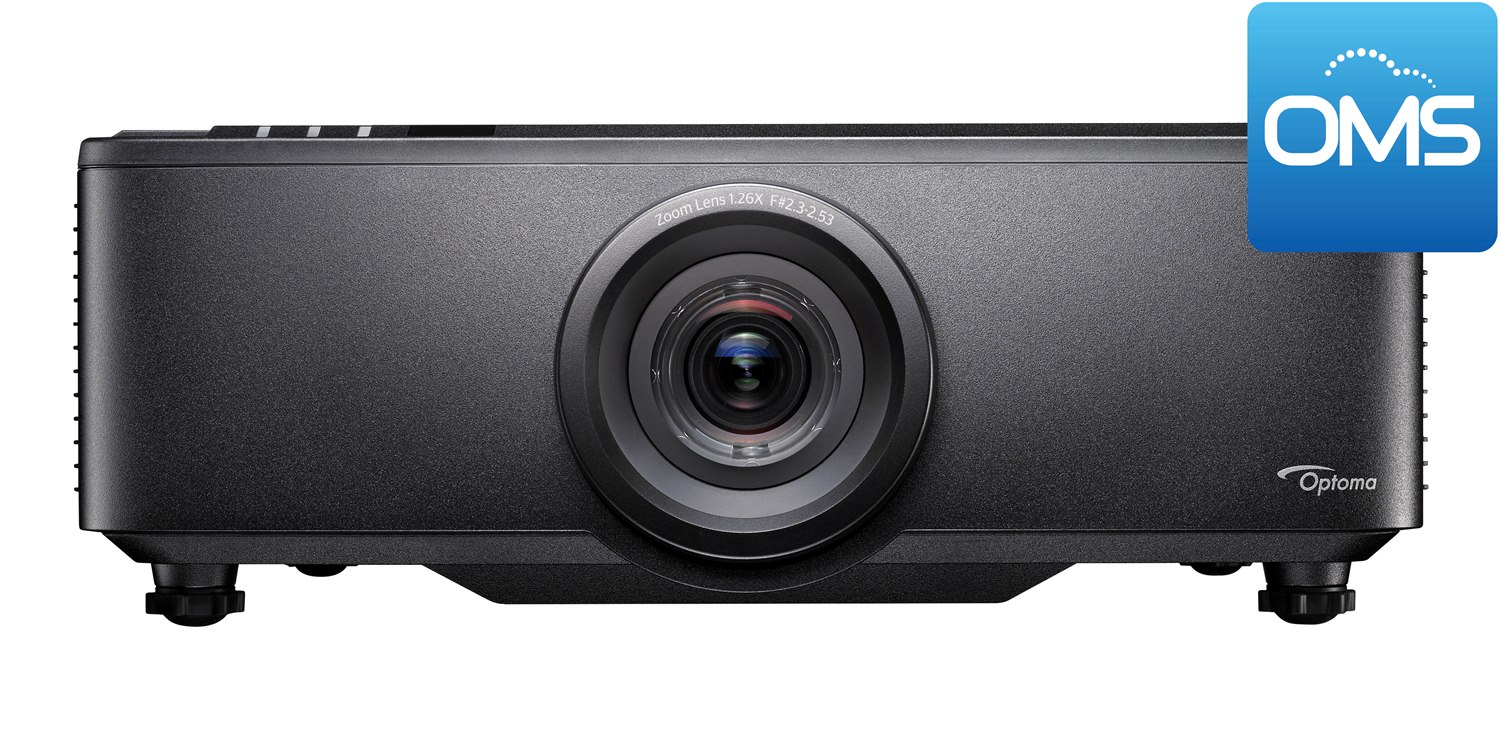

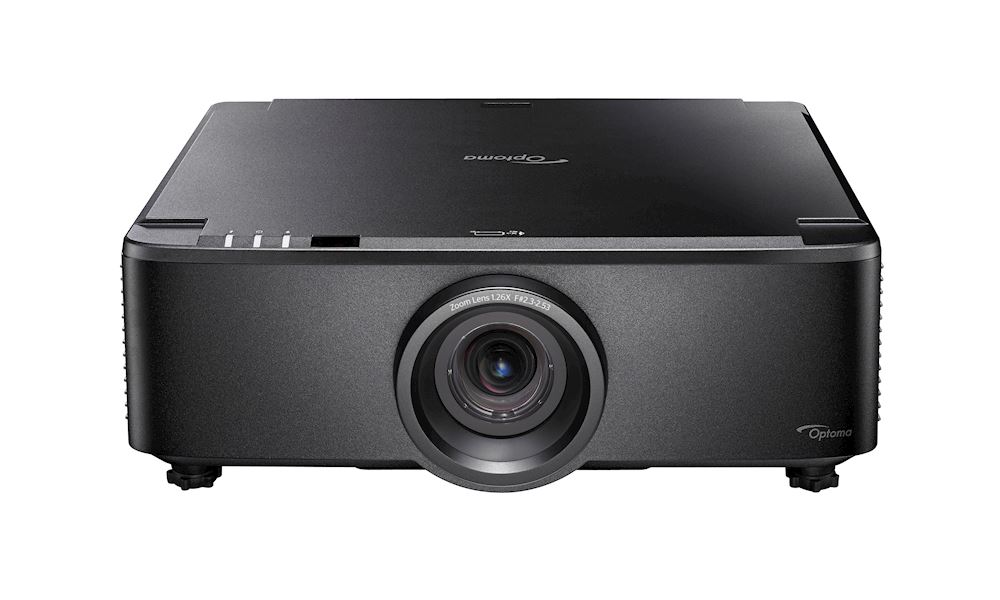

Optoma ZU720TST

ZU720TST

World's first fixed lens 7,000 lumens laser short throw projector

Project incredible 7,000 lumens, WUXGA images from several feet away with the next-generation Optoma ProScene ZU720TST, the world’s first fixed lens 7,000 lumens short throw laser projector. The fixed lens design with motorized 1.26x zoom, focus, lens-shift, integrated warping and blending combined with a compact, lightweight chassis provide extreme installation flexibility in auditoriums, large conference rooms, lecture halls, houses of worship and blended multi-projector installs.

The next-generation projector features DuraCore technology, an IP5X-certified optical engine and advanced thermal design for quiet operation with up to 30,000 hours (Eco) of virtually maintenance-free, 24/7, 360° and portrait mode operation. An embedded Android OS ensures quick and easy over-the-air software updates with advanced software functions.

Features

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

IP5X Dust resistant optical engine

Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

360 projection*

With 360° projection,
  • images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

    *For more information please refer to the user manual

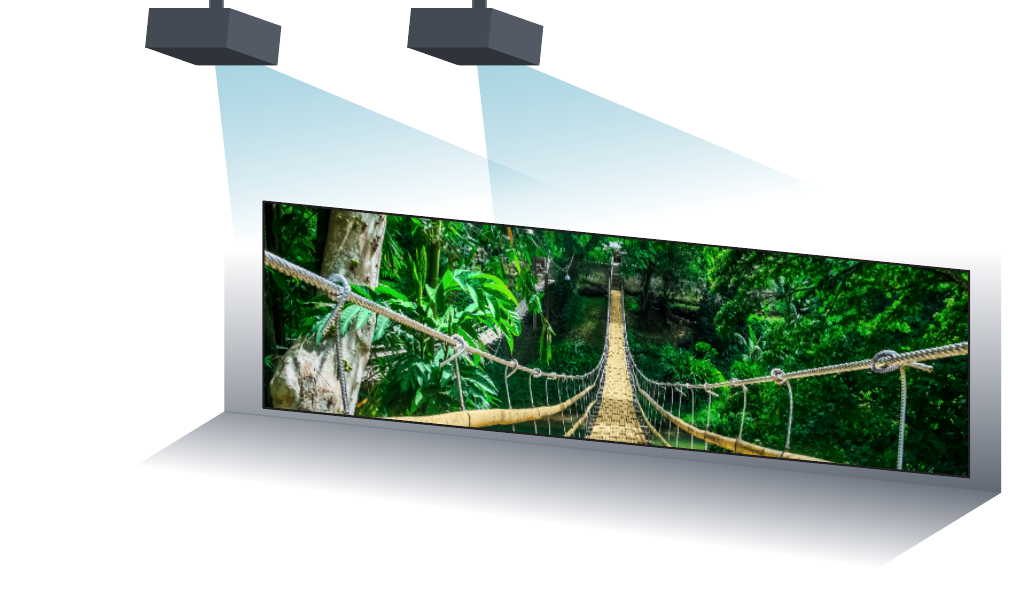

  • Integrated warping and edge blending processor

    Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

    Compatible multi output graphics card with overlap function is required.*

    Color Management System

    Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

    True AV mute

    True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

    Full 3D

    Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

    Wired remote

    The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

    .

    Have your projector in any color. Chose from any RAL color. Perfect for bespoke installations.
    *Contact us for more information"

    Constant power

    Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in-between.

    Constant brightness

    Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

    Built-in media player

    Give presentations directly from your projector without the need of a laptop or PC using the built-in media player. Simply copy your documents, images and videos to a USB stick / SD card / microSD card (depending on the projector input) and display them on the big screen.

    Telnet

    This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

    Control

    Featuring a wide range of options you can control and monitor the projector remotely.

    • RS232
    Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

    • AMX compatible
    Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

    • Crestron RoomView
    Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

    • Extron IPLink compatible
    Allows for easy installation with Extron control systems
    Specification
    Display/image
    Display technology
    DLP®
    Resolution
    WUXGA (1920x1200)
    Brightness
    7,000 lumens
    Contrast ratio - dynamic
    1,000,000:1
    Contrast ratio - full on/off
    1,100:1
    Native aspect ratio
    16:10
    Aspect ratio - compatible
    4:3,16:9
    Keystone correction - horizontal
    +/-30°
    Keystone correction - vertical
    +/-30°
    Screen size
    50" ~ 300" diagonal
    Light source type
    DuraCore Laser
    LASER life
    30,000 hours
    Throw ratio
    0.75:1 ~ 0.95:1
    Projection distance
    31.89" - 241.34"
    Zoom
    1.26
    Zoom type
    Motorized
    Focal length (mm)
    11.11~14.16
    Lens shift
    Vertical: +/-50%, Horizontal: +/-15%
    Lens shift
    Yes - see product downloads for more information

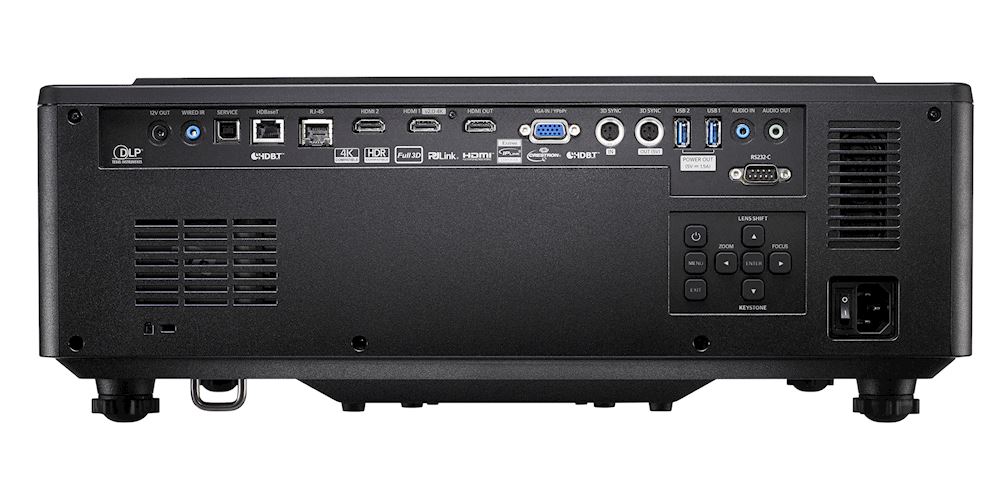

    Connections
    Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 2.0, 1 x VGA, 1 x Audio 3.5mm, 1 x HDBaseT, 1 x 3D syncOutputs 1 x HDMI 1.4a 3D support, 1 x Audio 3.5mm, 1 x 3D sync, 2 x USB-A power 1.5AControl 1 x 12V trigger, 1 x USB-B service, 1 x RJ45, 1 x Wired remote, 1 x RS232
    Noise level (min)
    27dB
    Noise level (max)
    29dB
    3D
    Full 3D
    Security
    Security bar, Kensington Lock, Password protected interface
    IP rating
    IP5x
    OSD / display languages
    23 languages: Arabic, Czech, Danish, Dutch, English, Farsi, French, German, Greek, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
    24/7 operation
    Yes
    360° operation
    Yes
    Operating conditions
    10% to 85% Humidity, non-condensing

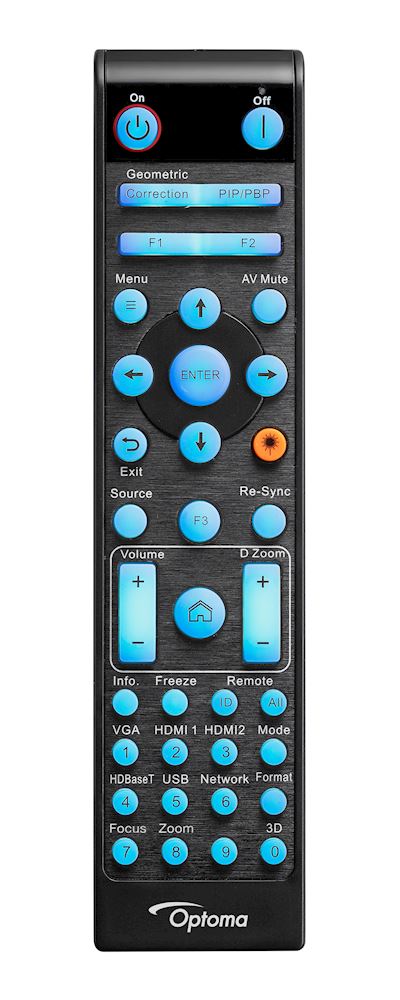

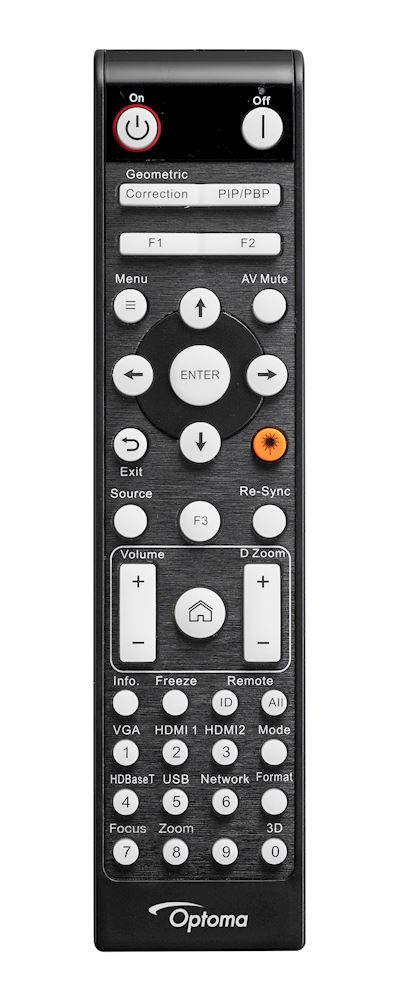

    Remote control
    Backlit ProAV remote
    Heat dissipation
    1,790BTU/hour
    Speaker count
    2
    Watts per speaker
    10W
    LAN
    Yes
    Power consumption (standby)
    0.5W
    Power consumption (min)
    320W
    Power consumption (max)
    510W
    Dimensions (W x D x H)
    19.06" x 14.8" x 7.03"
    Gross weight
    36.38 lbs
    Net weight
    28.44 lbs
