This product has been discontinued.
Home Page > Product > ZU506T-W

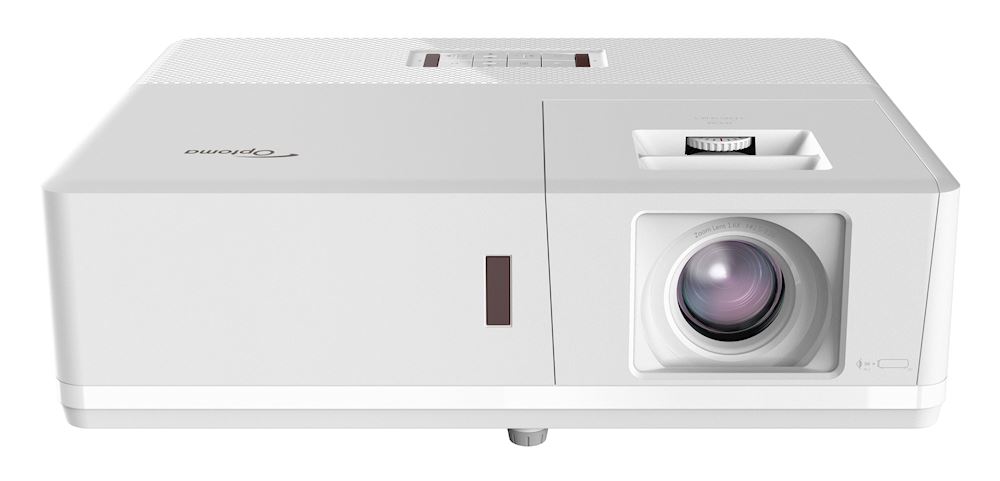

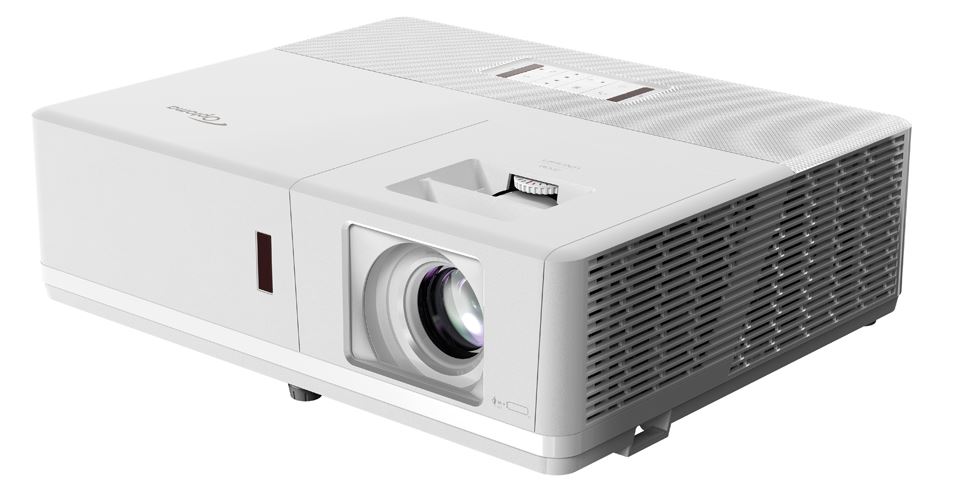

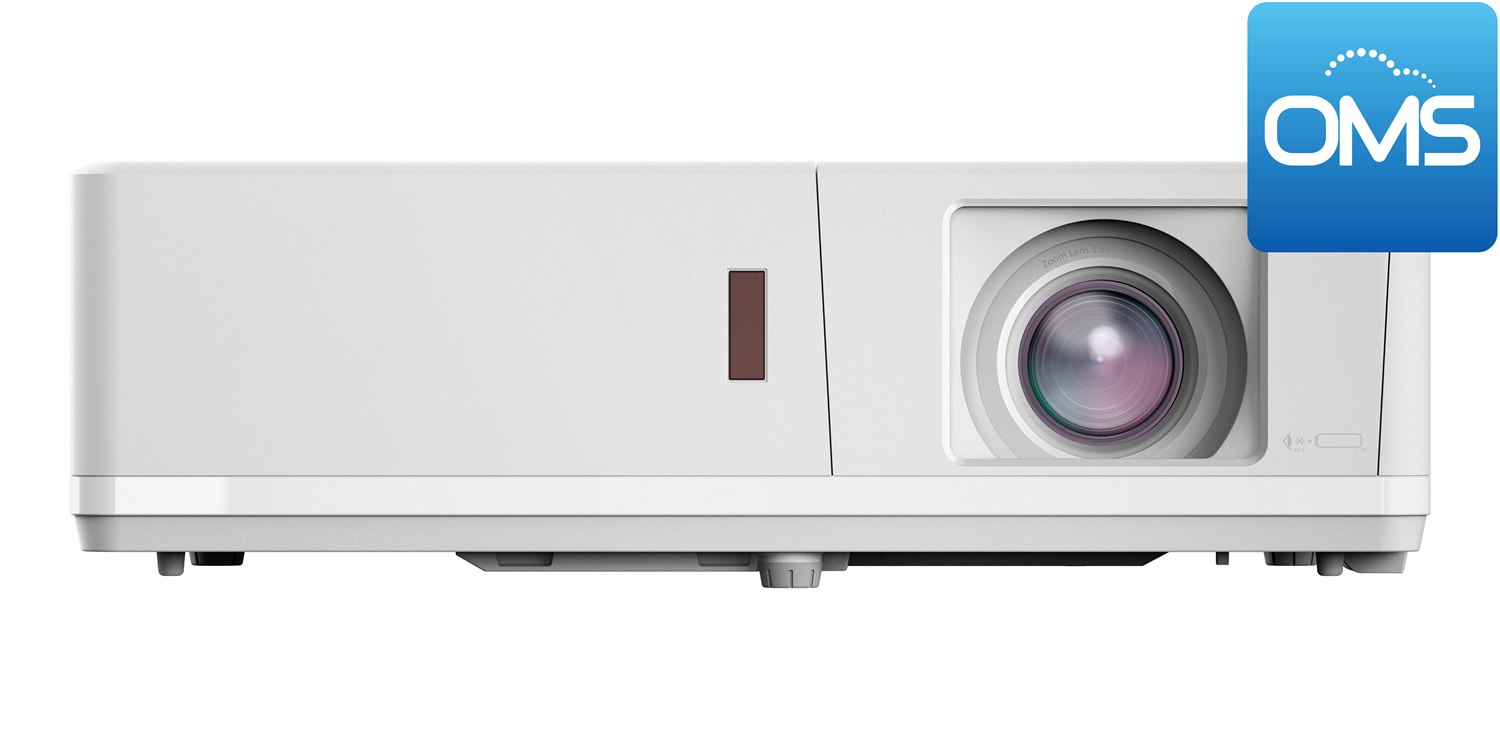

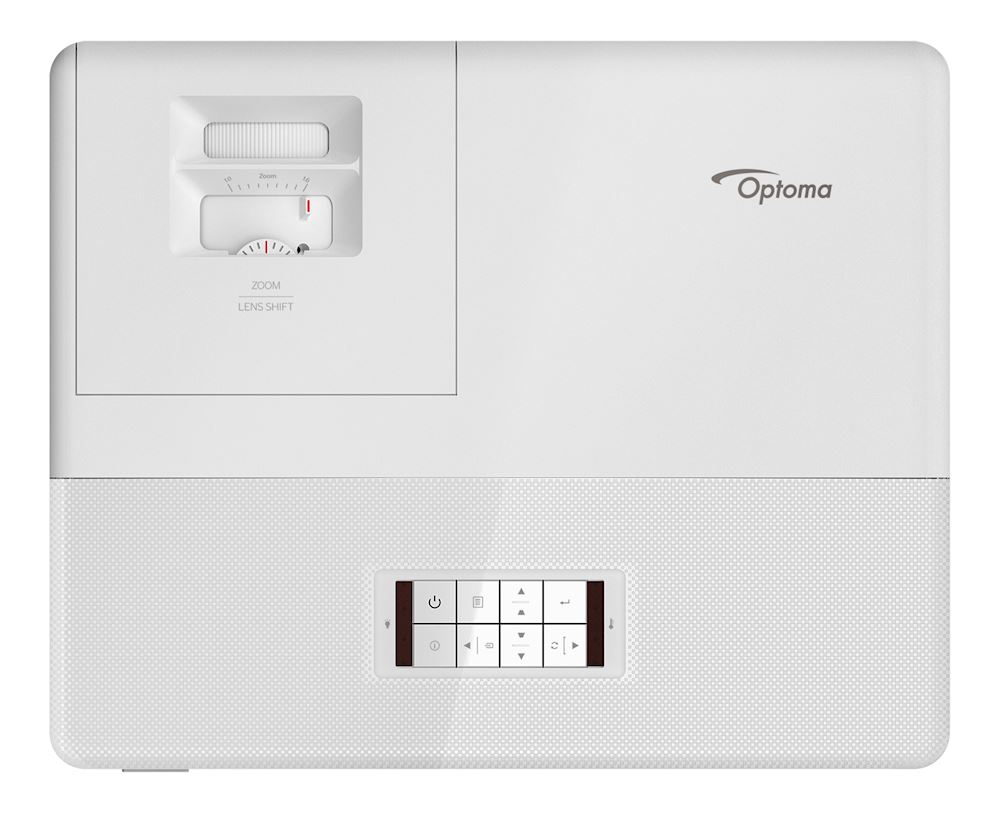

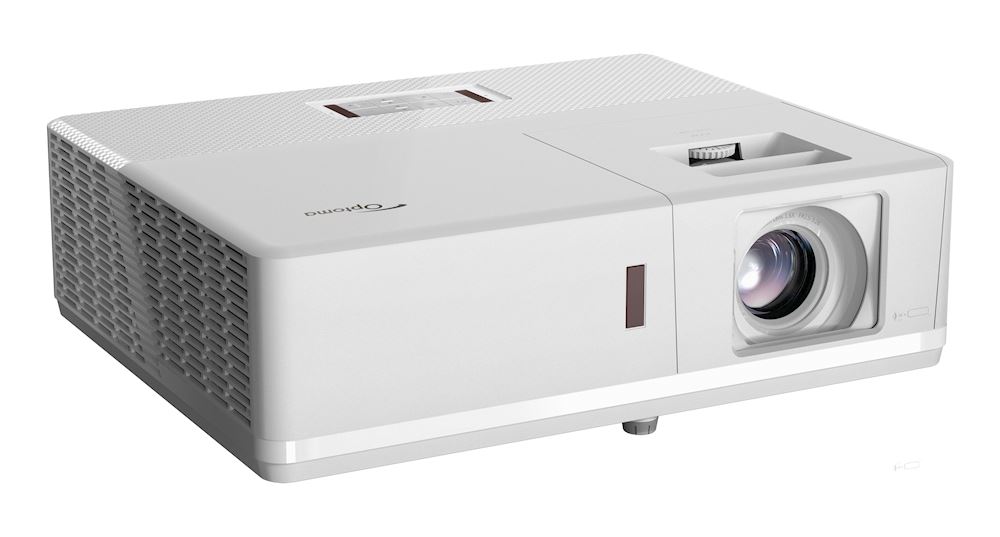

ZU506T-W

High brightness professional laser projector

Professional life like colours and a smaller lighter chassis than ever before. 4K and HDR compatible, the ZU506Te is a low maintenance projector with extremely long-life laser technology at an impressive 5000lms.
With 1.6 zoom, vertical lens-shift and built in 10W speakers, the ZU506Te is part of a range of products that come with the added control flexibility of HDbaseT and Crestron.
Suitable for a wide variety of applications, the ZU506Te (WUXGA) version is 16:10 native but can also display 16:09 at full HD 1080p making this unit perfect for large venues, education, museums, houses of worship and anywhere a clean bright image is required.

Features

Compatible Models
Specification
Display/image
Display technology
DLP®
Resolution
WUXGA (1920x1200)
Brightness
5,000 lumens
ANSI brightness
5,000
Contrast ratio
300,000:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-30°
Has vertical auto keystone correction
Yes
Displayable colors (millions)
1073.4
Horizontal scan rate
15.375 ~ 91.146 Khz
Vertical scan rate
50 ~ 85 Hz (120Hz for 3D)Hz
Uniformity
85%
Screen size
29.1" ~ 300" diagonal
Lamp info
Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
1.4:1 ~ 2.24:1
Projection distance
39.37" - 393.7"
Zoom
1.6
Zoom type
Manual
Focal length (mm)
20.91mm~32.62mm/0.823"~1.284"
Lens shift
Vertical -99 ~ 107%
Native offset
99%
Lens shift
Yes - see product downloads for more information

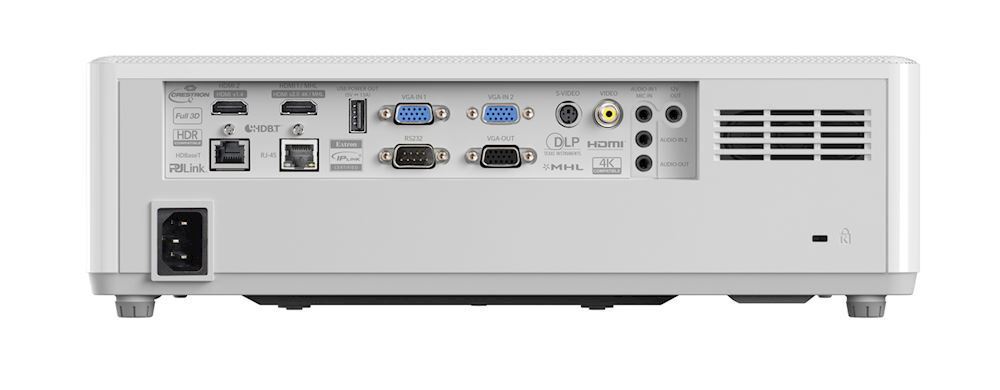

Connectivity
Connections
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 2 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Mic shared with audio-in, 2 x Audio 3.5mm, 1 x HDBaseT, 1 x S-VideoOutputs 1 x VGA, 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x 12V triggerControl 1 x RS232, 1 x RJ45
General
Noise level (min)
28dB
Noise level (max)
33dB
PC compatibility
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP5X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%

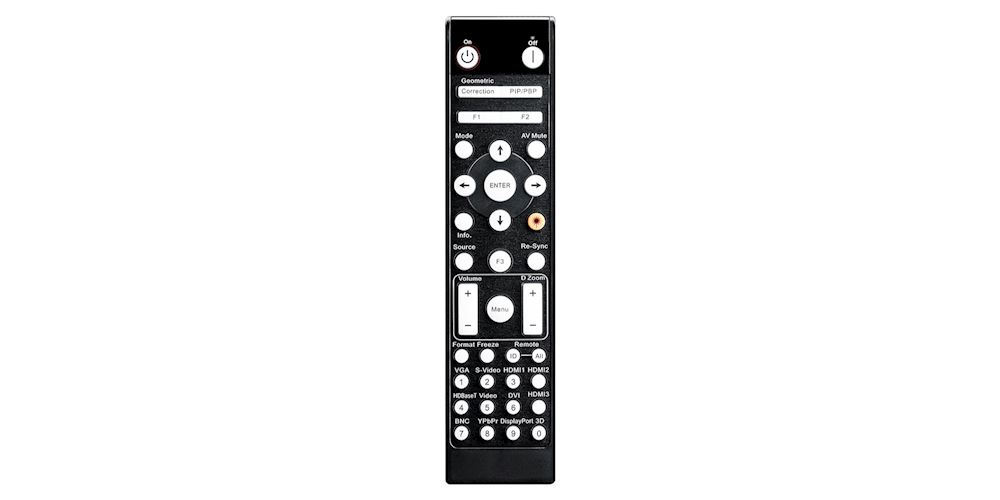

Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
10W
In the box
AC power cordRemote control2x AAA batteriesBasic user manual
Optional wireless models
HDCast Pro
Networking
LAN - control
Yes
Power
Power supply
100V ~ 240V, 50-60Hz
Power consumption (standby)
Power consumption (min)
190W
Power consumption (max)
341W
Weight and dimensions
Dimensions (W x D x H)
14.72" x 11.89" x 4.61"
Gross weight
17.2 lbs
Net weight
12.13 lbs
