This product has been discontinued.
Home Page > Product > ZH606-W

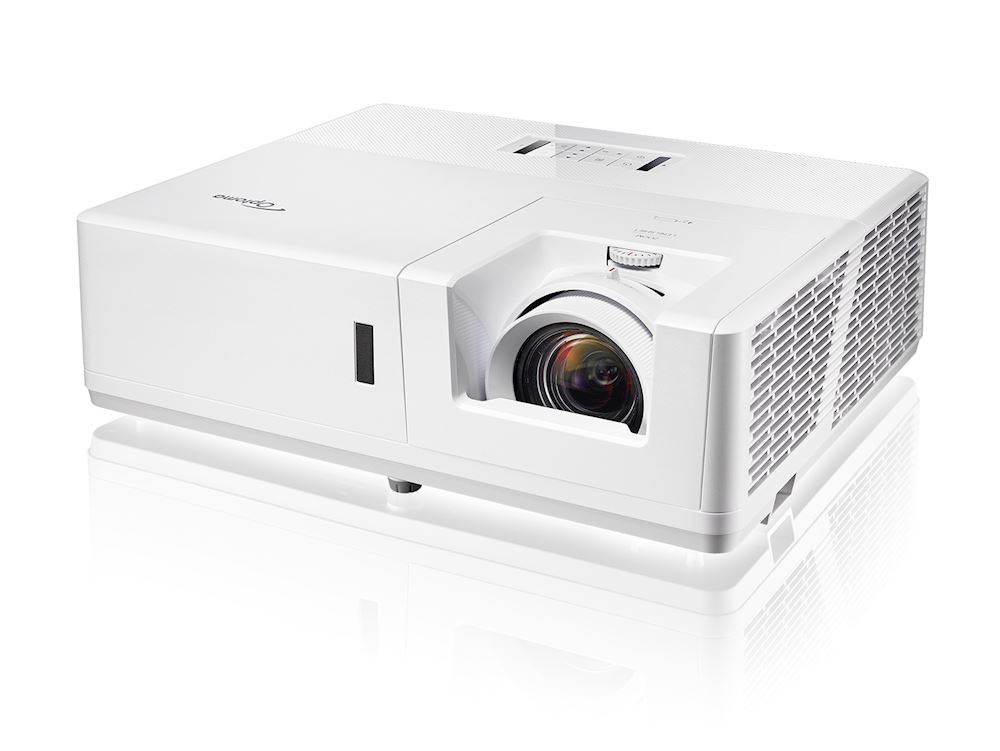

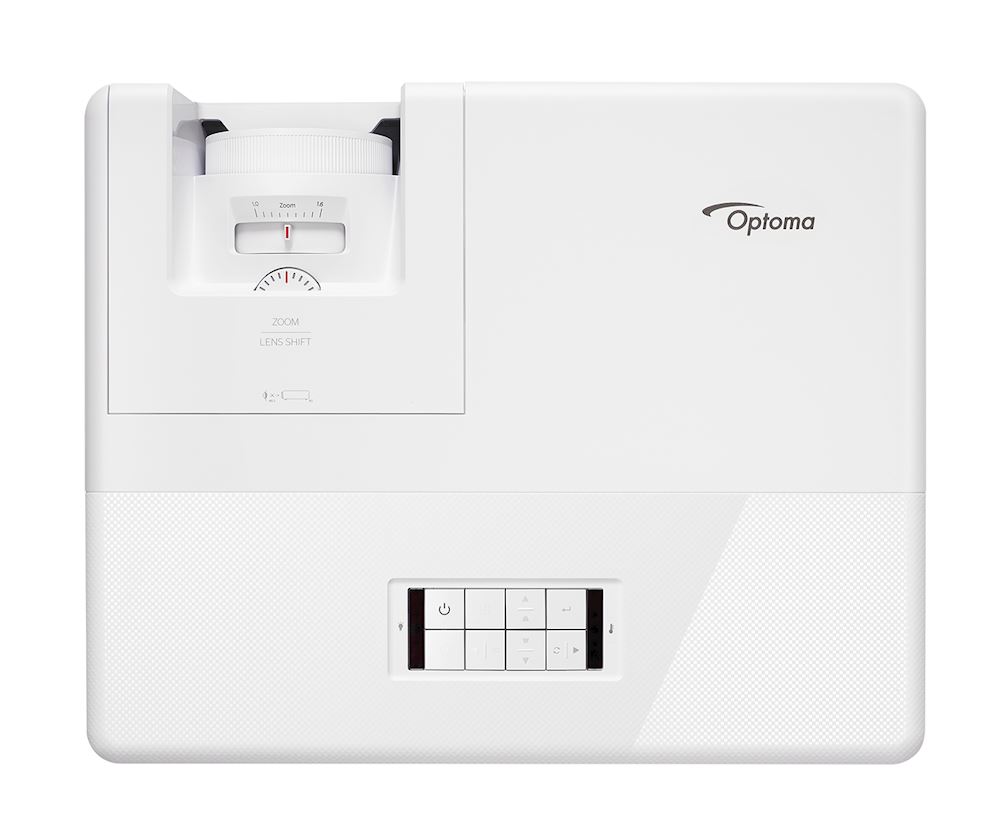

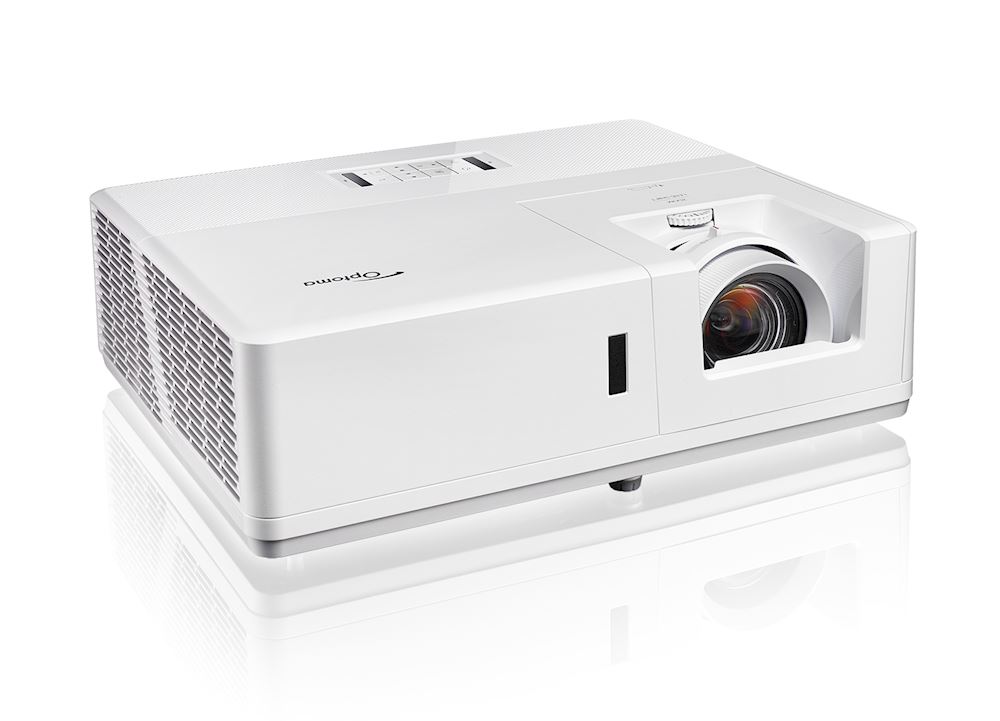

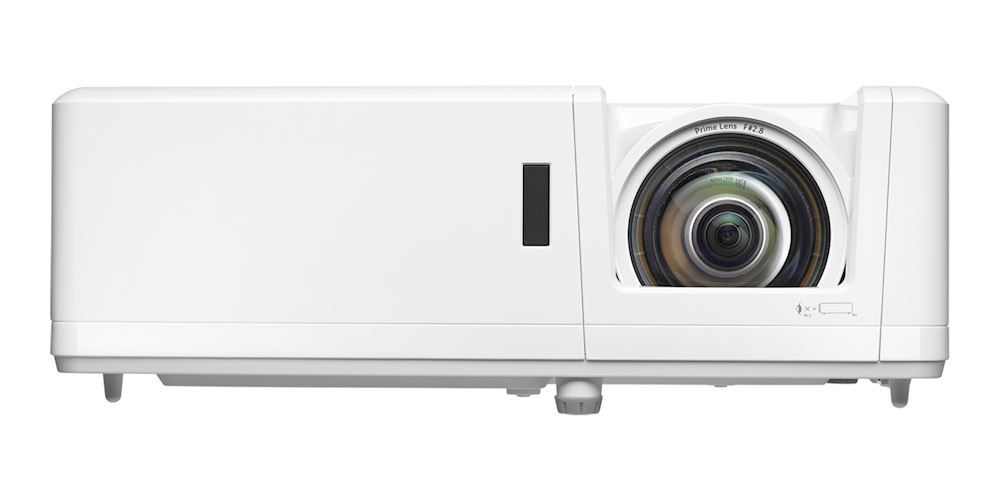

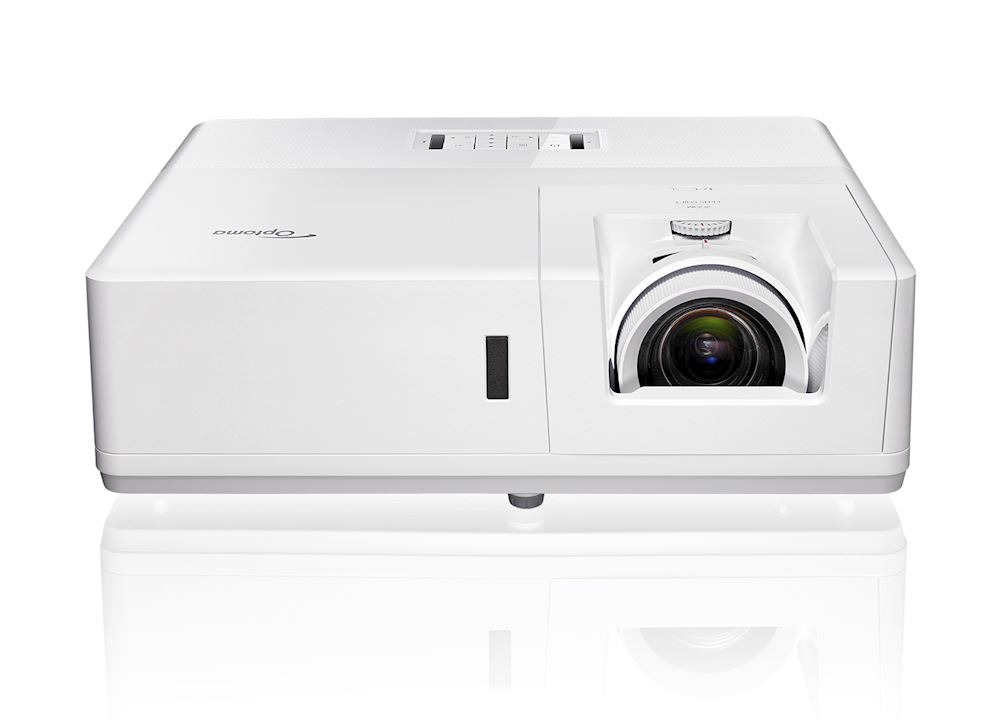

ZH606-W

High brightness professional laser projector

The ZH606e is the smallest projector in its class. At 6,000 lumens along with 4K and HDR compatibility, the ZH606e is a low maintenance projector with extremely long-life laser technology. It also includes vertical lens shift and built-in 10W speakers.

Suitable for a wide variety of applications, this unit is perfect for anywhere that requires a clean, bright image including large venues, classrooms, lecture theatres, museums and houses of worship.

The added control flexibility of LAN make this projector an affordable fit and forget solution.

Features

Specification
Display/image
Display technology
DLP®
Resolution
1080p Full HD (1920x1080)
Brightness
6,000 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-30°
Has vertical auto keystone correction
Yes
Displayable colors (millions)
1073.4
Horizontal scan rate
15.375~91.146 Khz
Vertical scan rate
24~ 85 Hz (120Hz for 3D)Hz
Uniformity
85%
Screen size
30.6" ~ 301.1" diagonal
Lamp info
Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
1.2:1 ~ 1.92:1
Projection distance
51.18" - 314.96"
Zoom
1.6
Zoom type
Manual
Focal length (mm)
17.63mm~27.9mm/0.694"~1.098"
Lens shift
Vertical -106 ~ 127%, Horizontal: +/-0%
Native offset
106%
Lens shift
Yes - see product downloads for more information
Connectivity
Connections

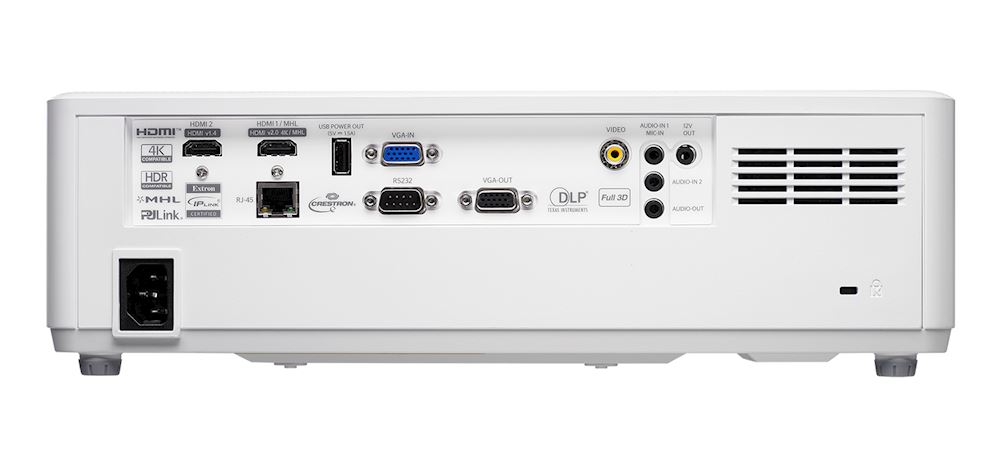

Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 2.0, 2 x VGA, 1 x Composite video, 1 x Mic 3.5mm, 1 x Audio 3.5mm, 1 x S-VideoOutputs 1 x VGA, 1 x USB-A power 1.5A, 1 x Audio 3.5mmControl 1 x RS232, 1 x 12V trigger, 1 x RJ45
LAN - wireless networking
No
General
Noise level (min)
32dB
Noise level (max)
34dB
PC compatibility
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 2160p(24/50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6x
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control
Backlit ProAV remote
Heat dissipation
1,589BTU/hour
Speaker count
2
Watts per speaker
10W
In the box
AC power cordRemote control2x AAA batteriesBasic user manual
Optional wireless models
HDCast Pro, QuickCast Bundle, QuickCast starter kit
Networking
LAN - control
Yes
LAN - wireless networking
No
LAN
Yes
Power
Power supply
100V ~ 240V ± 10%, 50-60Hz
Power consumption (standby)
Power consumption (min)
204W
Power consumption (max)
466W
Weight and dimensions
Dimensions (W x D x H)
14.72" x 11.89" x 4.61"
Gross weight
16.98 lbs
Net weight
12.35 lbs
