This product has been discontinued.

ZH606-B

High brightness professional laser projector

The ZH606-B is the smallest projector in its class. At 6,000 lumens along with 4K and HDR compatibility, the ZH606-B is a low maintenance projector with extremely long-life laser technology. It also includes vertical lens shift and built-in 10W speakers.

Suitable for a wide variety of applications, this unit is perfect for anywhere that requires a clean, bright image including large venues, classrooms, lecture theatres, museums and houses of worship.

The added control flexibility of LAN make this projector an affordable fit and forget solution.

Features

HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.

DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Integrated speaker

A built-in speaker offers excellent audio support and an easy setup without the need for costly external speakers

Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.

Laser technology

Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior color performance, instant on/off and an extraordinary life span of up to 30,000 hours.

MHL

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Superior contrast

Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

Auto keystone

Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.

*Auto keystone only adjusts the image in the vertical plane.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Integrated speaker

A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

AV mute

Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

*24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*

.

Have your projector in any color. Chose from any RAL color. Perfect for bespoke installations.
*Contact us for more information"

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.
Specification
Display/image
Display technology
DLP®
Resolution
1080p Full HD (1920x1080)
Brightness
6,000 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-30°
Has vertical auto keystone correction
Yes
Displayable colors (millions)
1073.4
Horizontal scan rate
15.375~91.146 Khz
Vertical scan rate
24~ 85 Hz (120Hz for 3D)Hz
Uniformity
85%
Screen size
30.6" ~ 301.1" diagonal
Lamp info
Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
1.2:1 ~ 1.92:1
Projection distance
51.18" - 314.96"
Zoom
1.6
Zoom type
Manual
Focal length (mm)
17.63mm~27.9mm/0.694"~1.098"
Lens shift
Vertical -106 ~ 127%, Horizontal: +/-0%
Native offset
106%
Lens shift
Yes - see product downloads for more information
Connectivity

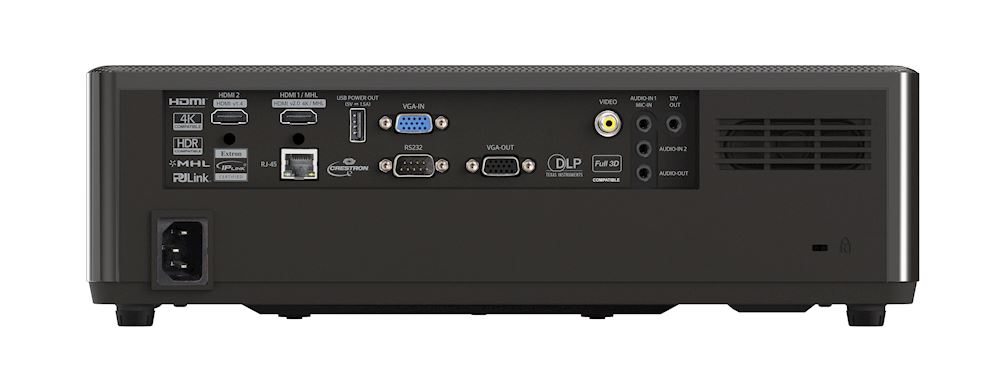

Connections
Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 2.0, 2 x VGA, 1 x Composite video, 1 x Mic 3.5mm, 1 x Audio 3.5mm, 1 x S-VideoOutputs 1 x VGA, 1 x USB-A power 1.5A, 1 x Audio 3.5mmControl 1 x RS232, 1 x 12V trigger, 1 x RJ45
LAN - wireless networking
No
General
Noise level (min)
32dB
Noise level (max)
34dB
PC compatibility
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 2160p(24/50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6x
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
Operating conditions
Sea Level to 10,000 feet (@23°C); manual switch to high altitude mode @5000 feet & above
Remote control
Backlit ProAV remote
Heat dissipation
1,589BTU/hour
Speaker count
2
Watts per speaker
10W
In the box
AC power cordRemote control2x AAA batteriesBasic user manual
Optional wireless models
HDCast Pro, QuickCast Bundle, QuickCast starter kit
Networking
LAN - control
Yes
LAN - wireless networking
No
LAN
Yes
Power
Power supply
100V ~ 240V ± 10%, 50-60Hz
Power consumption (standby)
Power consumption (min)
204W
Power consumption (max)
466W
Weight and dimensions
Dimensions (W x D x H)
14.72" x 11.89" x 4.61"
Gross weight
16.98 lbs
Net weight
12.35 lbs
