Home Page > Product > Projectors > ZH401e

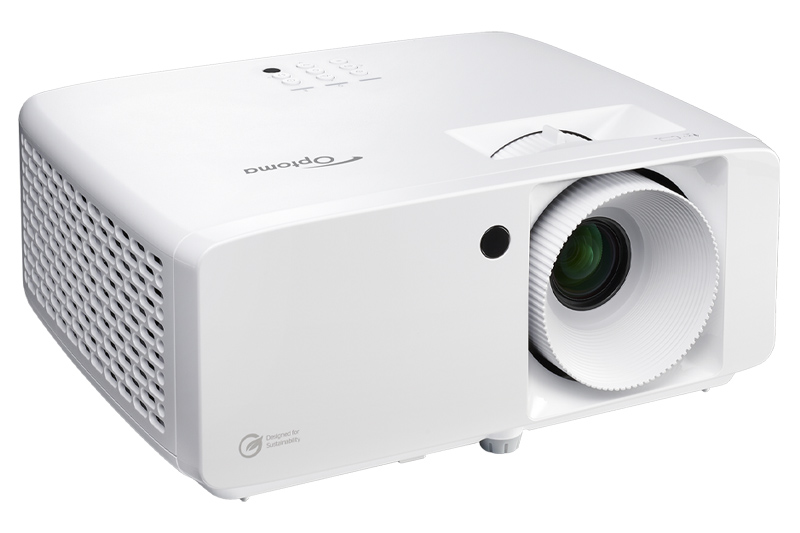

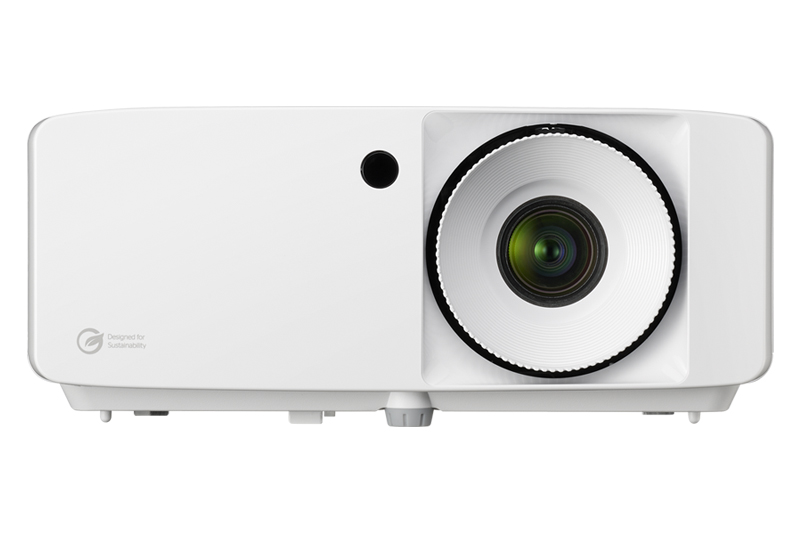

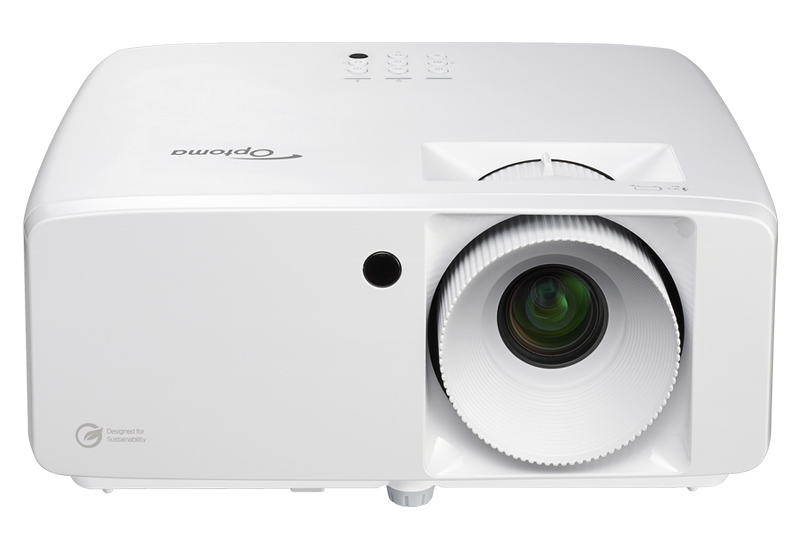

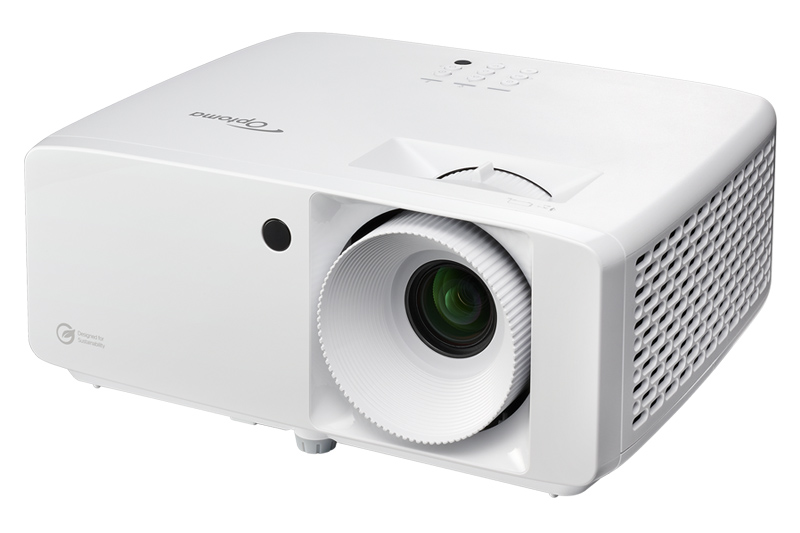

ZH401e

Cost effective high brightness 1080p Full HD laser projector

The ZH401e is a hassle-free 4500 lumen Full HD 1080p DuraCore laser projectors to date featuring 2xHDI 2.0, VGA-In, RJ-45, RS232, and more. Designed for maintenance-free continuous operation, it delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹

Geared for small to medium conference rooms, training rooms, small classrooms and general-purpose applications, the ZH401e features a 1.1x zoom for a flexible setup. For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.

When ZH401e RS45 is combined with Optoma's new SmartApp for Android and iOS, several features can be managed without the new for a PC. Power projector on and off, change volume, modify and set display modes, adjust keystone and four corner, and much more.

Features

Designed for the future

We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.

Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, logistics, and usage, to packaging.

Energy-saving technology

Reduces power consumption by up to 47% compared to lamp-based solutions.

Reduced carbon footprint

Compact products made with fewer materials to minimize logistical environmental impact.

Eco-friendly packaging

Packaging contains up to 97% recyclable materials.

Sustainable materials

Made from non-hazardous and recycled materials.

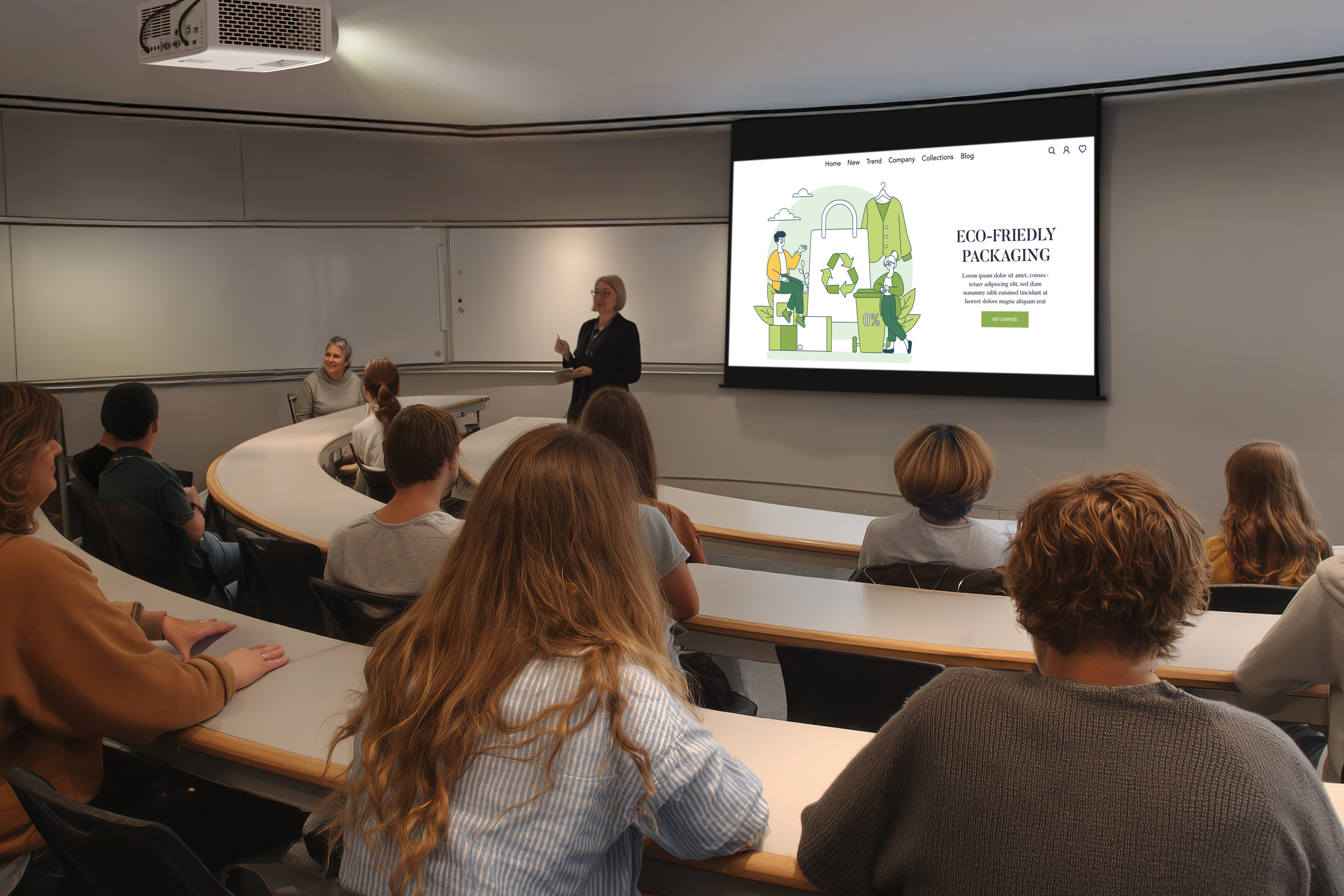

Lights on viewing

This versatile projector combines high brightness and vivid colors for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

*With no direct sunlight or lights directed on screen.

Laser technology

Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior color performance, instant on/off and an extraordinary life span of up to 30,000 hours.

Full HD 1080p

1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.

Amazing colors

Give powerful presentations and educational lessons with stunning colors. Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to meet your needs. Perfect for a wide range of graphic and video presentations.

Next generation display management

Peace of mind

Optoma Management Suite (OMS Local)™ encompasses all Optoma display solutions in a single location to serve as an interface for simultaneously managing, monitoring and diagnosing issues across them all. Whether it's multiple devices in a school, exhibition hall or office space, OMS local is perfect for keeping in control.

OMS™ Local also helps to alert users when a problem arises, and for an extra layer of readiness, institutions can also use this platform to set alerts and broadcast emergency announcements.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

360 projection*

With 360° projection,images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

*24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Integrated speaker

Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.
Specification
Display/image
Display technology
DLP®
Resolution
1080p Full HD (1920x1080)
Brightness
4,500 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - horizontal
+/-30°
Keystone correction - vertical
+/-30°
Displayable colors (millions)
1073.4
Horizontal scan rate
15 ~ 140Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
75%
Screen size
30.6"~153" diagonal
Light source type
Laser
LASER life
30,000 hours
Throw ratio
1.48:1 - 1:62:1
Projection distance
39.37" - 393.7"
Zoom
1.1x
Zoom type
Manual
Focal length (mm)
20.91 ~ 32.62
Native offset
116%
Connections
2xHDMI 2.0
VGA-In
Audio-In 3.5mm
Audio-Out 3.5mm
2xUSB-A (Power/WiFi Adapter)
RS232
RJ45
3D Sync
12V Trigger
Noise level (min)
29dB
Noise level (max)
35dB
PC compatibility
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m

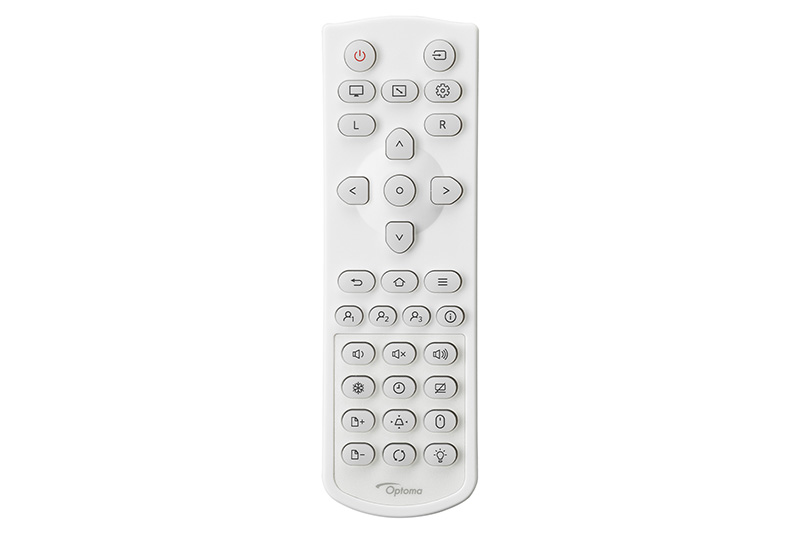

Remote control
Full Size Remote
Speaker count
1
Watts per speaker
15W
In the box
AC power cord
Remote control
2xAAA Batteries
Quick Start Guide
Power supply
External power supply, 100V ~ 240V, 50-60Hz
Power consumption (standby)
Power consumption (min)
120W
Power consumption (max)
170W
Dimensions (W x D x H)
10.79" x 8.5" x 4.49"
Gross weight
9.92lbs.
Net weight
6.25lbs
UPC
796435 44 835 6
Warranty
3 Year Projector parts and labor | 5-year or 12,000 hour light source
