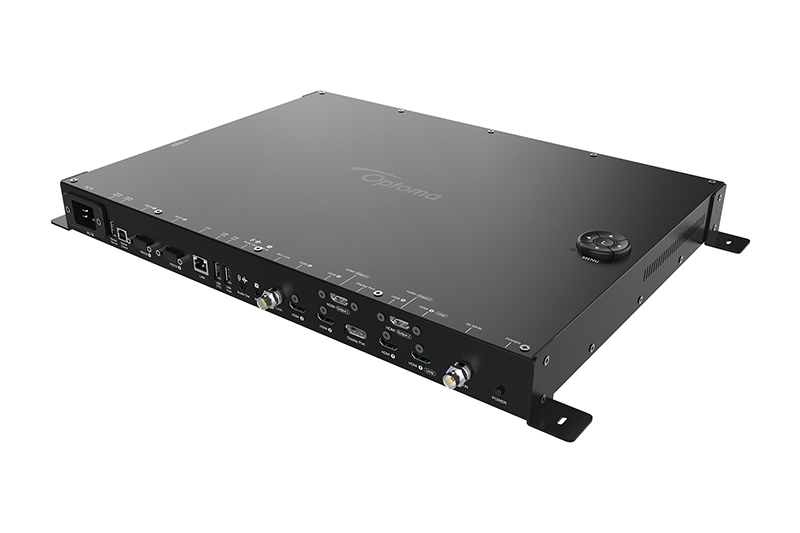

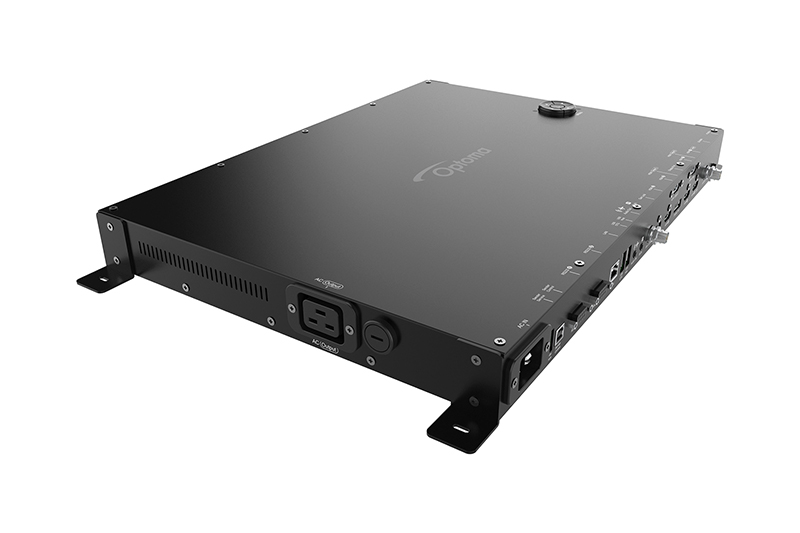

Optoma HQScene200

HQScene200

HQScene200: The dvLED controller that transforms how your space looks, runs, and meets.

Take Control of Every Display
The HQScene200 is Optoma's dedicated dvLED controller, engineered to maximize the performance of your ultra-wide display. From seamless multi-source tiling to 4K signal processing, it handles the complexity behind the scenes so your visuals never miss a beat.

Add HQScene200 to any Optoma dvLED solution and unlock the full potential of your space.
HQScene200

Features

Ultra-Wide Options

Combine two displays into one seamless, panoramic canvas. HQScene200's tiling technology enables expandable configurations that elevate any environment, from boardrooms to broadcast studios.

Smooth 4K Processing

Feed it 4K. Get flawless 1080p output. HQScene200 accepts 4K input and delivers crisp, high-clarity visuals scaled precisely for your display.

Effortless Control for Every Application

Powered by OSS and OMS Cloud, HQScene200 gives IT and AV teams centralized management across rooms, sites, and display configurations, all from a single interface.

Smarter Meetings with MTR

Built for Microsoft Teams Rooms. The 32:9 ultra-wide integration brings participants, content, and chat into one unified view, with flexible layouts and Front Row Mode for truly inclusive meetings.

MTR solution not included and must be purchased separately.
Specification
System
CPU
NXP i.MX8M Cortex®-A53, 1.5GHz
RAM
4G LPDDR4-1866Hz
Storage
32G eMMC
Power Supply
100-240 VAC, 50/60Hz Power
Power Consumption (Standby)
Power Consumption (Typ.)
Operating Conditions
Operating temperature: 0C to 40C (ambient 25C) and 5% to 95% non-condensing humidity

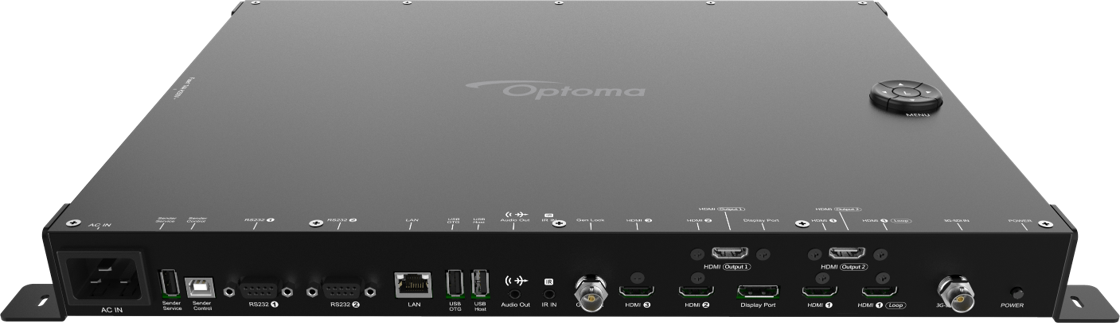

Inputs
3 x HDMI (2.0), 1 x Display Port (1.2a), 1 x 3G-SDI
Outputs
2 x HDMI out (2.0), 1 x HDMI loop-out (2.0), 1 x Audio-out (3.5mm)
Control
1 x RJ45(Ethernet), 2 x RS232, 1 x IR input (3.5mm), 1 x Genlock (BNC), 1 x USB-A (2.0), 1 x USB-A (3.0), 2 x Service
Split screeb
PIP/PBP
4K scaling
Yes
Tiling Function
Multi-source window display
Remote Management and Control
Yes
Dimensions (L x W x H)
14.25" x 17.4" x 1.97"
Weight
10.14 lbs
UPC
796435 09 204 7
