This product has been discontinued.

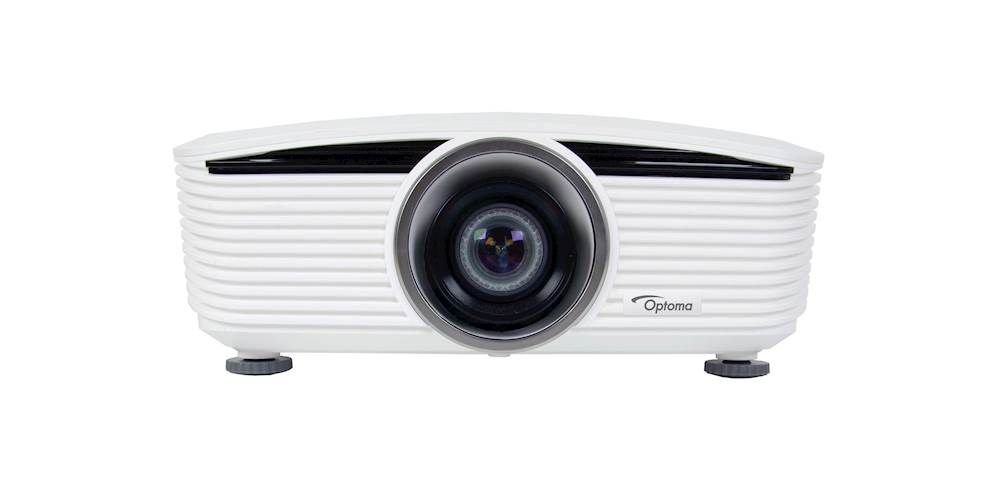

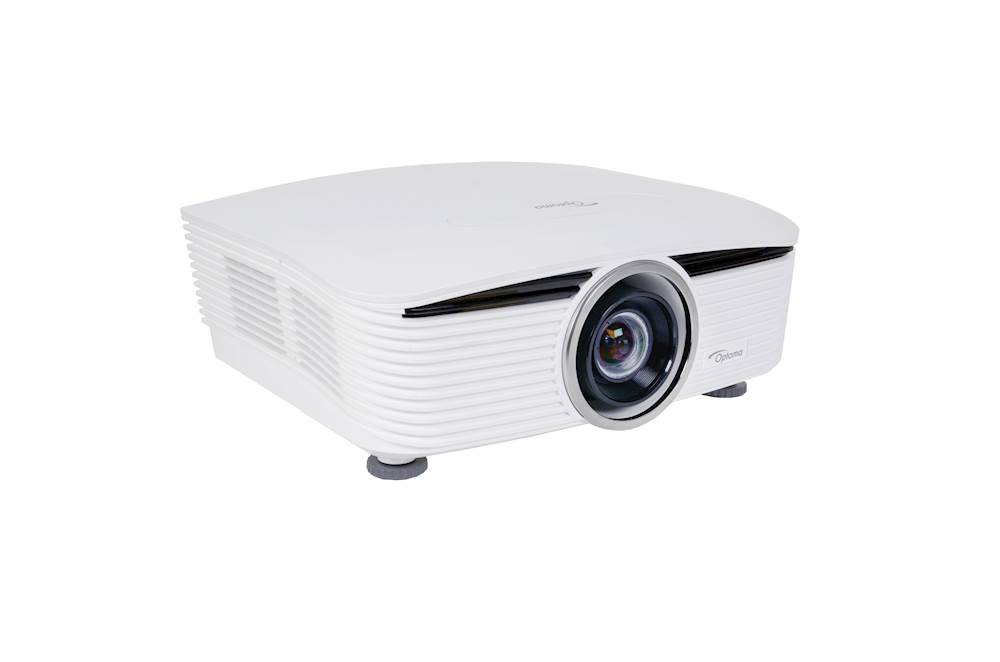

EH505e

Spectacular image quality, outstanding brightness and ultimate reliability

The EH505e is a product designed exclusively for demanding professional applications.

WUXGA and 5000 lumens delivers bright crystal clear images with ultimate reliability, while 24/7 operation ensures that this is a projector on which you can rely.

The dust-sealed, filter free design prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance.

Full lens shift combined with the multiple lens options provide installation flexibility for simple, trouble free installations

Features

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

Amazing color

Optoma projectors provide reliable color performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

AV mute

Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.

.

Have your projector in any color. Chose from any RAL color. Perfect for bespoke installations.
*Contact us for more information"

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Full lens shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

*24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*
Specification
Display/image
Display technology
DLP®
Resolution
WUXGA (1920x1200)
Brightness
5,000 lumens
Contrast ratio
2,000:1
Native aspect ratio
16:10
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - vertical
+/-30°
Horizontal scan rate
15.375 ~ 91.146 Khz
Vertical scan rate
24 ~ 85 (120Hz for 3D)Hz
Uniformity
85%
Screen size
Dependent on lens
Lamp info
Light source type
Lamp
Lamp watts
365
Lamp life hours (up to)
3000 (Bright), 4000 (Eco)
Optical
Throw ratio
Dependent on lens
Projection distance
Dependent on lens
Lens shift
Vertical +50%, Horizontal: +/-10%
Lens options
Short: 0.8:1 (Fixed)Semi Short: 1.14 ~ 1.35 (1.18x zoom)Standard: 1.6 ~ 2.0:1 (1.25x zoom)Long: 2.0 ~ 3.0:1 (1.5x zoom)Extra Long: 3.11 ~ 5.18 (1.67x zoom)
Connectivity

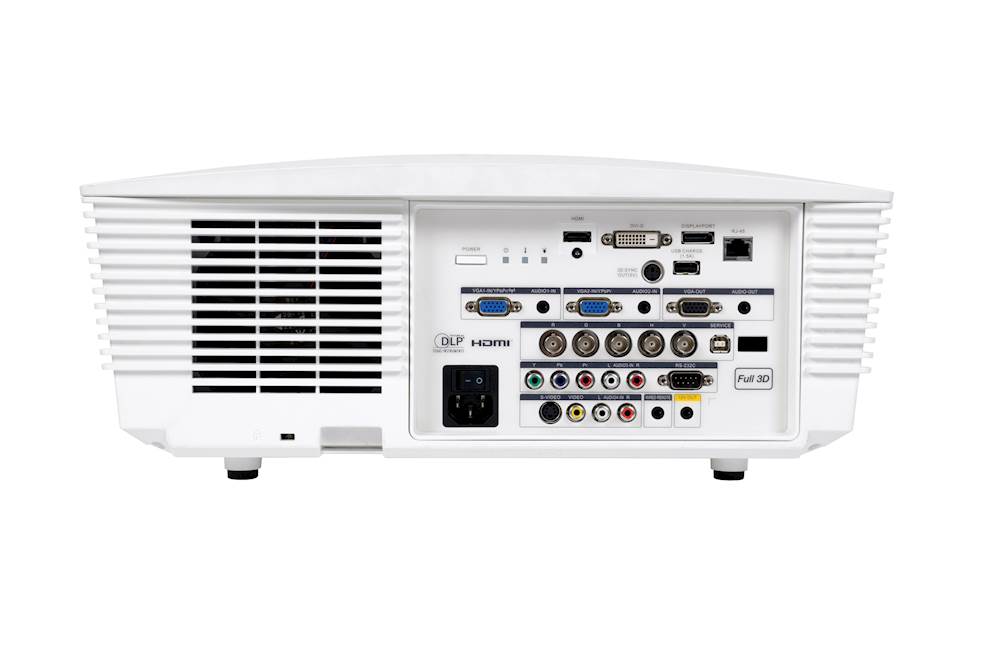

Connections
Inputs 1 x DVI-D, 1 x VGA (YPbPr/RGB), 1 x HDMI, 1 x Component, 1 x BNC, 1 x Composite video, 1 x S-Video, 1 x DisplayPort, 1 x Audio RCA L&R, 1 x Audio 3.5mmOutputs 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm, 1 x 3D sync, 1 x USB-A power 1.5AControl 1 x 12V trigger, 1 x RS232, 1 x Wired remote, 1 x USB-B service, 1 x RJ45
General
Noise level (min)
34dB
Noise level (max)
40dB
PC compatibility
HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
2D compatibility
PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%
Remote control
Wired backlit PRO AV remote
Heat dissipation
1,400BTU/hour
In the box
1.8m AC power cord, VGA cable, Batteries for remote, UM CD, Quick start card, Warranty card, WEEE card (For EMEA region only)
Optional wireless models
QuickCast Bundle, QuickCast starter kit, WHD200
Networking
LAN - control
Yes
LAN
Yes
Power
Power supply
100V ~ 240V, 50 ~ 60Hz
Power consumption (standby)
0.5W
Power consumption (min)
370W
Power consumption (max)
480W
Weight and dimensions
Dimensions (W x D x H)
16.93" x 13.39" x 7.2"
Gross weight
20.94 lbs
Net weight
18.96 lbs
