Home Page > Product > Accessories > Optional lenses > BX-CTA12

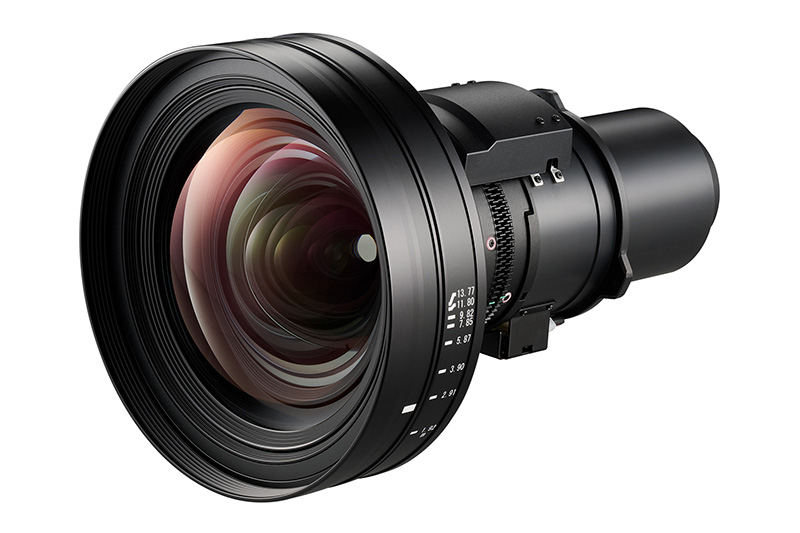

BX-CTA12

Motorized Semi Short Throw Lens with Zoom

The BX-CTA12 short throw lens is ideal for immersive installations including dome projection and high-performance golf simulation. Full lens memory saves and quickly recalls Zoom, Focus, and Lens shift positions. Produce images in sizes from 50" up to 1000".

Designed for use with Optoma ZK1320 and ZK1120 4K UHD+ projectors, as well as ZU2200, ZU1900, and ZU1700 Ultra Bright WUXGA projectors.

Features

Specification
General
Net weight
6.61 lbs
Gross weight
8.16 lbs
UPC
796435 07 151 6
Lens
Throw ratio (ZK1320/ZK1120)
0.9 ~ 1.3:1
Throw ratio (UB Series WUXGA)
0.75 ~ 1.08:1
Min throw distance (feet)
3.18
Max throw distance (feet)
45.93
f-stop (min)
2.22
f-stop (max)
2.51
Focal length (mm)
15.9 ~ 22.8
Min screen size (inches)
50
Max screen size (inches)
500 (Mechanical limit ~1,000)
Zoom type
Motorized
Zoom
1.44
Motorised lens
Yes
